Creative Sound Blaster 16 MCD CSP (CT1750)
Logs
typeType
Sound CD-ROM interface
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
fccFCC ID
IBACT-SB16MCD
chip Chips and specs
-> Audio
Creative CT1745A (Stereo mixer) Creative CT1748A (CSP/ASP) Creative CT1746B (Bus interface) Yamaha YAC512 (2-Channel Floating DAC) AKM (Asahi Kasei) AK4501 (Stereo ADC/DAC) STMicroelectronics / Inmos TEA2025 (Audio Amplifier) Yamaha YMF262 (OPL3)
-> Miscellaneous
Mitsumi CR623803 (CD-ROM ctrl.)
-> Processor
Intel 8052 (Microcontroller)
portintI/O ports
2x
  • 3.5mm TRS jack
1x
  • 3.5mm TRS jack
1x
  • 1x4 2.50mm pin header
1x
  • DA-15
1x
  • 2x20 2.54mm pin header
1x
  • 2x1 2.54mm pin header
1x
  • 2x20 2.54mm pin header
1x
  • 2x17 2.54mm pin header
1x
  • 2x13 2.54mm pin header
powerPower connectors
Empty
wrench Known issues
  • Hanging note bug in Creative Soundblaster 16/AWE32

Hanging note bug is a known hardware bug on certain models of the Creative Sound Blaster 16 and Sound Blaster AWE32 series of sound cards. The bug only occurs when affected cards are utilized for digital sound effects and MIDI music simultaneously, but it happens on any MIDI device regardless if connected to the internal Wave Blaster connector or externally through the game port.

Affected are all Sound Blaster models with DSP revisions 4.11, 4.12 and 4.13.

notes Notes

Cards with DSP version 4.05 or earlier doesn't suffer from the infamous hanging note bug

Last updated 2026-01-09T13:54:04Z
biosc No BIOS files available
drv No drivers available
doc 1 card document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2012-10-01
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2014
File
Logs
Chip
Release date
1994-04
File
Logs
Chip
Release date
1994-11
File
Logs

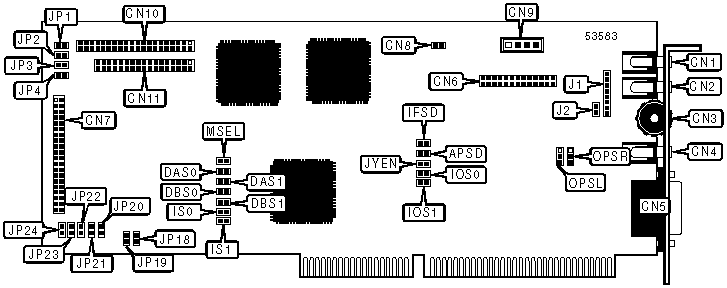

image1 Image 1 of 4 (Microhouse)
image2 Image 2 of 4 (Yargoro)

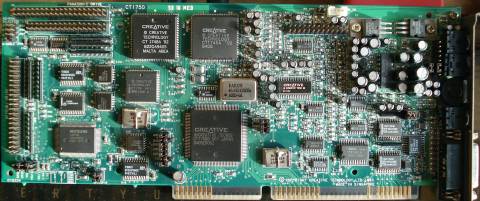

image3 Image 3 of 4 (Retronn aka Enigma)
image4 Image 4 of 4 (Yargoro)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
