Creative Phone Blaster 288 (CT3111)
Logs
typeType
Sound IDE controller Modem
interfaceInterface
signalSignaling
16-bit ISA 8-bit ISA
datePCI ID
Empty
fccFCC ID
IBACT-PBROSM
chip Chips and specs
-> Audio
Yamaha YAC512 (2-Channel Floating DAC) Creative CT2501 (Vibra 16) STMicroelectronics / Inmos TEA2025 (Audio Amplifier) Yamaha YMF262 (OPL3)
-> Modem
Rockwell R6674-16 (RCFSP)
tag Also known as
portintI/O ports
2x
  • 3.5mm TRS jack
1x
  • 3.5mm TRS jack
1x
  • 1x4 2.54mm pin header
1x
  • 1x4 2.50mm pin header
1x
  • DA-15
1x
  • 2x20 2.54mm pin header
1x
  • 2x1 2.54mm pin header
1x
  • RJ11
1x
  • 2x13 2.54mm pin header
powerPower connectors
Empty
Last updated 2025-04-22T17:33:15Z
biosc No BIOS files available
drv 2 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.12.000
OS support
Windows 9x
Arch
x86
Size
841.8KB
Filename
Name
Version
N/A
OS support
Windows 3.1x Windows 9x Windows NT 3.5x Windows NT 4.0
Arch
x86
Size
14.6MB
Filename
doc No card documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2012-10-01
File
Logs
Chip
Release date
2014
File
Logs
Chip
Release date
1994-04
File
Logs
Chip
Release date
1994-11
File
Logs

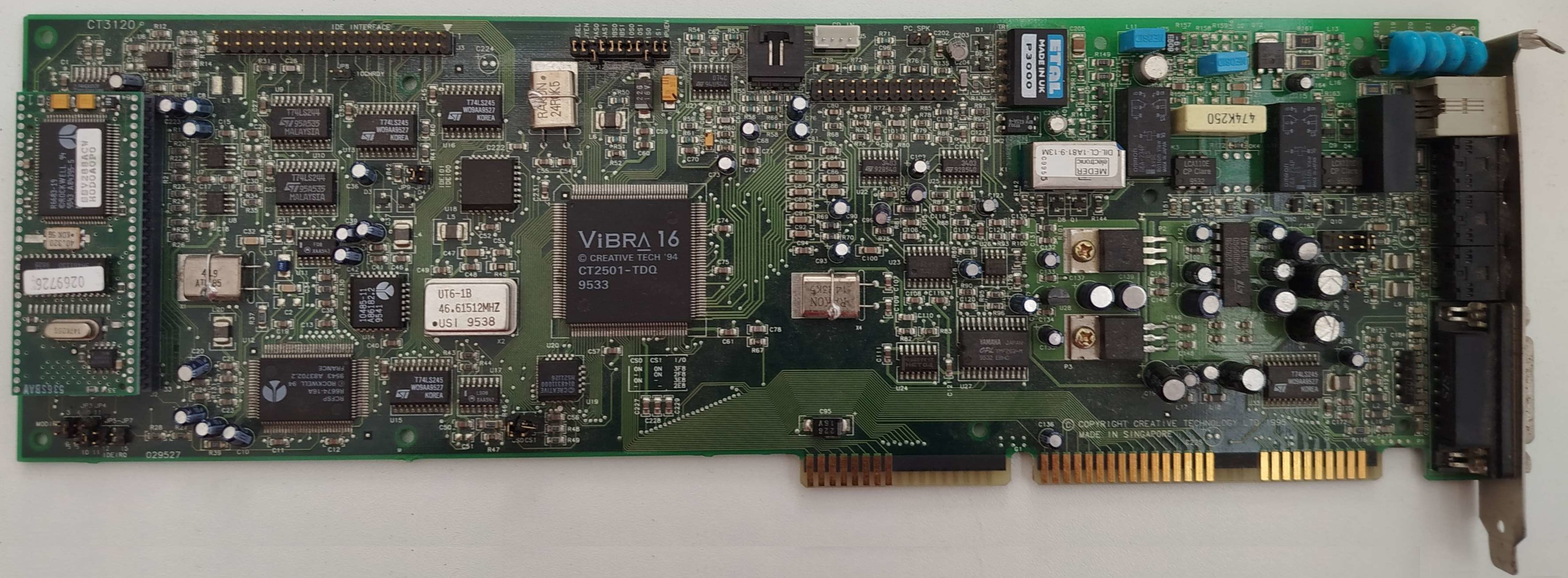

image1 Image 1 of 3 (CircusCat)

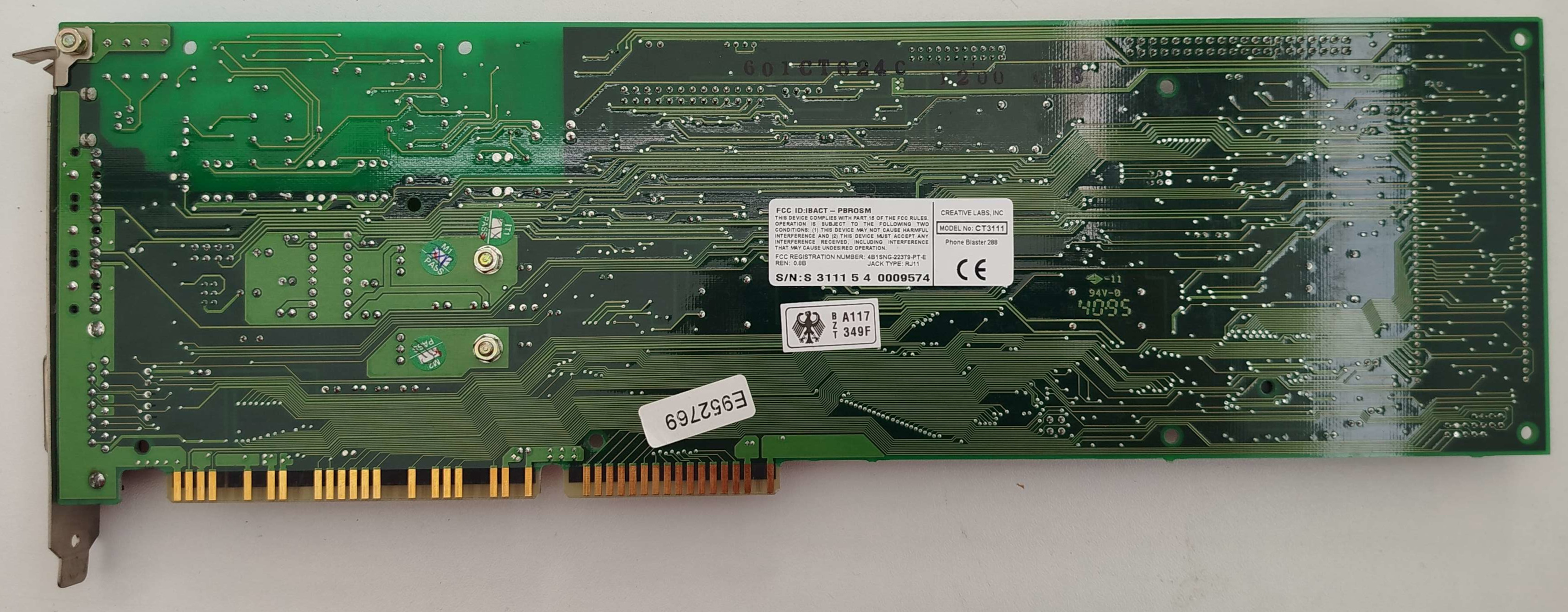

image2 Image 2 of 3 (CircusCat)

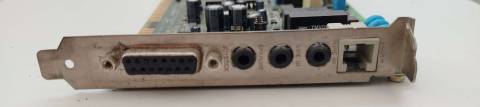

image3 Image 3 of 3 (CircusCat)
