Creative CT4700 Sound Blaster PCI 128
Logs
typeType
Sound
interfaceInterface
signalSignaling
32-bit PCI
datePCI ID
Empty
chip Chips and specs
-> Audio
Creative 5507 Philips TDA7360 (22W bridge amplifier) AKM (Asahi Kasei) AK4531 (Multi-ch CODEC)
portintI/O ports
2x
  • 3.5mm TRS jack
2x
  • 3.5mm TRS jack
2x
  • 1x4 2.54mm pin header
1x
  • DA-15
1x
  • 1x4 2.54mm pin header
powerPower connectors
Empty
notes Notes

This was wrongly listed as an alias for the S3300 card

Last updated 2025-05-25T16:04:09Z
biosc No BIOS files available
drv No drivers available
doc No card documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

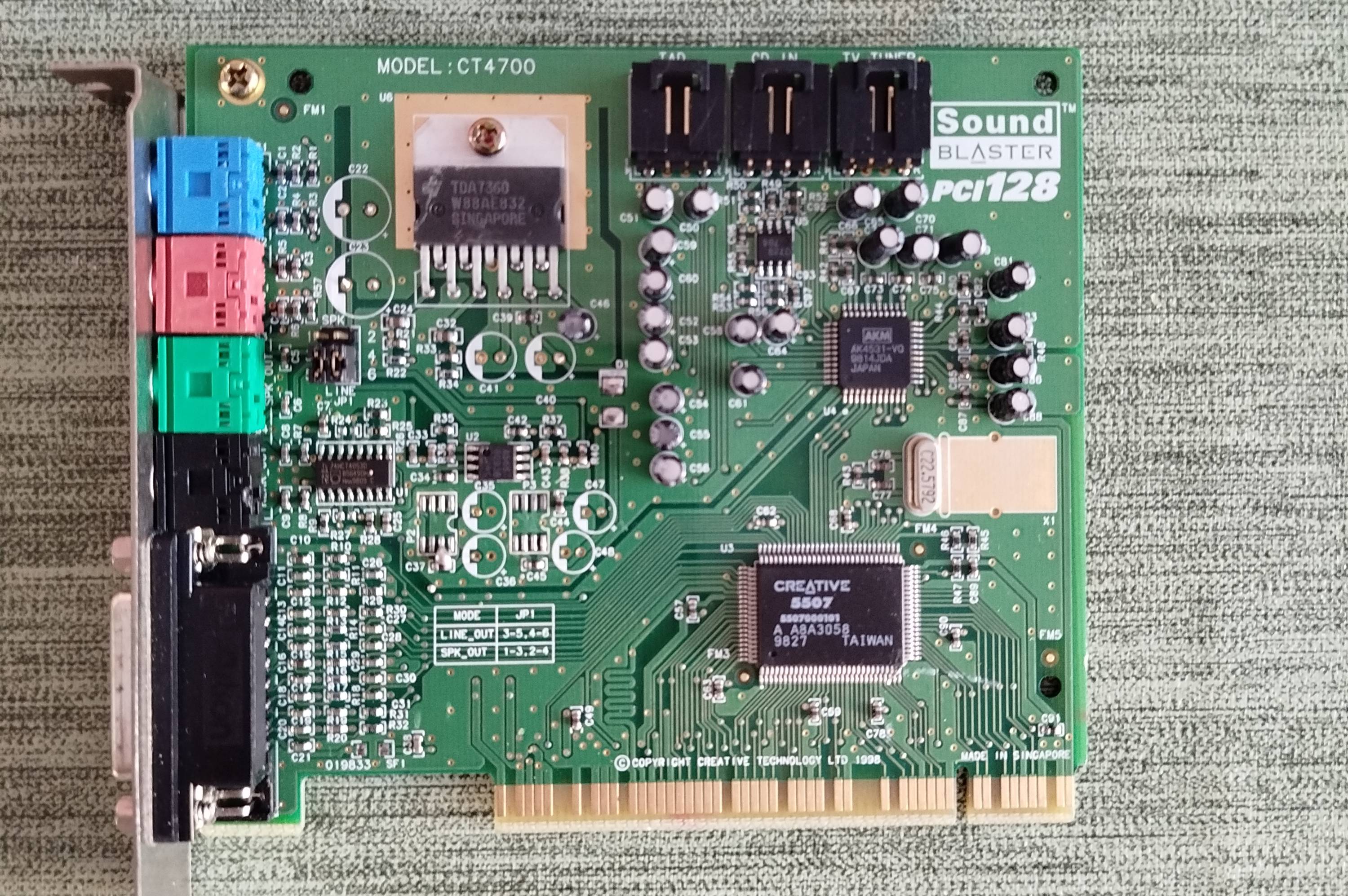

image1 Image 1 of 3 (Hattix)

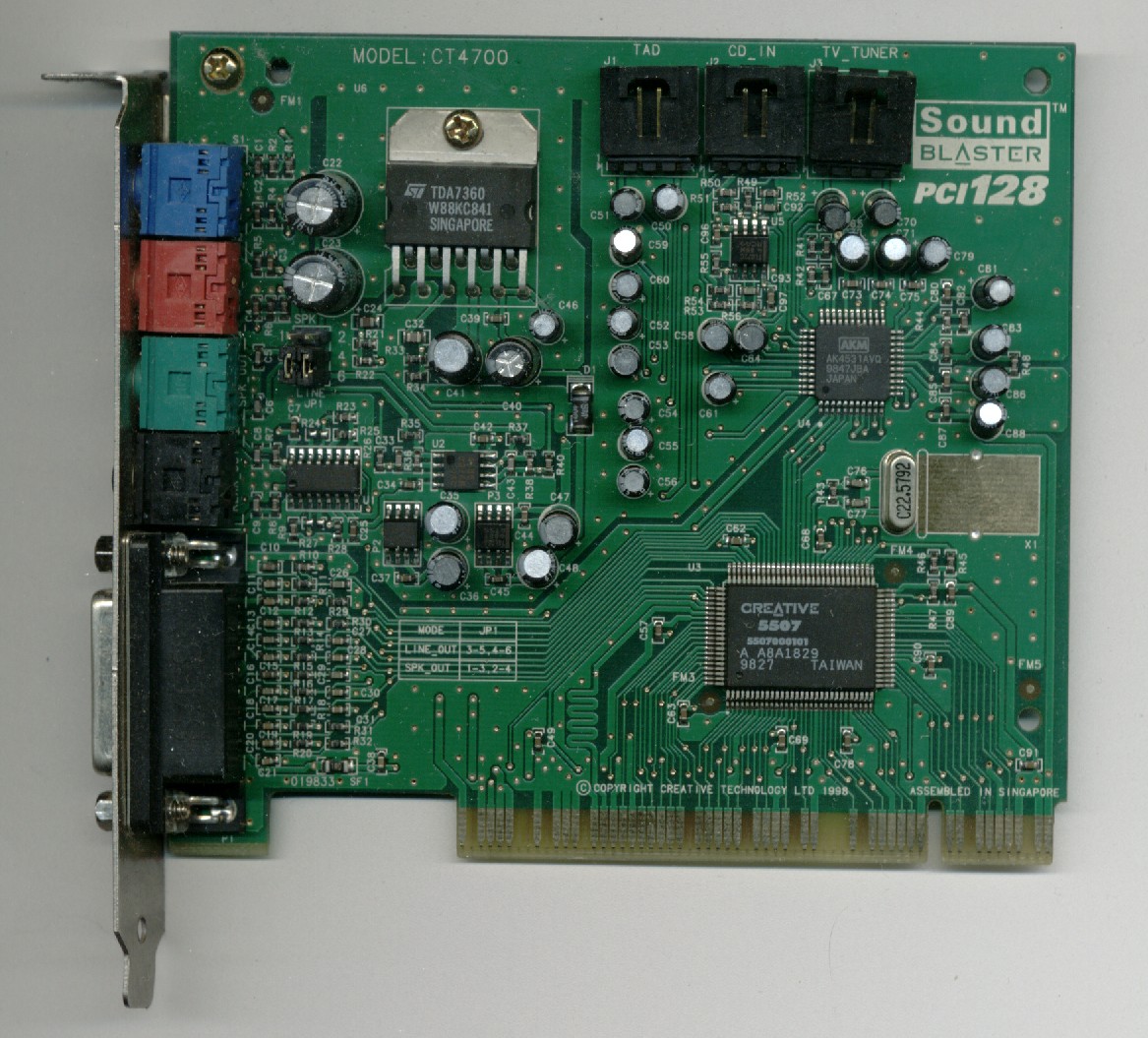

image2 Image 2 of 3 (CircusCat)

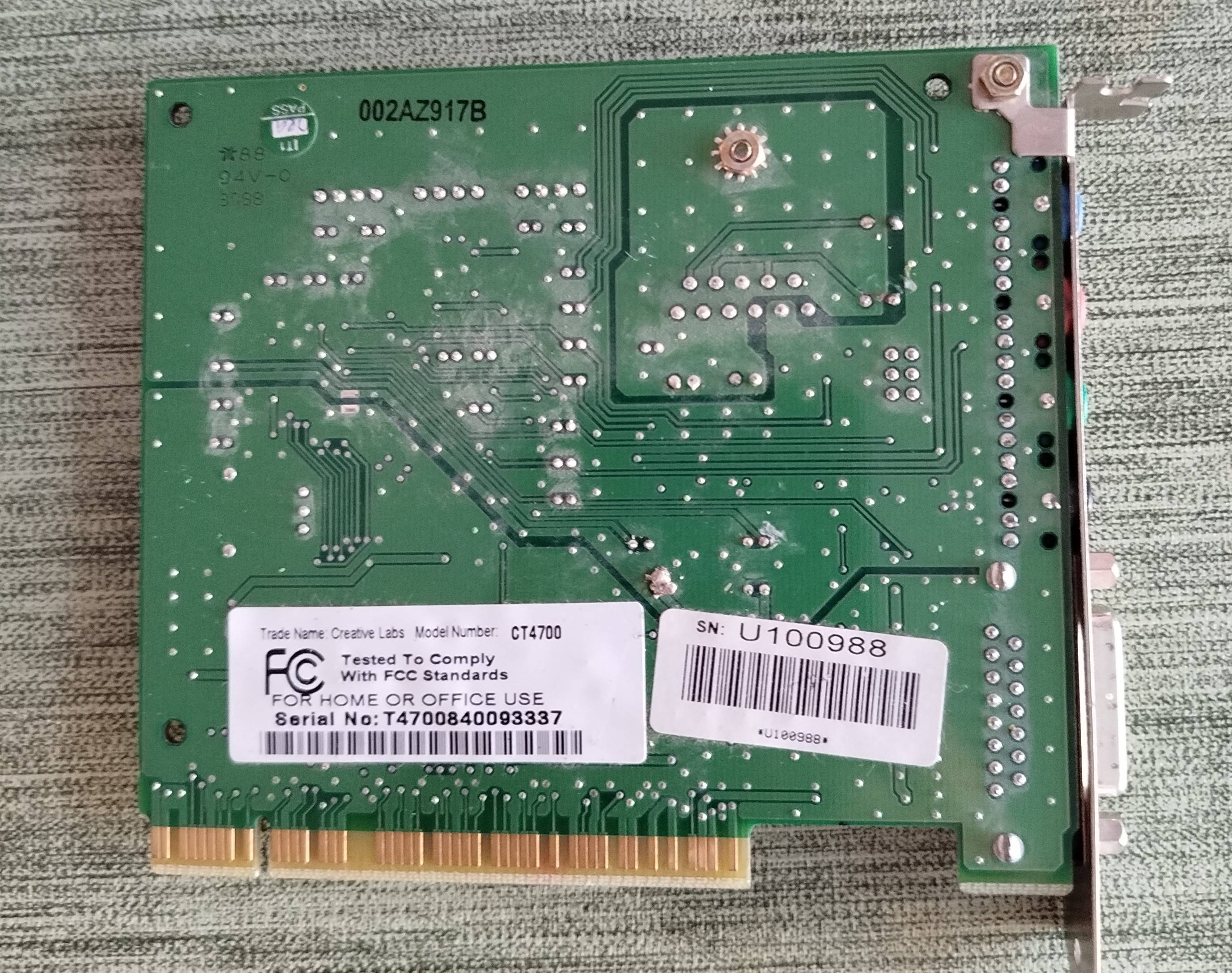

image3 Image 3 of 3 (CircusCat)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
