Compaq VDU Controller (LP3)
Logs
typeType
Video
interfaceInterface
signalSignaling
8-bit ISA
dimSlot height
1
datePCI ID
Empty
ramRAM type
DRAM
chip Chips and specs
-> Video
Hitachi HD46505 (CRT Controller)
tag Also known as
portintI/O ports
1x
  • RCA Jack
1x
  • DE-9
powerPower connectors
Empty
notes Notes

The other chip is a NEC one, probably a programmable gate array.

Last updated 2025-07-30T19:33:57Z
bios 1 card BIOS file available
Version
Note
File
Logs
Version
Note
Compaq
File
Logs
drv No drivers available
doc No card documents available

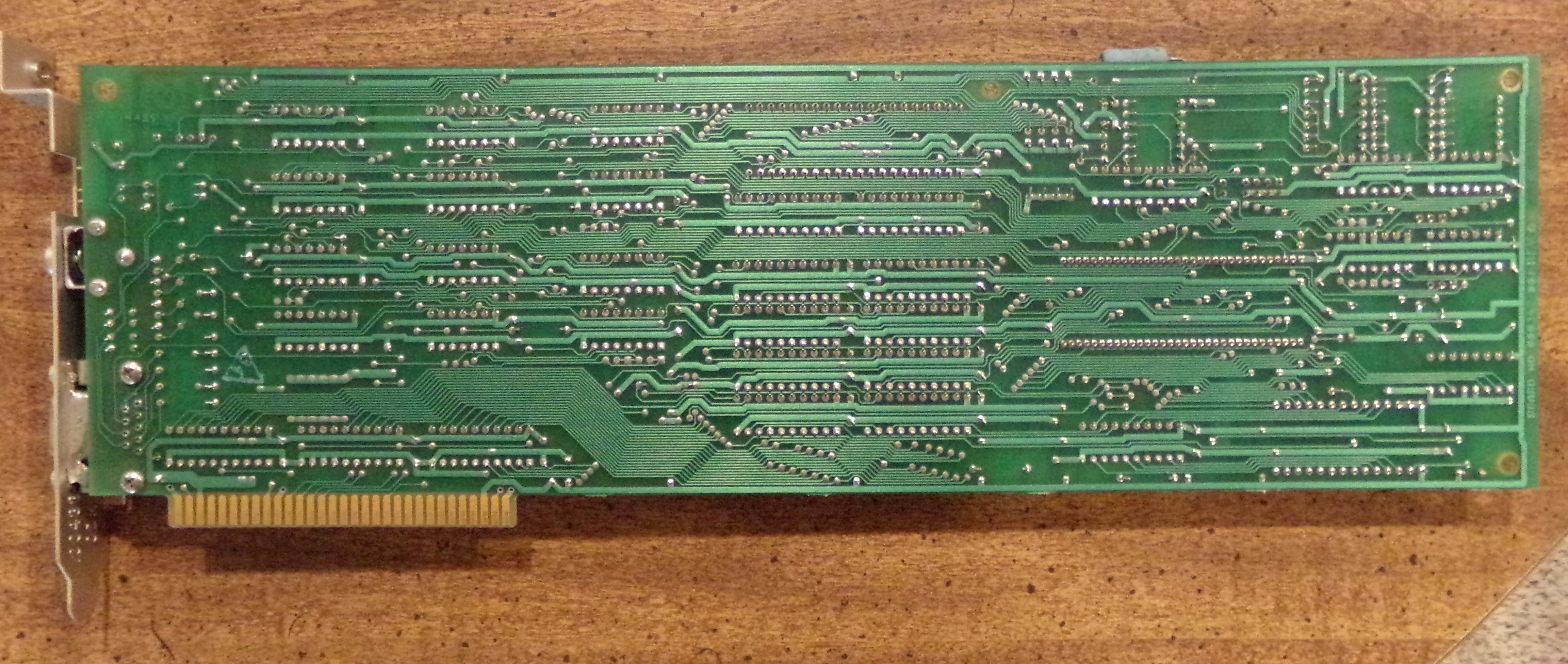

image1 Image 1 of 2 (Adam Hansen)

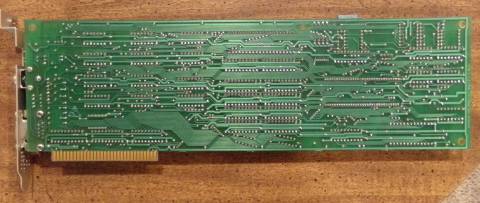

image2 Image 2 of 2 (Adam Hansen)
