Companion GCW757VL-3
Logs
typeType
Floppy controller Multi I/O IDE controller
interfaceInterface
signalSignaling
32-bit VLB
dimSlot height
1
datePCI ID
Empty
chip Chips and specs
-> Signal transmitter/receiver
(multiple brand) MC1488 (RS-232 Driver) (multiple brand) MC1489 (RS-232 Receiver)
-> Super I/O
Winbond W83757
MTL
Size: Three/quarter-length, full-height card
Data bus: 32-bit, VL-bus
HadProblem
Hard drive supported: Two IDE (AT) Interface drives
Floppy drives supported: Two 360KB, 720KB, 1.2MB, or 1.44MB drives
portintI/O ports
1x
  • 2x17 2.54mm pin header, FDD
1x
  • 2x8 2.54mm pin header, Game port
1x
  • 2x20 2.54mm pin header
1x
  • DB-25, ECP/EPP
1x
  • DE-9, RS-232
1x
  • 2x5 2.54mm pin header, RS-232
powerPower connectors
Empty
Last updated 2024-12-26T19:31:13Z
bios 1 card BIOS file available
Version
Note
File
Logs
Version
1.0
Note
File
Logs
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
N/A
OS support
Empty
Arch
x86
Size
19.7KB
Filename
doc No card documents available
Chip
Release date
File
Logs
Chip
Release date
2009-12
File
Logs
Chip
Release date
2009-12
File
Logs
Chip
Release date
File
Logs

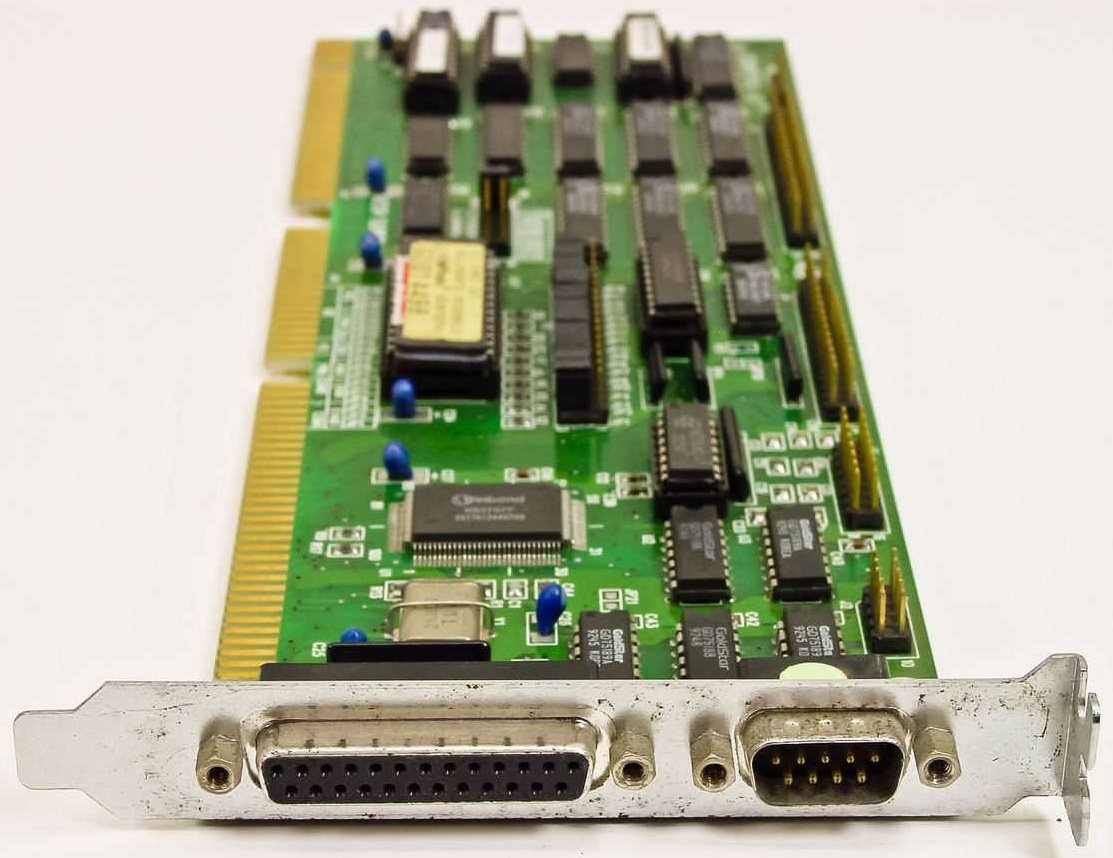

image1 Image 1 of 5 (Douglar)

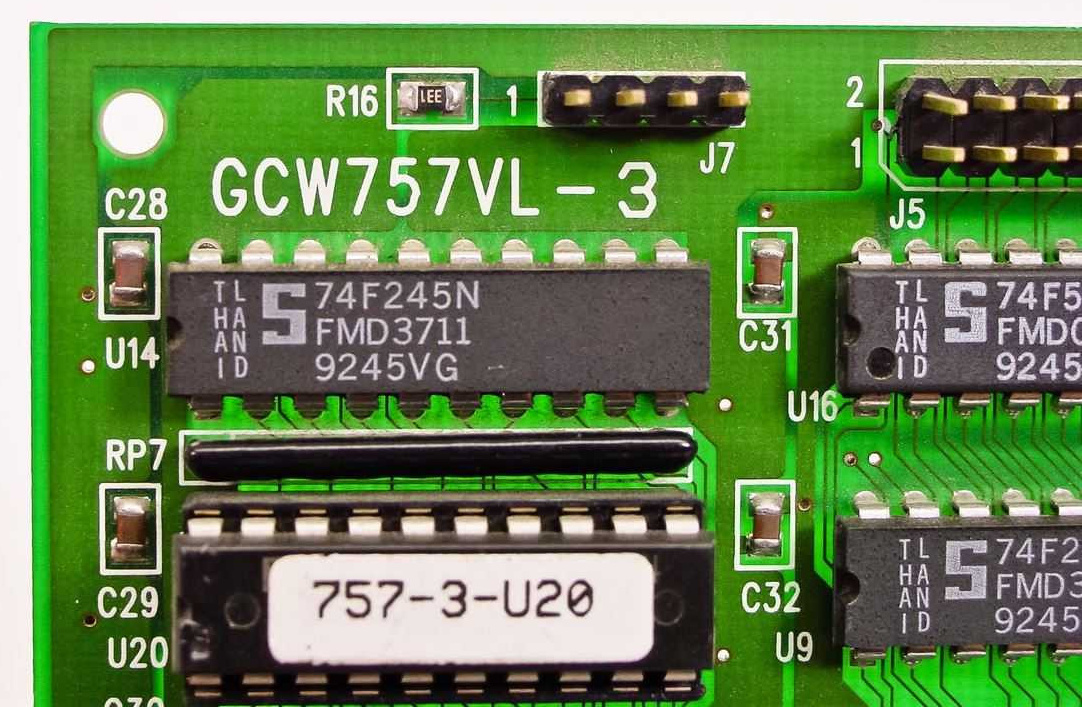

image2 Image 2 of 5 (recycledgoods)

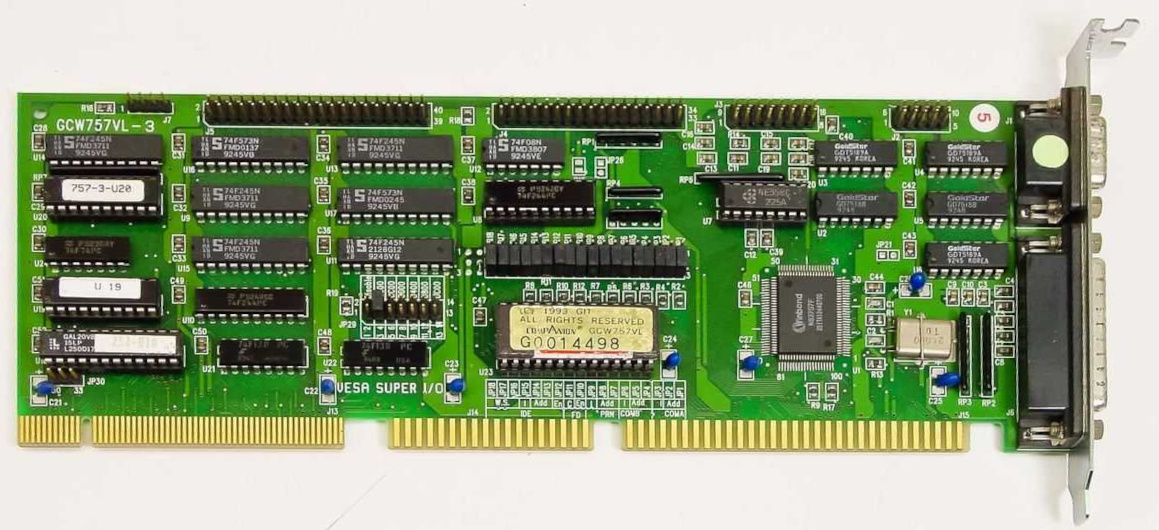

image3 Image 3 of 5 (recycledgoods)

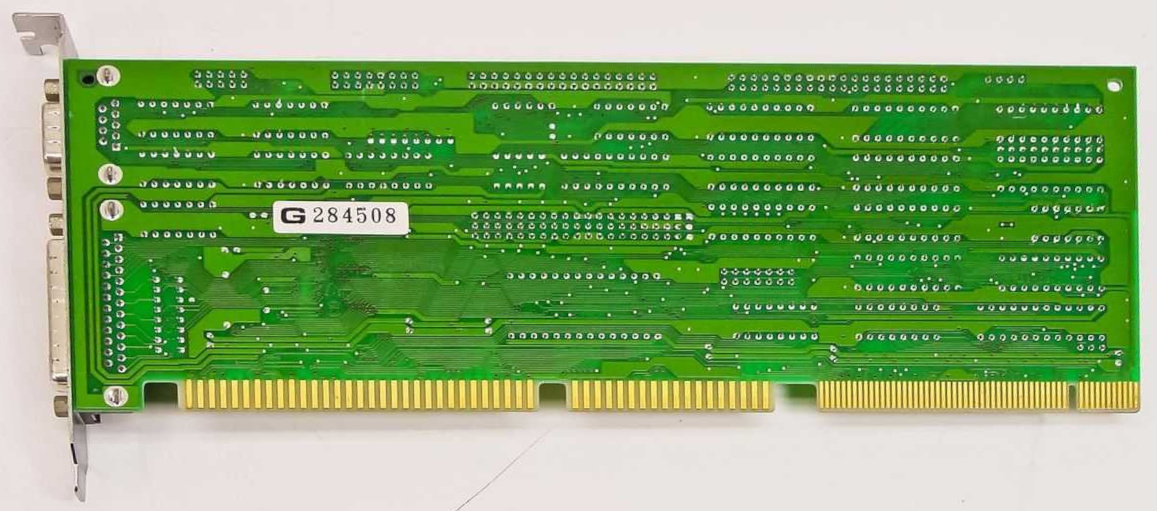

image4 Image 4 of 5 (recycledgoods)

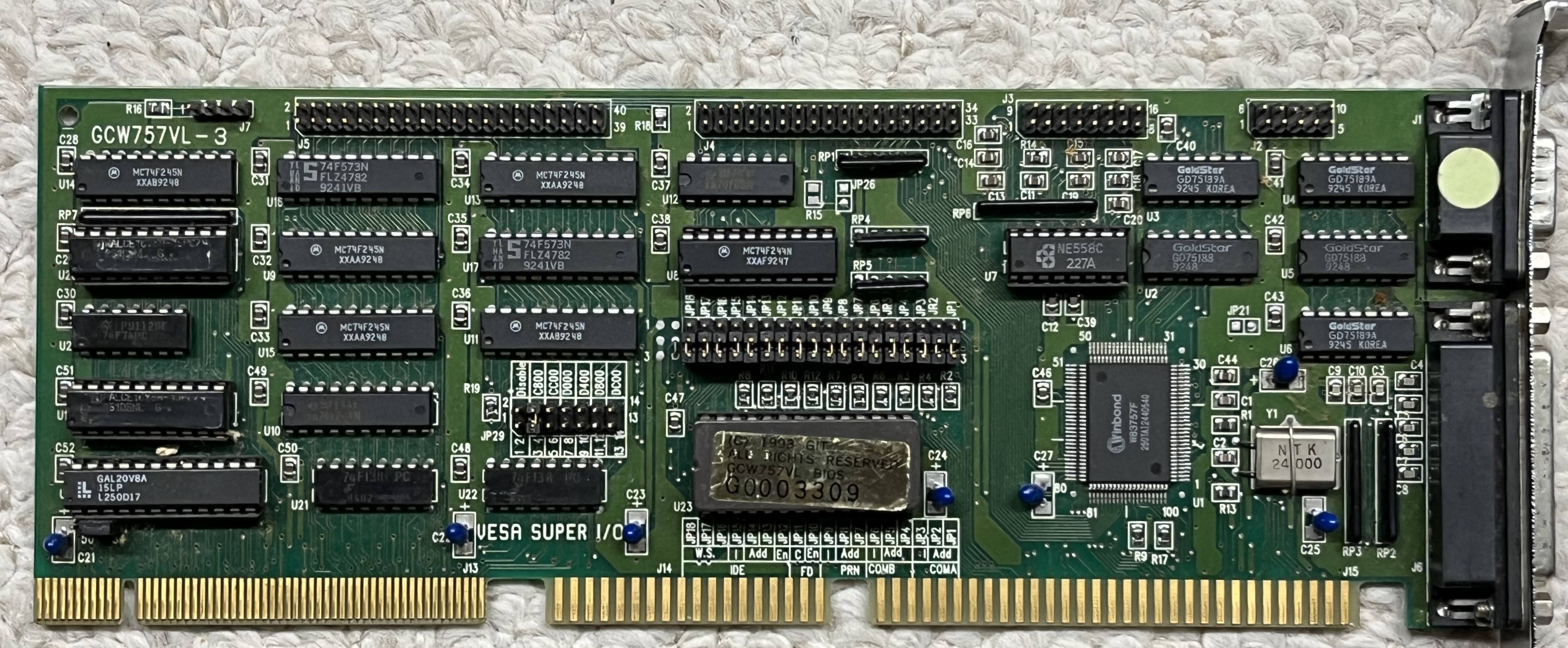

image5 Image 5 of 5 (recycledgoods)
