CNET CN650E/2 REV. B
Logs
typeType
Network
interfaceInterface
signalSignaling
16-bit MCA
dimSlot height
1
datePCI ID
Empty
chip Chips and specs
-> Network
Realtek RTL8008 (MCA Classic Ethernet)
MTL
Boot ROM Available
Data Bus 16-bit MCA
NIC Type Ethernet
Topology Linear Bus/Star
Wiring Type Unshielded twisted pairRG-58A/U 50ohm coaxial
Transfer Rate 10Mbps
Network speed
10Mb/s
portintI/O ports
1x
  • BNC 50-ohms
1x
  • RJ45
1x
  • 28-pin DIP socket
powerPower connectors
Empty
Last updated 2024-08-24T19:59:21Z
biosc No BIOS files available
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
3.30
OS support
Empty
Arch
x86
Size
101.8KB
Filename
doc 1 card document available
Release date
File
Logs
Release date
1999
File
Logs

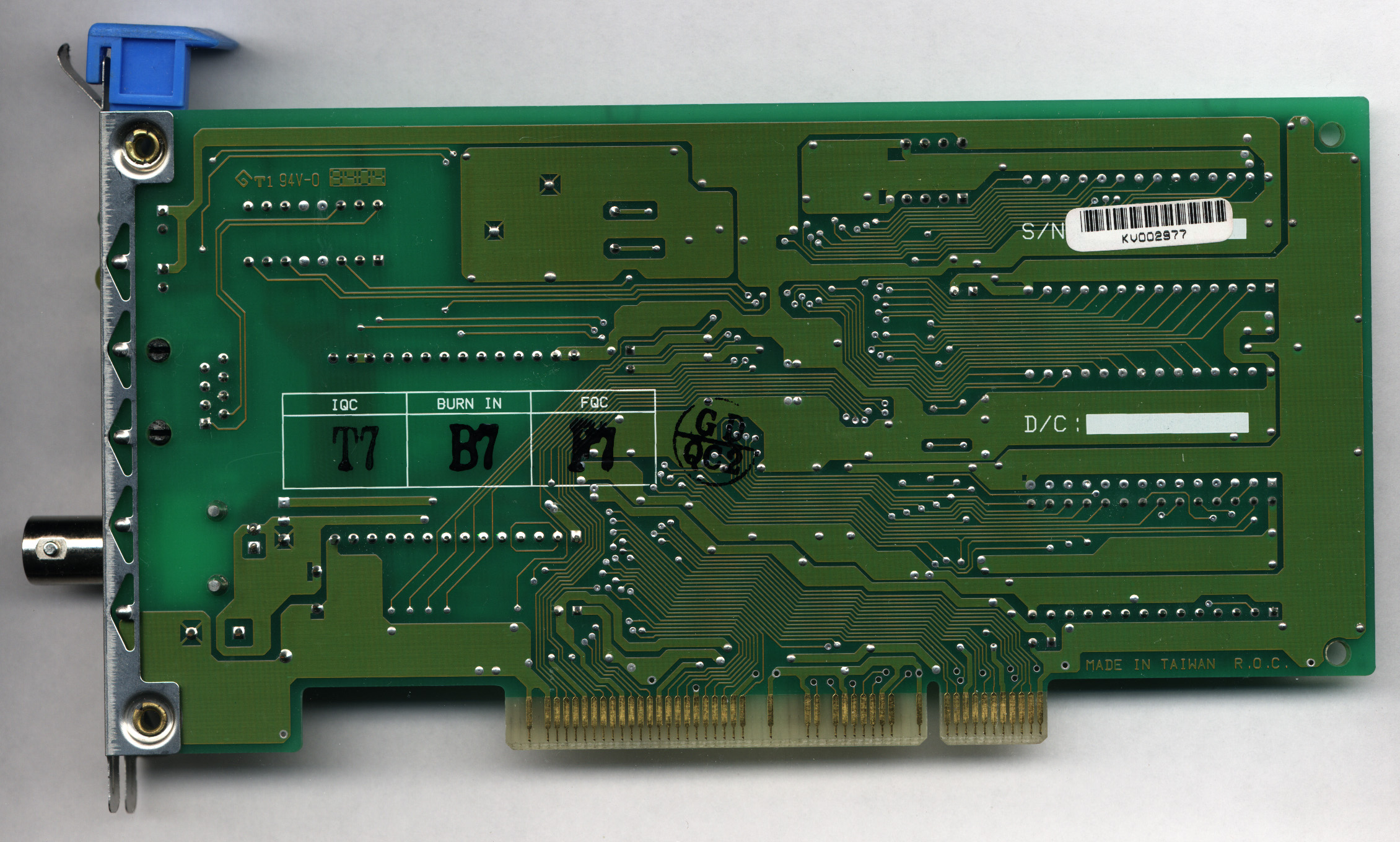

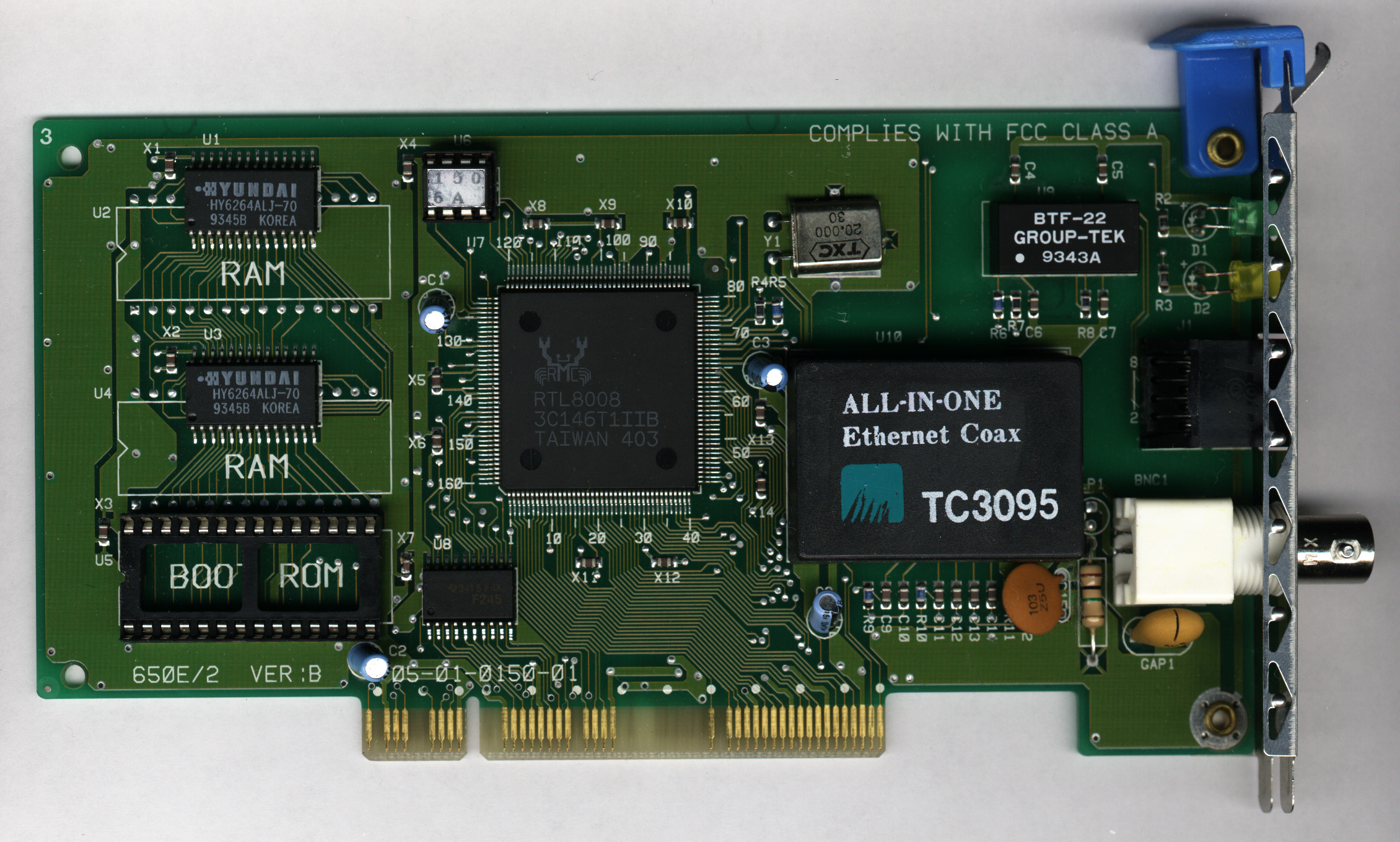

image1 Image 1 of 4 (Microhouse)
image2 Image 2 of 4 (bschepan)
image3 Image 3 of 4 (bschepan)
image4 Image 4 of 4 (Microhouse)
