CARDINAL TECHNOLOGIES Digital Sound Pro 16 (DSP16)
Logs
typeType
Sound SCSI controller
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
fccFCC ID
GDE0152
chip Chips and specs
-> Audio
Analog Devices AD1848 (SoundPort WSS) Analog Devices ADSP-2115 (DSP) Analog Devices ESC614 (ECHO)
-> SCSI ctrl.
Adaptec AIC-6360
tag Also known as
portintI/O ports
2x
  • 3.5mm TRS jack
2x
  • 3.5mm TRS jack
1x
  • 1x4 2.50mm pin header
1x
  • DA-15
1x
  • 2x1 2.54mm pin header
1x
  • 2x25 2.54mm pin header
powerPower connectors
Empty
Last updated 2025-08-28T08:07:11Z
biosc No card BIOS files available
chipbios 1 chip with BIOS files available
Warning: might not be fully compatible with this card, use at your own risk
Version
Note
File
Logs
Version
1.20L
Note
File
Logs
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
3.03
OS support
MS-DOS
Arch
Size
526.5KB
Filename
doc No card documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

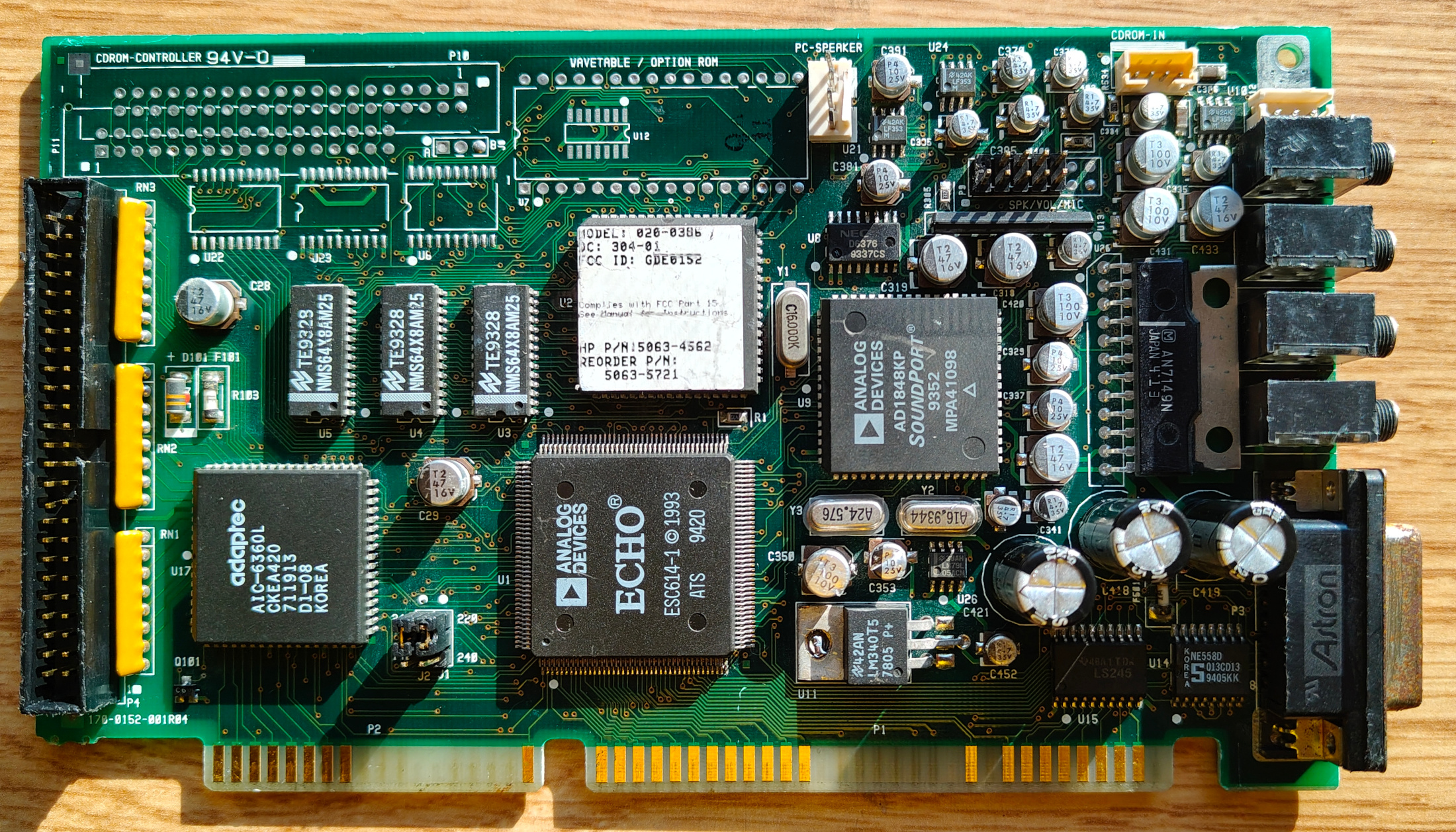

image1 Image 1 of 2 (Yargoro)

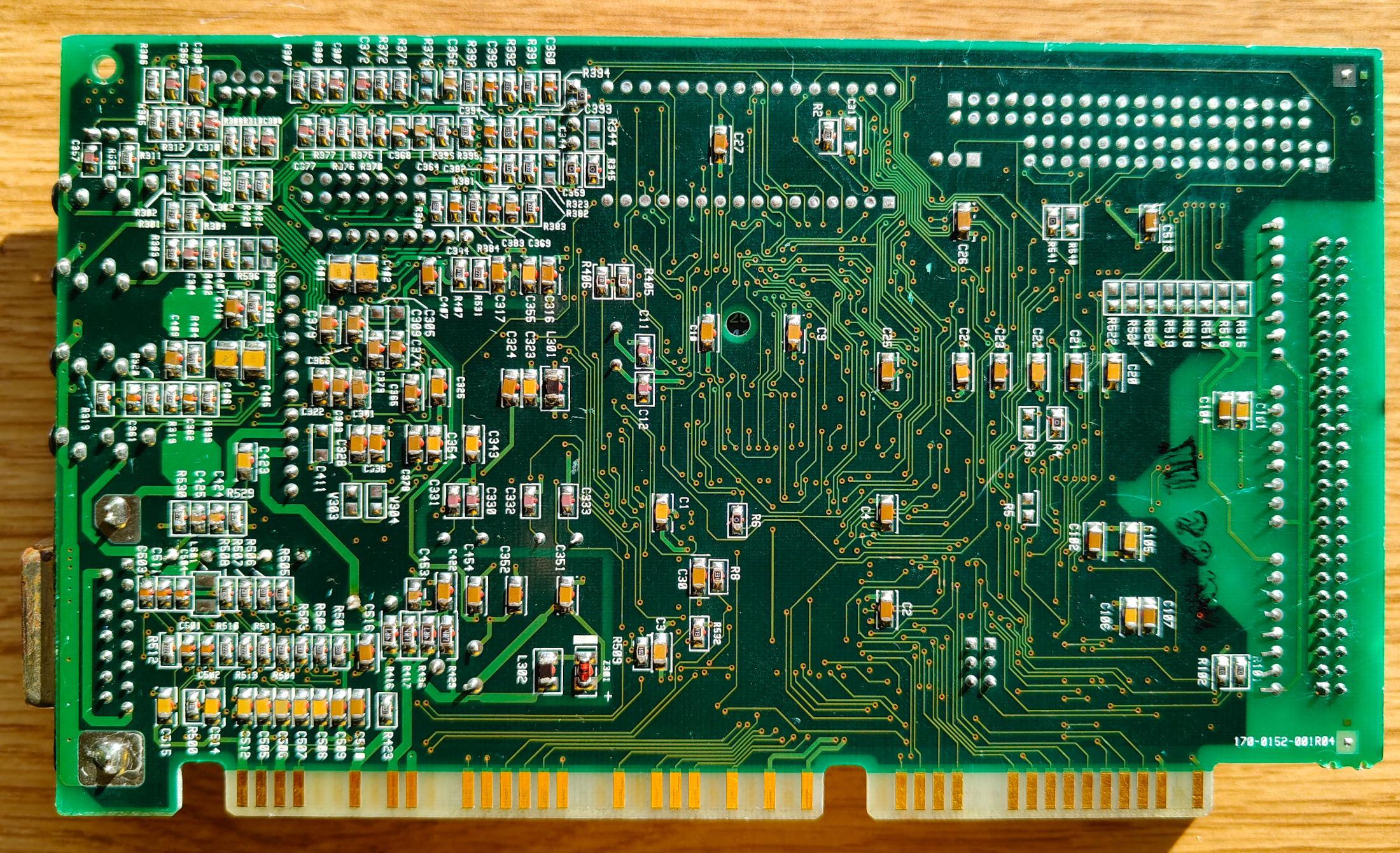

image2 Image 2 of 2 (Yargoro)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
