Creative 3D Blaster Banshee PCI (CT6760)
Logs
typeType
Video
interfaceInterface
signalSignaling
32-bit PCI
datePCI ID
0003
fccFCC ID
ILL164
ramRAM type
SDRAM
ramRAM size
16MB
chip Chips and specs
-> Video
3Dfx 500-0013-04 BAN (Voodoo Banshee)
portintI/O ports
1x
  • 2x13 2.54mm pin header
1x
  • DE-15
powerPower connectors
Empty
Last updated 2025-11-13T01:27:03Z
bios 2 card BIOS files available
Version
Note
File
Logs
Version
12/02/98 1.02.1
Note
Creative
File
Logs
Version
01/15/99 1.03.2
Note
Creative
File
Logs
chipbios 1 chip with BIOS files available
Warning: might not be fully compatible with this card, use at your own risk
Version
Note
File
Logs
Version
1.00.10SG
Note
SGRAM, PCI, NTSC TV out
File
Logs
Version
1.00.10SG
Note
SGRAM, PCI
File
Logs
Version
1.00.10SG
Note
SGRAM, PCI, PAL TV out
File
Logs
Version
1.00.10SG
Note
SGRAM, AGP
File
Logs
Version
1.00.10SG
Note
SGRAM, AGP, PAL TV out
File
Logs
Version
1.00.10SG
Note
SGRAM, AGP, NTSC TV out
File
Logs
Version
1.00.10SD
Note
SDRAM, PCI
File
Logs
Version
1.00.10SD
Note
SDRAM, PCI, PAL TV out
File
Logs
Version
1.00.10SD
Note
SDRAM, PCI, NTSC TV out
File
Logs
Version
1.00.10SD
Note
SDRAM, AGP
File
Logs
Version
1.00.10SD
Note
SDRAM, AGP, PAL TV out
File
Logs
Version
1.00.10SD
Note
SDRAM, AGP, NTSC TV out
File
Logs
drv 3 drivers available
Version
OS support
Arch
Size
Filename
Version
OS support
Windows NT 4.0
Arch
x86
Size
1.1MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
2.4MB
Filename
Version
OS support
Windows 2000
Arch
x86
Size
1.5MB
Filename

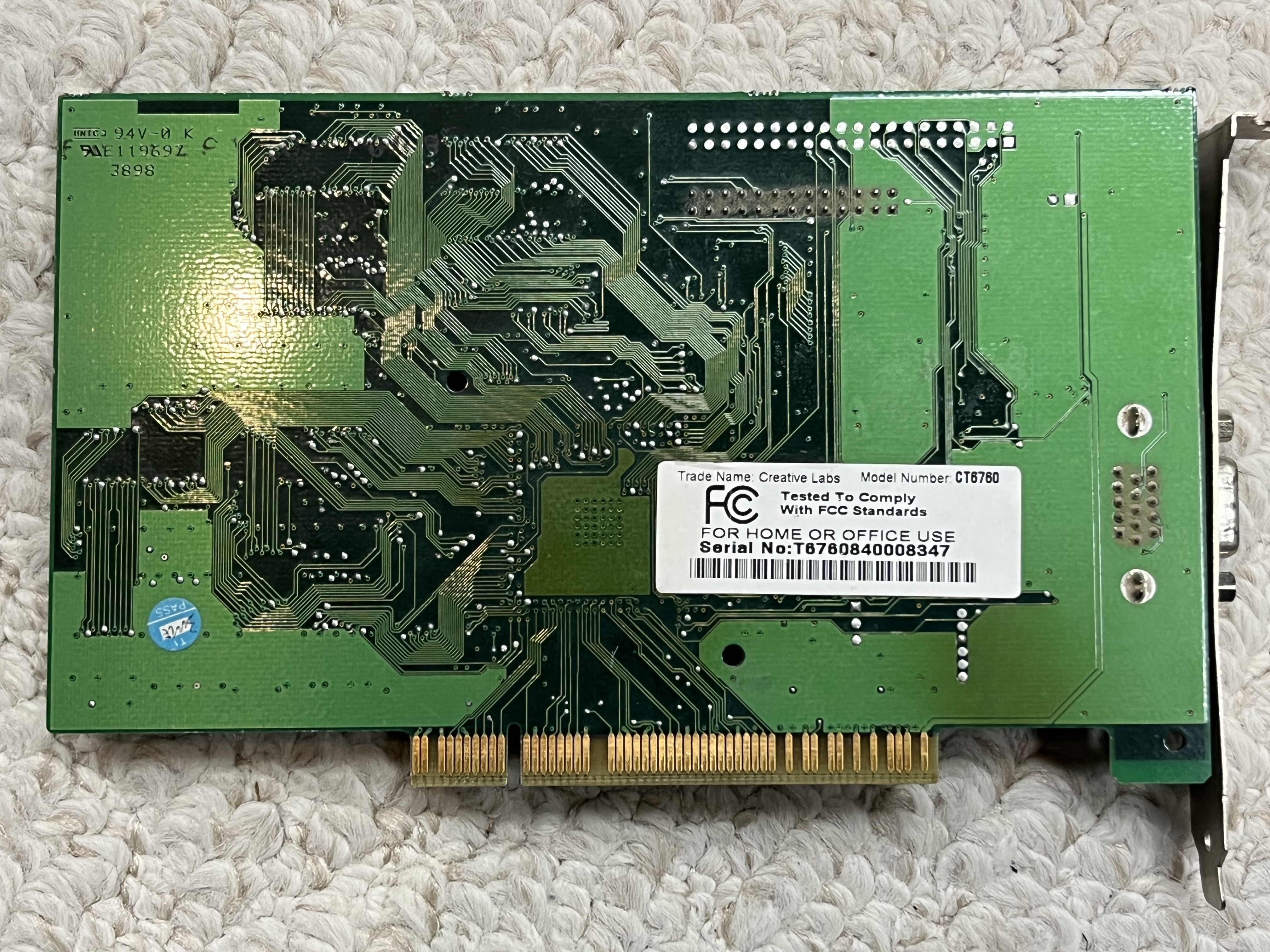

image1 Image 1 of 5 (Wolt1x)

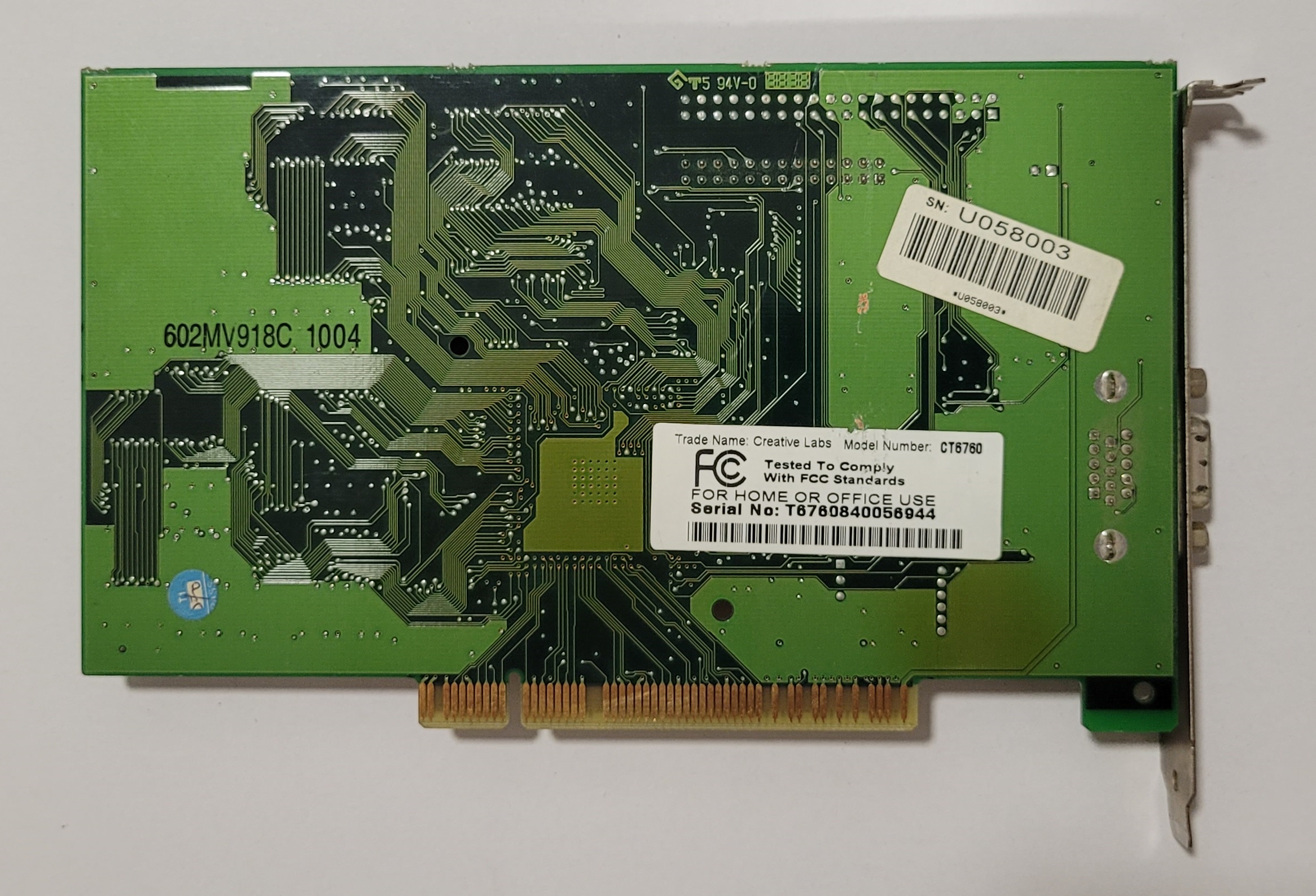

image2 Image 2 of 5 (Douglar)

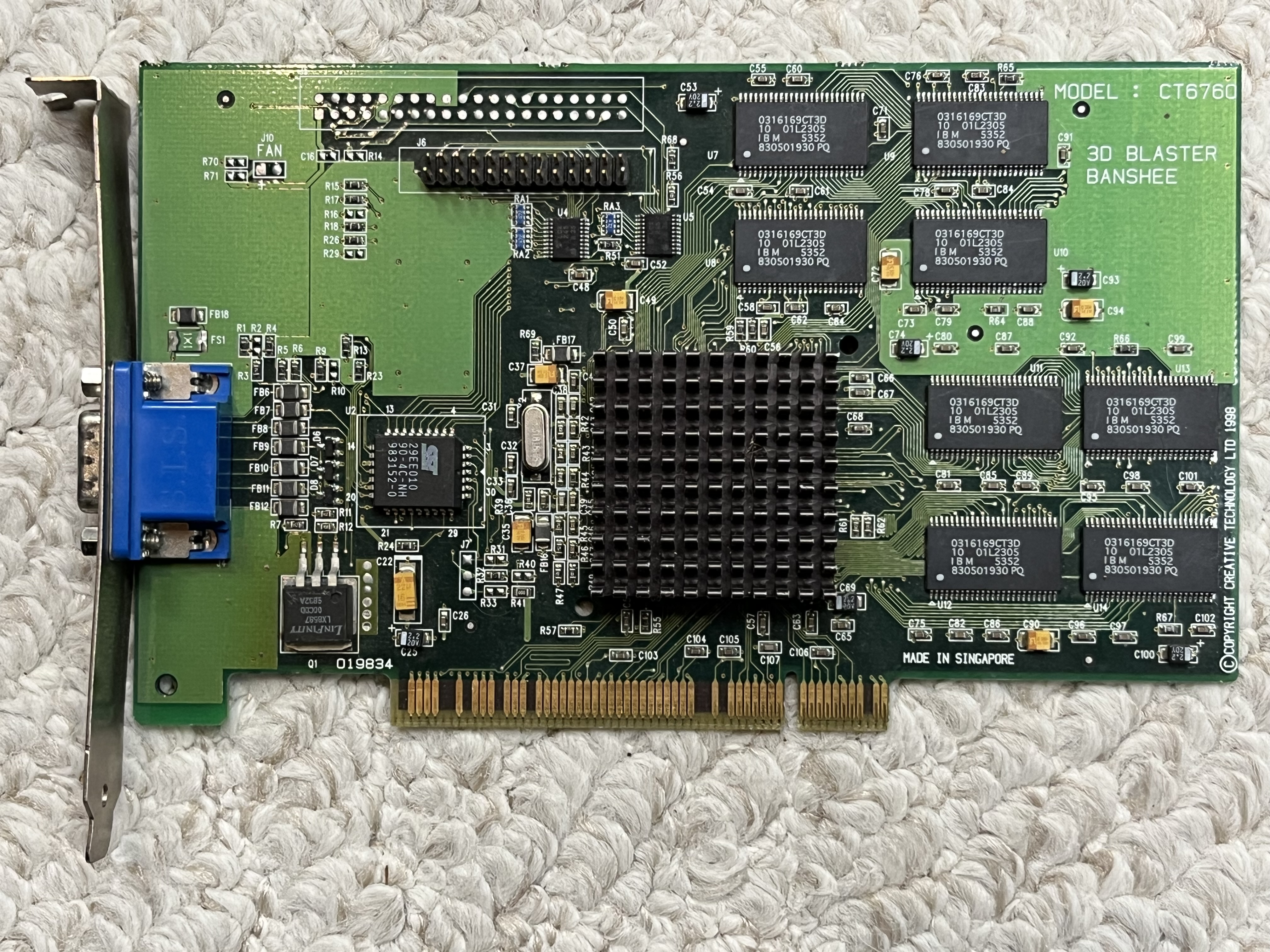

image3 Image 3 of 5 (Wolt1x)

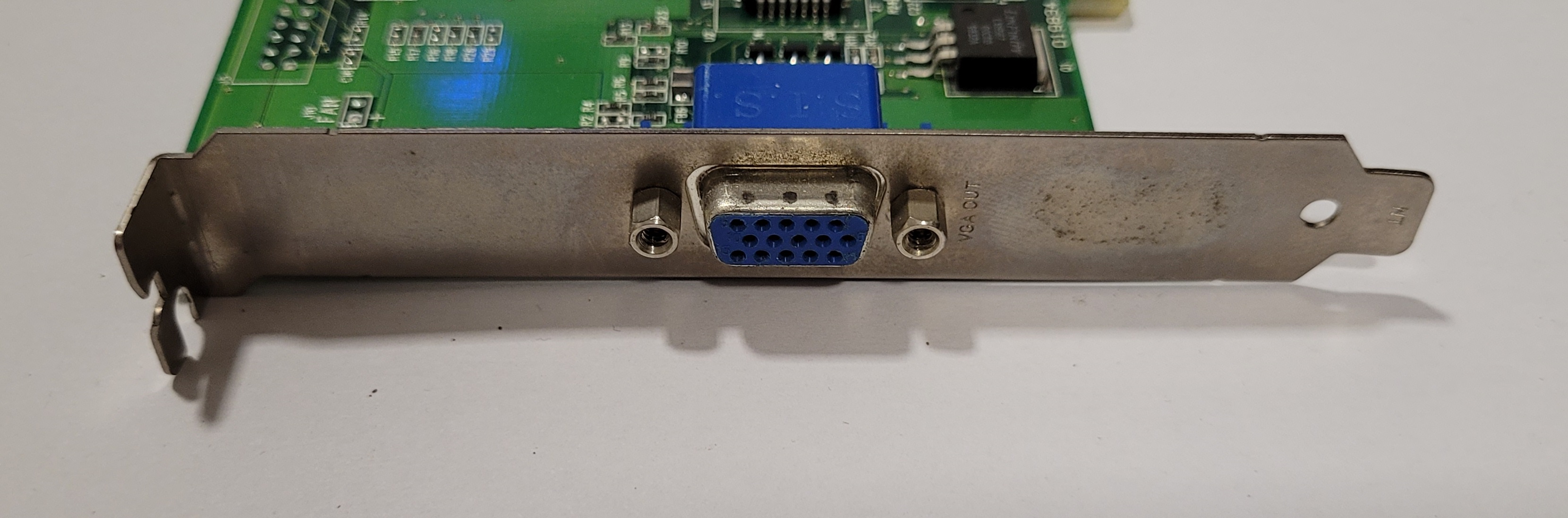

image4 Image 4 of 5 (Douglar)

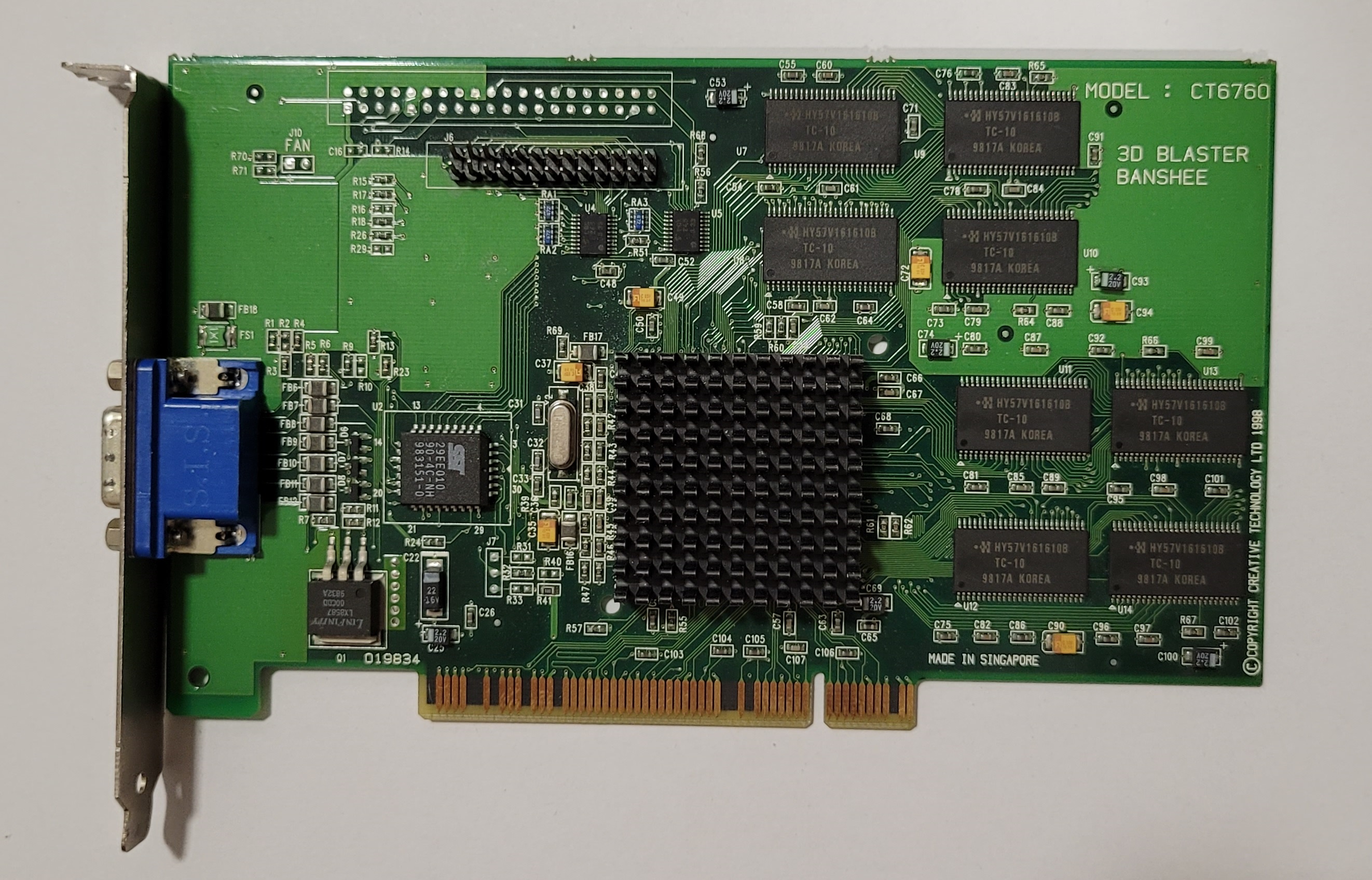

image5 Image 5 of 5 (Wolt1x)
