BEST UNION ELECTRONICS CO., LTD. MF-719
Logs
typeType
Sound
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
chip Chips and specs
-> Audio
Yamaha YMF719 (OPL3-SA3) STMicroelectronics / Inmos TEA2025 (Audio Amplifier)
MTL
Chip Set Yamaha
Data Bus 16-bit ISA
Card Size Three-quarter length, Full-height card
Card Type Sound card
I/O Options Game/MIDI port, audio in - CD-ROM(2), wavetable connector, line in, microphone in, audio out
Maximum Onboard Memory Unidentified
tag Also known as
portintI/O ports
2x
  • 3.5mm TRS jack
1x
  • 3.5mm TRS jack
1x
  • DA-15
powerPower connectors
Empty
Last updated 2025-12-12T19:31:50Z
biosc No BIOS files available
drv 7 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
2.3.04
OS support
OS/2 2.x
Arch
x86
Size
97.1KB
Filename
Name
Version
2.3.29
OS support
Windows 3.1x
Arch
x86
Size
1.7MB
Filename
Name
Version
2.3.43
OS support
Windows 9x
Arch
x86
Size
2MB
Filename
Name
Version
2.3.11
OS support
Windows NT 4.0
Arch
x86
Size
137.9KB
Filename
Name
Version
v2329
OS support
Windows 3.1x
Arch
x86
Size
1.7MB
Filename
Name
Version
v2343
OS support
Windows 9x
Arch
x86
Size
1.9MB
Filename
Name
Version
2.2.0
OS support
MS-DOS OS/2 Warp 3.x Windows 3.1x Windows 9x Windows NT 3.5x Windows NT 4.0
Arch
x86
Size
82.1MB
Filename
doc 1 card document available
Release date
File
Logs
Release date
1999
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2012-10-01
File
Logs
Chip
Release date
2014
File
Logs

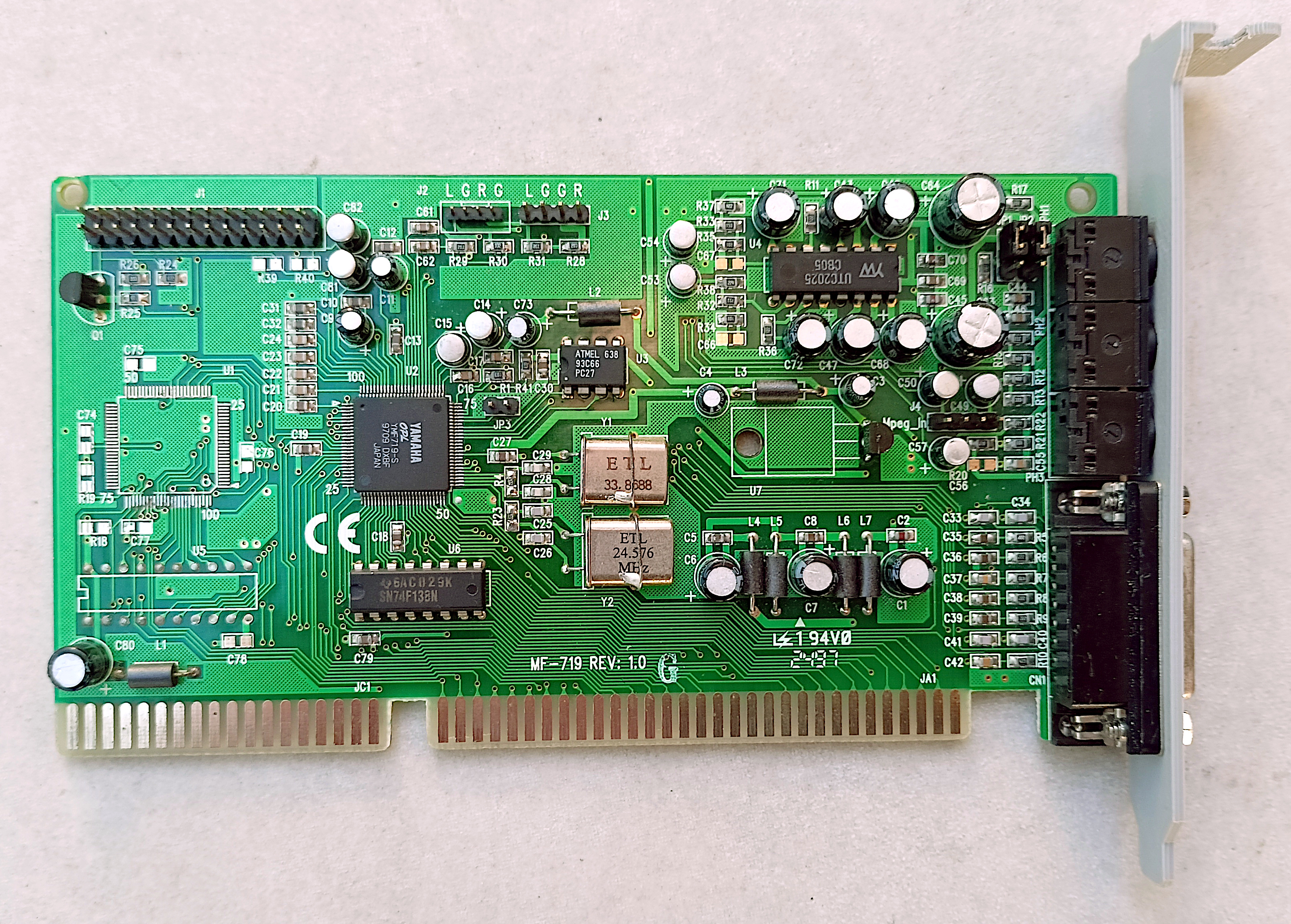

image1 Image 1 of 4 (Microhouse)

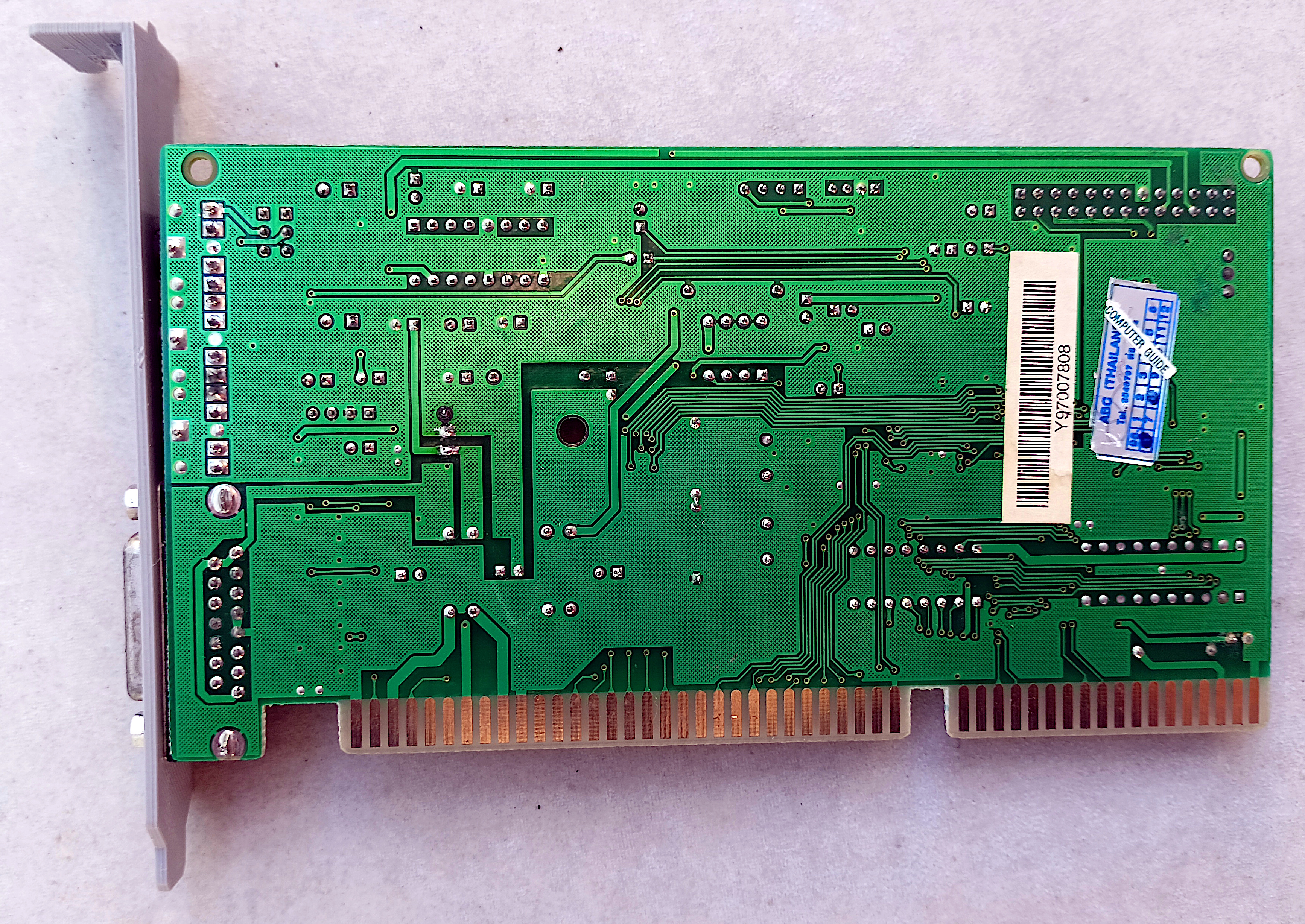

image2 Image 2 of 4 (Necroware)

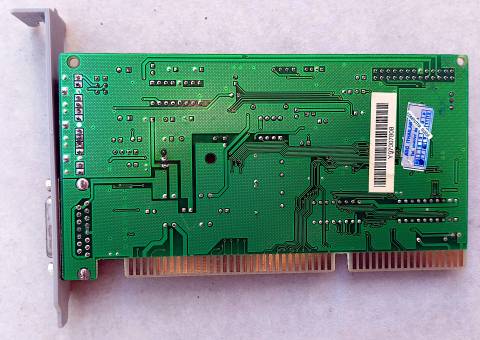

image3 Image 3 of 4 (Necroware)

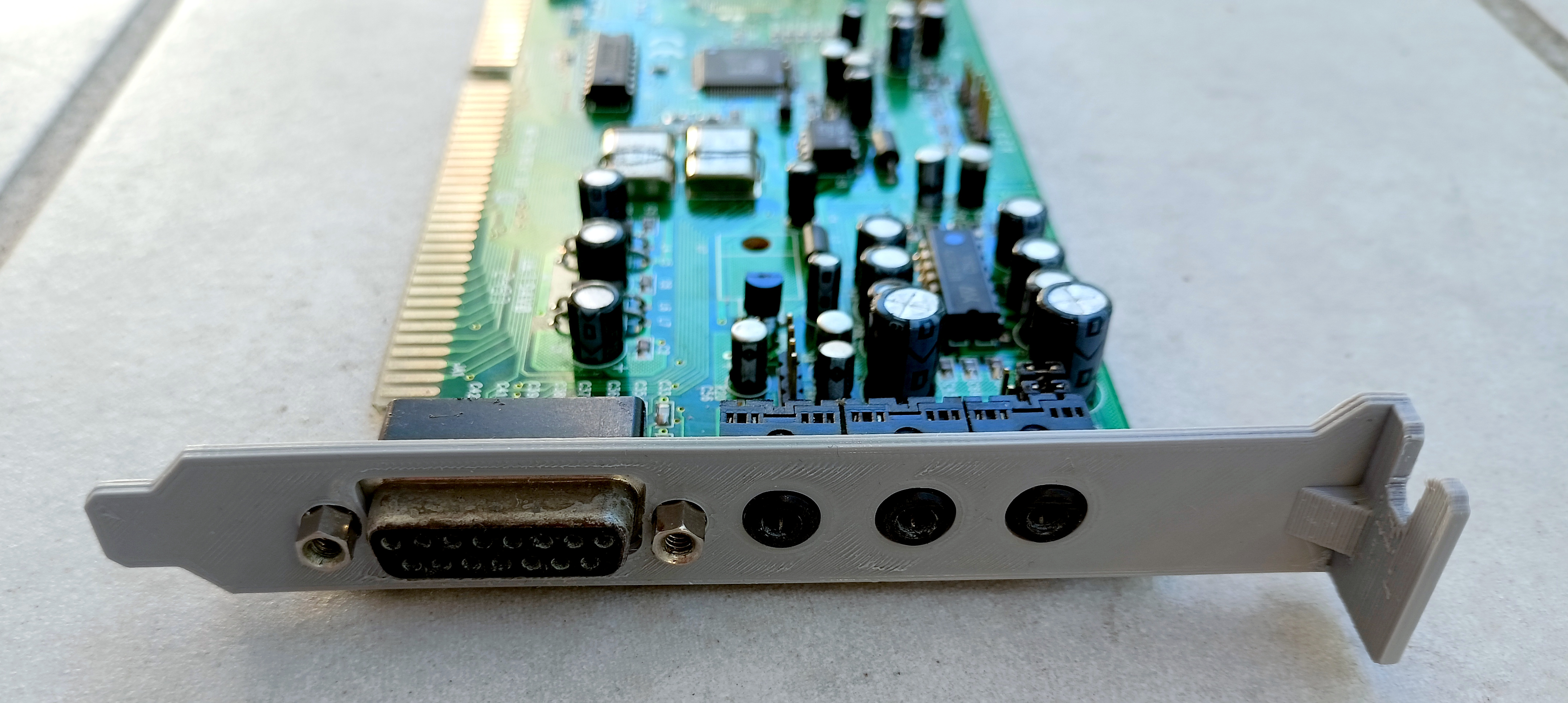

image4 Image 4 of 4 (Necroware)
