BEST UNION ELECTRONICS CO., LTD. MF-1948
Logs
typeType
Sound
interfaceInterface
signalSignaling
32-bit PCI
dimSlot height
1
datePCI ID
Empty
ramRAM size
1MB
chip Chips and specs
-> Audio
ESS ES1948F (Maestro-1) Philips TDA1517 (2x6W Audio Power Amplifier)
MTL
Chip Set ESS
Data Bus 32-bit PCI
Card Size Full-height card
Card Type Sound card
I/O Options Game/MIDI port, microphone in, line in, speaker/line out, audio in - CD-Rom(2), audio in, aux in
Maximum Onboard Memory Unidentified
portintI/O ports
2x
  • 3.5mm TRS jack
1x
  • 3.5mm TRS jack
2x
  • 1x4 2.54mm pin header
2x
  • 1x4 2.50mm pin header
1x
  • DA-15
powerPower connectors
Empty
Last updated 2025-11-28T20:48:15Z
biosc No BIOS files available
drv 2 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
4.05.00.0165
OS support
Windows 9x
Arch
x86
Size
2.4MB
Filename
Name
Version
N/A
OS support
MS-DOS
Arch
x86
Size
111.9KB
Filename
doc 1 card document available
Release date
File
Logs
Release date
1999
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1997-05
File
Logs
Chip
Release date
2004-02-18
File
Logs

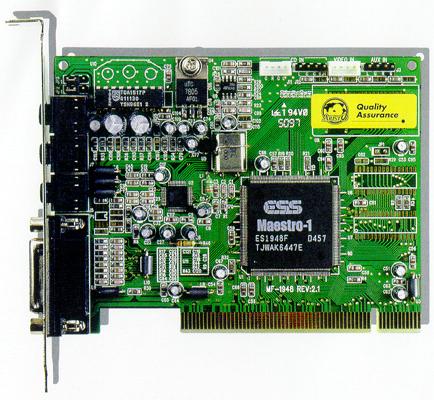

image1 Image 1 of 2 (Microhouse)
image2 Image 2 of 2 (Aristo)
