Belkin F5U602 v1.2
Logs
typeType
USB controller Firewire controller
interfaceInterface
signalSignaling
PCIe 1.0
dimSlot height
1
datePCI ID
0035 00E0 8025 8231
dimDimensions
129 mm (width) x 105mm (length)
chip Chips and specs
-> Bridge Interface
Texas Instruments XIO2000A (PCIe to PCI Bridge for 6 Slots)
-> FireWire ctrl.
Texas Instruments TSB82AA2 (FireWire 800 PCI ctrl.) Texas Instruments TSB81BA3 (3 port FireWire 800 PHY)
-> USB ctrl.
NEC uPD720101 (5 port USB 2.0 Controller)
portintI/O ports
3x
  • IEEE-1394 (9-pin)
3x
  • USB-A
1x
  • 2x5 2.54mm pin header
powerPower connectors
1x
Last updated 2024-09-29T09:31:01Z
biosc No BIOS files available
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.0
OS support
Windows 9x
Arch
x86
Size
121.9KB
Filename
doc 1 card document available
Release date
File
Logs
Release date
2005-09-02
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2002-12
File
Logs
Chip
Release date
2006-09
File
Logs
Chip
Release date
2008-10
File
Logs
Chip
Release date
2004-06
File
Logs
Chip
Release date
2004-09
File
Logs

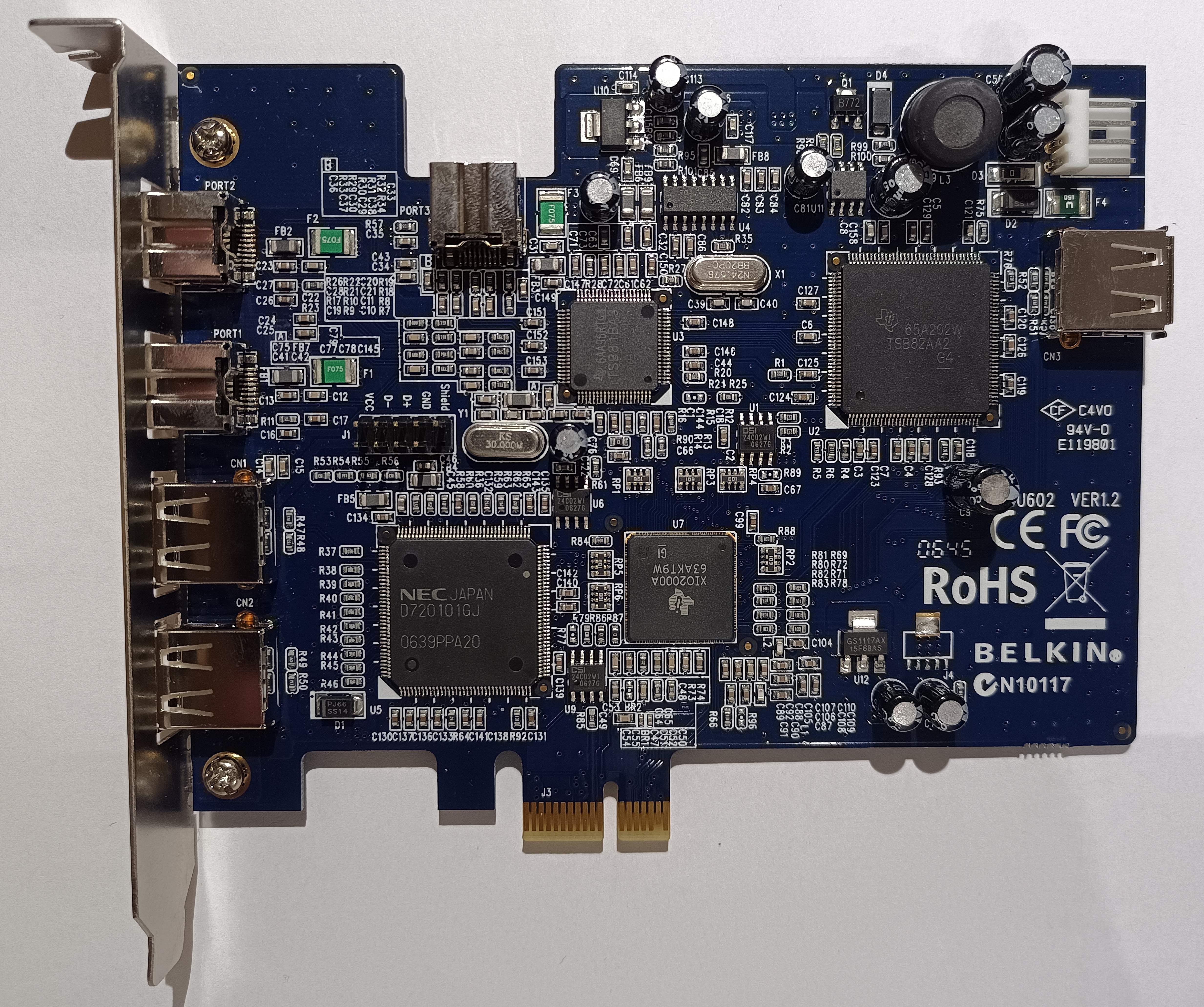

image1 Image 1 of 3 (Helen_Croft)

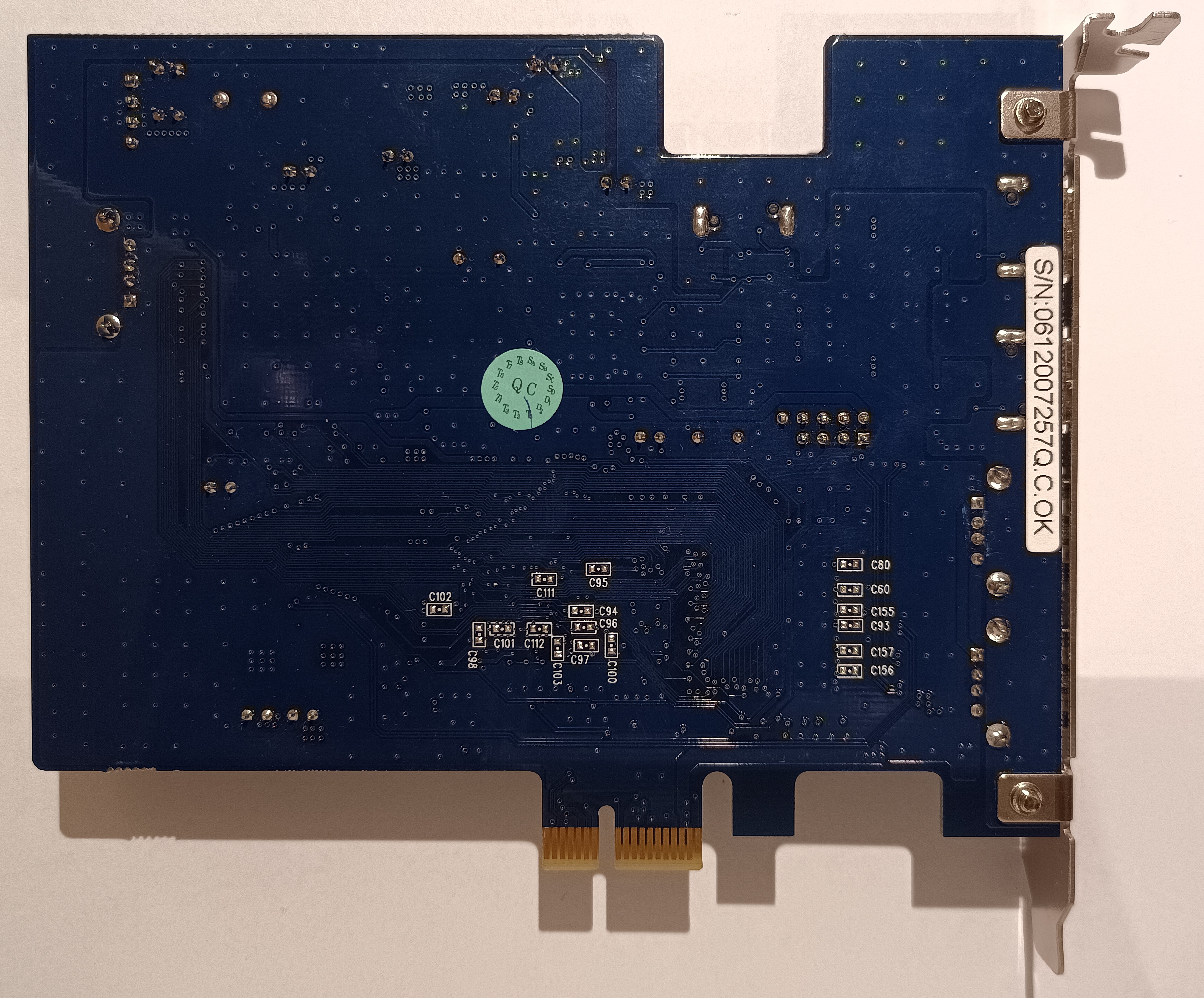

image2 Image 2 of 3 (Helen_Croft)

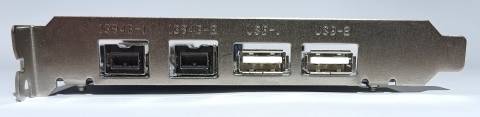

image3 Image 3 of 3 (Helen_Croft)
