AZTech Washington 16+
Logs
typeType
Sound
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
fccFCC ID
I38-MMSN830
chip Chips and specs
-> Audio
Philips TDA1517 (2x6W Audio Power Amplifier) Analog Devices AD1845 (Windows Sound System Codec) Yamaha YAC512 (2-Channel Floating DAC) AZTech AZT2316 Yamaha YMF262 (OPL3)
-> Processor
Intel 8052 (Microcontroller)
MTL
Chip Set Unidentified
Data Bus 16-bit ISA
Card Type Sound card
I/O Options Line in, microphone in, line out, speaker out, game/MIDI port, audio in - CD-ROM, CD-ROM interfaces (4), wavetable connector
Maximum Onboard Memory None
tag Also known as
portintI/O ports
2x
  • 3.5mm TRS jack
2x
  • 3.5mm TRS jack
1x
  • 1x4 2.54mm pin header
1x
  • DA-15
1x
  • 2x20 2.54mm pin header
1x
  • 2x20 2.54mm pin header
1x
  • 2x20 2.54mm pin header
1x
  • 2x17 2.54mm pin header
1x
  • 2x13 2.54mm pin header
powerPower connectors
Empty
Last updated 2025-11-14T15:48:16Z
biosc No BIOS files available
drv 4 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.00
OS support
MS-DOS
Arch
x86
Size
2MB
Filename
Name
Version
1.03
OS support
OS/2 Warp 3.x
Arch
x86
Size
177.4KB
Filename
Name
Version
1.00
OS support
Empty
Arch
x86
Size
217.6KB
Filename
Name
Version
2.12
OS support
Windows 9x
Arch
x86
Size
2.6MB
Filename
doc 1 card document available
Release date
File
Logs
Release date
1999
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1997
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2004-02-18
File
Logs
Chip
Release date
1994-04
File
Logs
Chip
Release date
1994-11
File
Logs

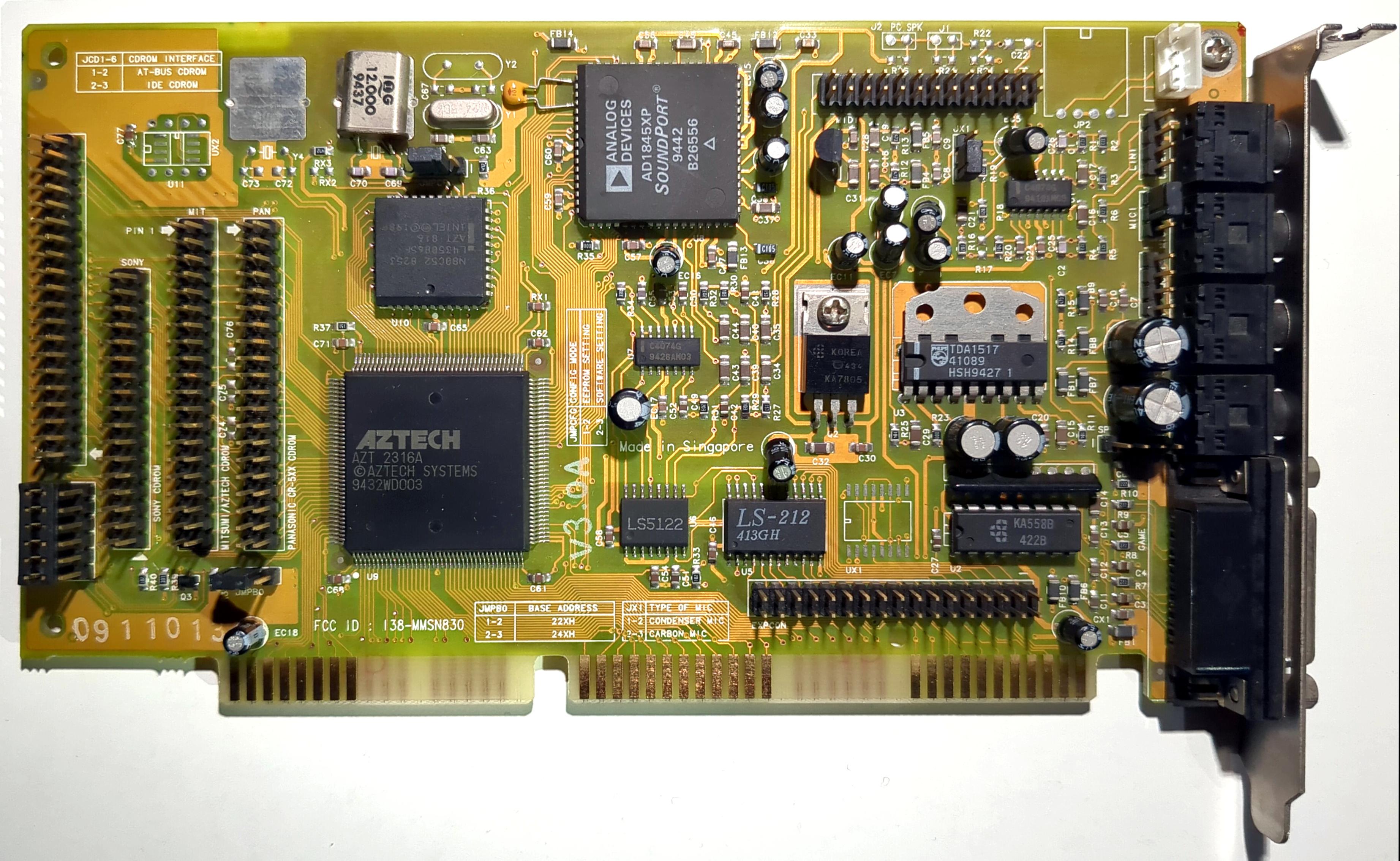

image1 Image 1 of 3 (Microhouse)

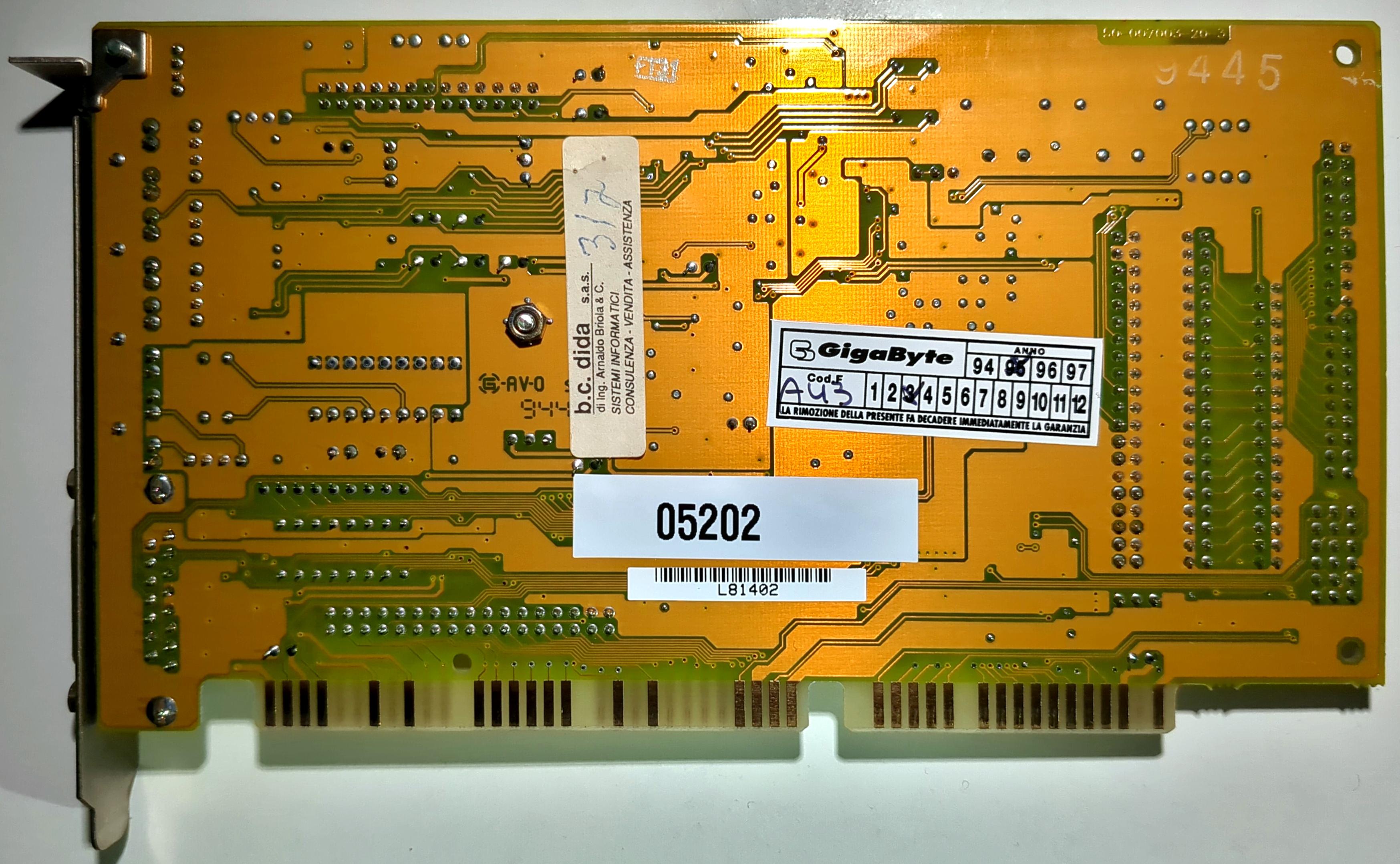

image2 Image 2 of 3 (Nobluesky)
image3 Image 3 of 3 (Nobluesky)
