AZTech Sound Galaxy Pro 16 II-3D PnP
Logs
typeType
Sound IDE controller
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
fccFCC ID
I38-MMSN845
chip Chips and specs
-> Audio
Crystal CS4231A (Multimedia Audio Codec) Philips TDA1517 (2x6W Audio Power Amplifier) Yamaha YAC512 (2-Channel Floating DAC) AZTech AZT2316R Yamaha YMF262 (OPL3)
MTL
Chip Set Unidentified
Data Bus 16-bit ISA
Card Type Sound Card
I/O Options CD-ROM audio in, CD-ROM interface, game/MIDI port, line in, line out, microphone port, MIDDI wavetable, EXPCON wavetable
tag Also known as
portintI/O ports
2x
  • 3.5mm TRS jack
2x
  • 3.5mm TRS jack
1x
  • DA-15
1x
  • 2x20 2.54mm pin header
1x
  • 2x13 2.54mm pin header
powerPower connectors
Empty
Last updated 2025-09-20T19:23:31Z
biosc No BIOS files available
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.10
OS support
MS-DOS Windows 3.1x Windows 9x
Arch
x86
Size
1.5MB
Filename
doc No card documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1994-09
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2004-02-18
File
Logs
Chip
Release date
1994-04
File
Logs
Chip
Release date
1994-11
File
Logs

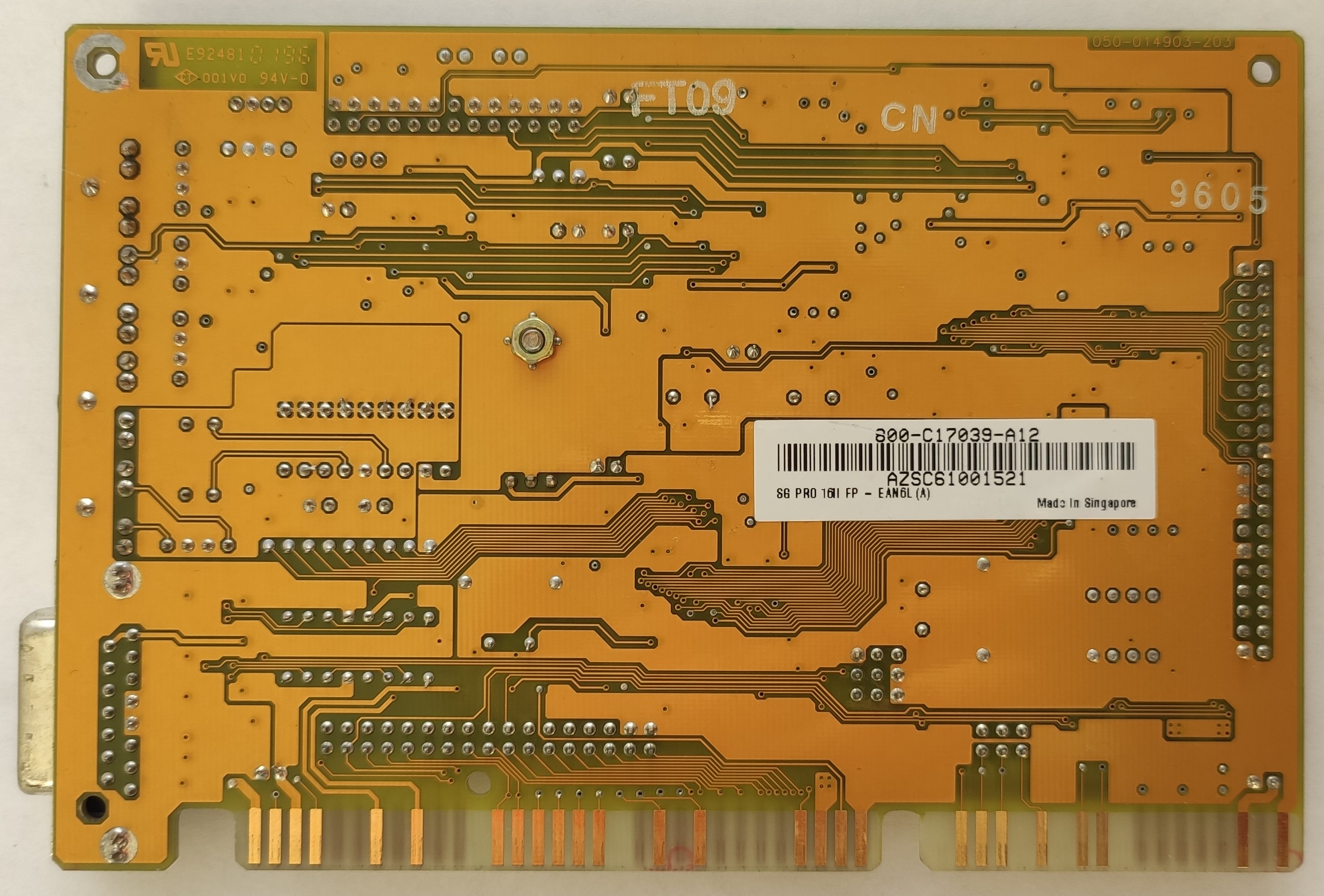

image1 Image 1 of 5 (VanoRu)

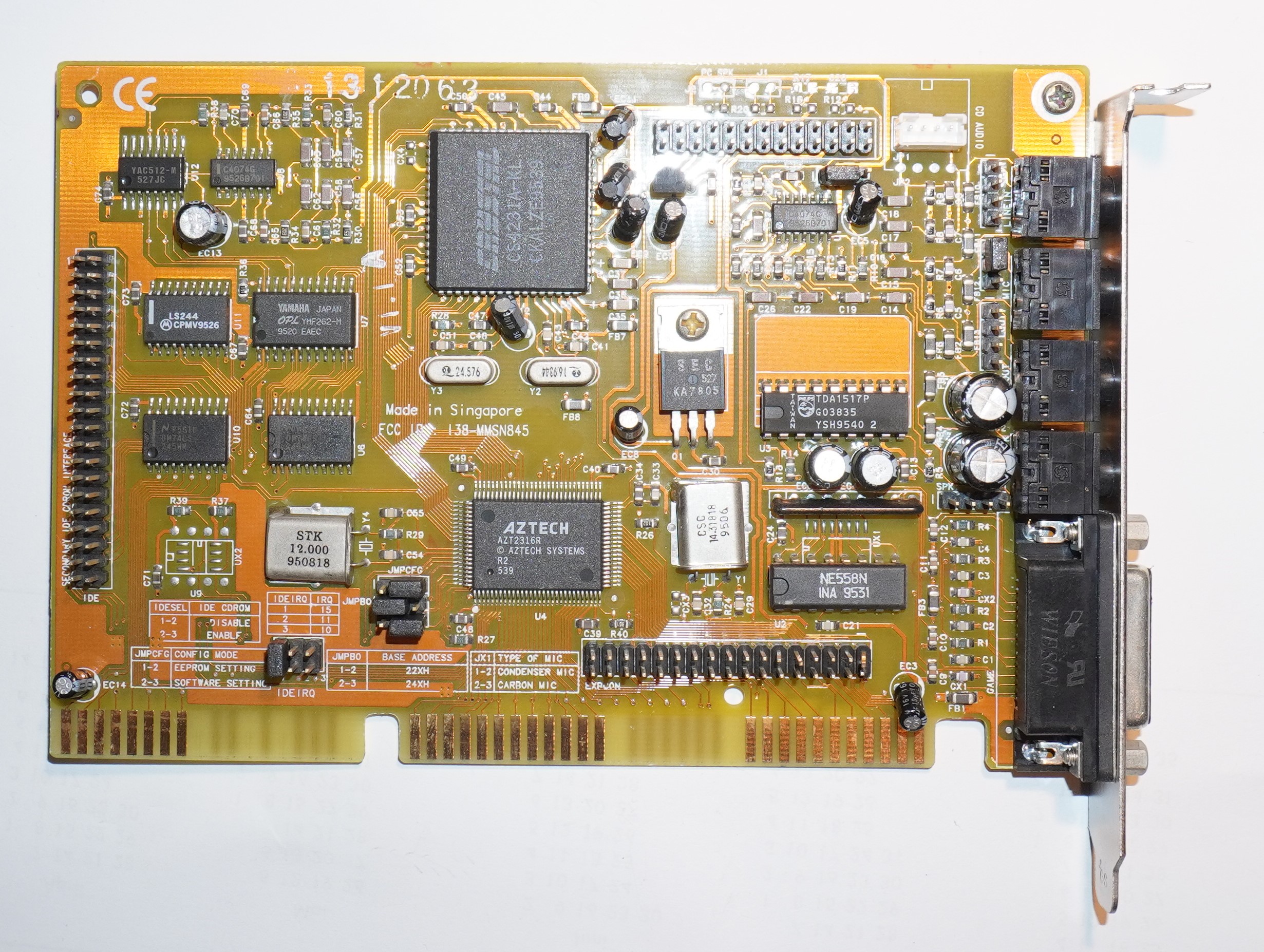

image2 Image 2 of 5 (Elke Wehmer)

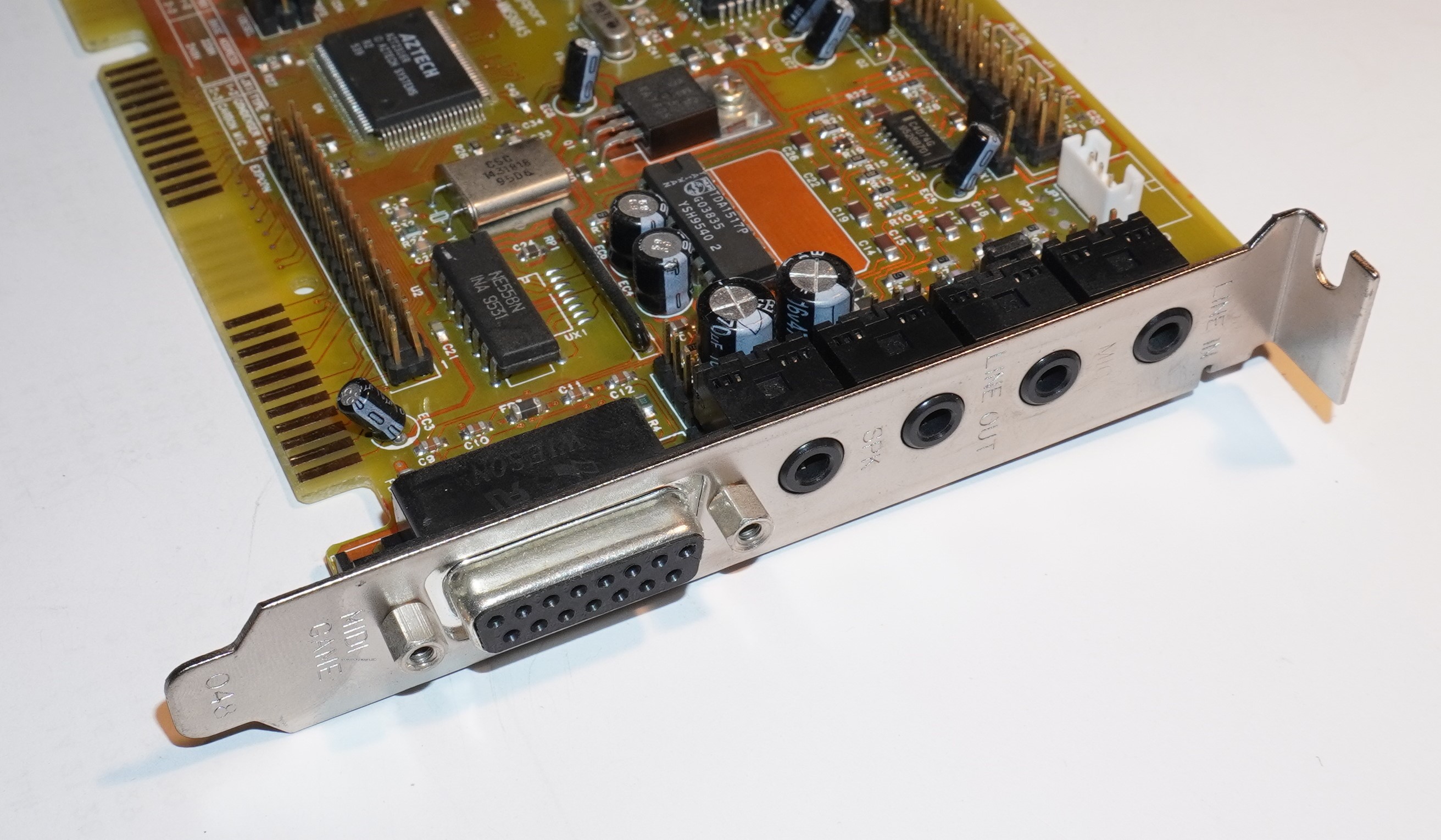

image3 Image 3 of 5 (VanoRu)

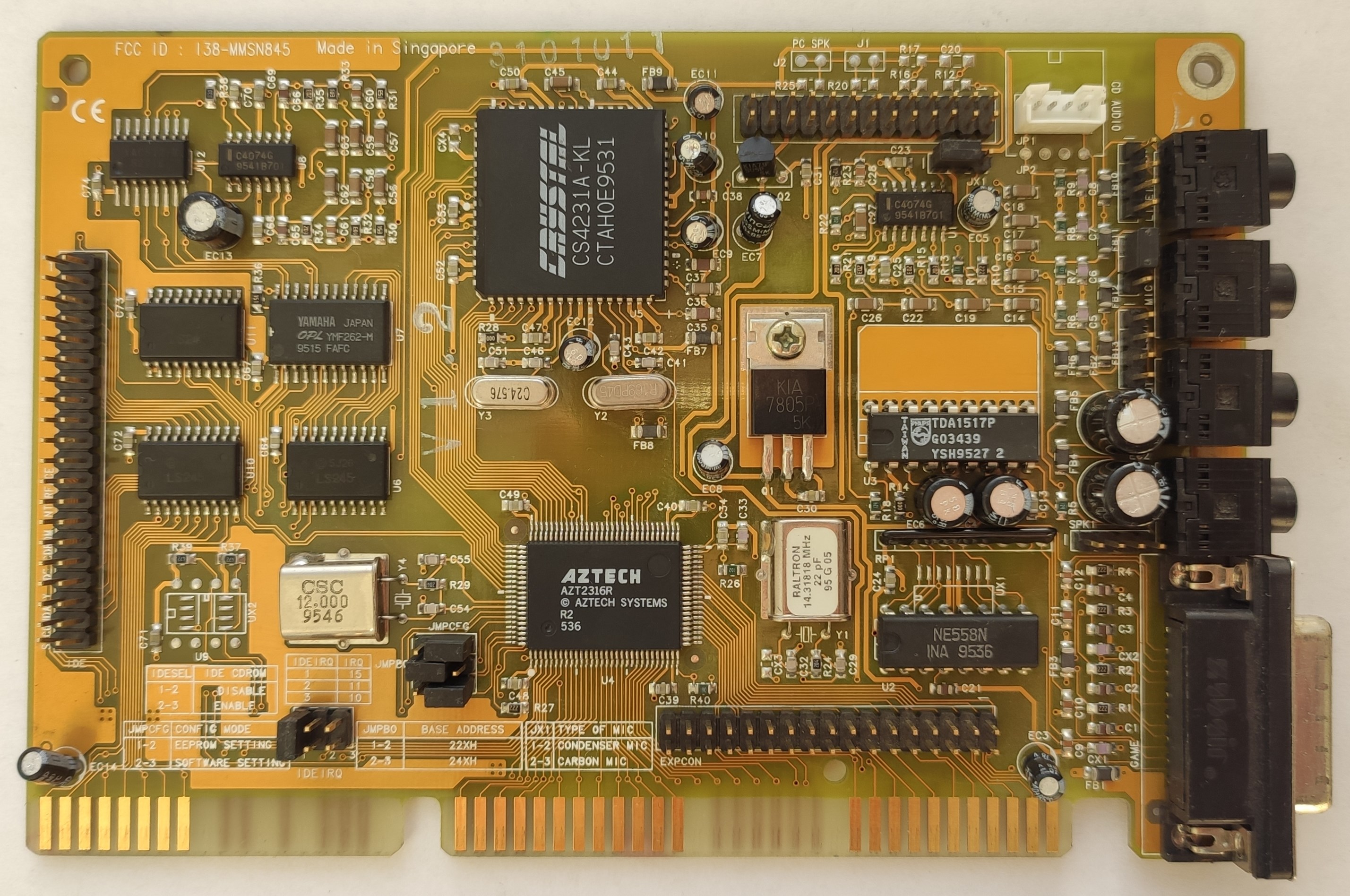

image4 Image 4 of 5 (Elke Wehmer)

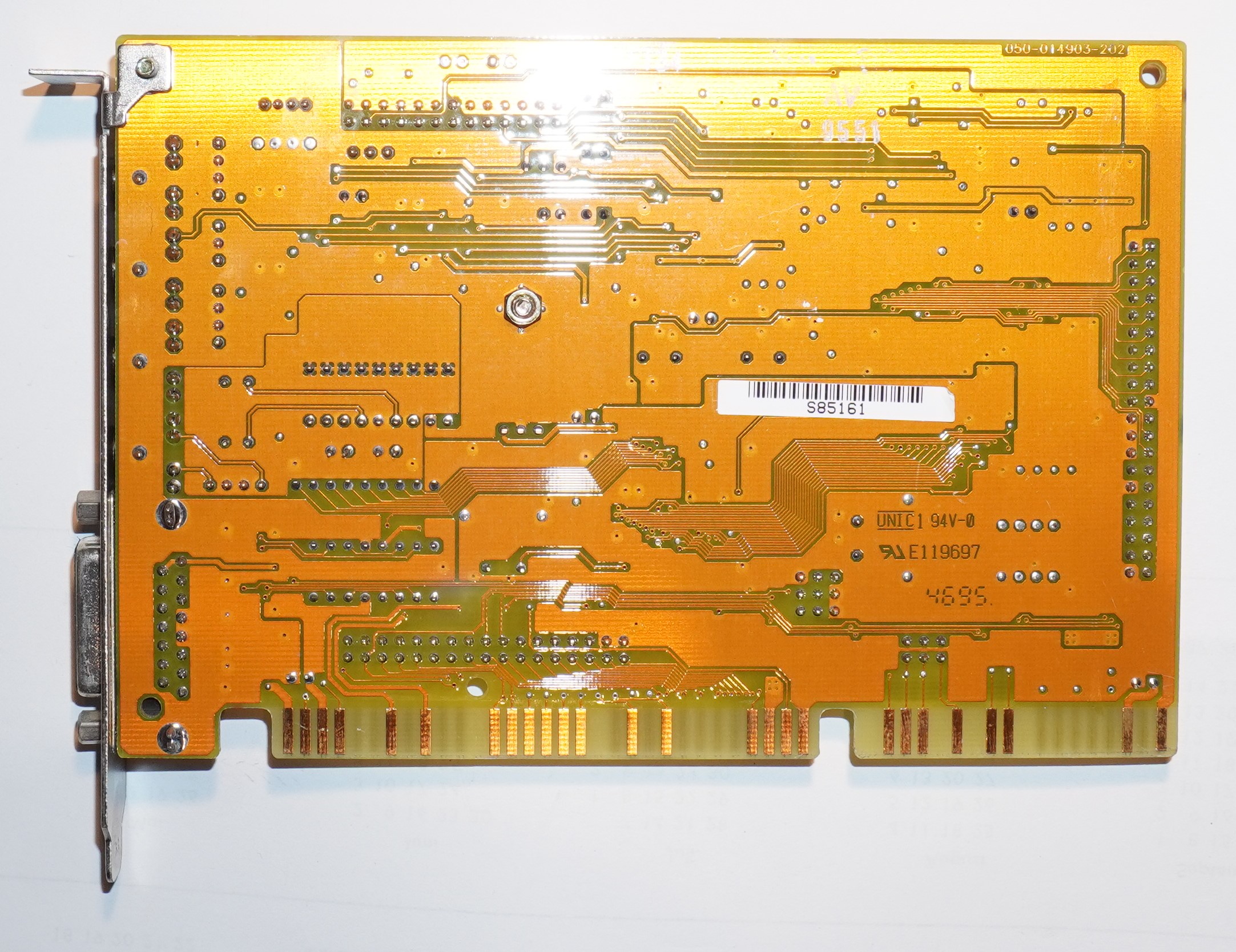

image5 Image 5 of 5 (Elke Wehmer)
