AZTech Sound Galaxy NX II Extra SCSI
Logs
typeType
Sound CD-ROM interface
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
fccFCC ID
I38-MMSD801
chip Chips and specs
-> Audio
Yamaha YAC512 (2-Channel Floating DAC) AZTech AZTSSPT0592-001 AZTech AZT-NXPMIX0592 Yamaha YMF262 (OPL3)
-> Processor
Intel 8051 (Microcontroller)
-> SCSI ctrl.
Future Domain TMC-950
tag Also known as
portintI/O ports
2x
  • 3.5mm TRS jack
1x
  • 3.5mm TRS jack
1x
  • 1x4 2.50mm pin header
1x
  • DA-15
1x
  • 2x20 2.54mm pin header
1x
  • 2x1 2.54mm pin header
1x
  • 2x25 2.54mm pin header
powerPower connectors
Empty
notes Notes

SCSI chip is optional

Last updated 2025-05-23T19:06:47Z
biosc No BIOS files available
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
2.11
OS support
MS-DOS Windows 3.1x
Arch
x86
Size
1.6MB
Filename
doc No card documents available
Chip
Release date
File
Logs
Chip
Release date
1994-11
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1994-04
File
Logs
Chip
Release date
1994-11
File
Logs
image1 Image 1 of 2 (Yargoro)

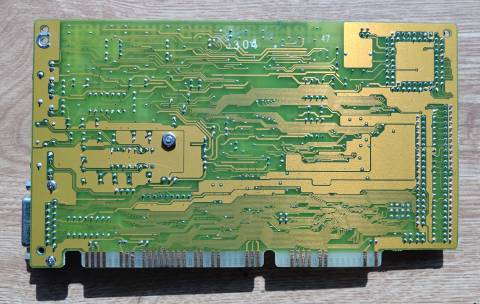

image2 Image 2 of 2 (Yargoro)
