AZTech Sound 16B SRS 3D
Logs
typeType
Sound
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
chip Chips and specs
-> Audio
AZTech AZT2320 (R2)
MTL
Chip Set Unidentified
Data Bus 16-bit ISA
Card Type Sound card
I/O Options CD-ROM audio (3), CD-ROM interface, game/MIDI port, line in, microphone in, MPC line in, MPC microphone in, MPC speaker out, PC speaker out, speaker out, wavetable
Maximum Onboard Memory None
Floppy drives supported None
tag Also known as
portintI/O ports
2x
  • 3.5mm TRS jack
1x
  • 3.5mm TRS jack
2x
  • 1x4 2.54mm pin header
1x
  • 1x4 2.50mm pin header
1x
  • DA-15
powerPower connectors
Empty
Last updated 2024-12-03T21:15:54Z
biosc No BIOS files available
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
N/A
OS support
MS-DOS Windows 3.0 Windows 3.1x
Arch
x86
Size
908.2KB
Filename
doc No card documents available

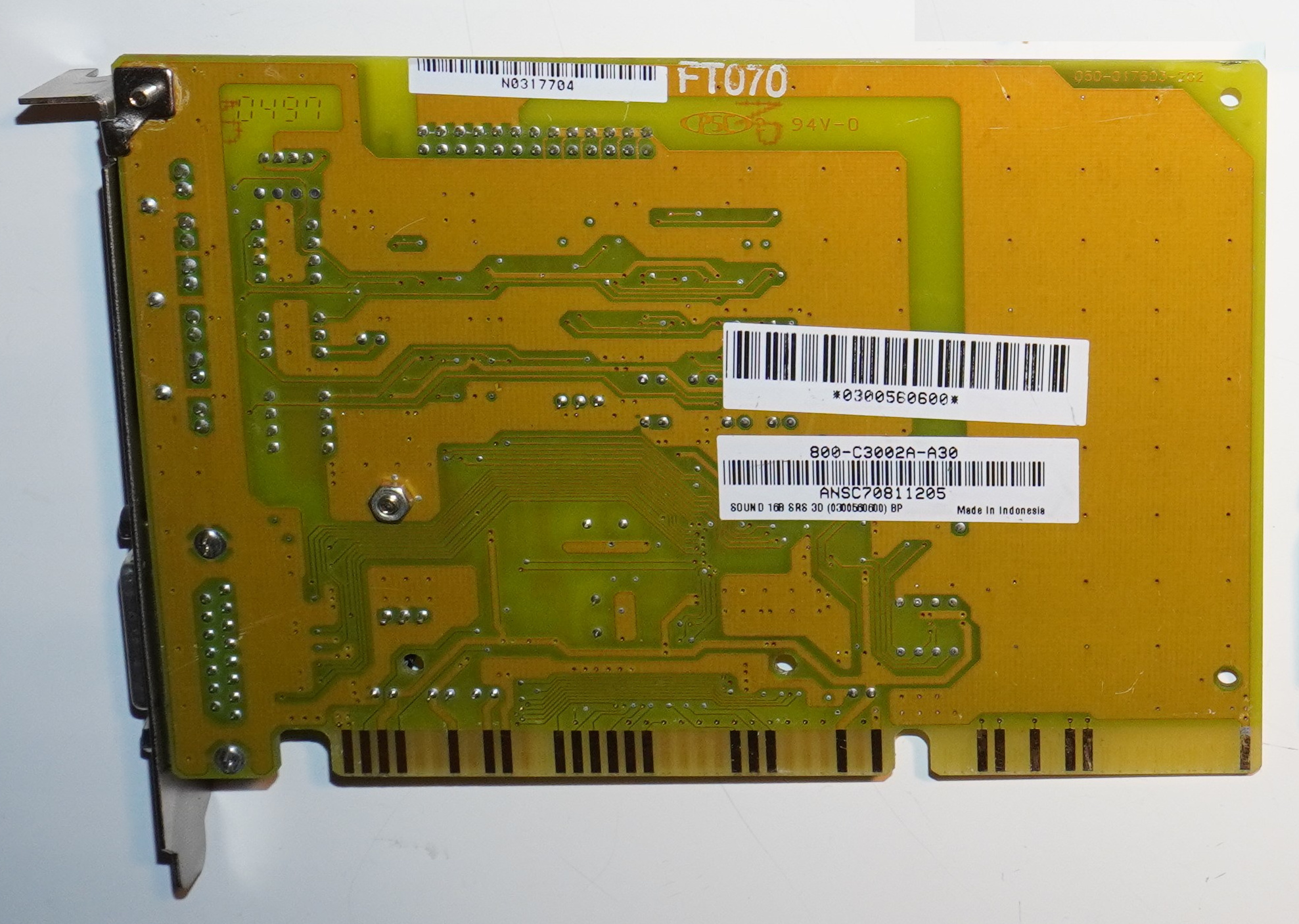

image1 Image 1 of 2 (Elke Wehmer)

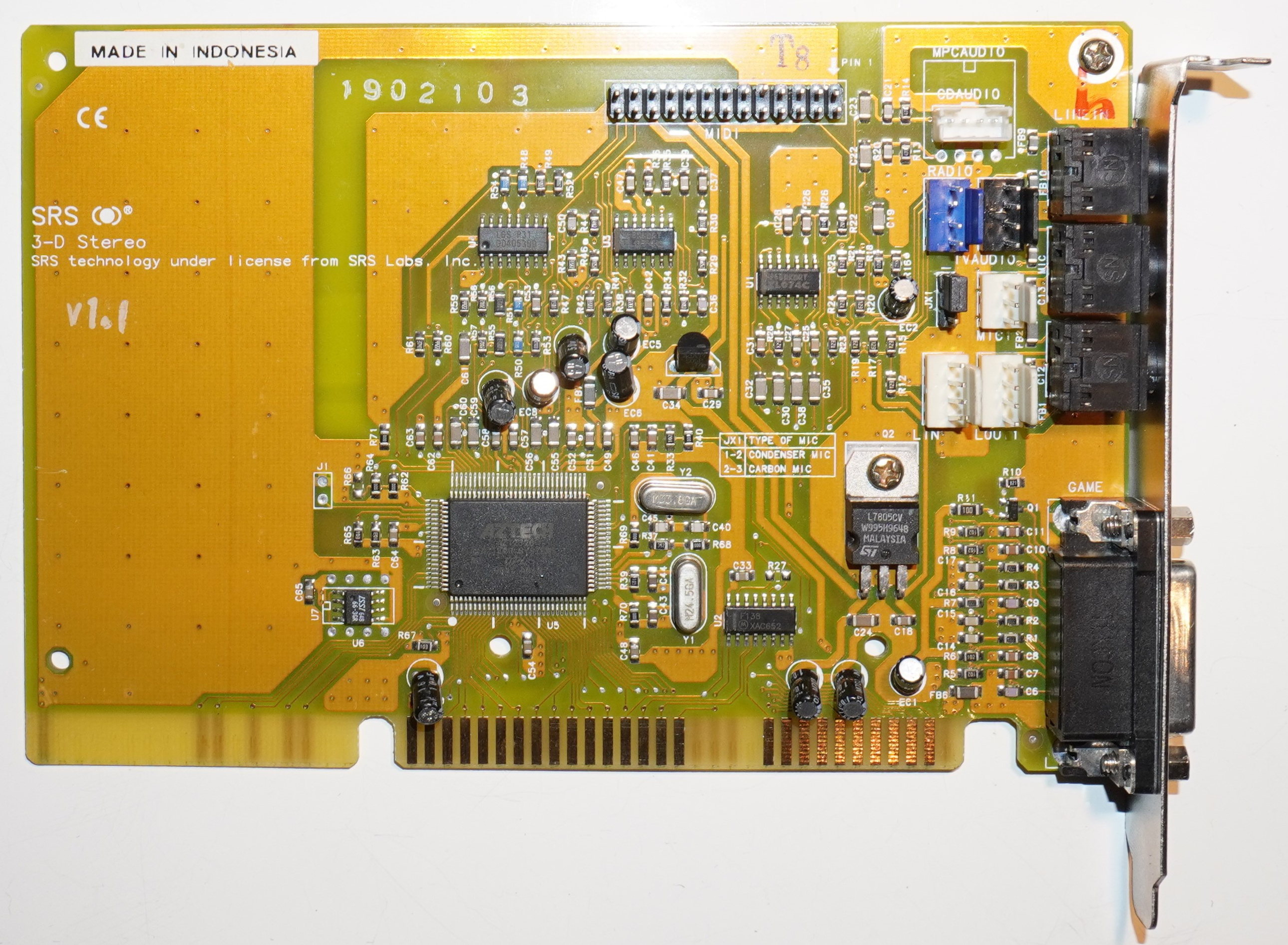

image2 Image 2 of 2 (Elke Wehmer)
