AZTech Sound Galaxy Basic Audio 16
Logs
typeType
Sound
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
fccFCC ID
I38-MMSN813
chip Chips and specs
-> Audio
Crystal CS4231A (Multimedia Audio Codec) AZTech AZTSB0792-U07
MTL
Chip Set Aztech
Data Bus 16-bit ISA
Card Size Half-length, full-height card
Card Type Sound card
I/O Options CD-ROM interface, game/MIDI port, audio line in, microphone, speaker
tag Also known as
portintI/O ports
Empty
powerPower connectors
Empty
notes Notes
  • There were probably two revisions of this card with slight differences.
  • This card is only SB 2.0 compatible. No SB Pro 2.0, no OPL3.
  • It can do 16-bit stereo through WSS
Last updated 2025-09-20T18:49:53Z
biosc No BIOS files available
drv No drivers available
doc 1 card document available
Release date
File
Logs
Release date
1999
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1994-09
File
Logs

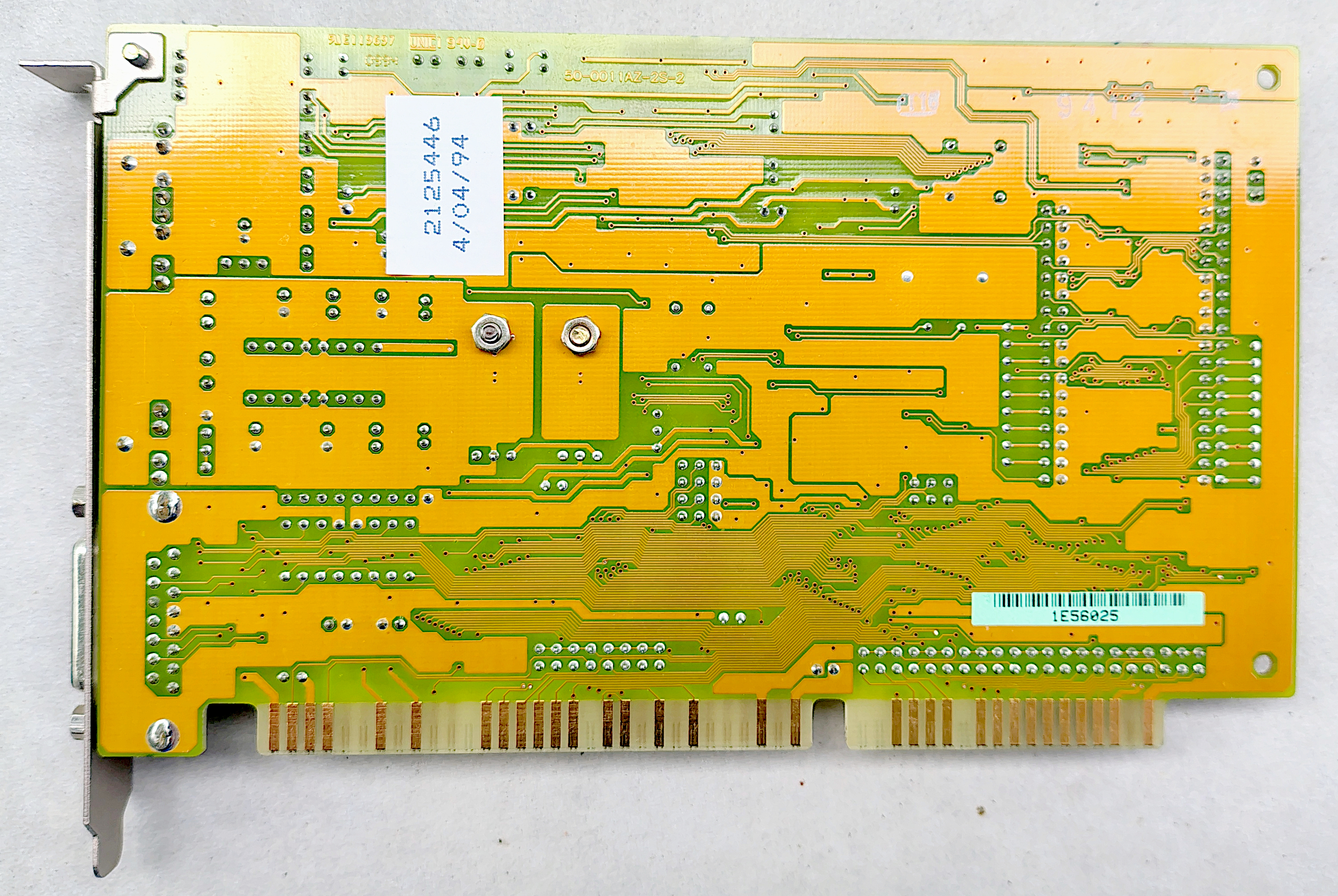

image1 Image 1 of 4 (Microhouse)

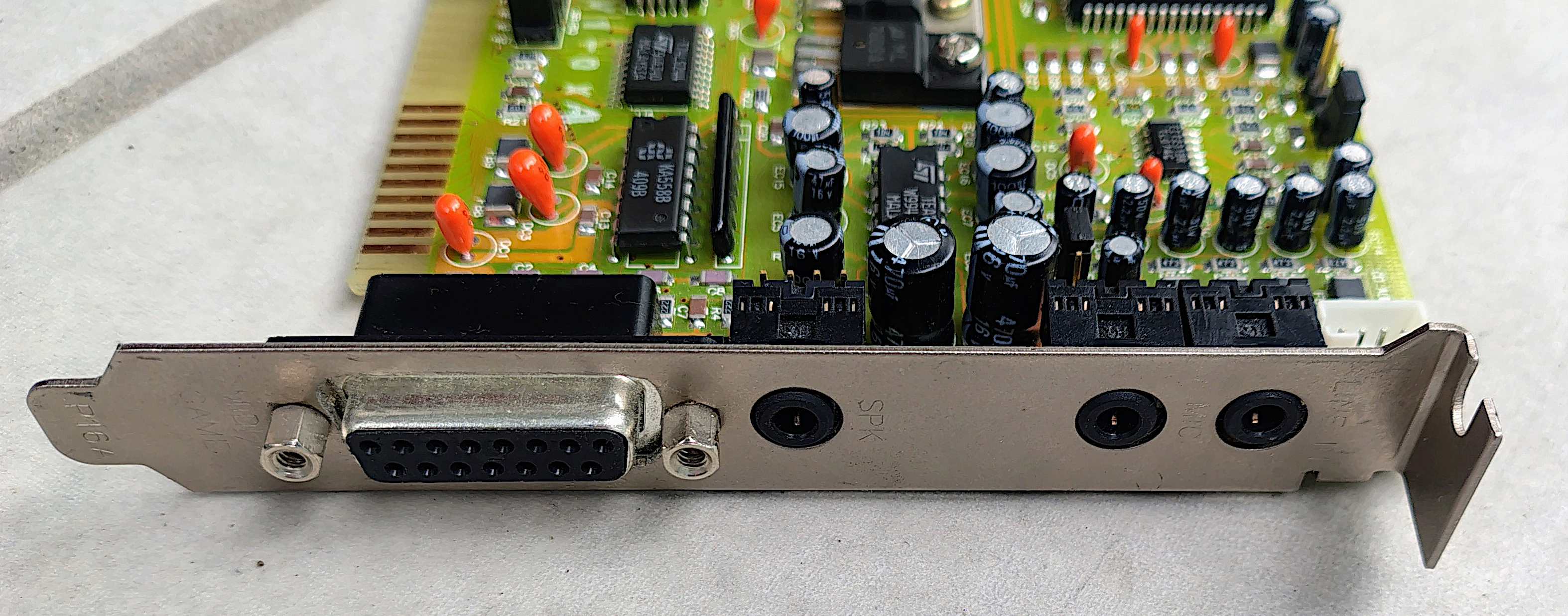

image2 Image 2 of 4 (Necroware)

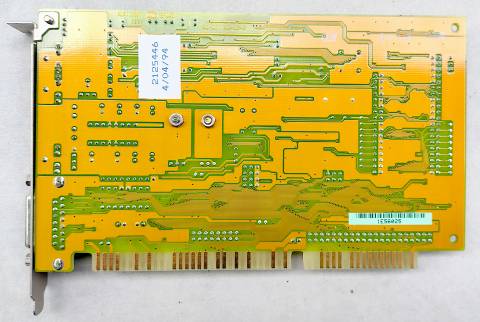

image3 Image 3 of 4 (Necroware)

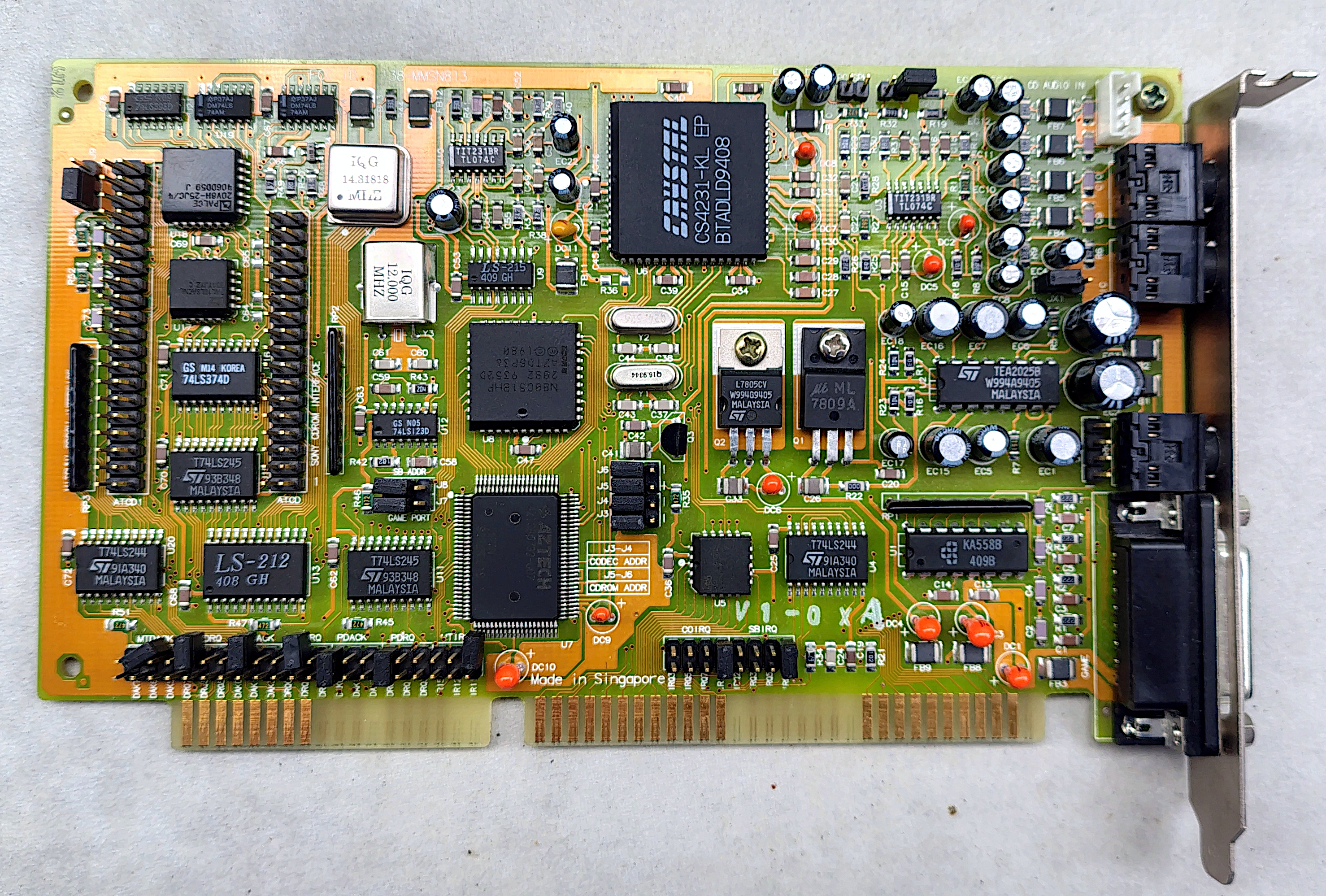

image4 Image 4 of 4 (Necroware)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
