AZTech SOUND GALAXY ORION 16
Logs
typeType
Sound
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
fccFCC ID
I38-MMSN816
chip Chips and specs
-> Audio
Crystal CS4231A (Multimedia Audio Codec) AZTech AZT1605
-> IDE ctrl.
AZTech AZT802
-> Processor
Intel 8051 (Microcontroller)
MTL
Card Type Sound
I/O Options CD-ROM interface (3), SCSI/FM radio in, CD Audio in, game/MIDI port, Line in, Speaker out(2), Multimedia PC speaker out, PC speaker in, Microphone jack, Wave table interface, Antenna
Maximum DRAM N/A
Chipset Controller Unidentified
tag Also known as
portintI/O ports
2x
  • 3.5mm TRS jack
2x
  • 3.5mm TRS jack
1x
  • 1x4 2.54mm pin header
1x
  • DA-15
1x
  • 2x20 2.54mm pin header
1x
  • 2x20 2.54mm pin header
1x
  • 2x17 2.54mm pin header
1x
  • 2x13 2.54mm pin header
powerPower connectors
Empty
Last updated 2025-09-20T19:22:27Z
biosc No BIOS files available
drv No drivers available
doc 1 card document available
Release date
File
Logs
Release date
1999
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1994-11
File
Logs
Chip
Release date
1994-09
File
Logs
Chip
Release date
File
Logs
image1 Image 1 of 3 (Microhouse)

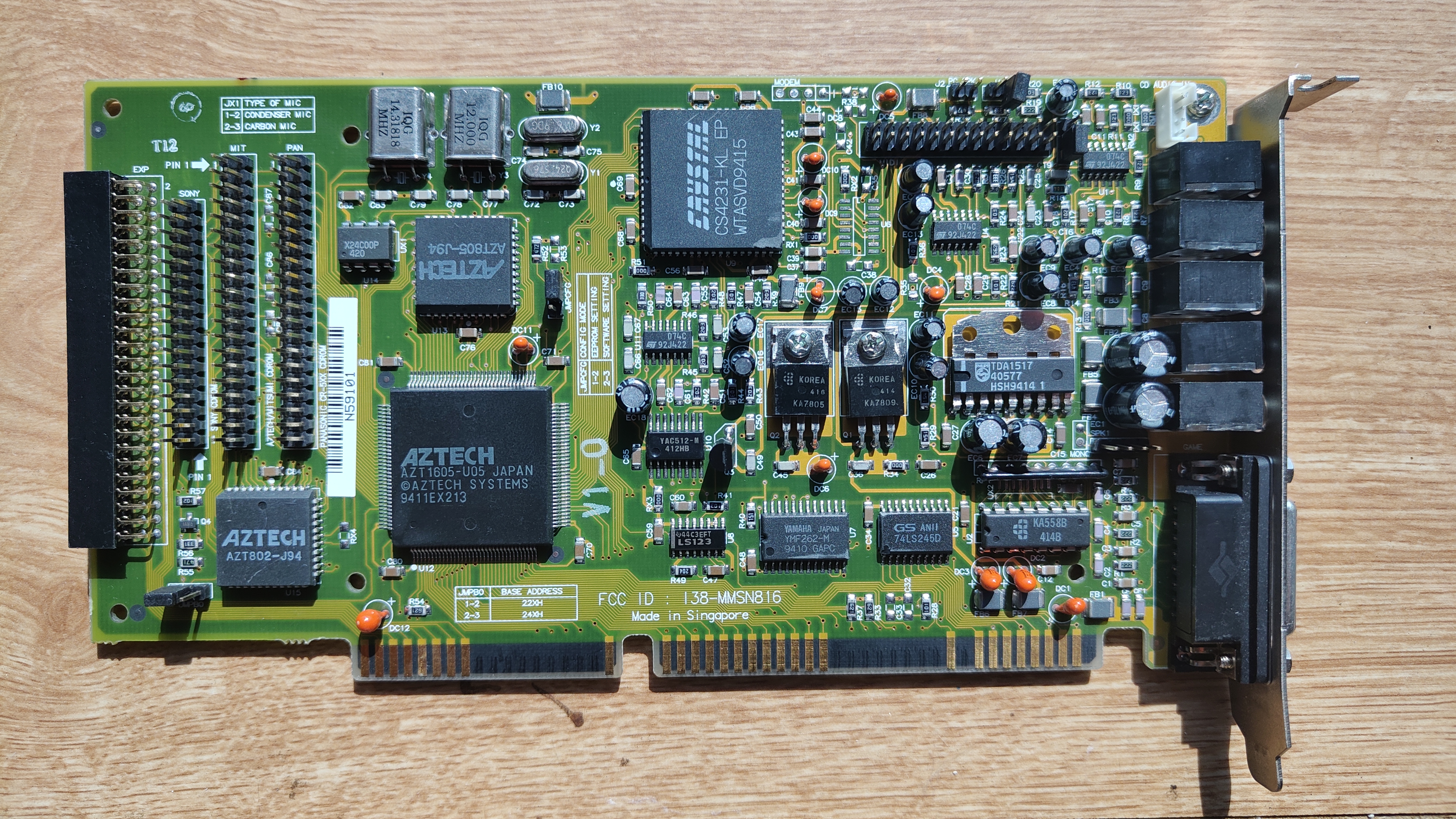

image2 Image 2 of 3 (Yargoro)

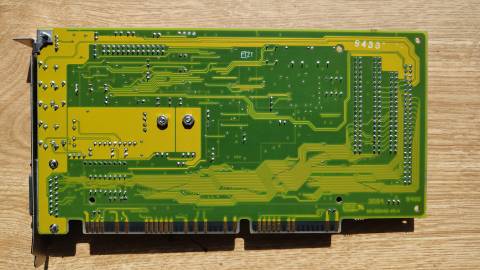

image3 Image 3 of 3 (Yargoro)
