AZTech Audio Telephony 3200/3260
Logs
typeType
Sound Modem
interfaceInterface
signalSignaling
16-bit ISA 8-bit ISA
datePCI ID
Empty
fccFCC ID
I38-MMSN842
chip Chips and specs
-> Audio
Analog Devices AD1845 (Windows Sound System Codec) Yamaha YAC512 (2-Channel Floating DAC) AZTech AZT2316R Yamaha YMF262 (OPL3)
-> Modem
Rockwell R6682-24 (RCV288DPi) Rockwell R6674-16 (RCFSP)
tag Also known as
  • AZTech 050-514203-402 / 050-514203-403
portintI/O ports
2x
  • 3.5mm TRS jack
1x
  • 3.5mm TRS jack
2x
  • 1x4 2.54mm pin header
1x
  • DA-15
1x
  • RJ11
powerPower connectors
Empty
Last updated 2025-07-15T13:34:32Z
biosc No BIOS files available
drv 4 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.00
OS support
MS-DOS
Arch
x86
Size
2MB
Filename
Name
Version
1.03
OS support
OS/2 Warp 3.x
Arch
x86
Size
177.4KB
Filename
Name
Version
1.00
OS support
Empty
Arch
x86
Size
217.6KB
Filename
Name
Version
2.12
OS support
Windows 9x
Arch
x86
Size
2.6MB
Filename
doc No card documents available
Chip
Release date
File
Logs
Chip
Release date
1997
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1994-04
File
Logs
Chip
Release date
1994-11
File
Logs

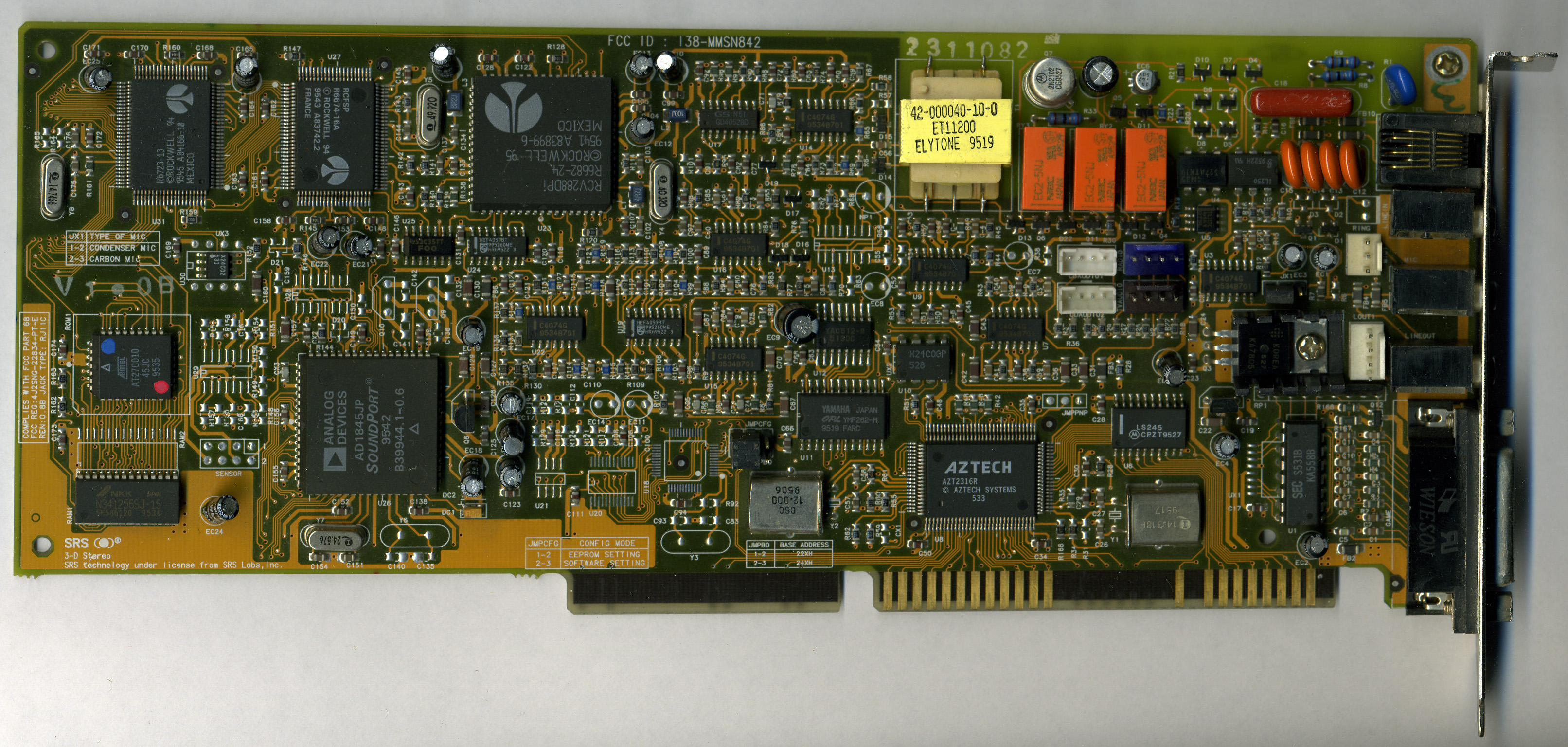

image1 Image 1 of 4 (Yargoro)

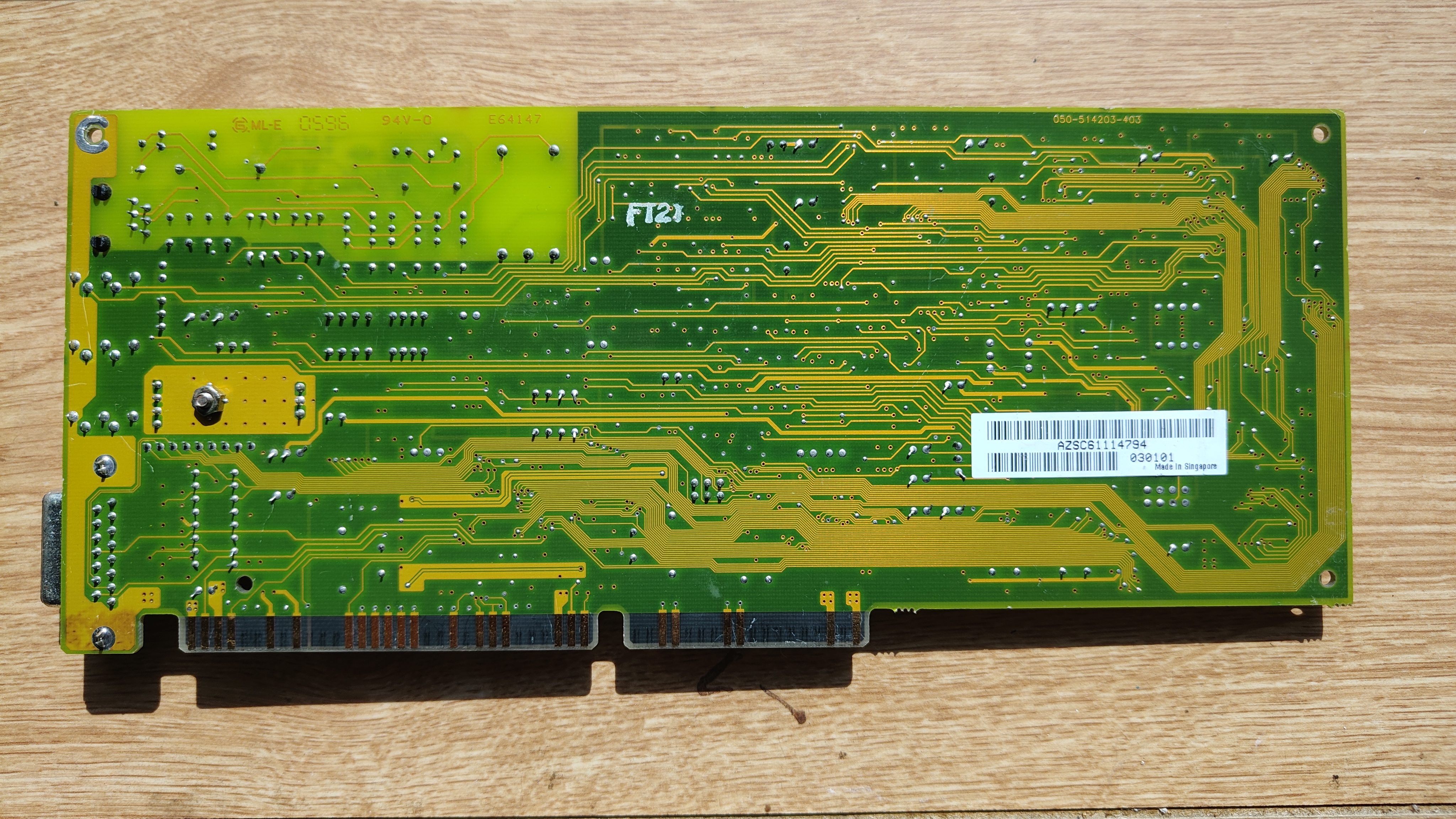

image2 Image 2 of 4 (Virtual Computer Antiques)

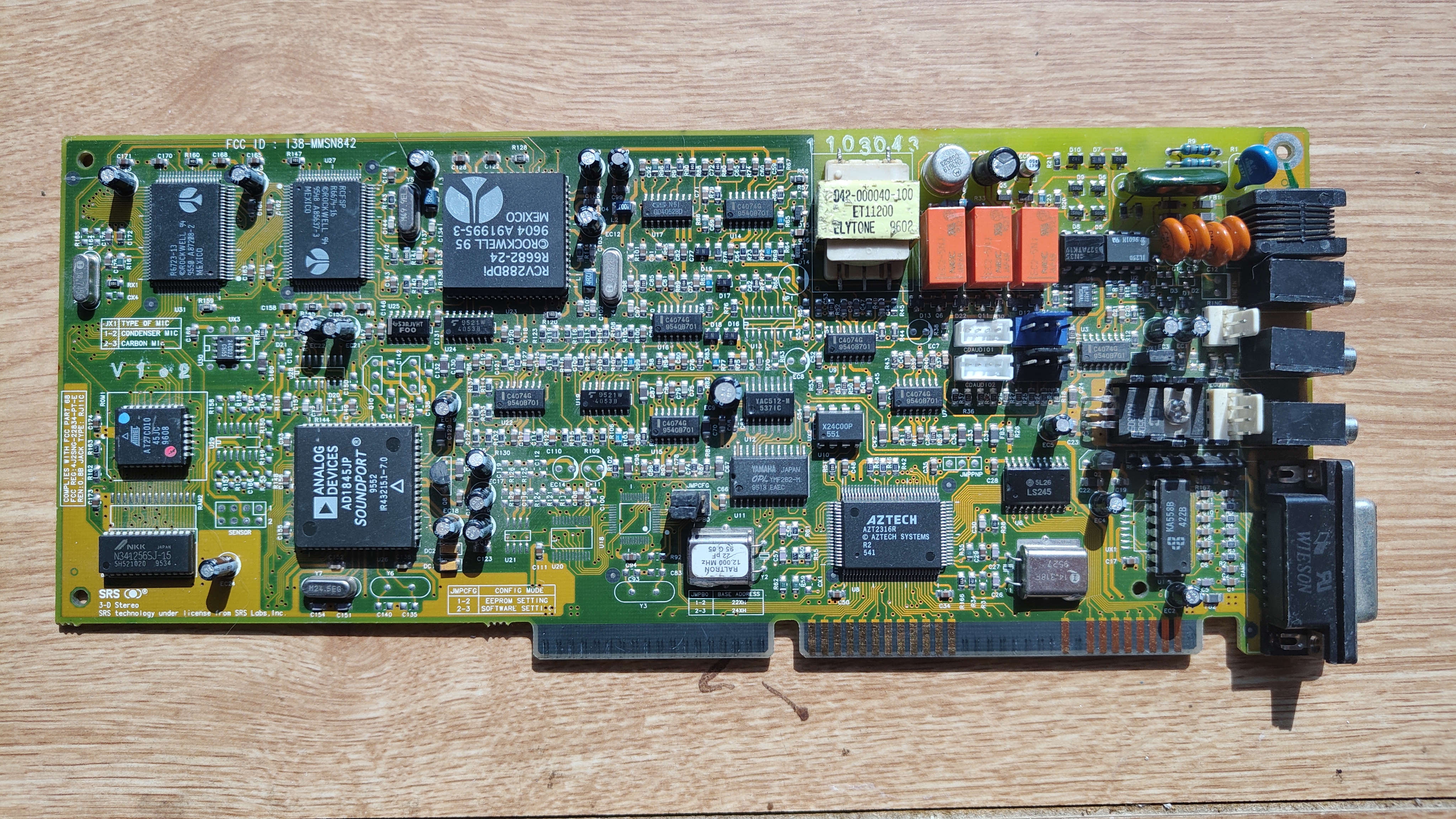

image3 Image 3 of 4 (Yargoro)

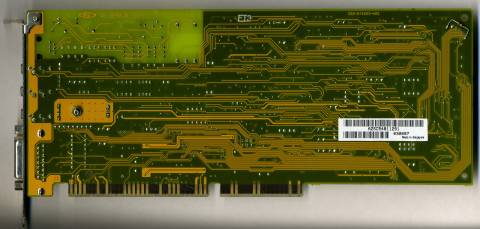

image4 Image 4 of 4 (Virtual Computer Antiques)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
