AVM ISDN-CONTROLLER A1
Logs
typeType
Modem
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
chip Chips and specs
MTL
Chip Set Unidentified
Data Bus 16-bit ISA
Card Type ISDN
I/O Options ISDN interface (RJ-45)
ISDN Data Rate 64Kbps x 2
D-Channel Protocol DSS1, 1TR6, VN3/4, 5ESS, NI1, DMS-100, Austel, CT1
B-Channel Protocol (Layer 2) X.75, HDLC, Transparent, V.120,
B-Channel Protocol (Layer 3) Transparent, X.25, ISO 8208, X.31, T.70
Error Correction/Compression Unidentified
tag Also known as
  • AVM ISDN Controller A1 3.0 FC
  • AVM Fritz!Card
portintI/O ports
1x
  • RJ45, ISDN S0
powerPower connectors
Empty
Last updated 2025-09-20T20:23:24Z
biosc No BIOS files available
drv No drivers available
doc 1 card document available
Release date
File
Logs
Release date
1999
File
Logs

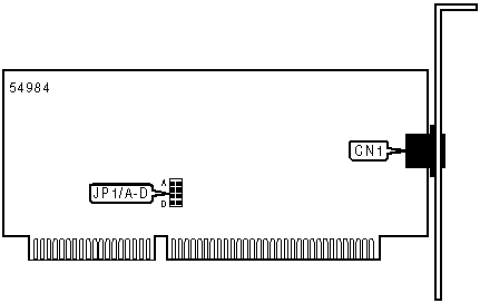

image1 Image 1 of 6 (Microhouse)

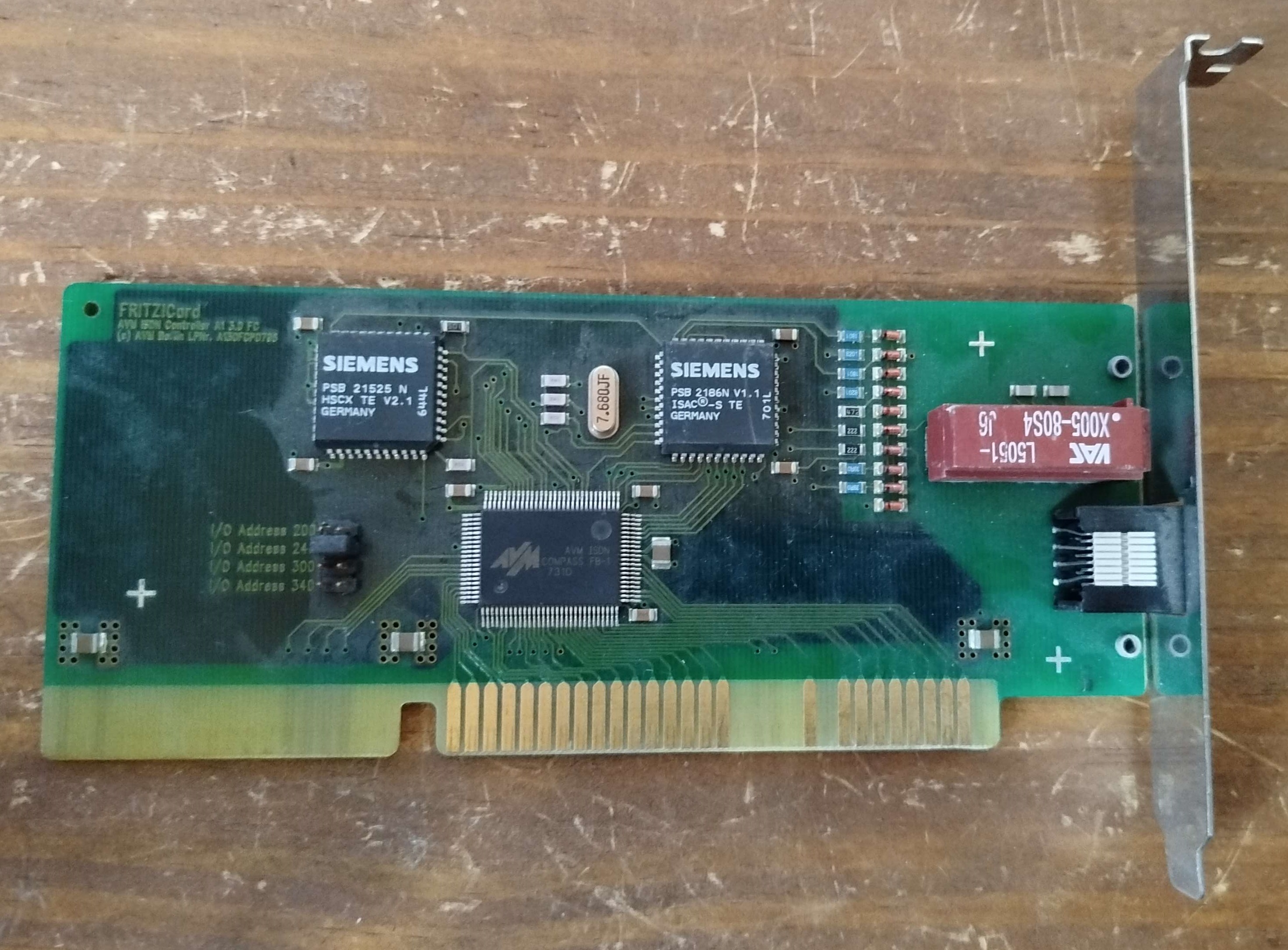

image2 Image 2 of 6 (CircusCat)

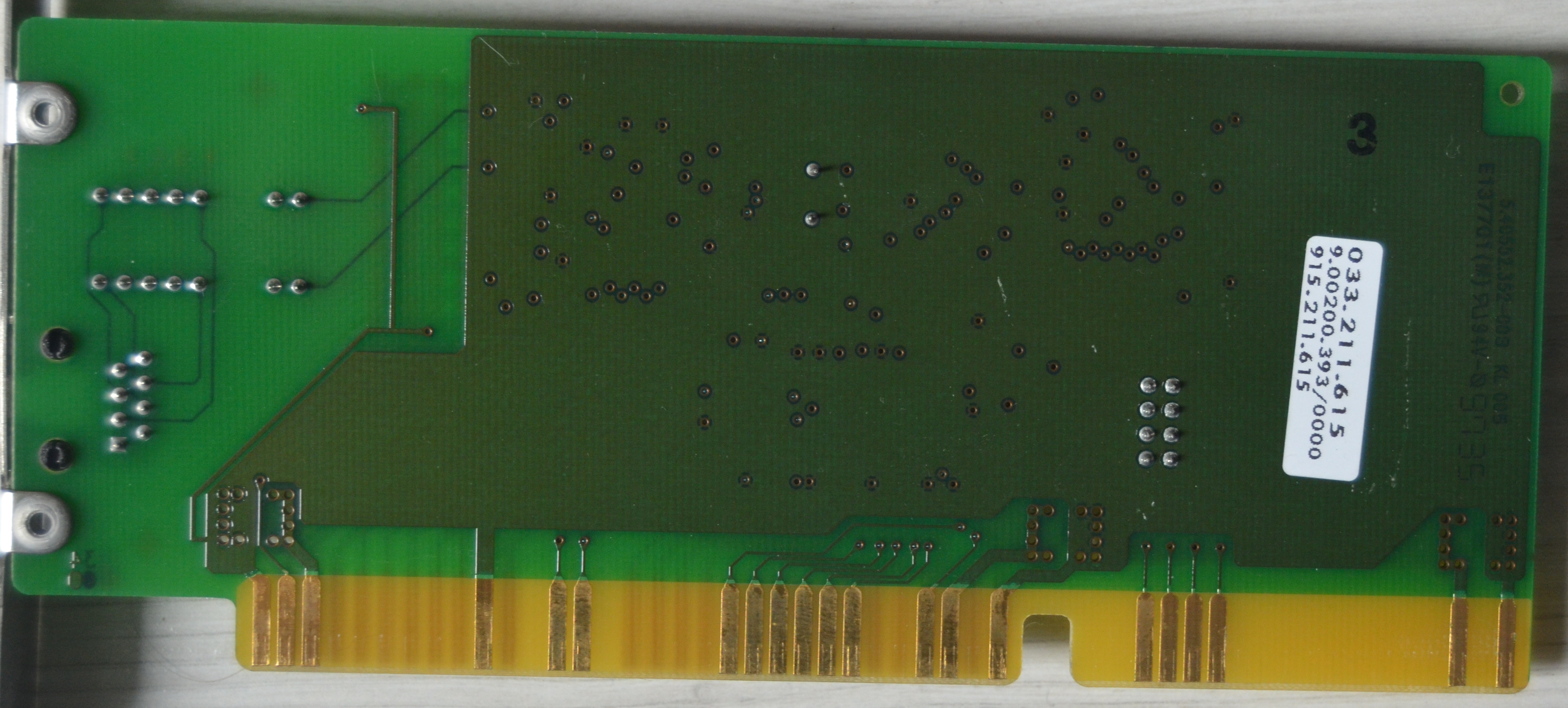

image3 Image 3 of 6 (kotelstudios)

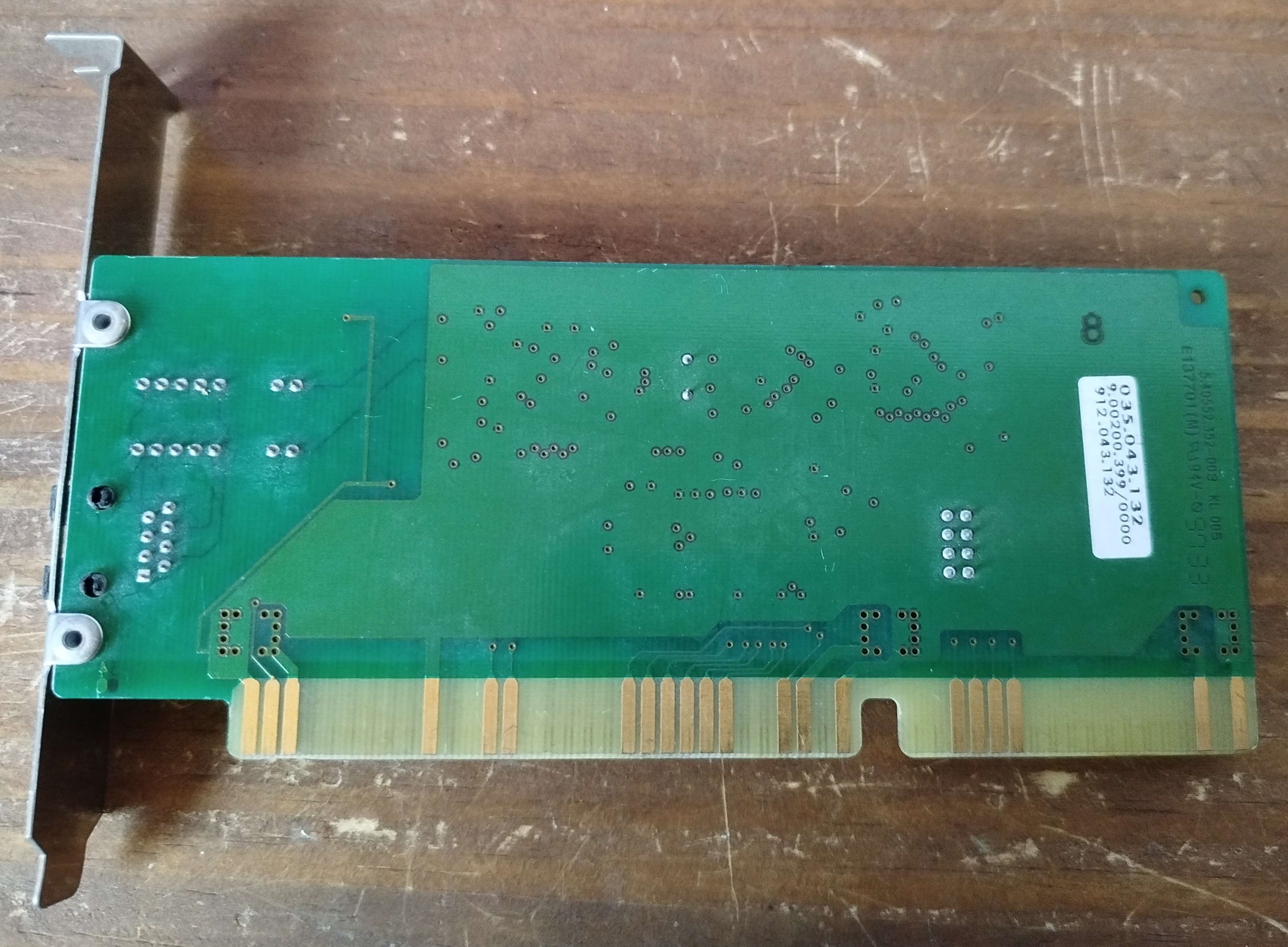

image4 Image 4 of 6 (CircusCat)

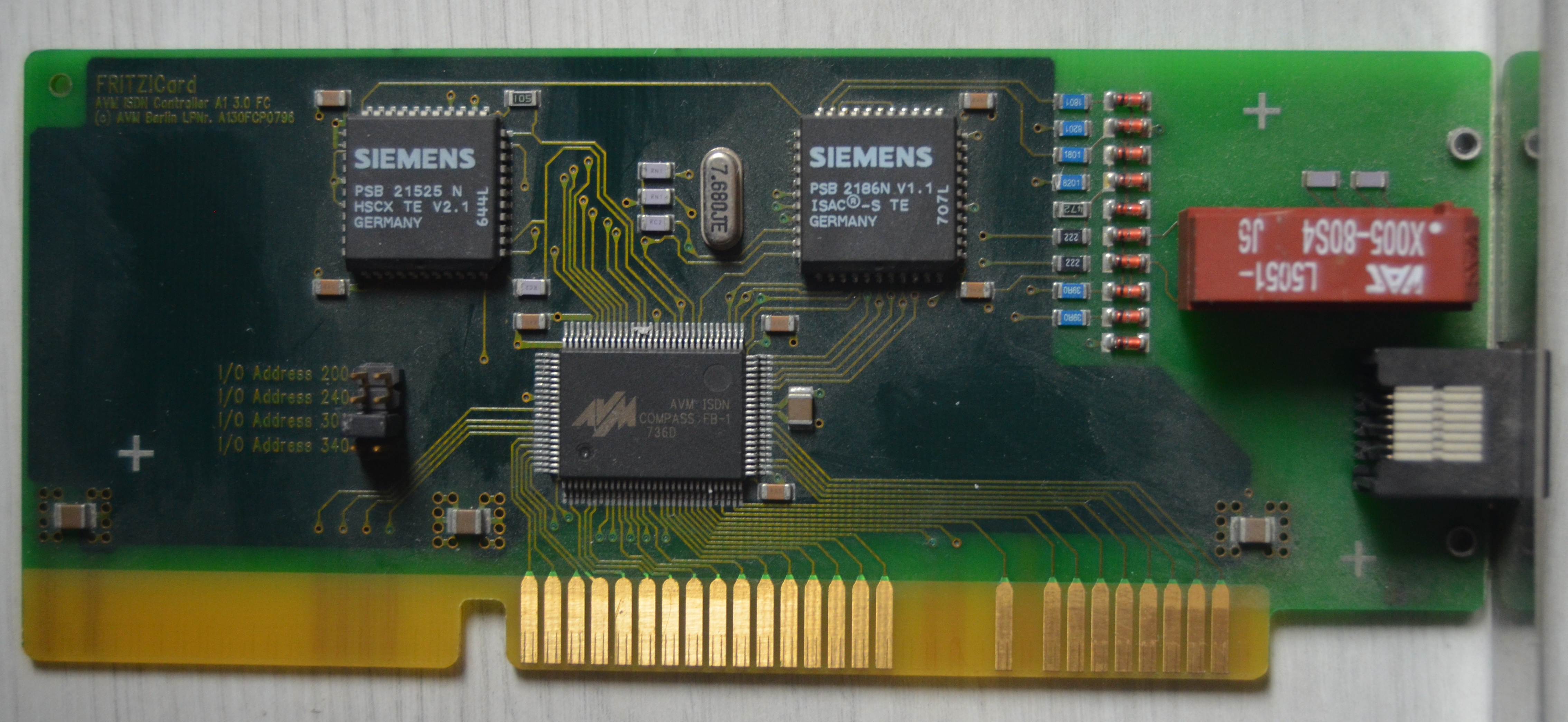

image5 Image 5 of 6 (kotelstudios)

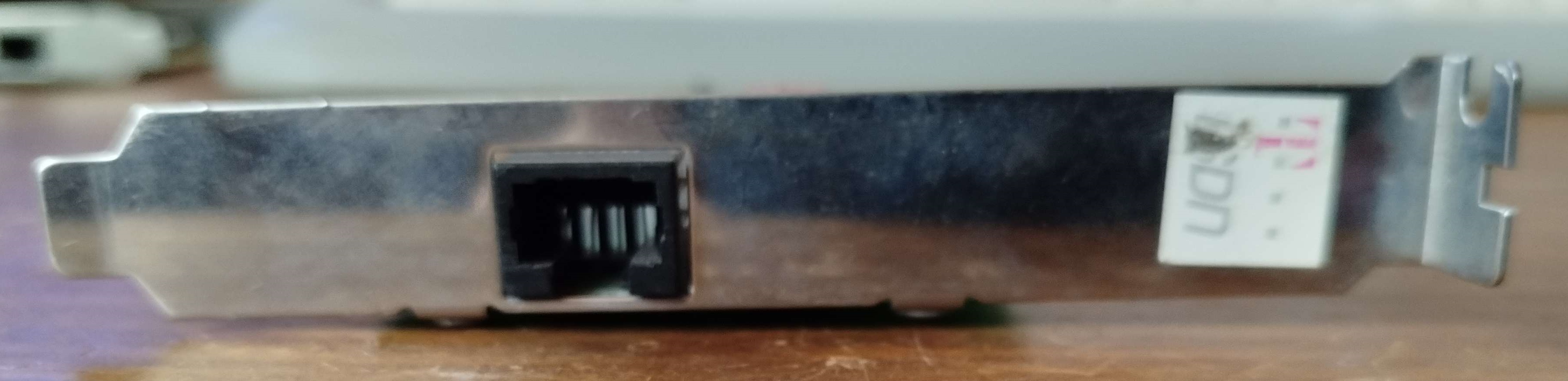

image6 Image 6 of 6 (CircusCat)
