Auzentech X-Fi Forte 7.1
Logs
typeType
Sound
interfaceInterface
signalSignaling
PCIe 1.0 PCIe 2.0
datePCI ID
000B
ramRAM type
DDR
ramRAM size
64MB
chip Chips and specs
-> Audio
Creative CA20K2 (EMU20K2) (Audio processor) Crystal CS4382-KQZ (8-channel DAC) Wolfson Microelectronics (WM) WM8775SEDS (24-bit 96kHz 4CH ADC) AKM (Asahi Kasei) AK4396 (24-bit 192 kHz DAC) Wolfson Microelectronics (WM) WM8782 (24-bit 192 kHz Stereo ADC)
portintI/O ports
2x
  • 3.5mm TRS jack
5x
  • 3.5mm TRS jack
1x
  • 2x5 2.54mm pin header
1x
  • RCA Jack
powerPower connectors
Empty
notes Notes

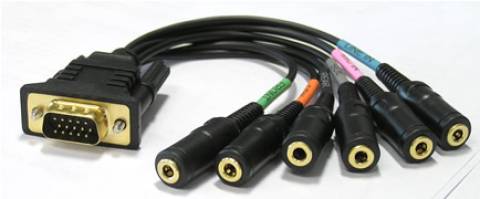

DE-15 is for a proprietary Breakout Cable

Last updated 2025-10-15T22:08:14Z
biosc No BIOS files available
drv No drivers available
doc No card documents available
Chip
Release date
File
Logs
Chip
Release date
2004-08
File
Logs
Chip
Release date
2007-05
File
Logs
Chip
Release date
2004-06
File
Logs
Chip
Release date
2020-01
File
Logs

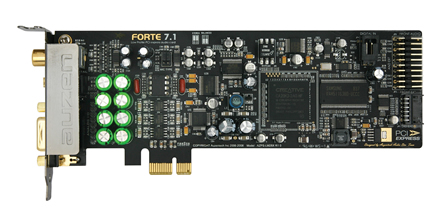

image1 Image 1 of 4 (Auzentech)
image2 Image 2 of 4 (Auzentech)

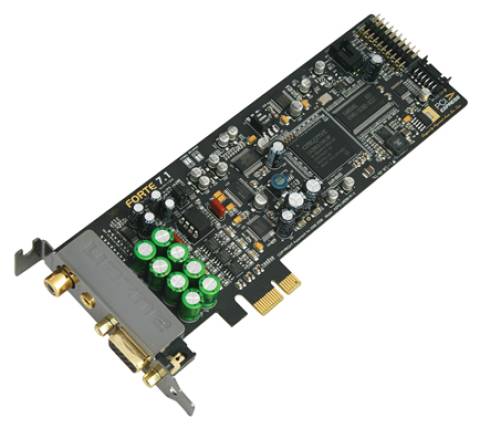

image3 Image 3 of 4 (Auzentech)

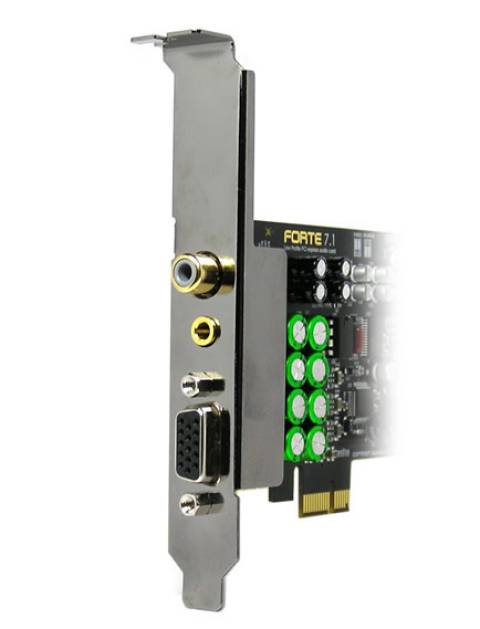

image4 Image 4 of 4 (Auzentech)
