Aureal Vortex 2 SQ2500
Logs
typeType
Sound
interfaceInterface
signalSignaling
32-bit PCI
dimSlot height
1
datePCI ID
0002
chip Chips and specs
-> Audio
Aureal AU8830 (Vortex 2) SigmaTel STAC9708T (AC97 codec)
MTL
Chip Set Unidentified
Data Bus 32-bit PCI
Card Size Half-length, full-height card
Card Type Sound card
I/O Options Line in (2), line out (2), microphone in (2), Game/MIDI port, wavetable connector, 10-pin ActiveRadio connector
Maximum Onboard Memory Unidentified
tag Also known as
  • Unknown BA88DC30A-01
portintI/O ports
2x
  • 3.5mm TRS jack
2x
  • 3.5mm TRS jack
2x
  • 1x4 2.54mm pin header
1x
  • DA-15
1x
  • RCA Jack
1x
  • 1x4 2.54mm pin header
1x
  • 2x13 2.54mm pin header
powerPower connectors
Empty
Last updated 2025-04-07T17:56:36Z
biosc No BIOS files available
drv 6 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
4.12.01.2559
OS support
Windows 2000
Arch
x86
Size
3.7MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 9x
Arch
x86
Size
36.9MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
34.5MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
6.6MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows NT 4.0
Arch
x86
Size
5.1MB
Filename
Version
OS support
Windows NT 4.0
Arch
x86
Size
5.1MB
Filename
doc No card documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs

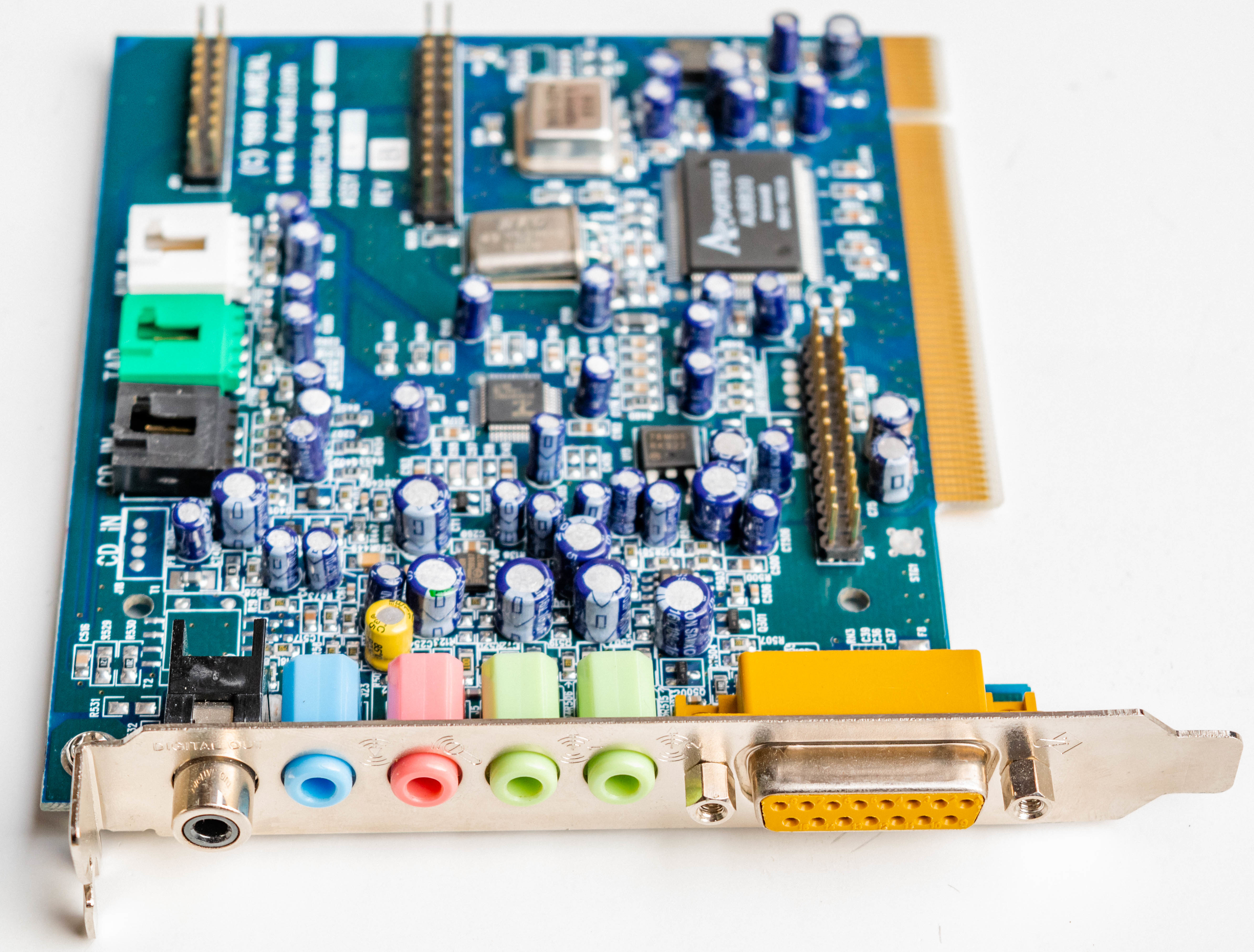

image1 Image 1 of 5 (Motherboard Continuum)

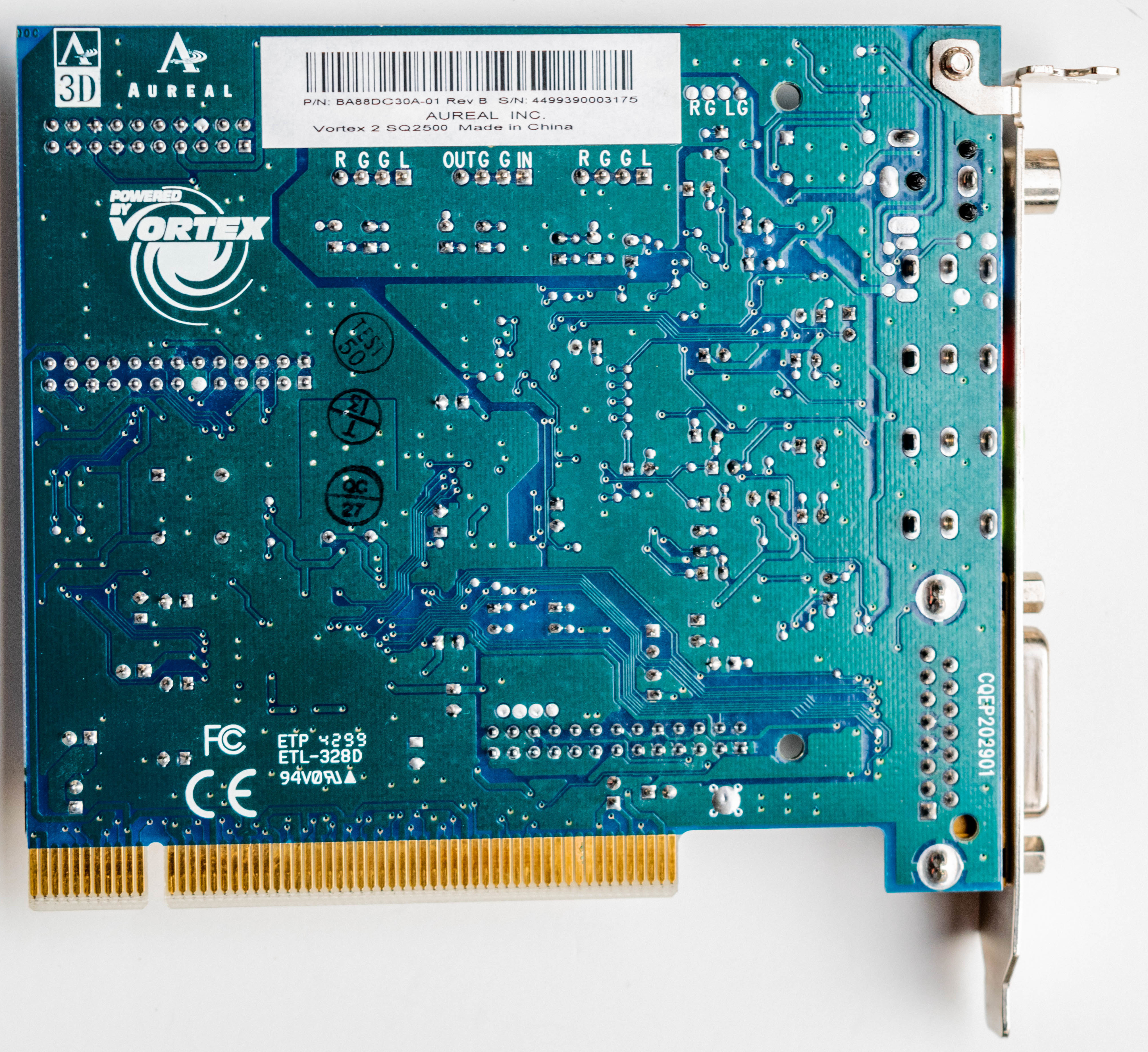

image2 Image 2 of 5 (Babasha)

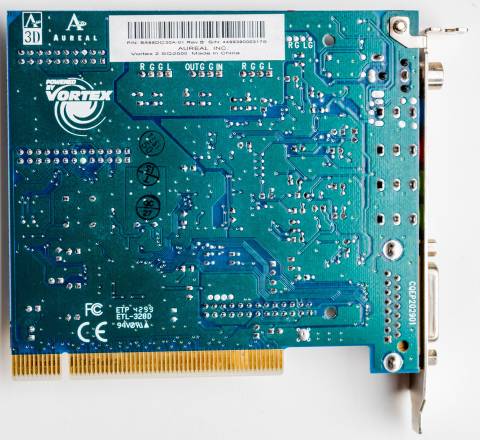

image3 Image 3 of 5 (Motherboard Continuum)

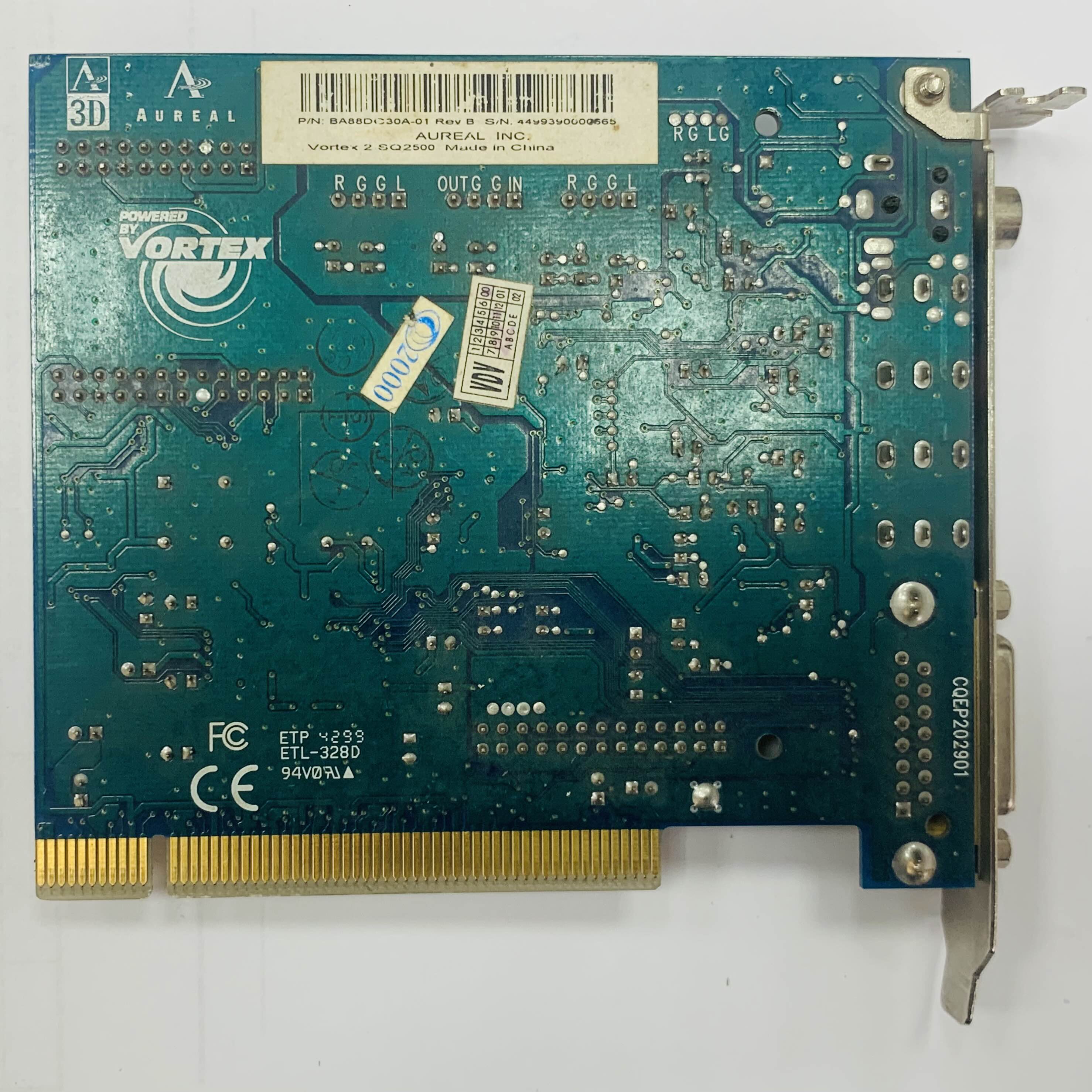

image4 Image 4 of 5 (Babasha)

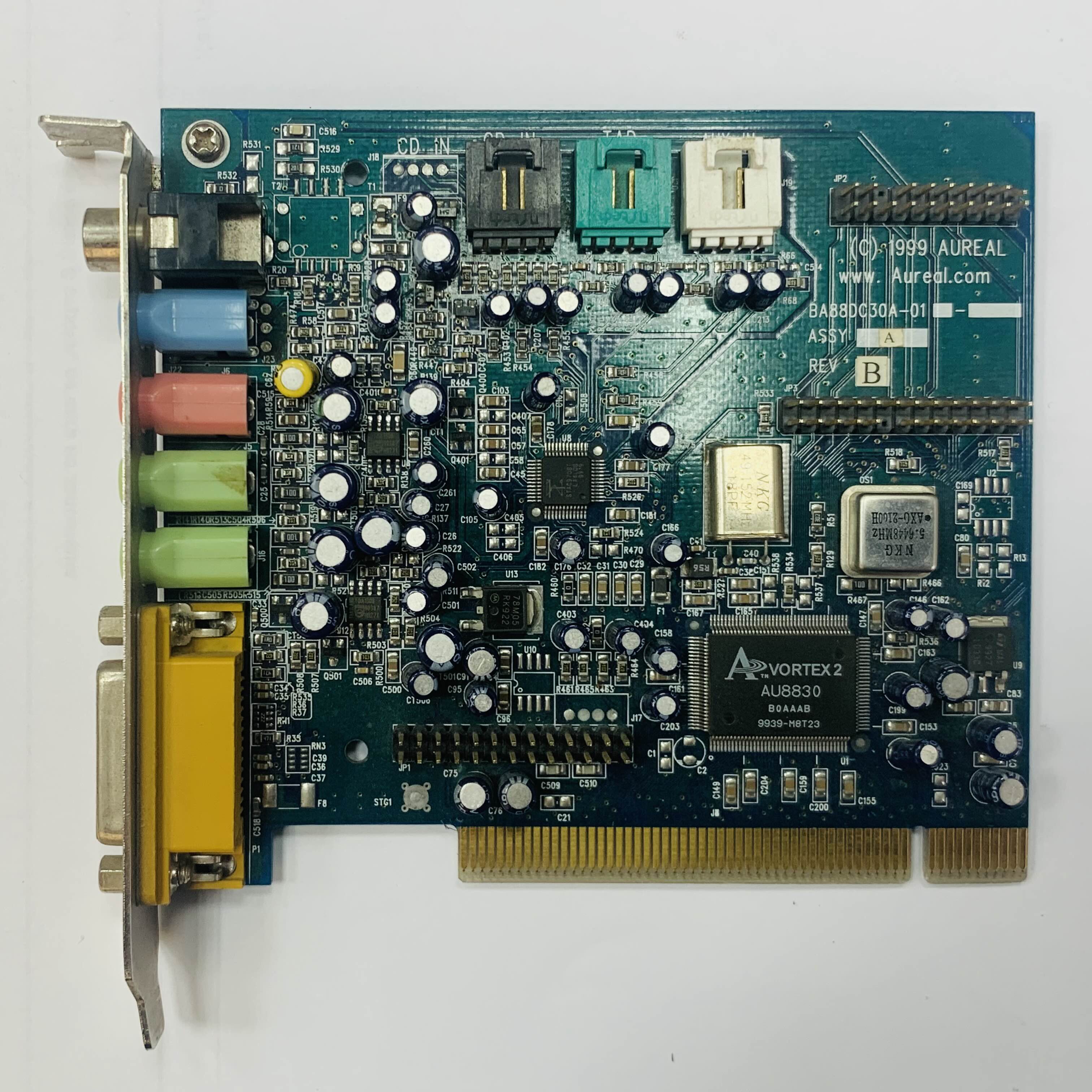

image5 Image 5 of 5 (Motherboard Continuum)
