ATi XPERT@Work PCI
Logs
typeType
Video
interfaceInterface
signalSignaling
32-bit PCI
dimSlot height
1
datePCI ID
4749
ramRAM type
SGRAM
ramRAM size
8MB
dimDimensions
19 mm (width) x 150mm (length) x 96mm (height)
chip Chips and specs
-> Video
ATi 3D Rage Pro PCI
tag Also known as
  • ATi 109-41900-00 / 1024191200
portintI/O ports
1x
  • 2x20 2.54mm pin header, VESA Feature Connector, ATi Multimedia Channel
1x
  • DE-15, VGA
powerPower connectors
Empty
Last updated 2025-10-13T15:48:55Z
biosc No BIOS files available
drv 3 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
4.35
OS support
Windows 9x
Arch
x86
Size
1.6MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 9x
Arch
x86
Size
2.1MB
Filename
Version
OS support
Windows 9x Windows NT 4.0
Arch
x86
Size
7.6MB
Filename
doc No card documents available

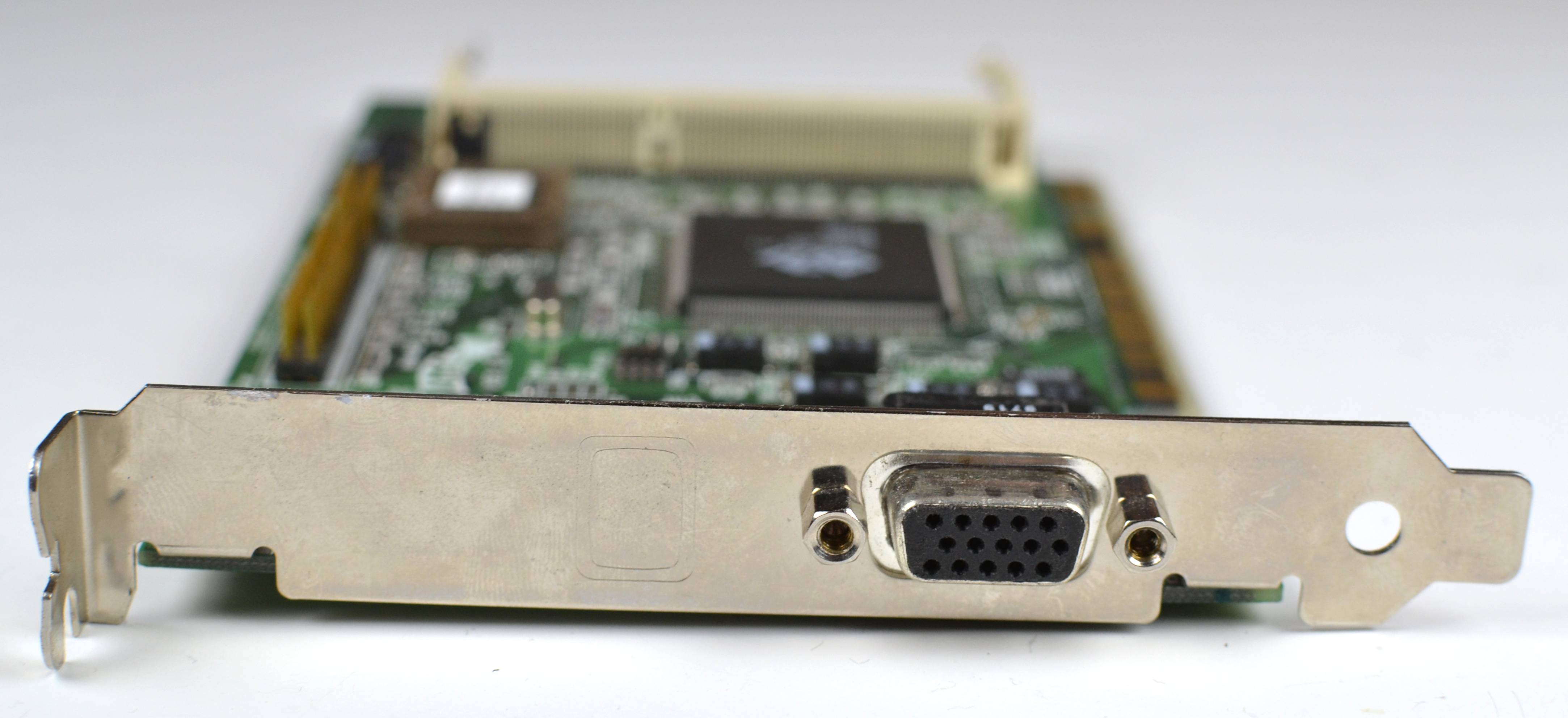

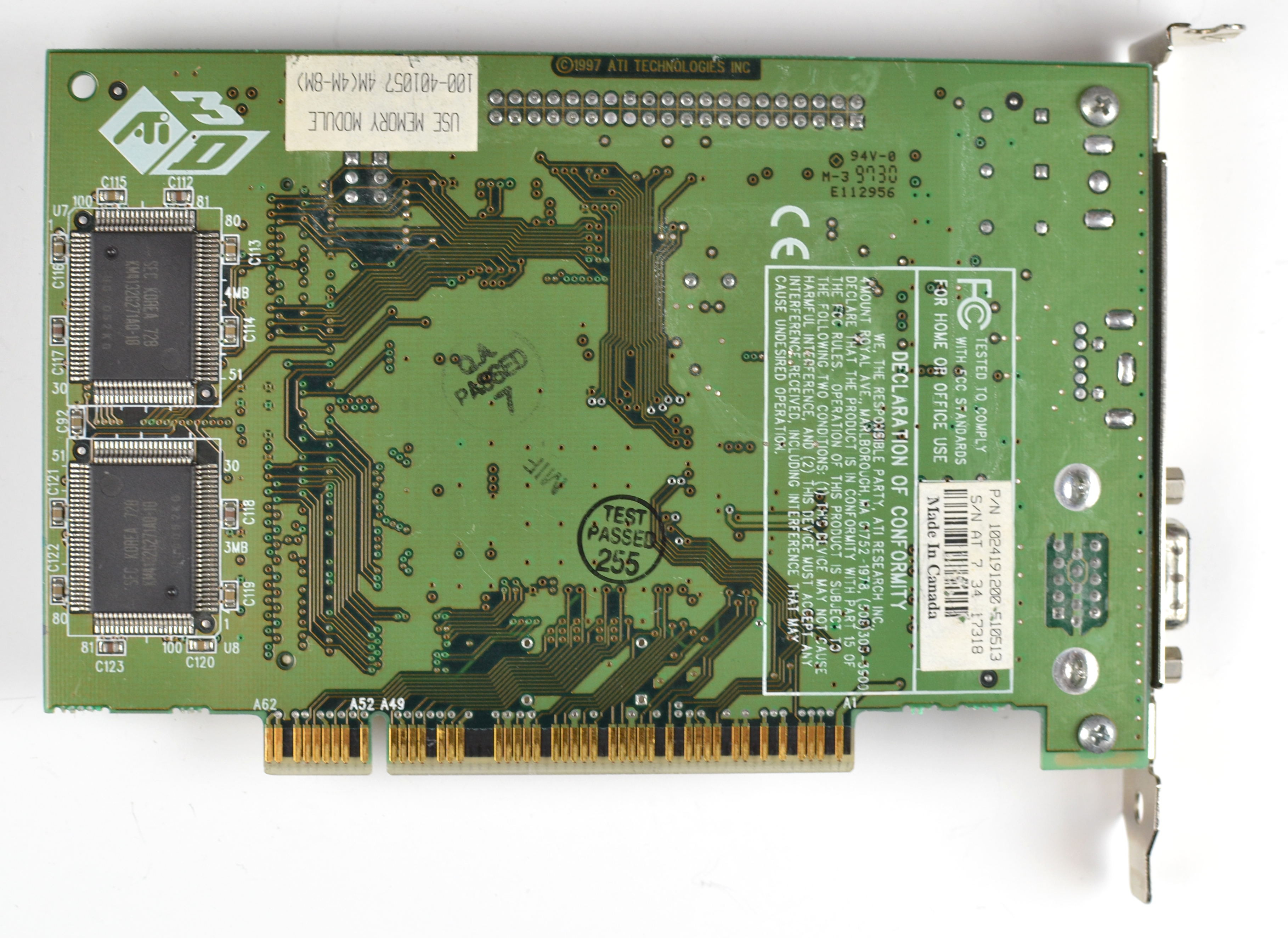

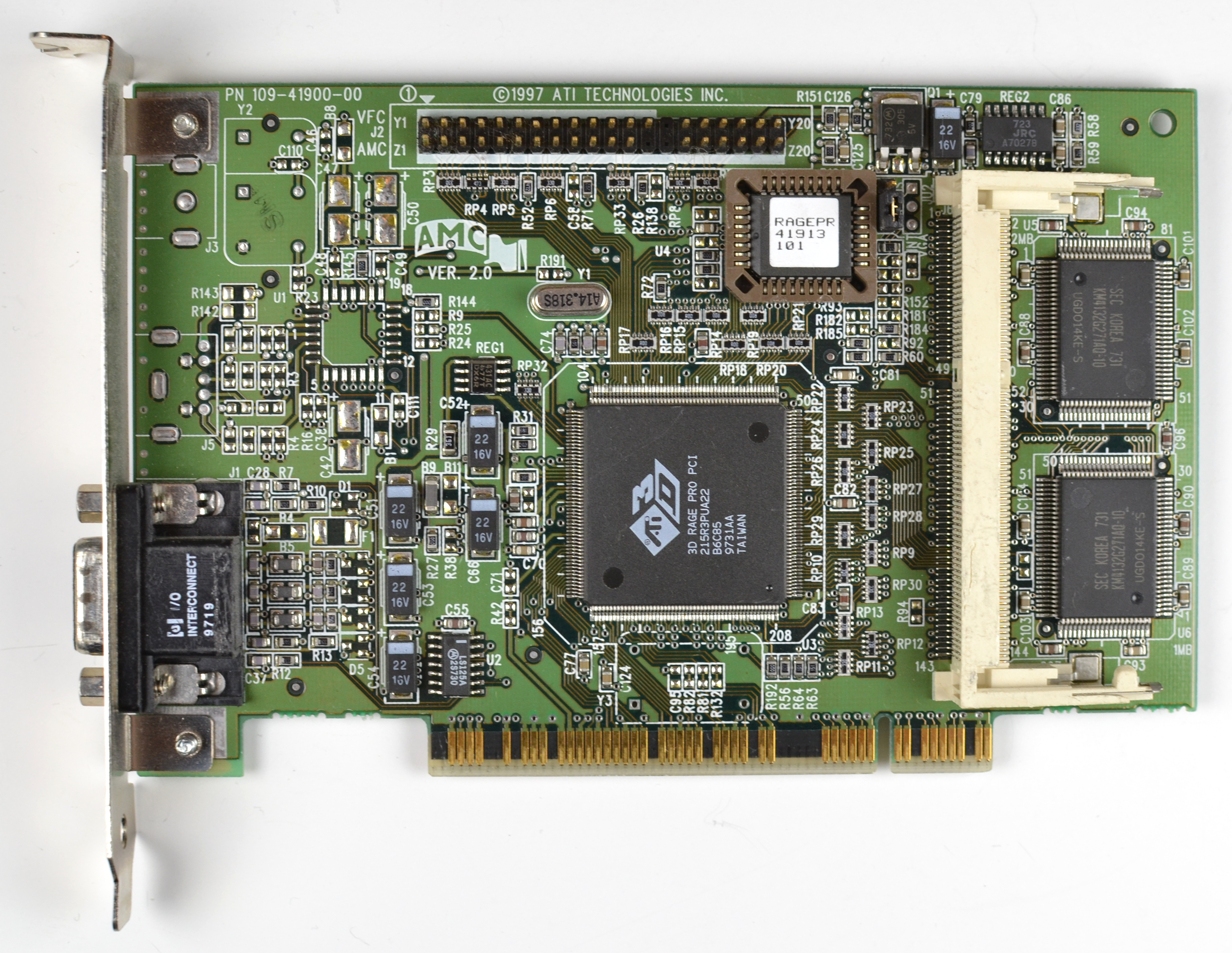

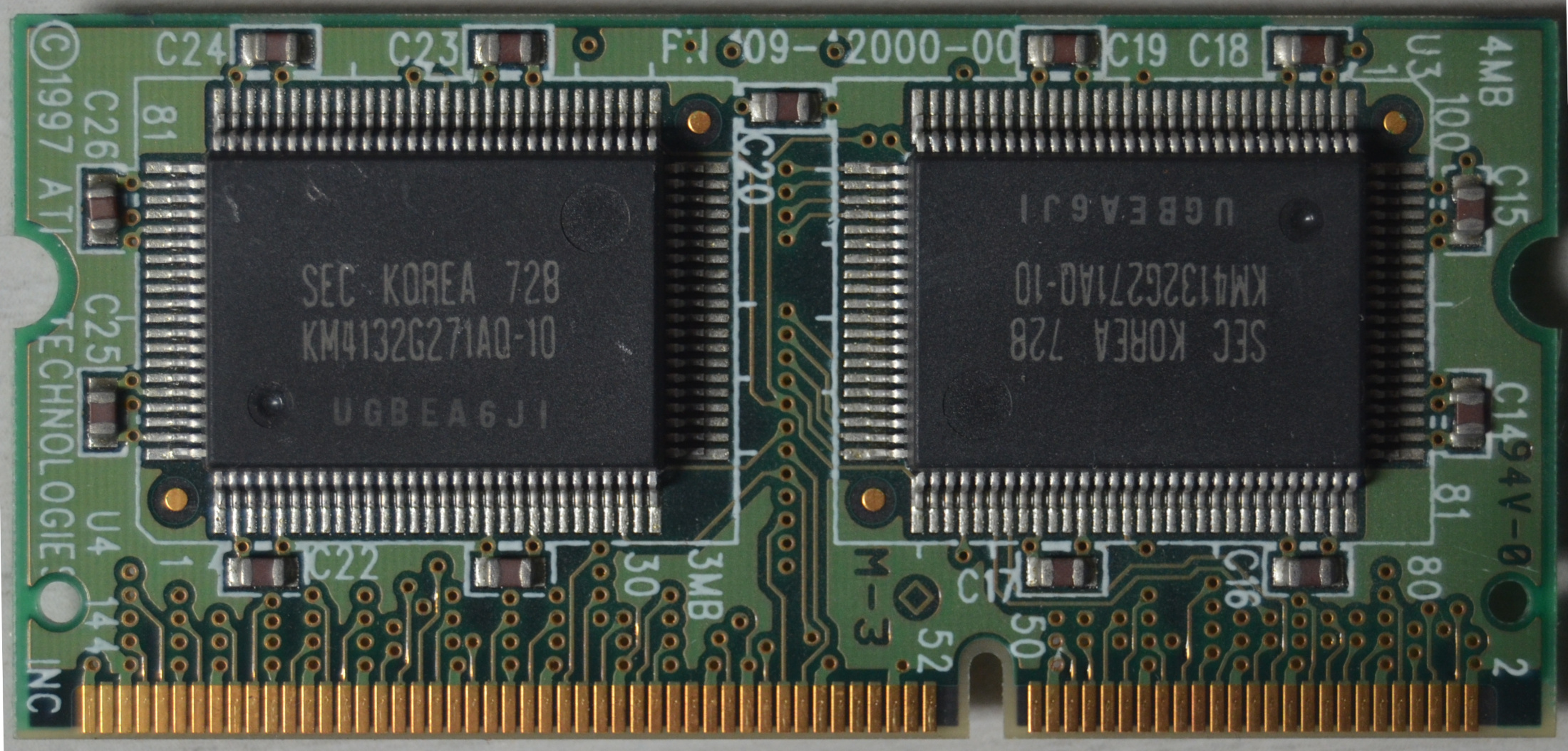

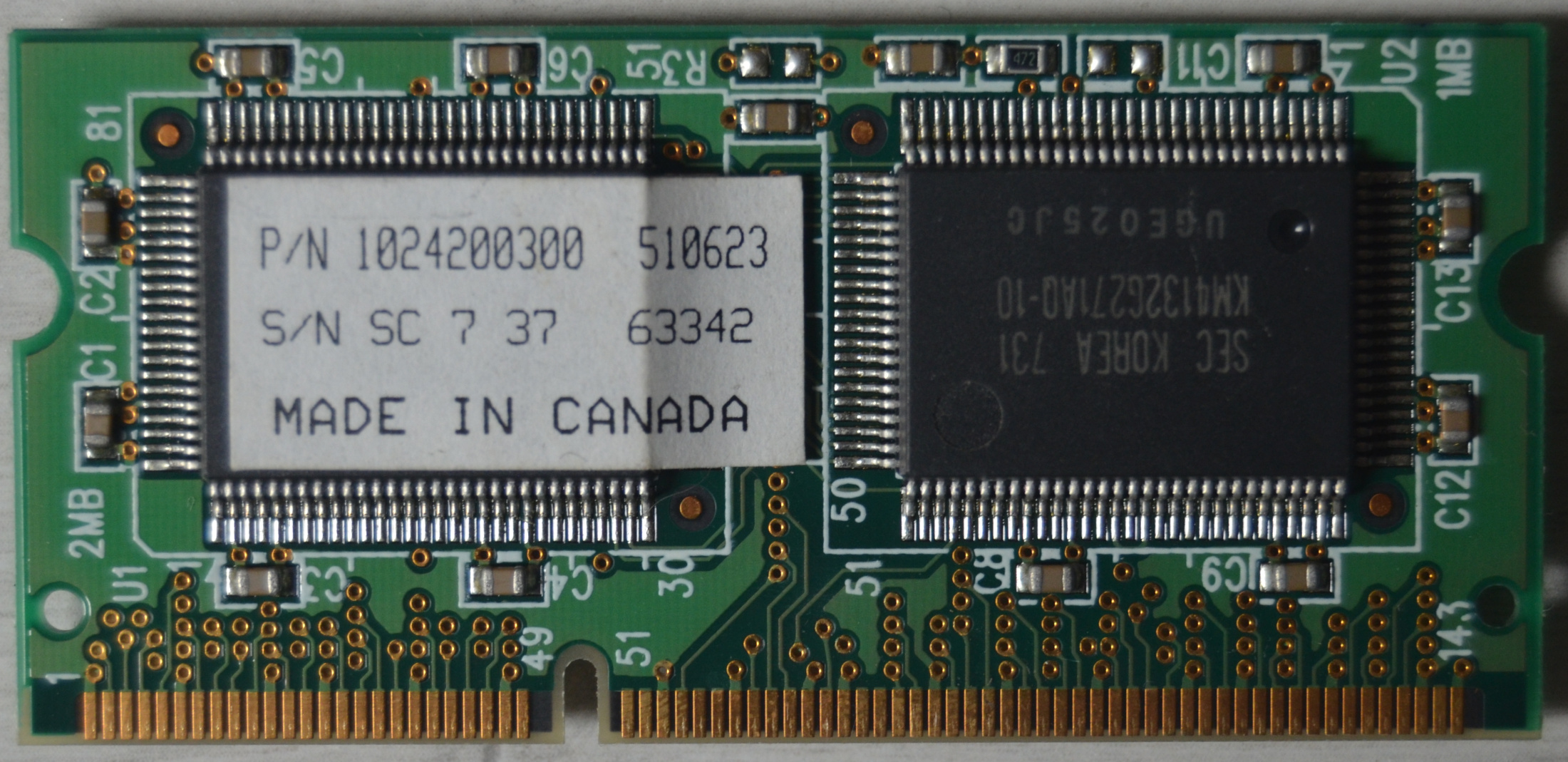

image1 Image 1 of 5 (PancakePuppy)
image2 Image 2 of 5 (PancakePuppy)

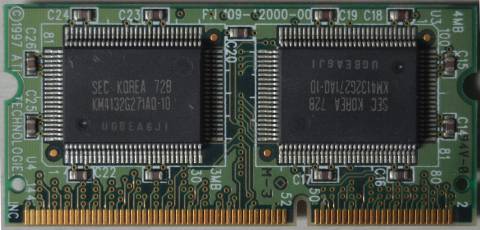

image3 Image 3 of 5 (kotelstudios)
image4 Image 4 of 5 (kotelstudios)
image5 Image 5 of 5 (PancakePuppy)
