ATi VIP WONDER
Logs
typeType
Video
interfaceInterface
signalSignaling
8-bit ISA
dimSlot height
1
datePCI ID
Empty
fccFCC ID
EXM5RSVIP1
ramRAM type
DRAM
ramRAM size
256KB
chip Chips and specs
-> RAMDAC
STMicroelectronics / Inmos IMSG171S-35 (Palette DAC)
-> Video
ATi 16899-0 (EGA Wonder) CHIPS and Technologies 82C441 (VGA Controller)
MTL
Data Bus 8-bit ISA
Card Type Video card
Video Chip Set Unidentified
Maximum Video Memory 64KB
Video Types Supported Monochrome, CGA
Highest Resolution Supported 640 x 200
tag Also known as
  • ATi 18008
  • ATi EGA Wonder VIP (VGA Improved Performance)
portintI/O ports
1x
  • DE-9
1x
  • DE-15
powerPower connectors
Empty
notes Notes

30pin module connector (as yet unknown)

Last updated 2025-12-10T18:36:16Z
bios 1 card BIOS file available
Version
Note
File
Logs
Version
1.08
Note
ATi
File
Logs
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
5.3a
OS support
MS-DOS Windows 1.x Windows 2.x
Arch
x86
Size
433KB
Filename
doc 1 card document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

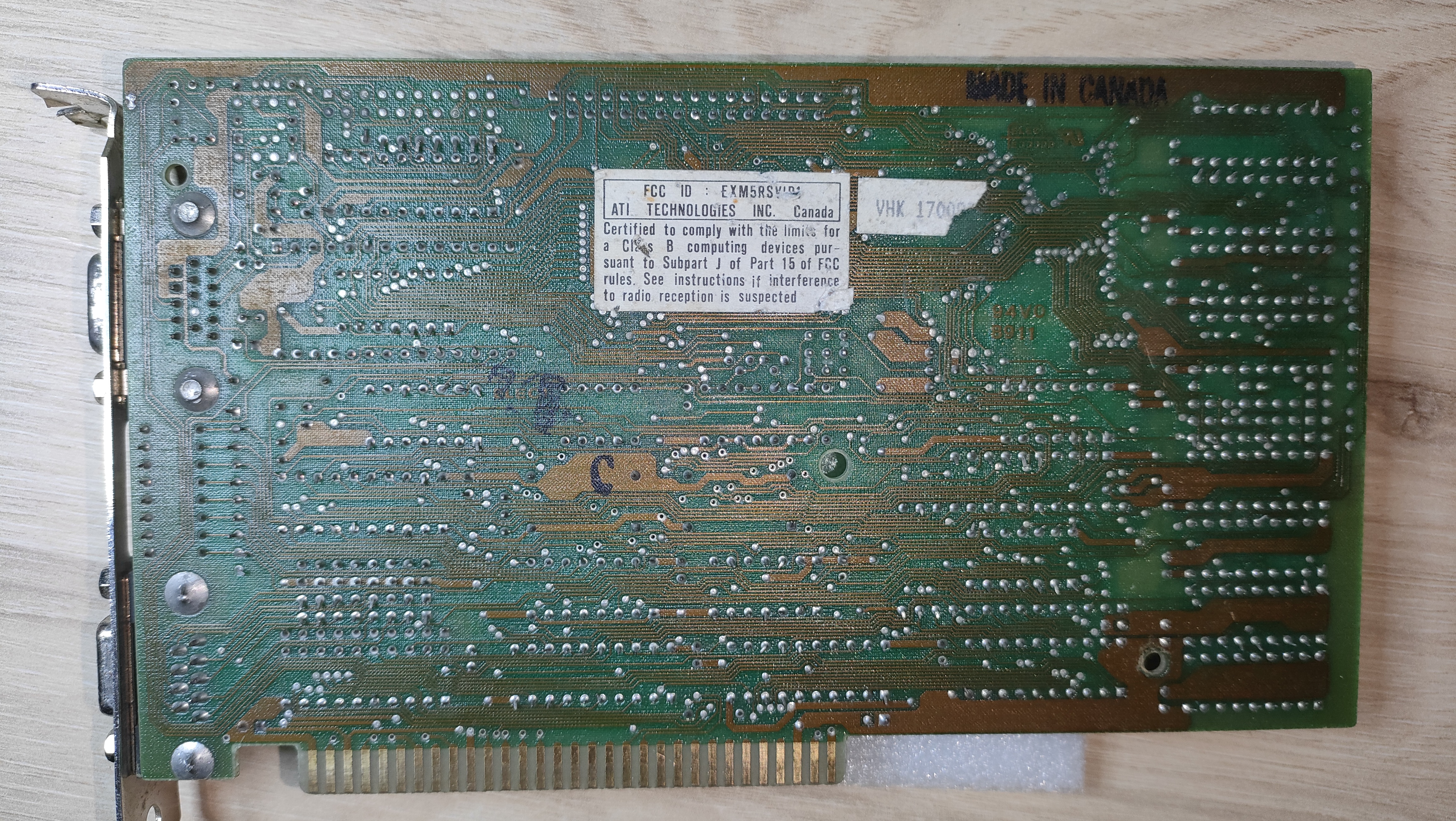

image1 Image 1 of 4 (Yargoro)

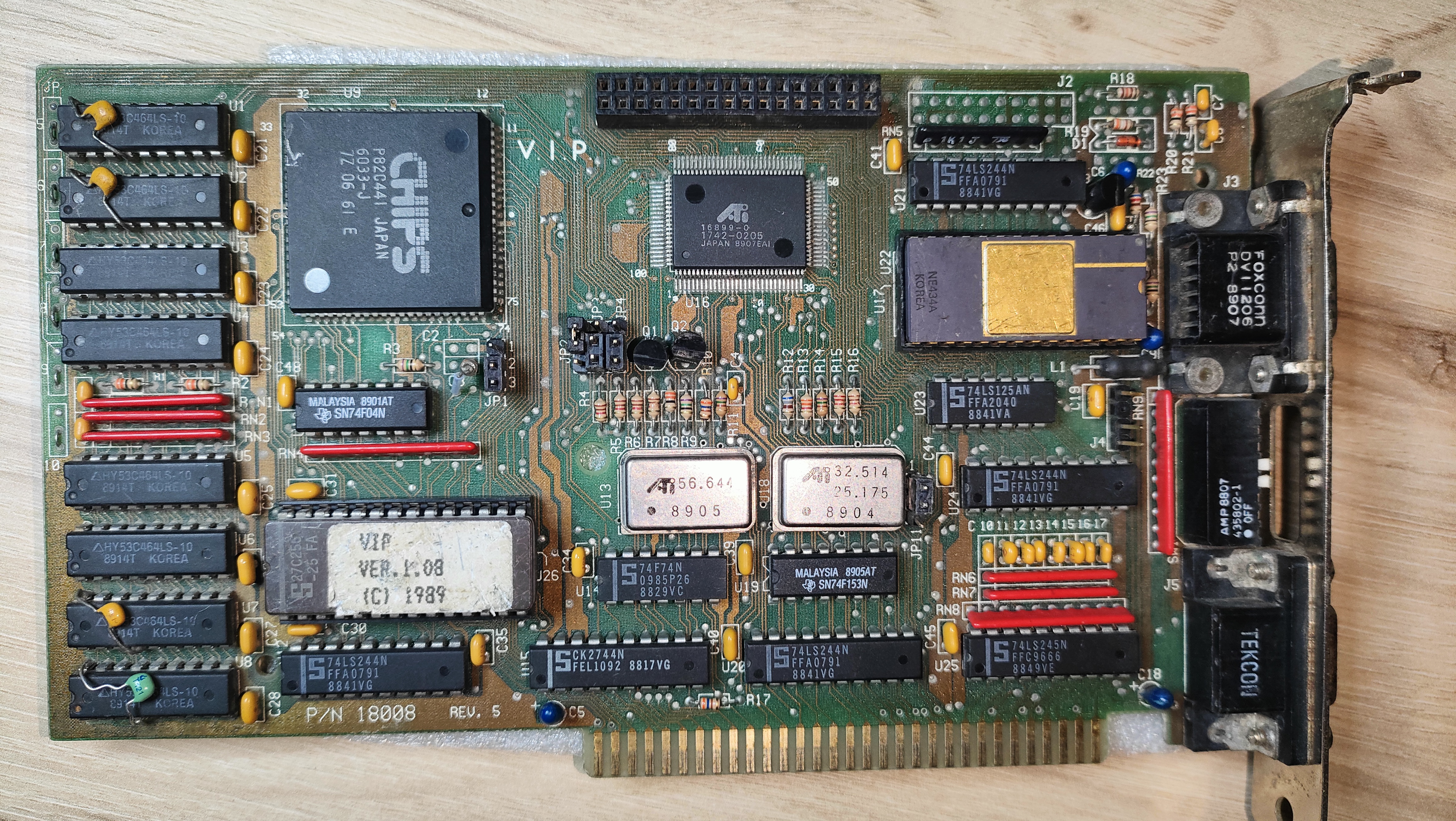

image2 Image 2 of 4 (Elke Wehmer)

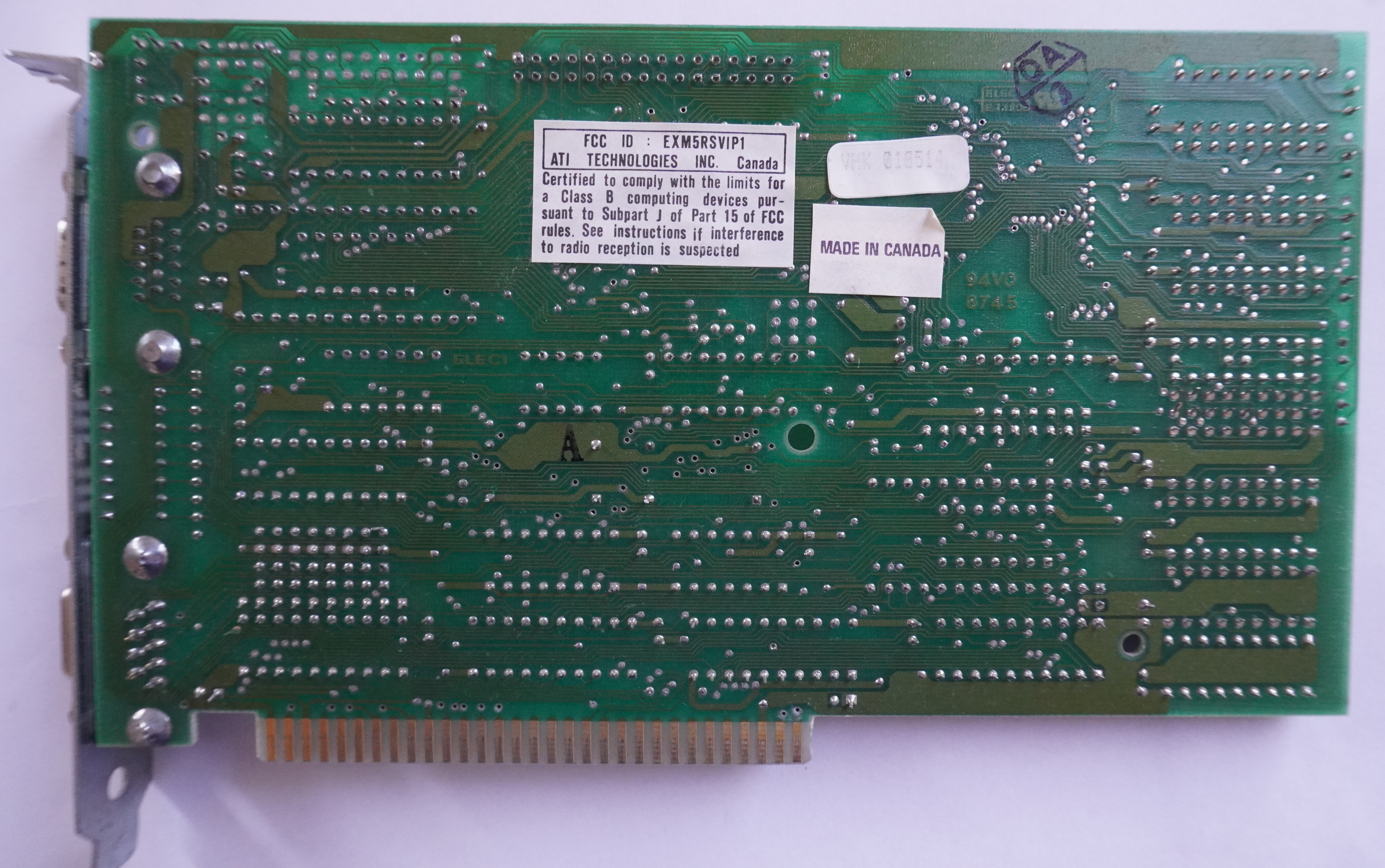

image3 Image 3 of 4 (Yargoro)

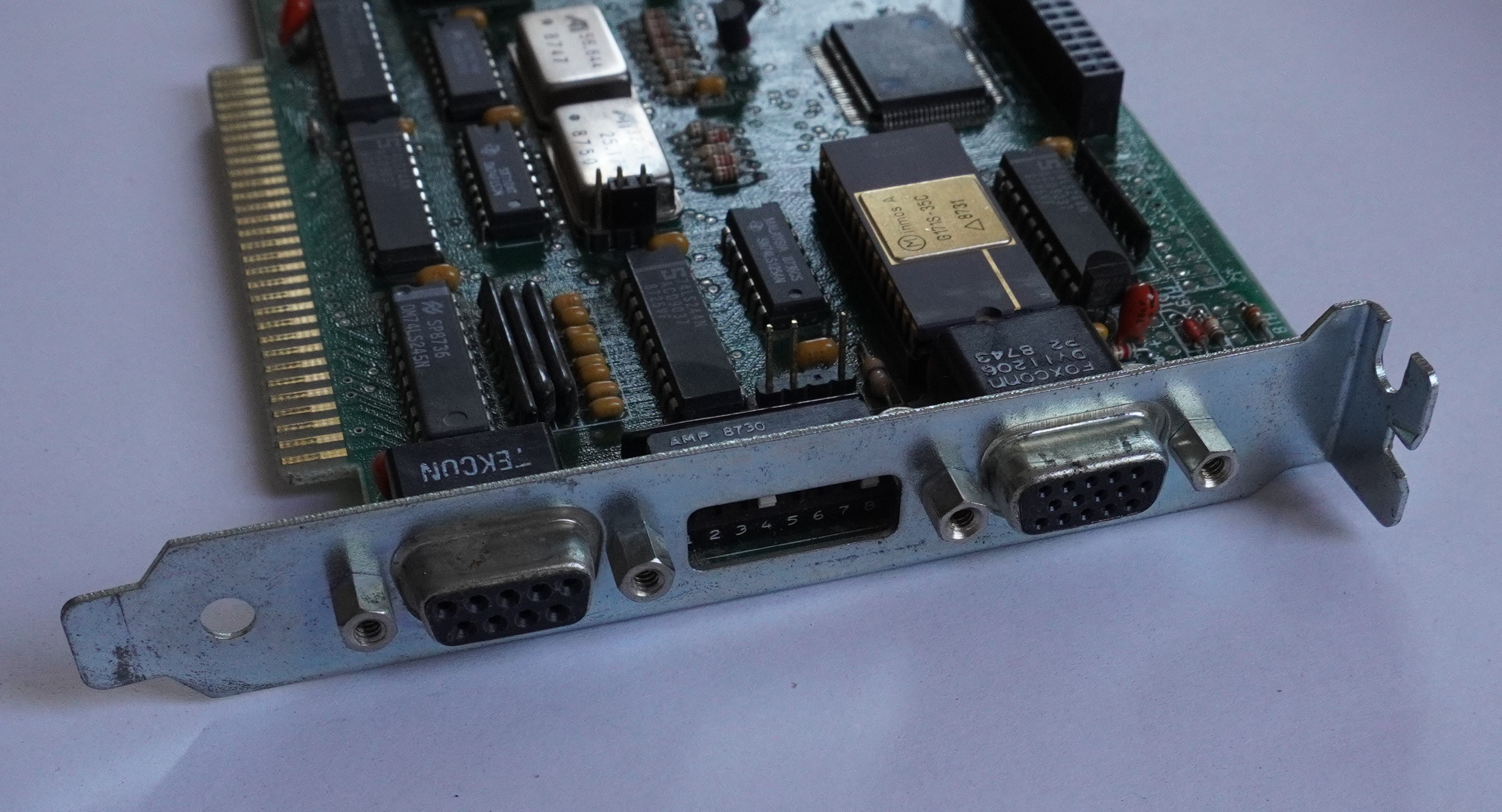

image4 Image 4 of 4 (Elke Wehmer)
