ATi VGA WONDER-16 V5 REV 2
Logs
typeType
Video
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
fccFCC ID
EXM5RSVGA2
ramRAM type
DIP-18 (1bit)
ramRAM size
512KB256KB
chip Chips and specs
-> Human Interface
ATi 18820 (Bus Mouse ctlr.)
-> RAMDAC
STMicroelectronics / Inmos IMSG176 (Palette DAC)
-> Video
ATi 18800-1 (EGA/VGA Wonder)
tag Also known as
portintI/O ports
1x
  • 9-pin mini-DIN (standard)
1x
  • DE-9
1x
  • 2x13 PCB edge fingers
1x
  • DE-15
powerPower connectors
Empty
Last updated 2025-12-10T22:37:15Z
bios 1 card BIOS file available
Version
Note
File
Logs
Version
V5-1.00
Note
File
Logs
drv No drivers available
doc No card documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs

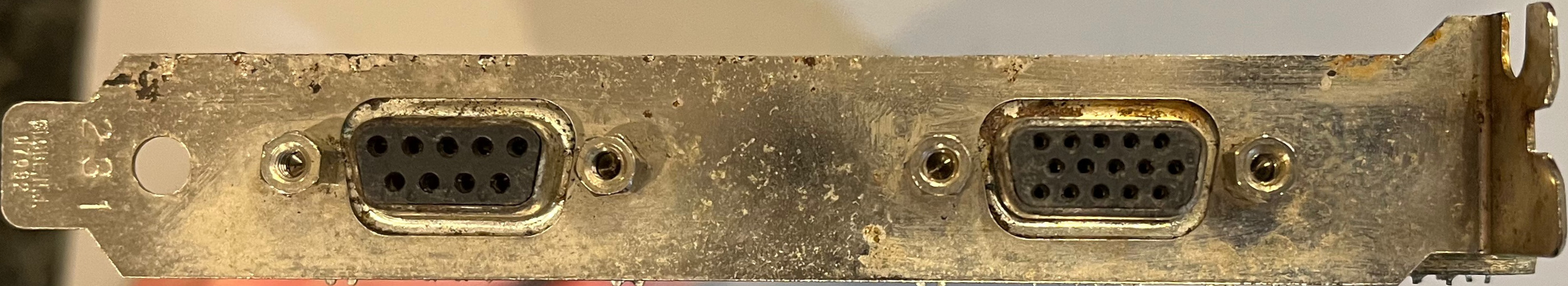

image1 Image 1 of 4 (HanJammer)

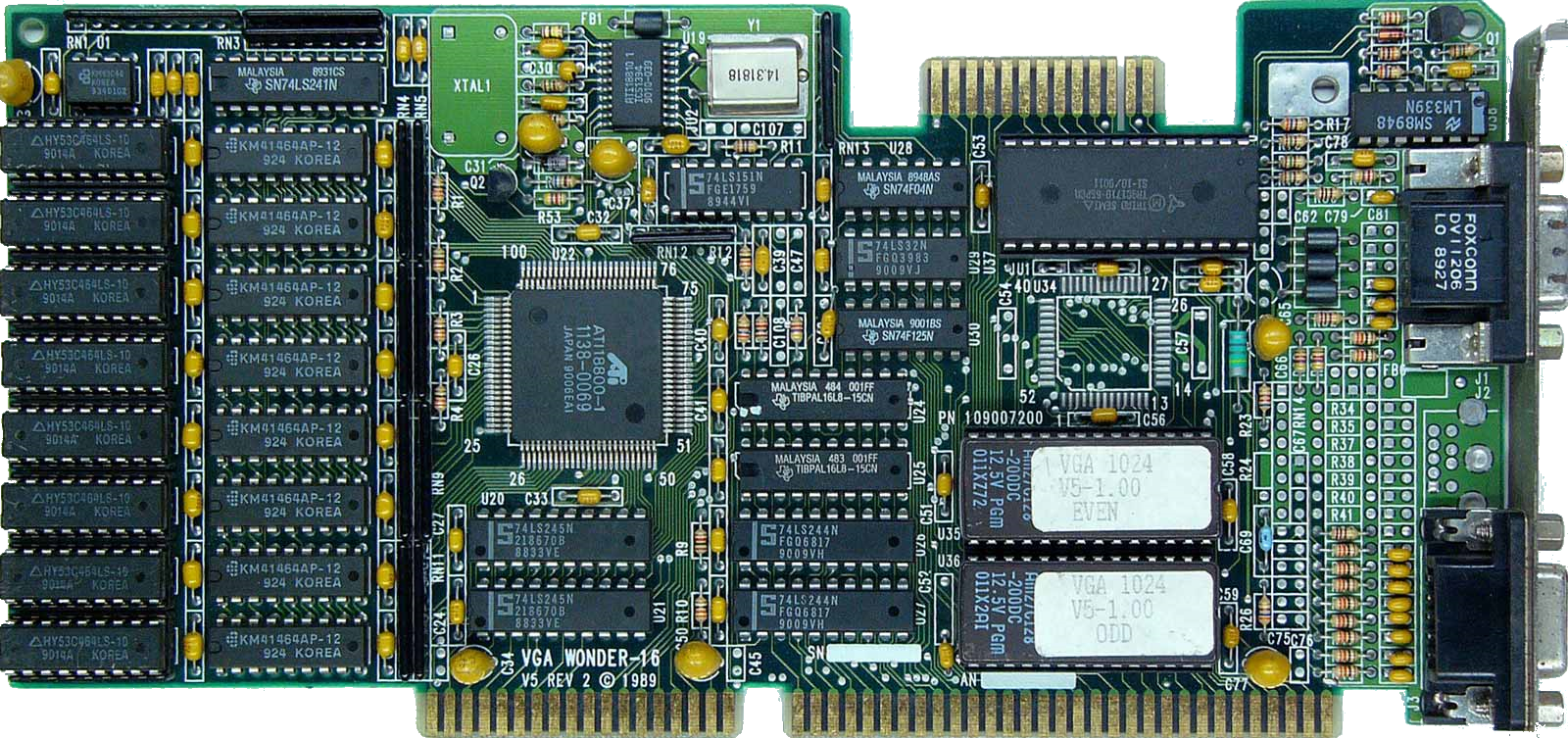

image2 Image 2 of 4 (dogecode)

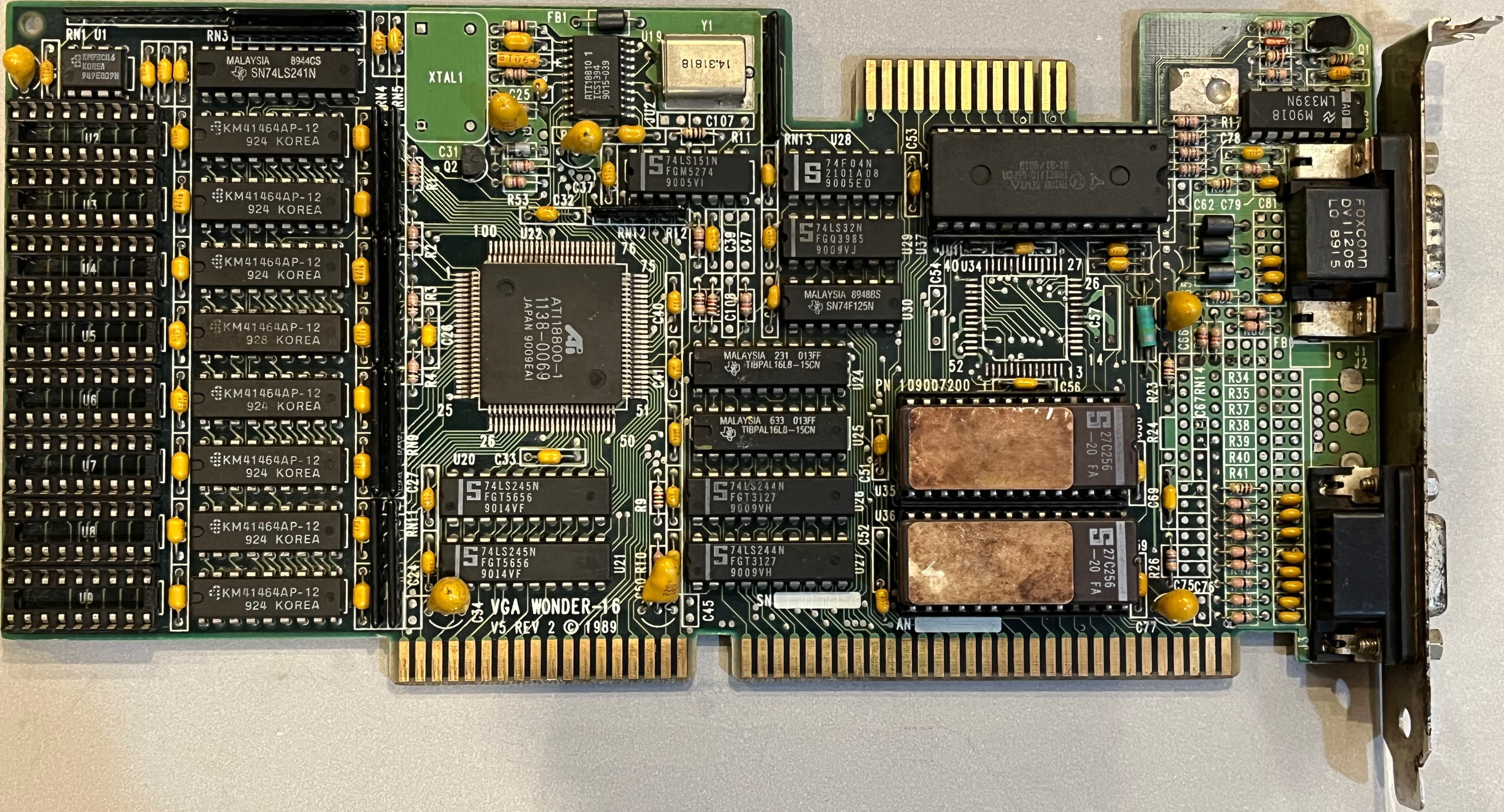

image3 Image 3 of 4 (dogecode)

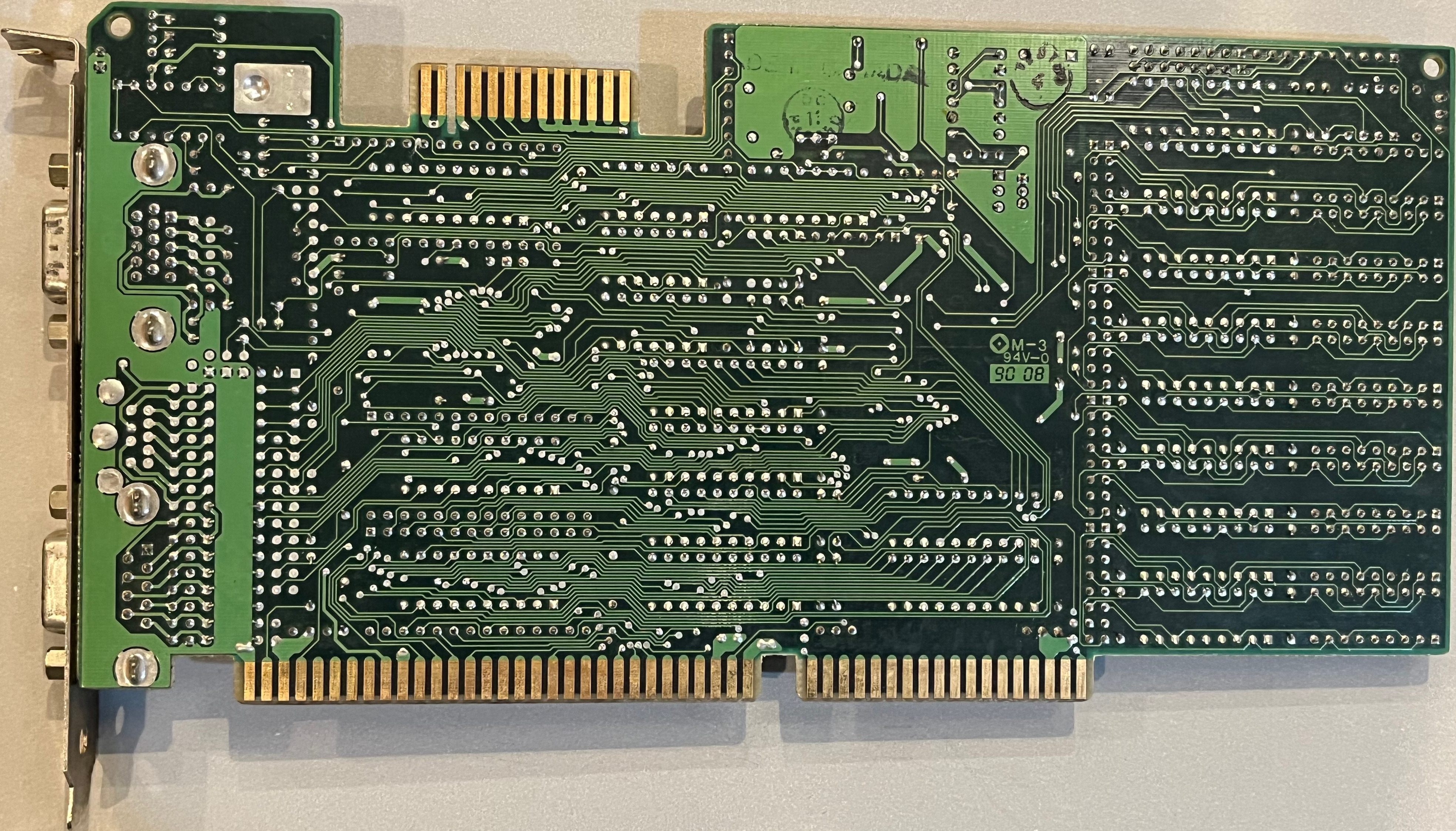

image4 Image 4 of 4 (dogecode)
