ATi VGA WONDER-16 REV 2
Logs
typeType
Video
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
fccFCC ID
EXM5RSVGA1
ramRAM type
DIP-20 (4bit)
ramRAM size
512KB256KB
chip Chips and specs
-> Human Interface
ATi 18820 (Bus Mouse ctlr.)
-> RAMDAC
STMicroelectronics / Inmos IMSG176 (Palette DAC)
-> Video
ATi 18800-1 (EGA/VGA Wonder) ATi 18830
tag Also known as
portintI/O ports
1x
  • 9-pin mini-DIN (standard)
1x
  • DE-9
1x
  • 2x13 PCB edge fingers
1x
  • DE-15
powerPower connectors
Empty
notes Notes

There were 5 revisions of this card. Later versions were part number Part No: 109007200, FCCID EXM5RSVGA2. Perhaps we can split up the entry once we get a picture

1090010910 109-001-0910

Last updated 2025-12-10T22:32:35Z
bios 1 card BIOS file available
Version
Note
File
Logs
Version
V3-1.04A
Note
ATi
File
Logs
drv No drivers available
doc No card documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs

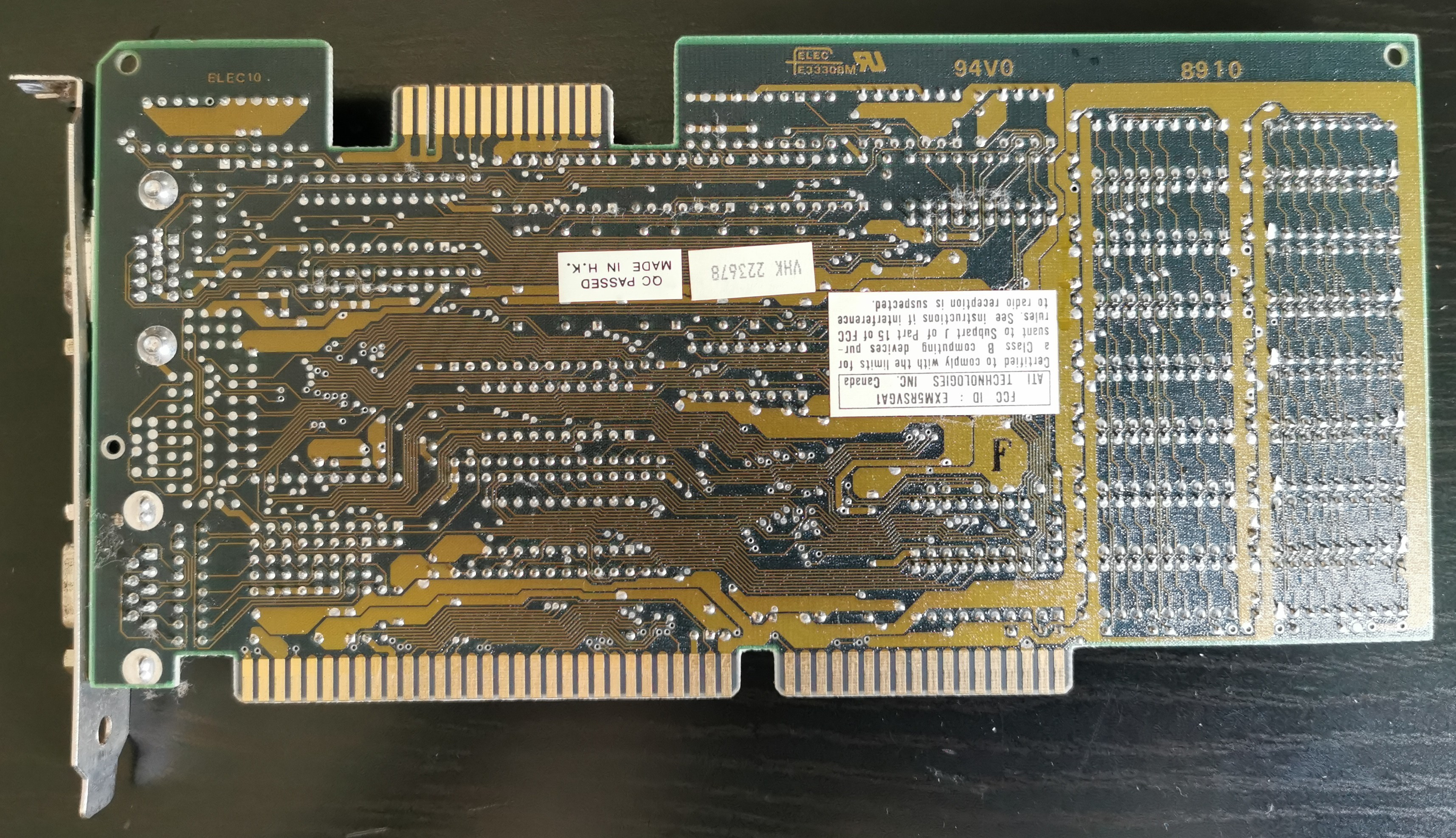

image1 Image 1 of 2 (HanJammer)

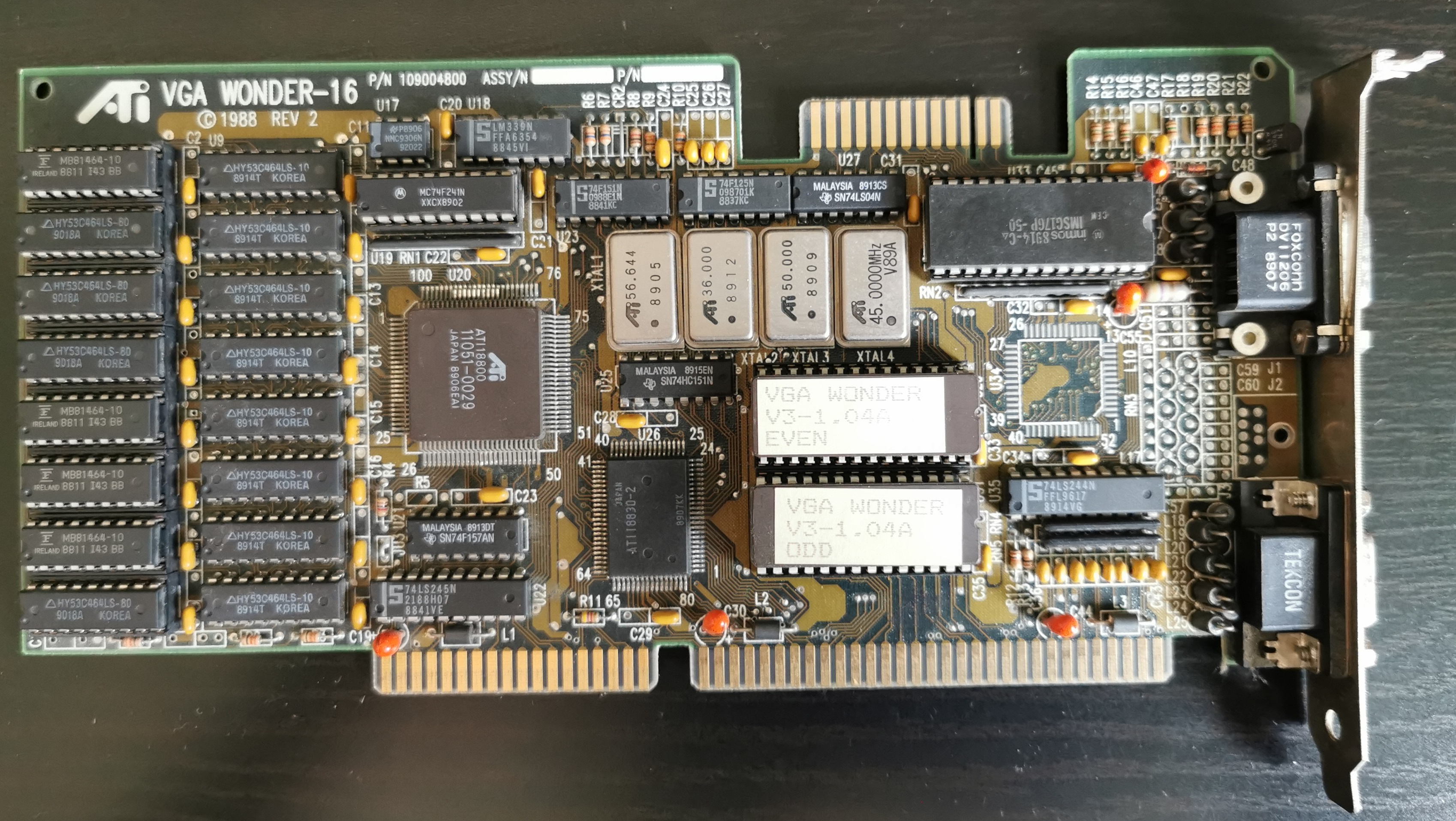

image2 Image 2 of 2 (HanJammer)
