ATi VGA INTEGRA
Logs
typeType
Video
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
fccFCC ID
EXMBVGA
ramRAM size
512KB
chip Chips and specs
-> Video
ATi 28800-6 (VGA 1024D)
MTL
Data Bus 16-bit ISA
Card Type Video card
Video Chip Set ATI
Maximum Video Memory 512 KB DRAM
Video Types Supported XVGA
Highest Resolution Supported 1024 x 768
tag Also known as
portintI/O ports
1x
  • 2x13 PCB edge fingers
1x
  • DE-15
powerPower connectors
Empty
notes Notes

ATi VGA Integra (1990)

  • Cost reduced version based on new ATi 28800 ASIC
  • Lacks bus mouse connector
  • Uses a much smaller PCB with a surface mount BIOS & RAMDAC
  • Supports SVGA Graphics with 72 Hz refresh rates
  • Up to 512KB DRAM
  • Similar to the Basic 16 and the VGA Charger
Last updated 2025-12-10T19:13:52Z
biosc No BIOS files available
drv 5 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1992-04-03
OS support
Windows 3.1x
Arch
x86
Size
705.8KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 3.1x
Arch
x86
Size
216.7KB
Filename
Version
OS support
Windows 3.1x
Arch
x86
Size
528.4KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 3.1x
Arch
x86
Size
923.8KB
Filename
Version
OS support
Windows 3.1x
Arch
x86
Size
754.7KB
Filename
doc 1 card document available
Release date
File
Logs
Release date
1999
File
Logs
image1 Image 1 of 4 (Microhouse)

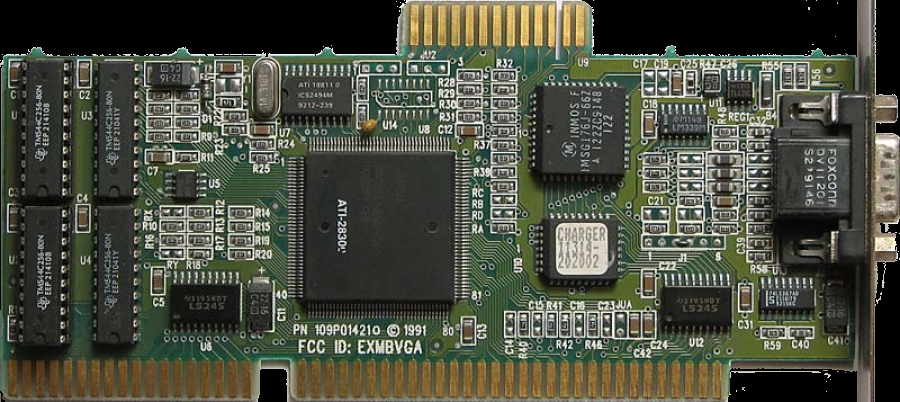

image2 Image 2 of 4 (old_pc_parts)

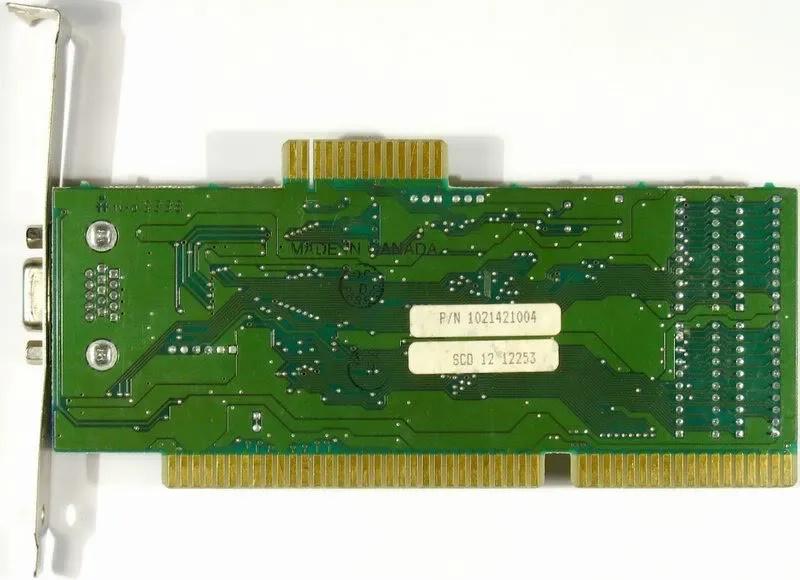

image3 Image 3 of 4 (old_pc_parts)

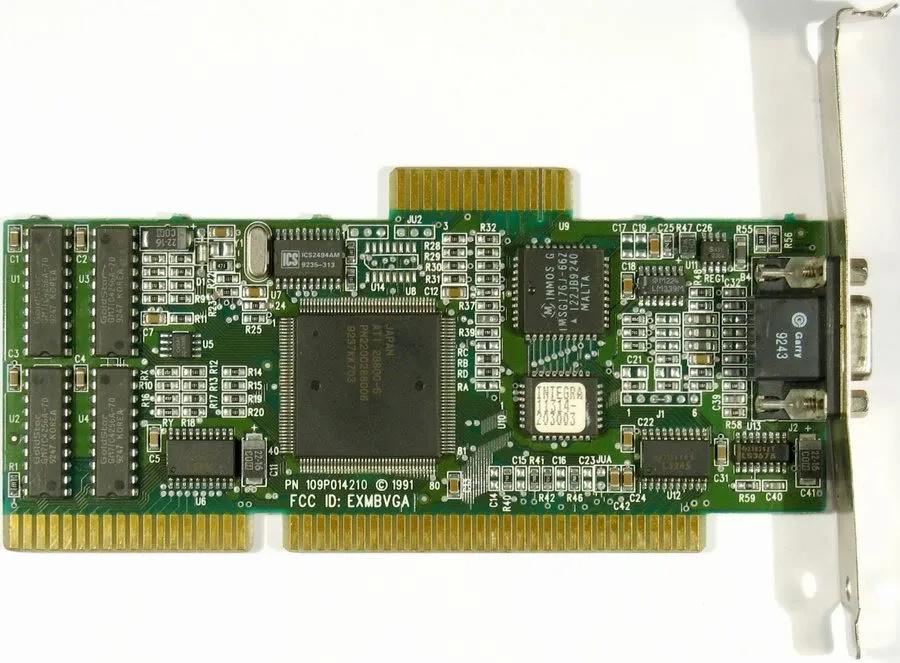

image4 Image 4 of 4 (old_pc_parts)
