ATi VGA EDGE-16
Logs
typeType
Video
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
fccFCC ID
EXM1024V5
ramRAM size
512KB256KB
chip Chips and specs
-> RAMDAC
MUSIC Semiconductors TR9C1710 (Graphics Color Palette DAC)
-> Video
ATi 18800-1 (EGA/VGA Wonder)
tag Also known as
portintI/O ports
1x
  • 2x13 PCB edge fingers
1x
  • DE-15
powerPower connectors
Empty
Last updated 2025-12-10T22:25:10Z
biosc No BIOS files available
drv No drivers available
doc No card documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

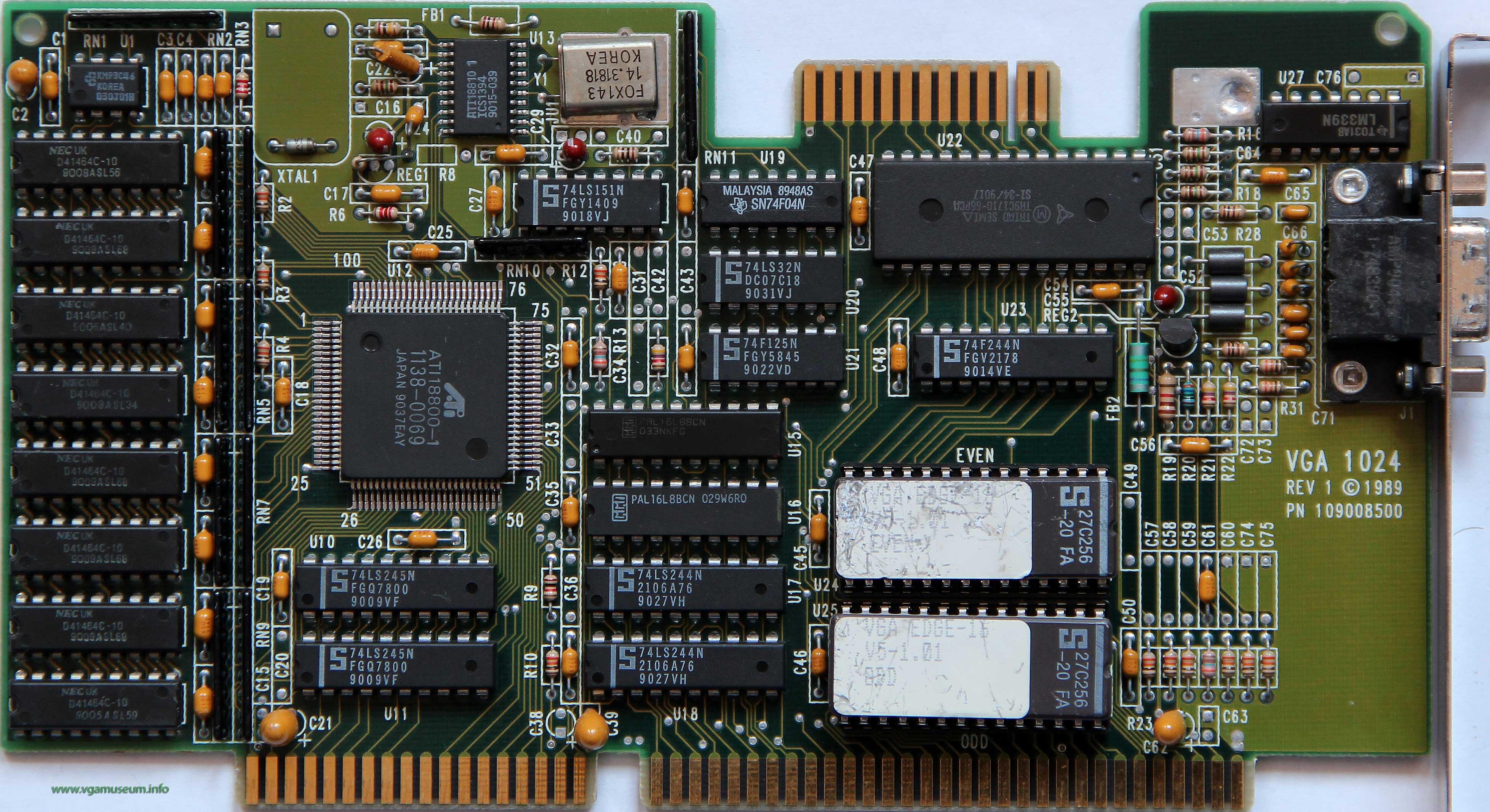

image1 Image 1 of 2 (Vlask)

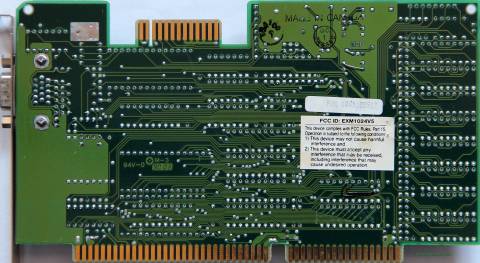

image2 Image 2 of 2 (Vlask)
