ATi Mach64 VT4
Logs
typeType
Video
interfaceInterface
signalSignaling
32-bit PCI
dimSlot height
1
datePCI ID
5656
ramRAM type
EDO
ramRAM size
2MB
chip Chips and specs
-> Video
ATi mach64 VT4 (264VT4)
tag Also known as
  • ATi 109-40600-10
  • ATi Video Expression+
portintI/O ports
1x
  • 2x20 2.54mm pin header, VESA Feature Connector, ATi Multimedia Channel
1x
  • DE-15
powerPower connectors
Empty
notes Notes

Same PCB as used for the 3D Rage IIc PCI

Last updated 2025-12-11T15:36:10Z
biosc No BIOS files available
drv 2 drivers available
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 9x
Arch
x86
Size
2.1MB
Filename
Version
OS support
Windows 9x Windows NT 4.0
Arch
x86
Size
7.6MB
Filename
doc No card documents available

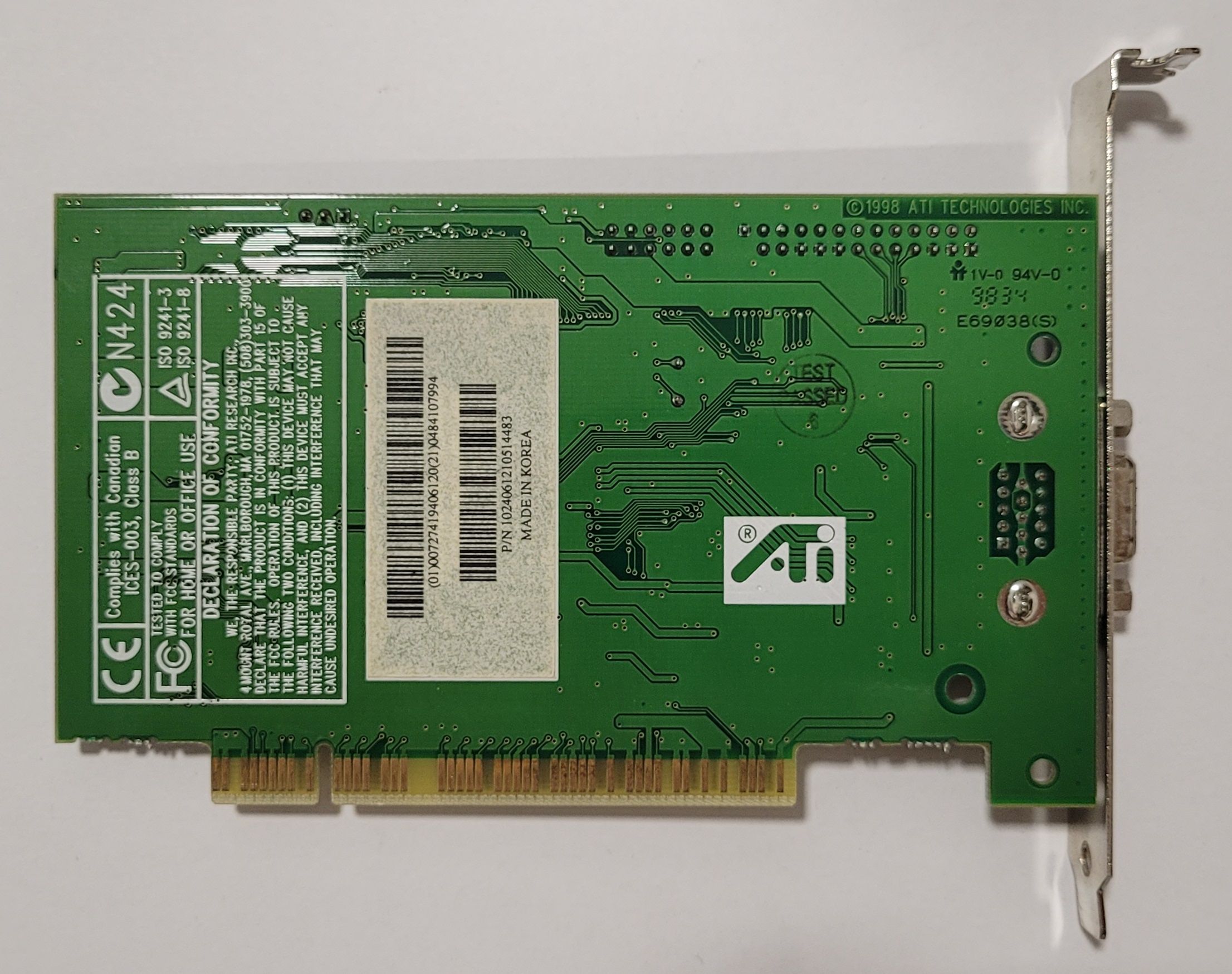

image1 Image 1 of 3 (Wolt1x)

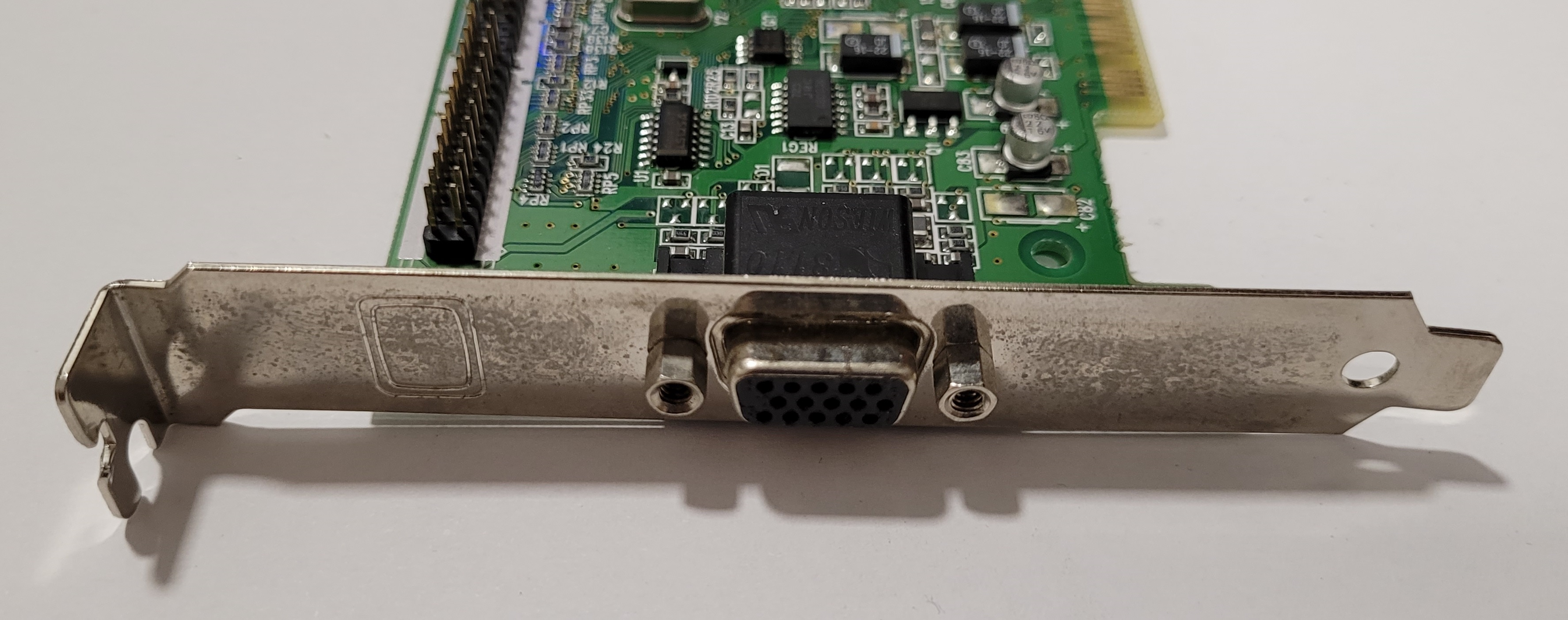

image2 Image 2 of 3 (Wolt1x)

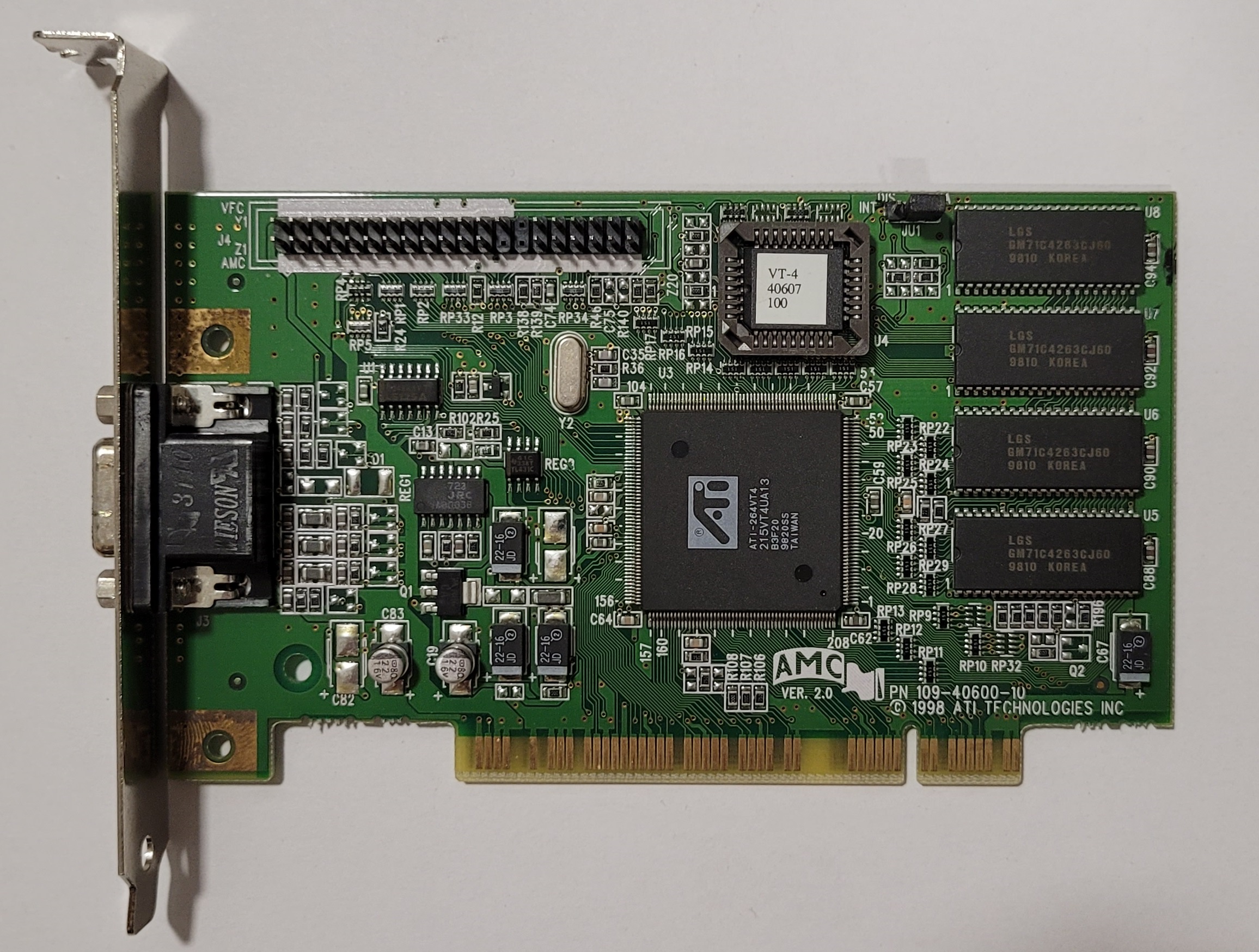

image3 Image 3 of 3 (Wolt1x)
