ATi mach64 VT
Logs
typeType
Video
interfaceInterface
signalSignaling
32-bit PCI
dimSlot height
1
datePCI ID
5654
fccFCC ID
EXM340
ramRAM type
EDO
ramRAM size
2MB
chip Chips and specs
-> Video
ATi mach64 VT (264VT)
MTL
Memory Type DRAM
Video Types Supported XVGA
Highest Resolution Supported 1280 x 1024
tag Also known as
  • ATi 109-34000-00 / 109-34000-10
  • ATi Video Xpression VT
portintI/O ports
1x

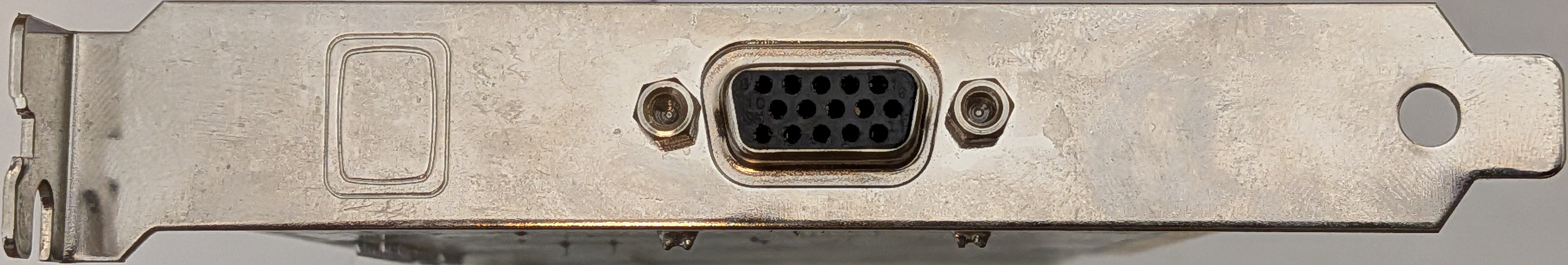

  • 2x20 2.54mm pin header, VESA Feature Connector, ATi Multimedia Channel
1x
  • DE-15, VGA
powerPower connectors
Empty
Last updated 2025-12-11T15:20:56Z
bios 1 card BIOS file available
Version
Note
File
Logs
Version
BK3.8.0/3.008
Note
113-34004-104
File
Logs
chipbios 1 chip with BIOS files available
Warning: might not be fully compatible with this card, use at your own risk
Version
Note
File
Logs
Version
BK3.8.0
Note
File
Logs
drv 4 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
5.0.113
OS support
Windows NT 4.0
Arch
x86
Size
618.3KB
Filename
Name
Version
3.03
OS support
Windows 3.1x
Arch
x86
Size
3.5MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 9x
Arch
x86
Size
1.6MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
517KB
Filename
doc 1 card document available
Release date
File
Logs
Release date
1999
File
Logs
image1 Image 1 of 7 (Microhouse)

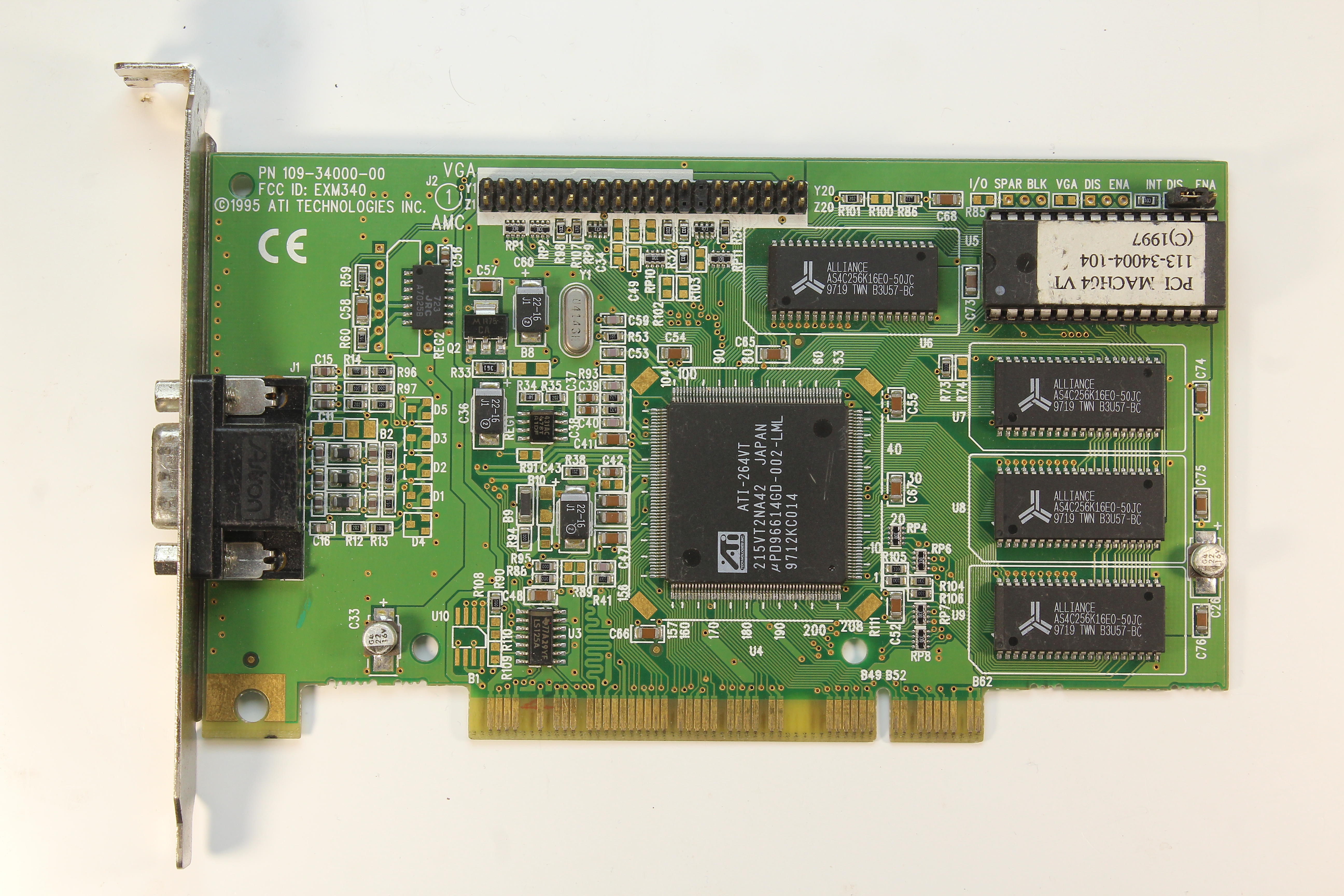

image2 Image 2 of 7 (computerguy096)
image3 Image 3 of 7 (Hias1000)

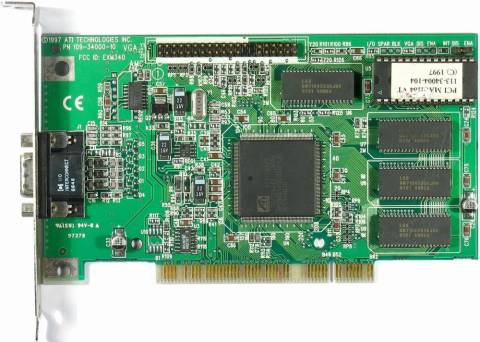

image4 Image 4 of 7 (old_pc_parts)

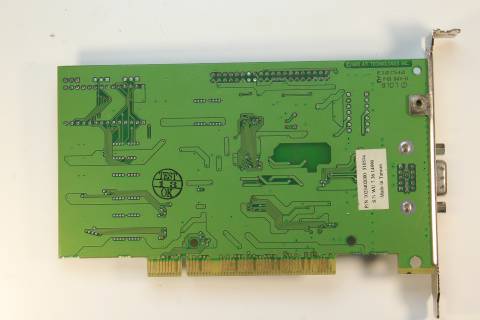

image5 Image 5 of 7 (computerguy096)

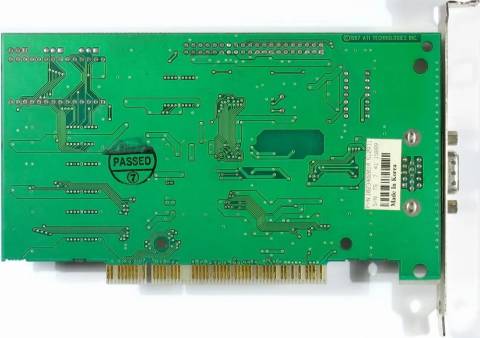

image6 Image 6 of 7 (old_pc_parts)
image7 Image 7 of 7 (BringsYouFish)
