ATi mach64 CX
Logs
typeType
Video
interfaceInterface
signalSignaling
32-bit PCI
dimSlot height
1
datePCI ID
4358
fccFCC ID
EXM254A / EXM302
ramRAM size
4MB
chip Chips and specs
-> RAMDAC
AT&T ATT20C408-13 (PrecisionDAC)
-> Video
ATi mach64 CX (210888CX00)
tag Also known as
portintI/O ports
1x
  • 2x13 2.54mm pin header, VESA Feature Connector
1x
  • DE-15, VGA
powerPower connectors
Empty
notes Notes

Reused Mach32 PCB, later relabeled to the 302 model, mix-n-match versions exist (see photo). Exists in GX version as well.

Last updated 2025-12-10T21:06:30Z
biosc No BIOS files available
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
2.22
OS support
Windows 9x
Arch
x86
Size
517KB
Filename
doc No card documents available

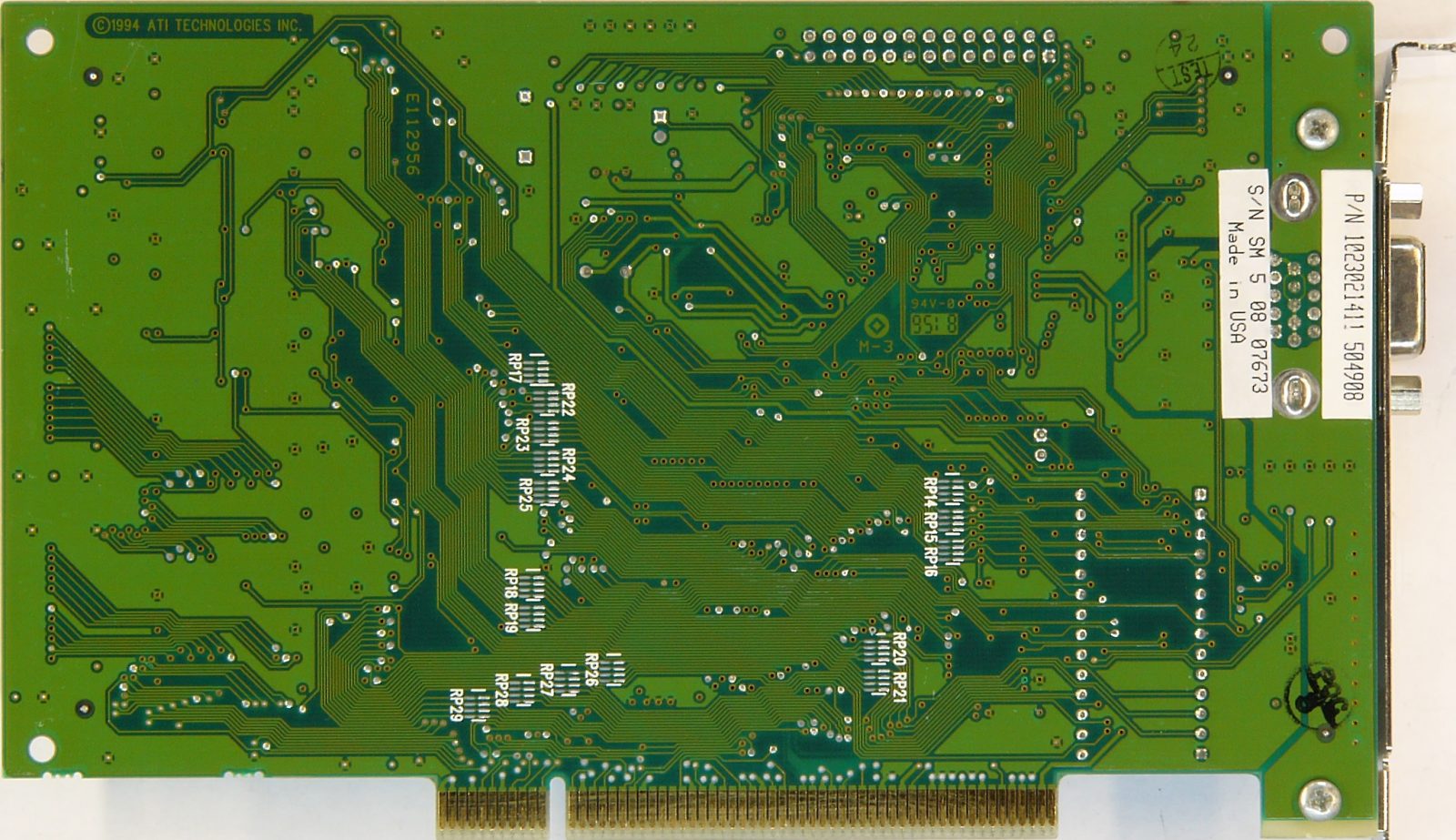

image1 Image 1 of 2 (Palcal)
image2 Image 2 of 2 (Palcal)
