ATi Graphics Ultra Pro PCI (VRAM)
Logs
typeType
Video
interfaceInterface
signalSignaling
32-bit PCI
dimSlot height
1
datePCI ID
4158
fccFCC ID
EXM230
ramRAM type
VRAM
ramRAM size
2MB
chip Chips and specs
-> RAMDAC
ATi ATI68875 (RAMDAC)
-> Video
ATi mach32 AX
MTL
Data Bus 32-bit PCI
Card Type Video card
Video Chip Set ATI
Maximum Video Memory 2MB VRAM
Video Types Supported VGA
Highest Resolution Supported 1280 x 1024
tag Also known as
  • ATi MACH 32 PCI VGA (VRAM)
  • ATi 1092300010 / 109-23000-10
portintI/O ports
1x
  • 2x13 2.54mm pin header
1x
  • DE-15
powerPower connectors
Empty
Last updated 2025-09-13T13:32:09Z
biosc No BIOS files available
drv 2 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1992-04-06
OS support
Windows 3.1x
Arch
x86
Size
221.8KB
Filename
Name
Version
1992-04-15
OS support
Windows 3.1x
Arch
x86
Size
228.1KB
Filename
doc 1 card document available
Release date
File
Logs
Release date
1999
File
Logs
image1 Image 1 of 3 (Microhouse)

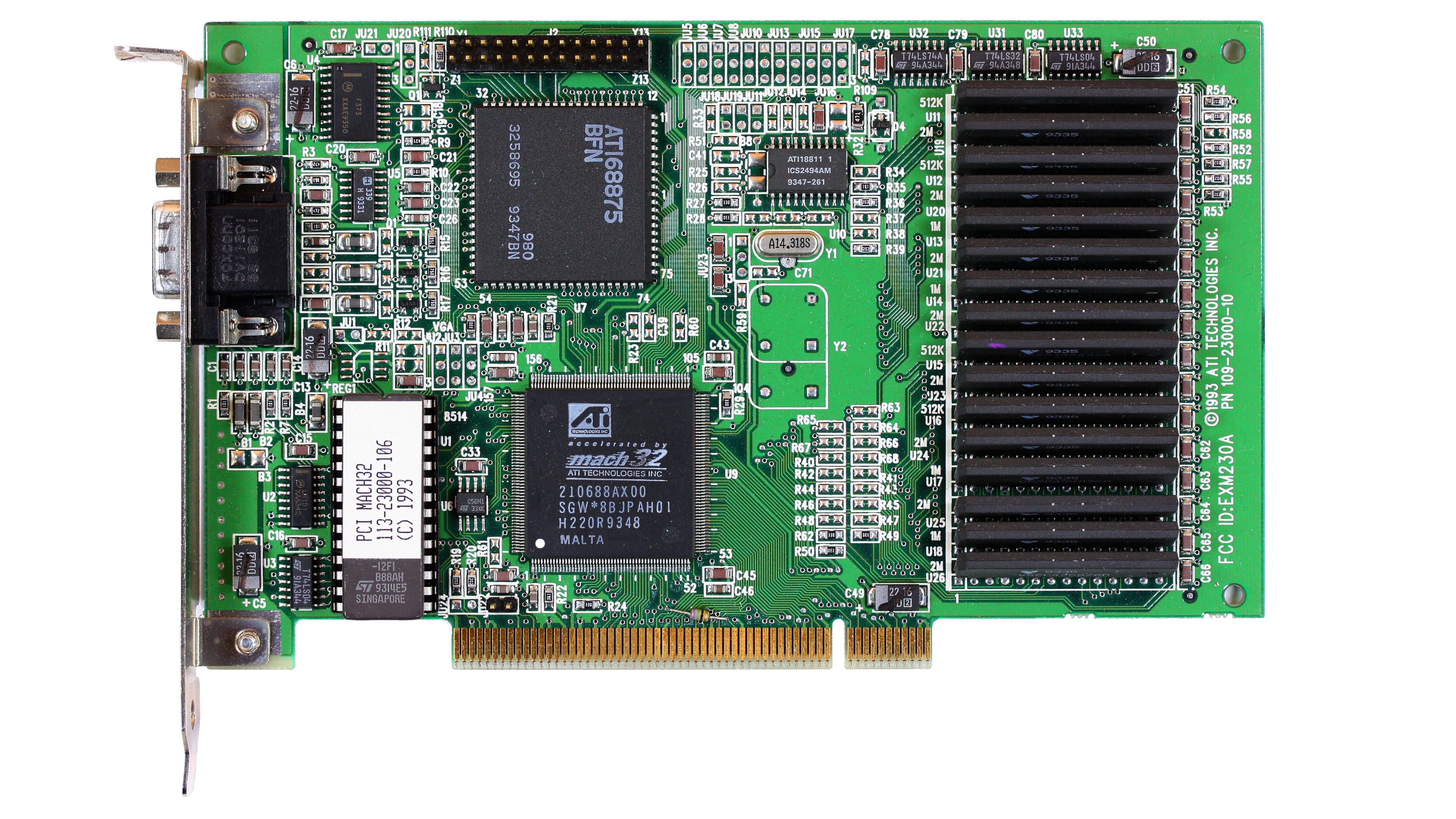

image2 Image 2 of 3 (Stephan W.)

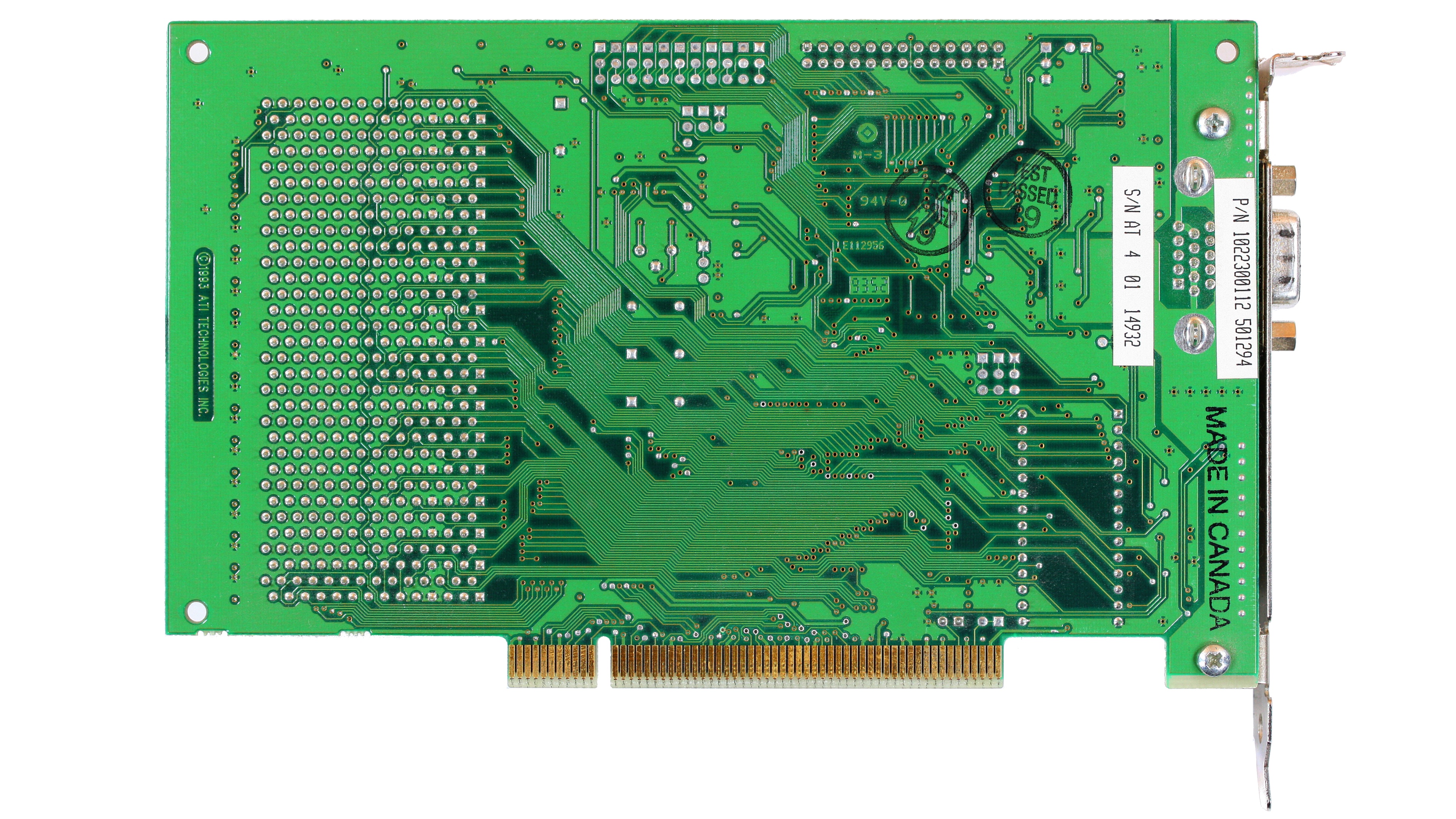

image3 Image 3 of 3 (Stephan W.)
