ATi Graphics Ultra Pro PCI (DRAM)
Logs
typeType
Video
interfaceInterface
signalSignaling
32-bit PCI
dimSlot height
1
datePCI ID
4158
fccFCC ID
EXM254A
ramRAM type
DRAM
ramRAM size
1MB2MB
chip Chips and specs
-> Clock Synth / PLL
ICS ICS2494 / ICS2494A / N / M / AN / AM (All variants) (Video/Memory Clock Generator)
-> RAMDAC
Brooktree Bt481 AT&T 20C490 Texas Instruments TLC34076 (Ramdac)
-> Video
ATi mach32 AX
tag Also known as
  • ATi Graphics Ultra AXO
  • ATi PCI mach32-D
  • ATi 1092540030 / 109-25400-30
  • ATi 1092540000 / 109-25400-00
  • ATi 1092540020 / 109-25400-20
  • ATi 1092540041 / 109-25400-41
  • ATi 1092540043 / 109-25400-43
  • ATi 1092540050 / 109-25400-50
  • ATi 1092540060 / 109-25400-60
  • ATi Graphics Ultra Pro PCI (Mach32)
  • ATi 1022541660 / 1022540440 / 1022544241
portintI/O ports
1x
  • 2x13 2.54mm pin header, VESA Feature Connector
1x
  • DE-15, VGA
powerPower connectors
Empty
notes Notes

Other Variants:

  • Called "Winboost Mach64" when the Mach64 is used instead of a Mach32
  • Rev 41 & 43 are slightly shorter
Last updated 2025-09-13T13:36:38Z
bios 1 card BIOS file available
Version
Note
File
Logs
Version
3.2.12a
Note
ATI GRAPHICS WONDER, PCI BIOS P/N 113-25409-106
File
Logs
drv 2 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1992-04-06
OS support
Windows 3.1x
Arch
x86
Size
221.8KB
Filename
Name
Version
1992-04-15
OS support
Windows 3.1x
Arch
x86
Size
228.1KB
Filename
doc 1 card document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
image1 Image 1 of 7 (Microhouse)

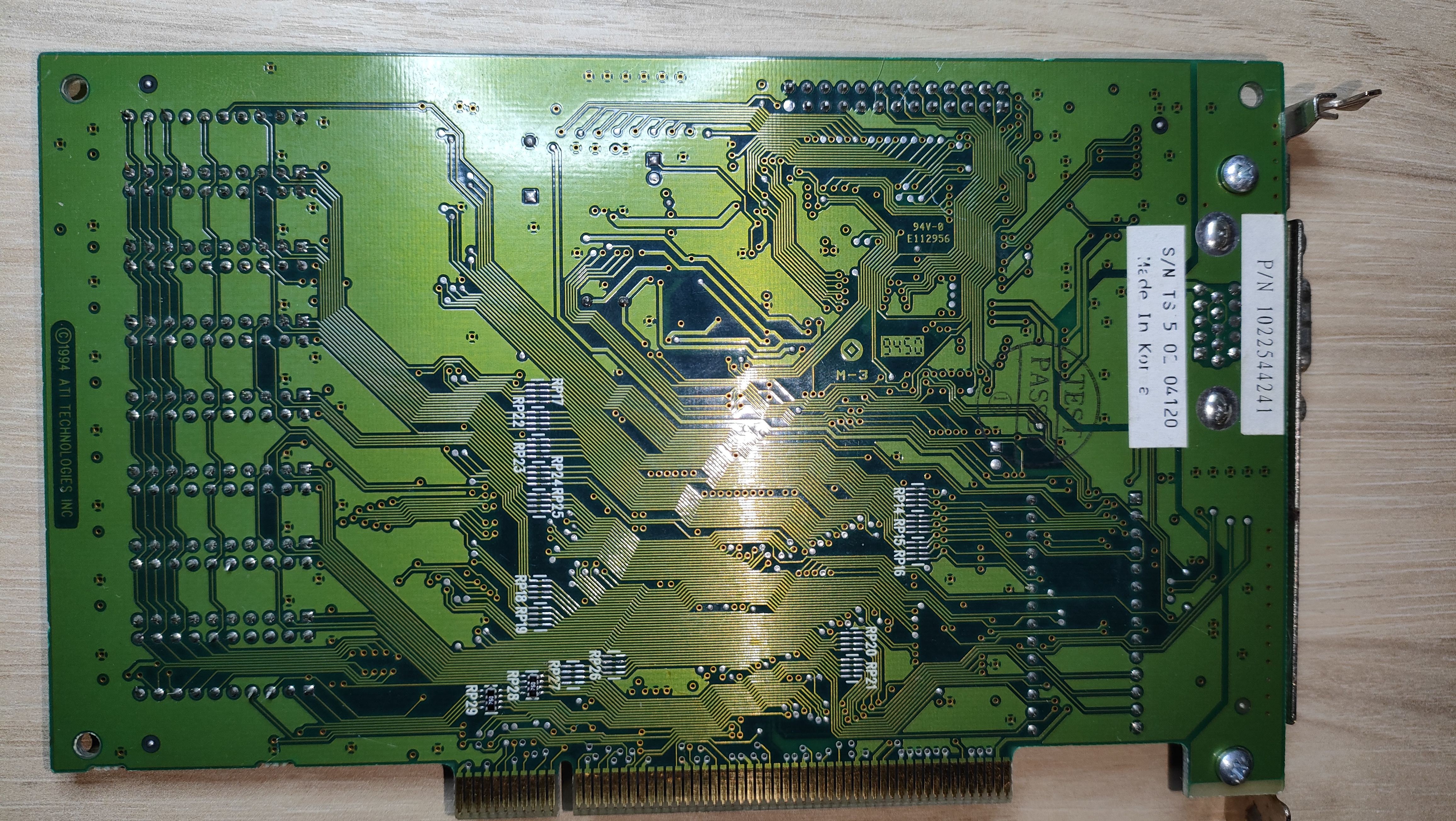

image2 Image 2 of 7 (Douglar)

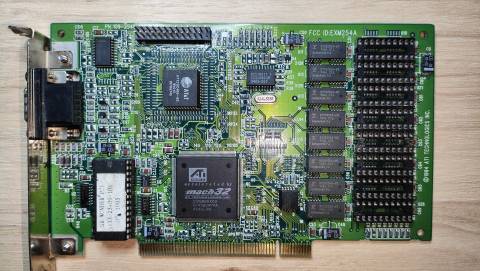

image3 Image 3 of 7 (Yargoro)

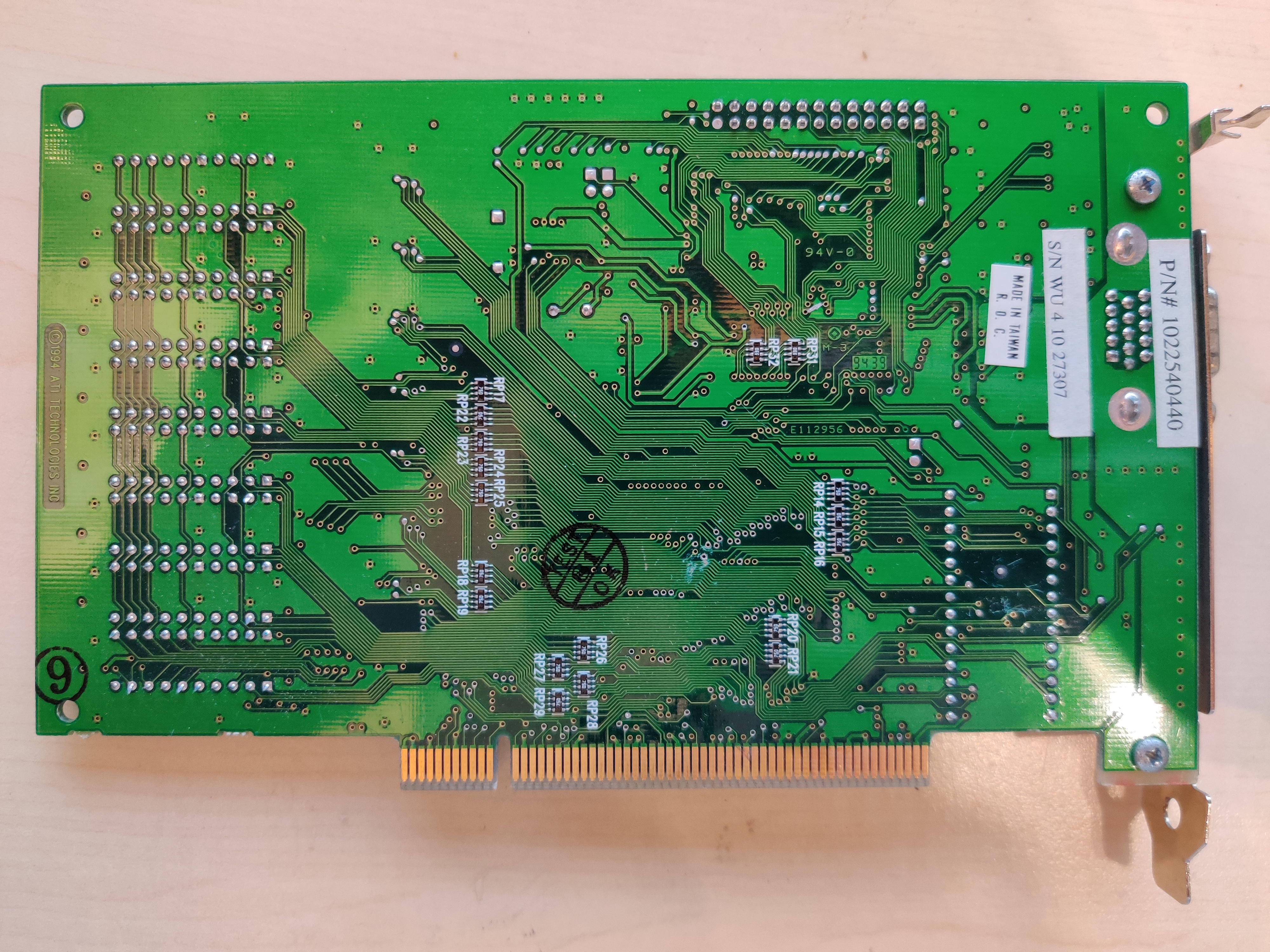

image4 Image 4 of 7 (Eric Voirin (oerg866))

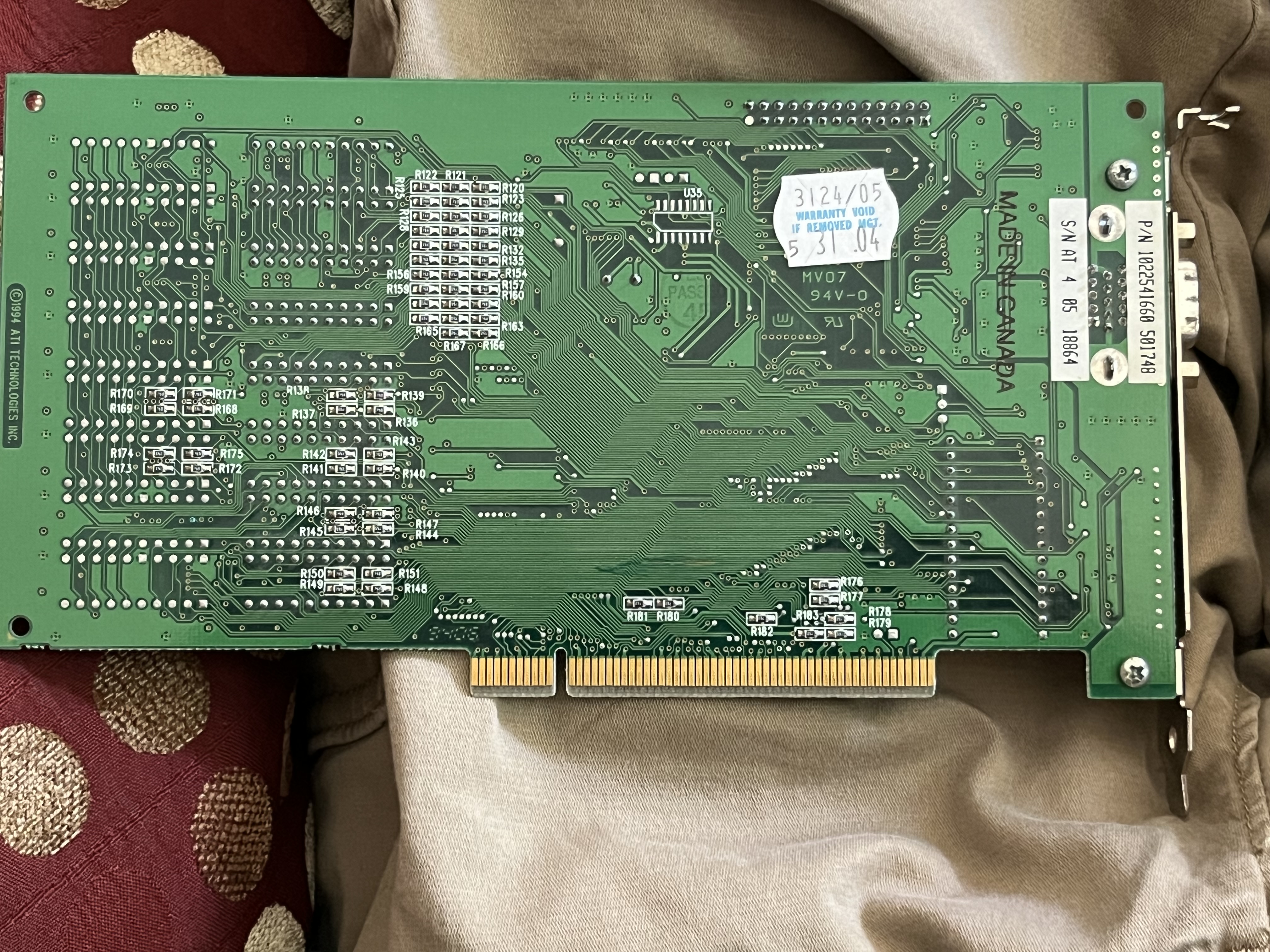

image5 Image 5 of 7 (Douglar)

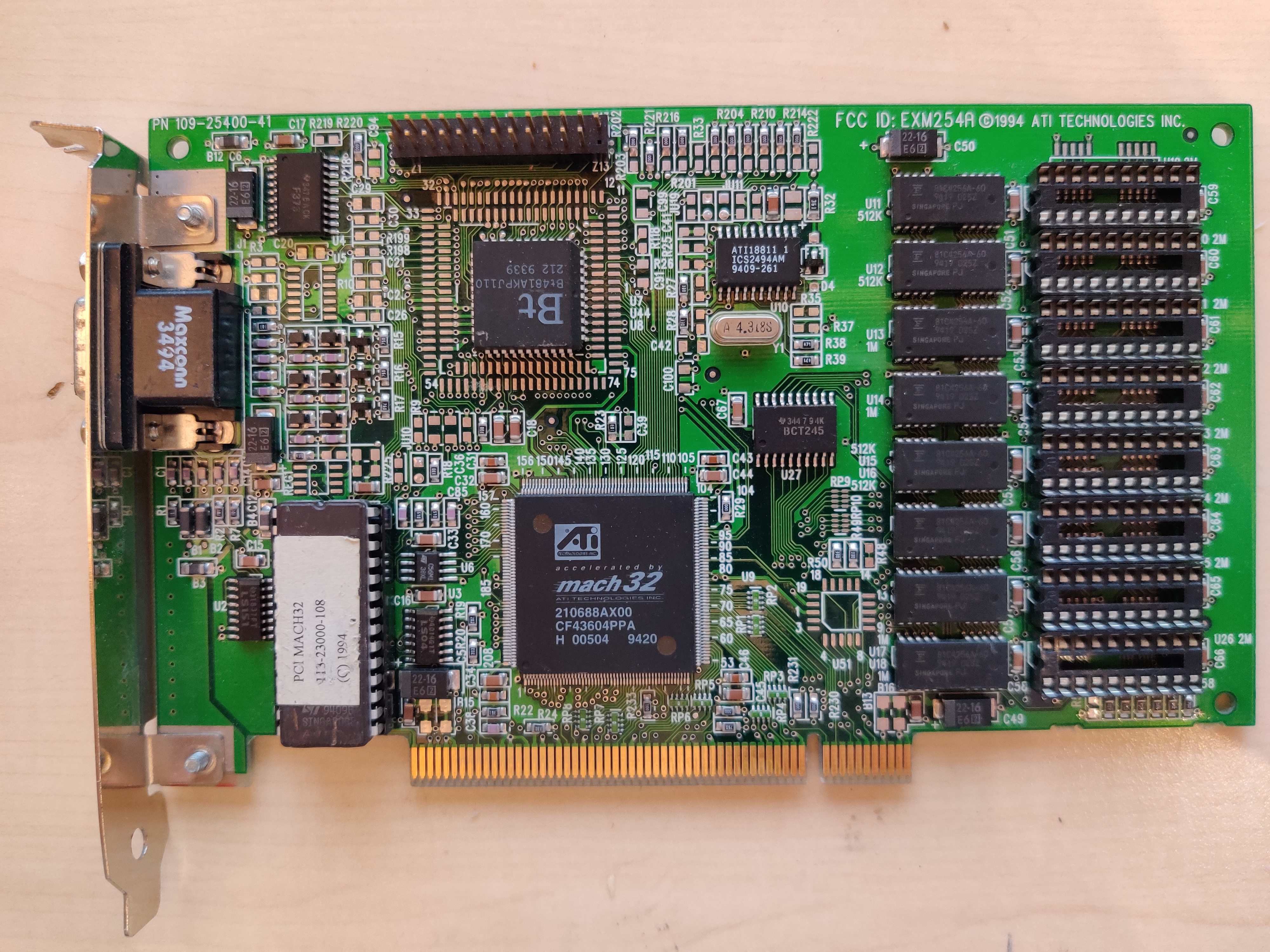

image6 Image 6 of 7 (Yargoro)

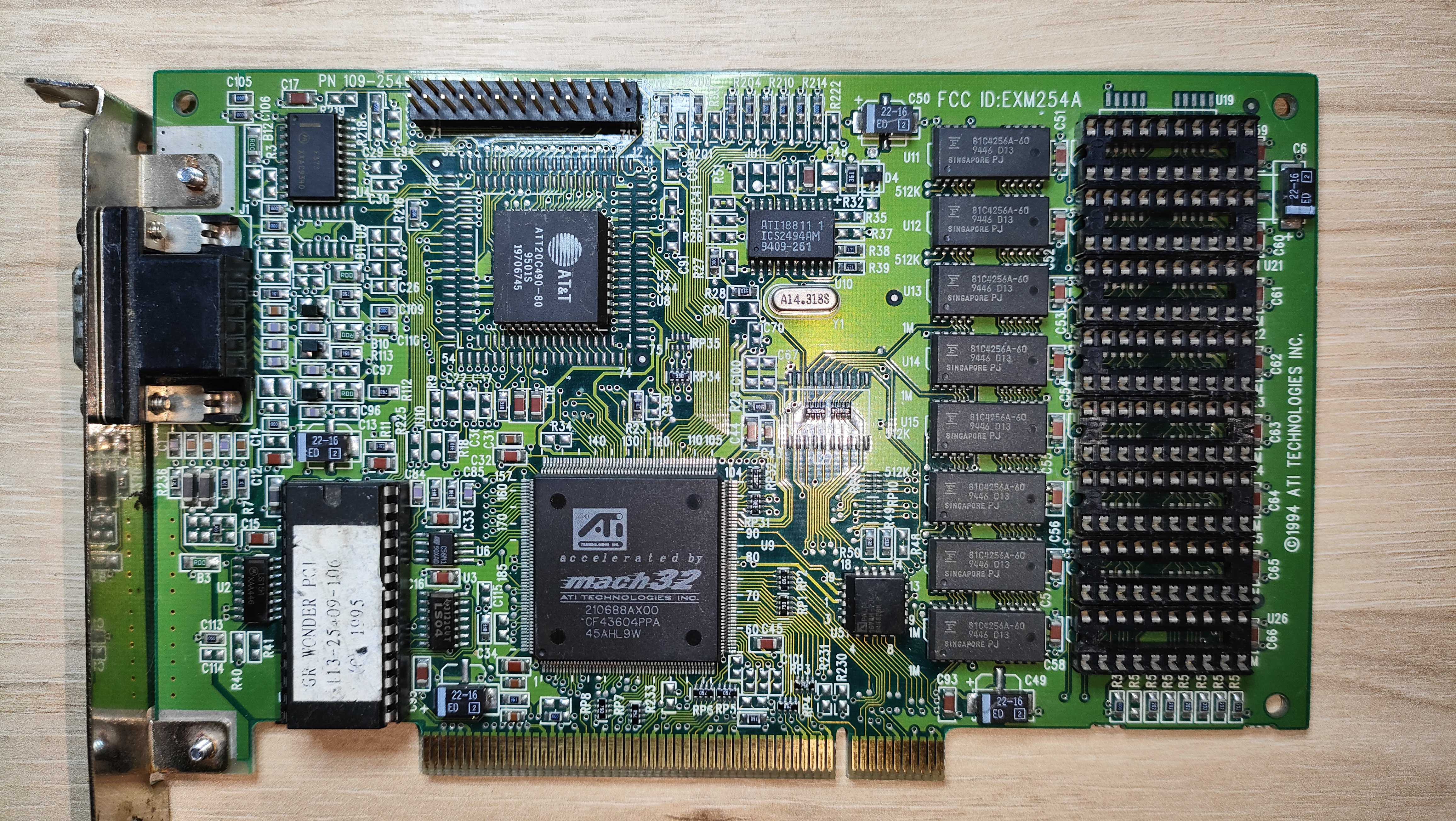

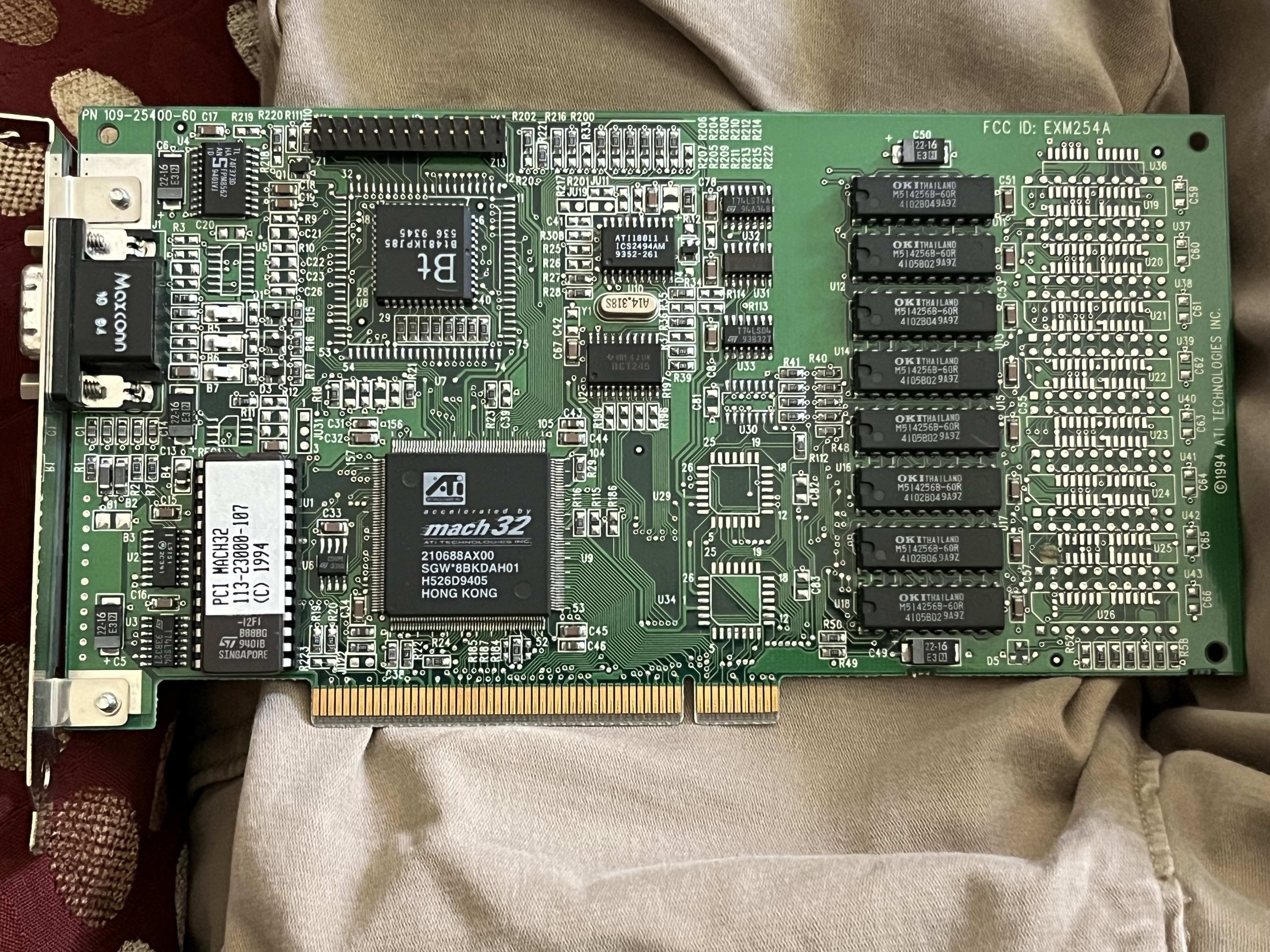

image7 Image 7 of 7 (Eric Voirin (oerg866))
