ATi Graphics Ultra Pro (MCA)
Logs
typeType
Video
interfaceInterface
signalSignaling
16-bit MCA 32-bit MCA
datePCI ID
4158
fccFCC ID
EXM192
ramRAM type
VRAM
ramRAM size
1MB2MB
chip Chips and specs
-> RAMDAC
Texas Instruments TLC34076 (Ramdac)
-> Video
ATi mach32
tag Also known as
  • ATi 1091920020 / 109-19200-20
  • ATi 1021920020
portintI/O ports
1x
  • DE-15
powerPower connectors
Empty
Last updated 2025-09-13T13:05:16Z
bios 2 card BIOS files available
Version
Note
File
Logs
Version
v1.06
Note
Odd
File
Logs
Version
v1.06
Note
Event
File
Logs
chipbios 1 chip with BIOS files available
Warning: might not be fully compatible with this card, use at your own risk
Version
Note
File
Logs
Version
bk3.2.12
Note
Mach32 PCI ROM
File
Logs
drv 10 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
August 27, 1991
OS support
Windows 3.0
Arch
x86
Size
256.8KB
Filename
Name
Version
N/A
OS support
Windows NT 3.1
Arch
x86
Size
75.6KB
Filename
Name
Version
2.60
OS support
MS-DOS OS/2 2.x OS/2 Warp 3.x Windows 3.1x
Arch
x86
Size
2.7MB
Filename
Name
Version
1992-04-06
OS support
Windows 3.1x
Arch
x86
Size
221.8KB
Filename
Name
Version
1992-04-15
OS support
Windows 3.1x
Arch
x86
Size
228.1KB
Filename
Name
Version
1992-04-03
OS support
Windows 3.1x
Arch
x86
Size
705.8KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 3.1x
Arch
x86
Size
216.7KB
Filename
Version
OS support
Windows 3.1x
Arch
x86
Size
528.4KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 3.1x
Arch
x86
Size
923.8KB
Filename
Version
OS support
Windows 3.1x
Arch
x86
Size
754.7KB
Filename
doc No card documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs

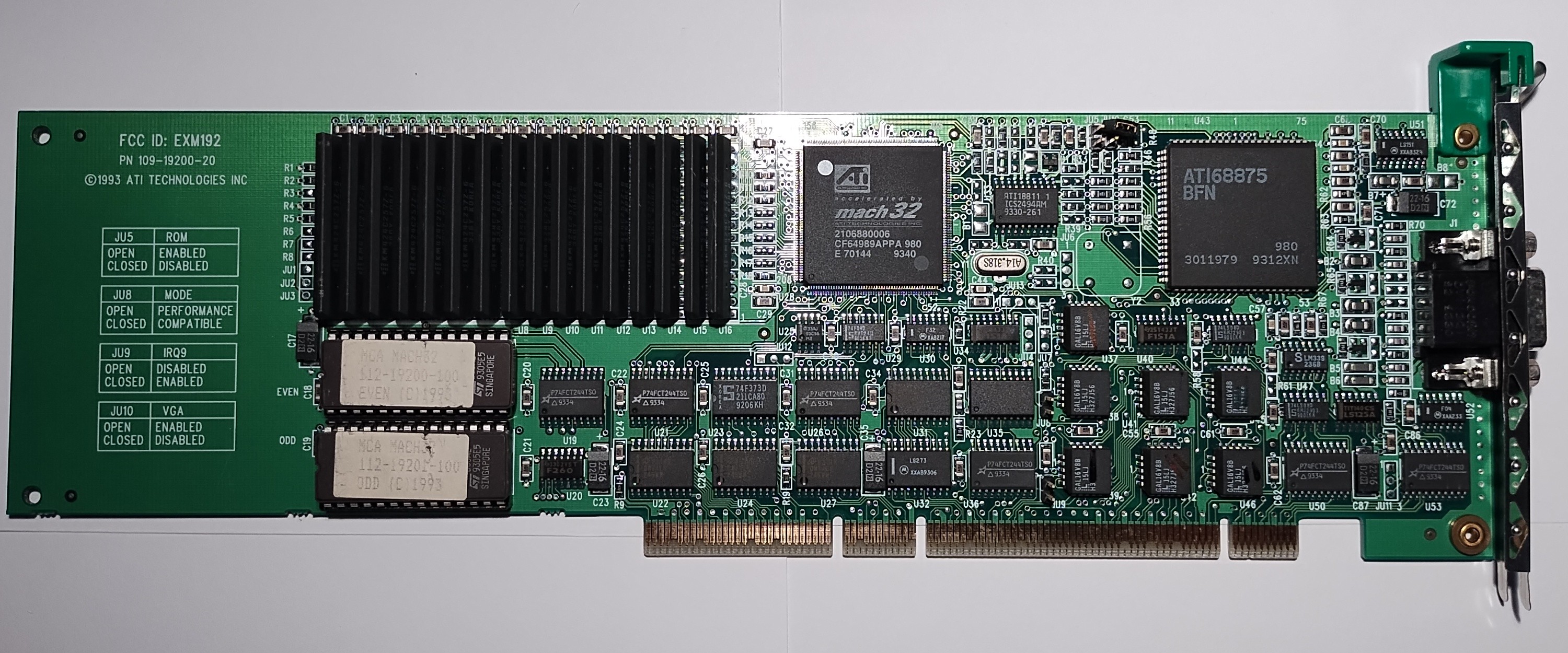

image1 Image 1 of 3 (Ryan Alswede)
image2 Image 2 of 3 (Ryan Alswede)

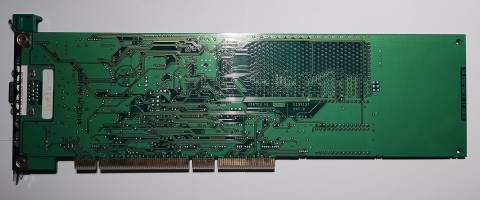

image3 Image 3 of 3 (Ryan Alswede)
