ATi COLOR EMULATION CARD
Logs
typeType
Video
interfaceInterface
signalSignaling
8-bit ISA
dimSlot height
1
datePCI ID
Empty
ramRAM type
DRAM
ramRAM size
64KB
chip Chips and specs
-> Video
Motorola CRT Controller (6845) ATi CW16800-A (Graphics Solution)
MTL
Data Bus 8-bit ISA
Card Type Video card
Video Chip Set VLSI
Maximum Video Memory Unidentified
Video Types Supported Monochrome, CGA, EGA
Highest Resolution Supported 720 x 348
tag Also known as
portintI/O ports
1x
  • DE-9
1x
  • 1x6 2.54mm pin header
powerPower connectors
Empty
Last updated 2025-12-10T18:23:24Z
biosc No BIOS files available
drv No drivers available
doc No card documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs

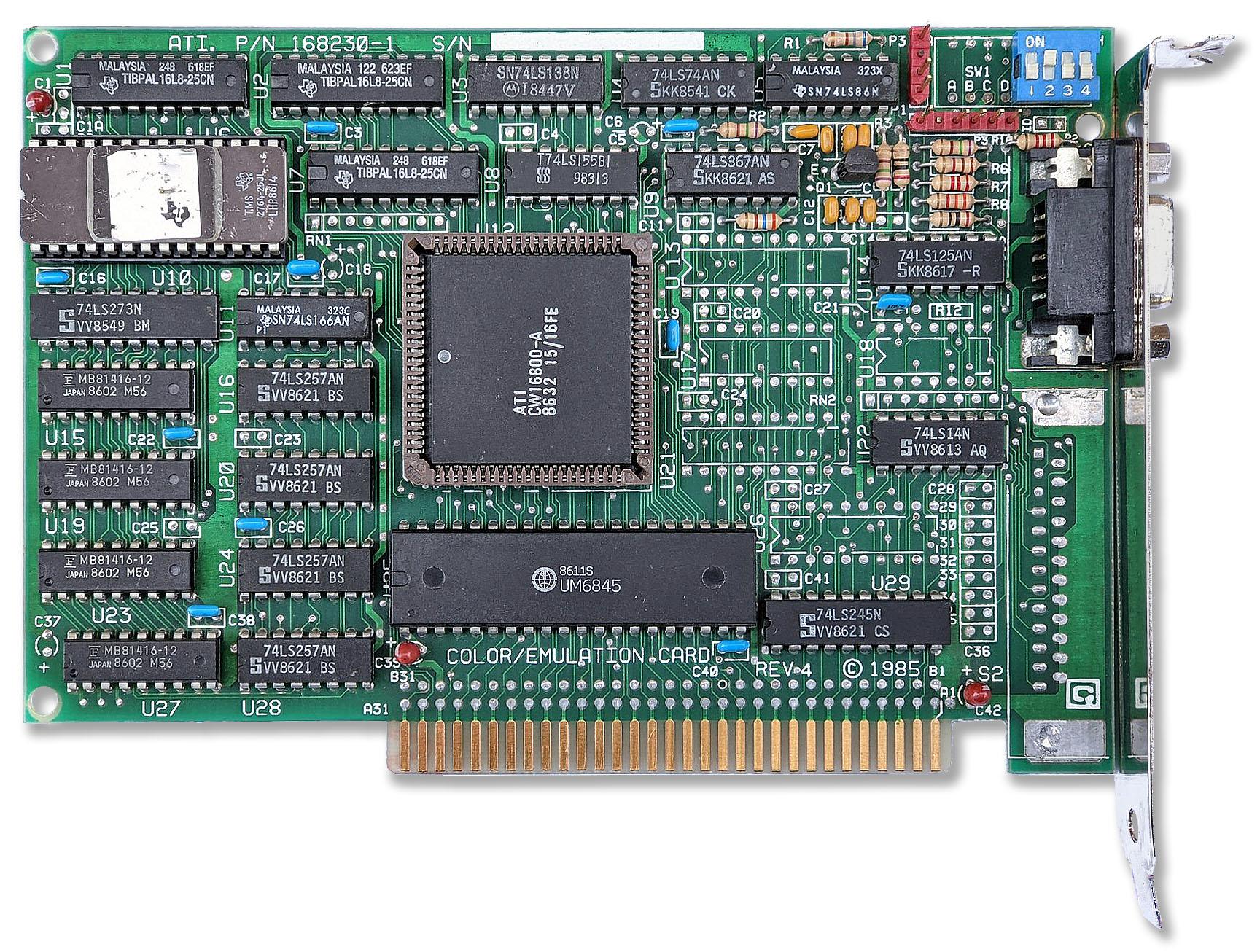

image1 Image 1 of 1 (HW collection)
