ATi 3D Rage Pro Turbo AGP 2x (432)
Logs
typeType
Video
interfaceInterface
signalSignaling
AGP 2x
dimSlot height
1
datePCI ID
4742
ramRAM type
SGRAM
ramRAM size
8MB
chip Chips and specs
-> Video
ATi 3D Rage Pro AGP 2X (Rage 3)
tag Also known as
  • ATi 109-43200-01 / 109-43200-10 (OEM)
  • ATi 1024320003513448 / 1024321111530414
portintI/O ports
1x
  • 2x20 2.54mm pin header, ATi Multimedia Channel
1x
  • DE-15
powerPower connectors
Empty
Last updated 2025-10-31T09:39:55Z
bios 1 card BIOS file available
Version
Note
File
Logs
Version
113-40214-101
Note
Mach64
File
Logs
drv 3 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
4.35
OS support
Windows 9x
Arch
x86
Size
1.6MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 9x
Arch
x86
Size
2.1MB
Filename
Version
OS support
Windows 9x Windows NT 4.0
Arch
x86
Size
7.6MB
Filename
doc No card documents available

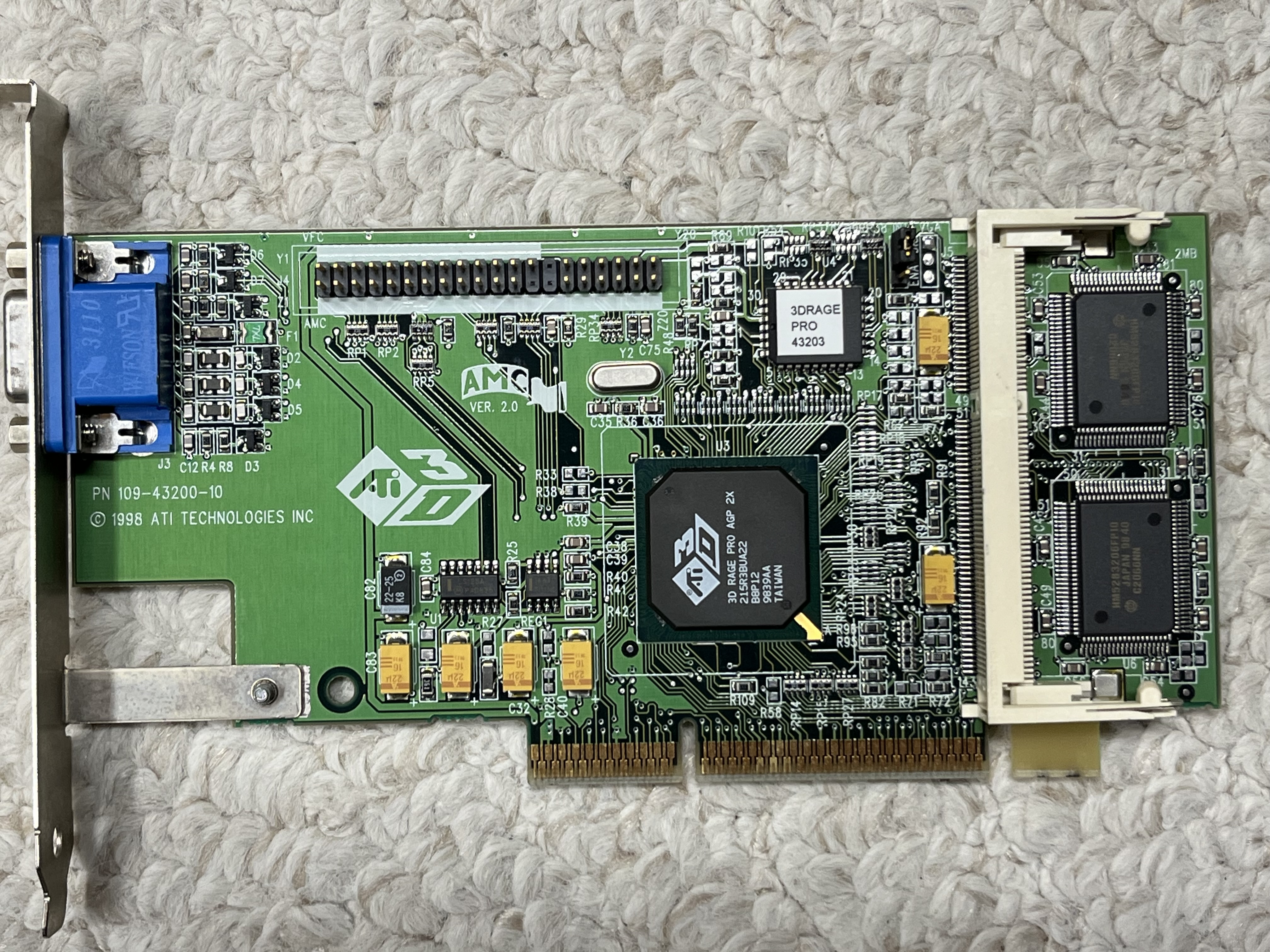

image1 Image 1 of 4 (Rafal Rzeczkowski)

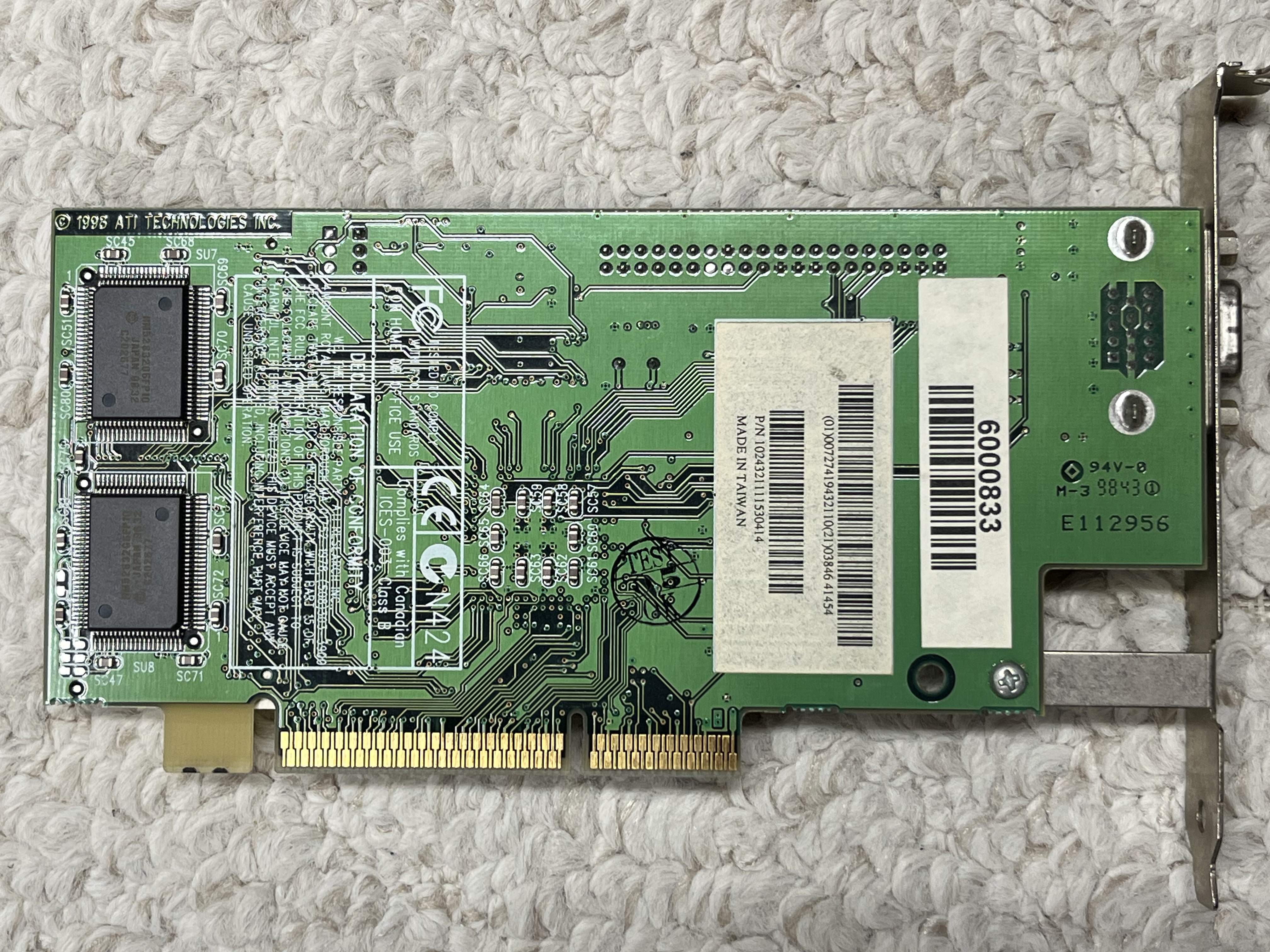

image2 Image 2 of 4 (Douglar)

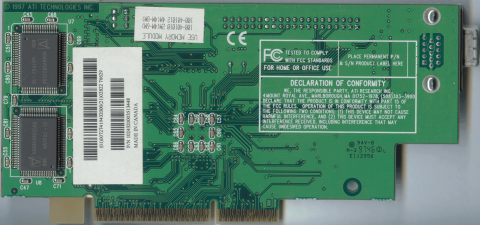

image3 Image 3 of 4 (Rafal Rzeczkowski)
image4 Image 4 of 4 (Douglar)
