ASUS WIFI-B
Logs
typeType
Network
interfaceInterface
connectorSlot connector
3x21 2.54mm pin header
signalSignaling
32-bit PCI
dimSlot height
1
datePCI ID
0101
fccFCC ID
MSQWL127
dimDimensions
105 mm (width) x 100mm (length)
chip Chips and specs
-> Network
Ralink RT2460 Ralink RT2421
tag Also known as
  • ASUS WIFI-B/RALINK-EAY
portintI/O ports
1x

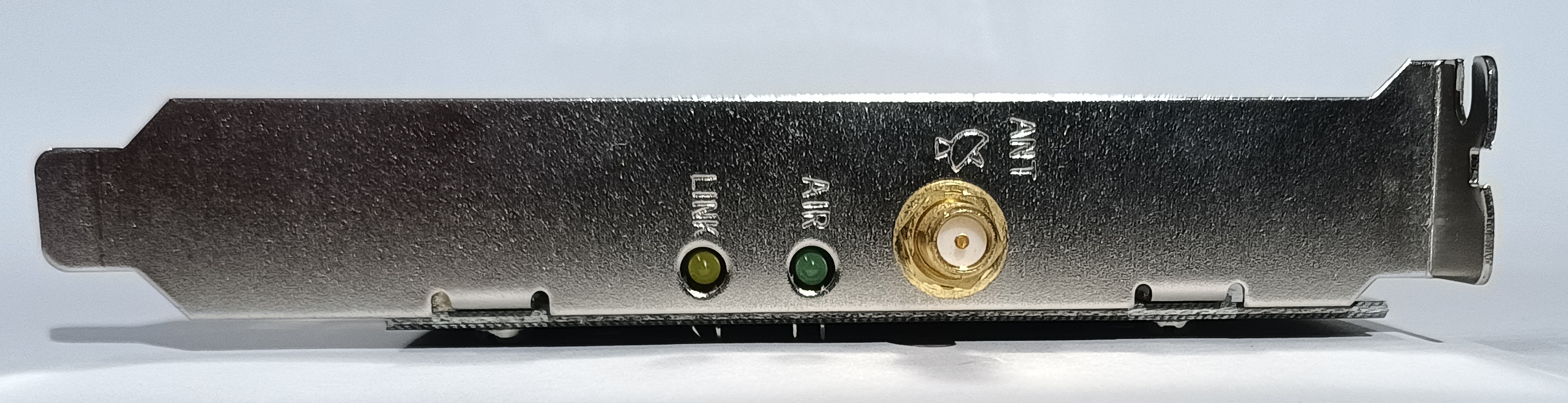

  • RP-SMA
powerPower connectors
Empty
notes Notes

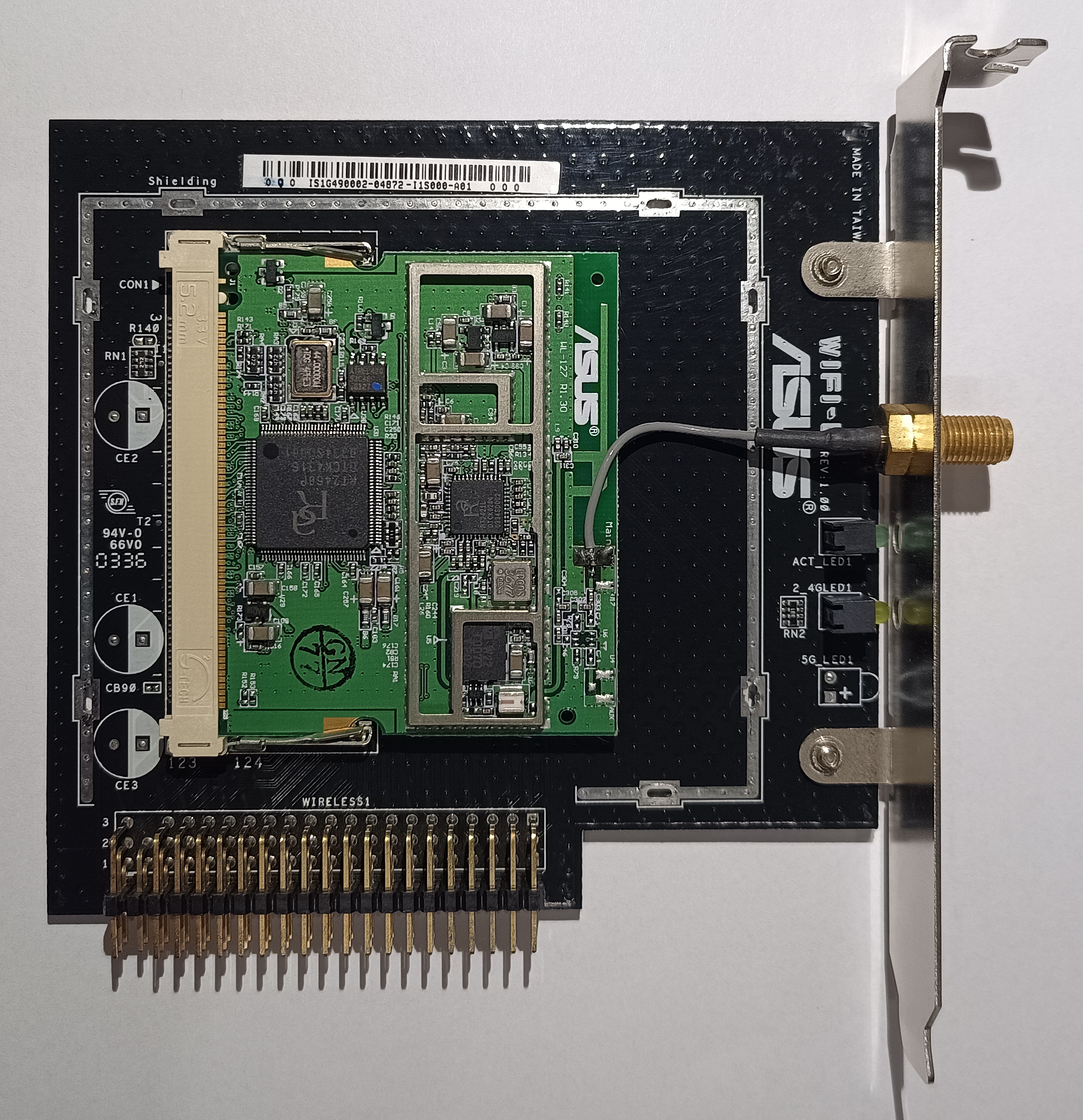

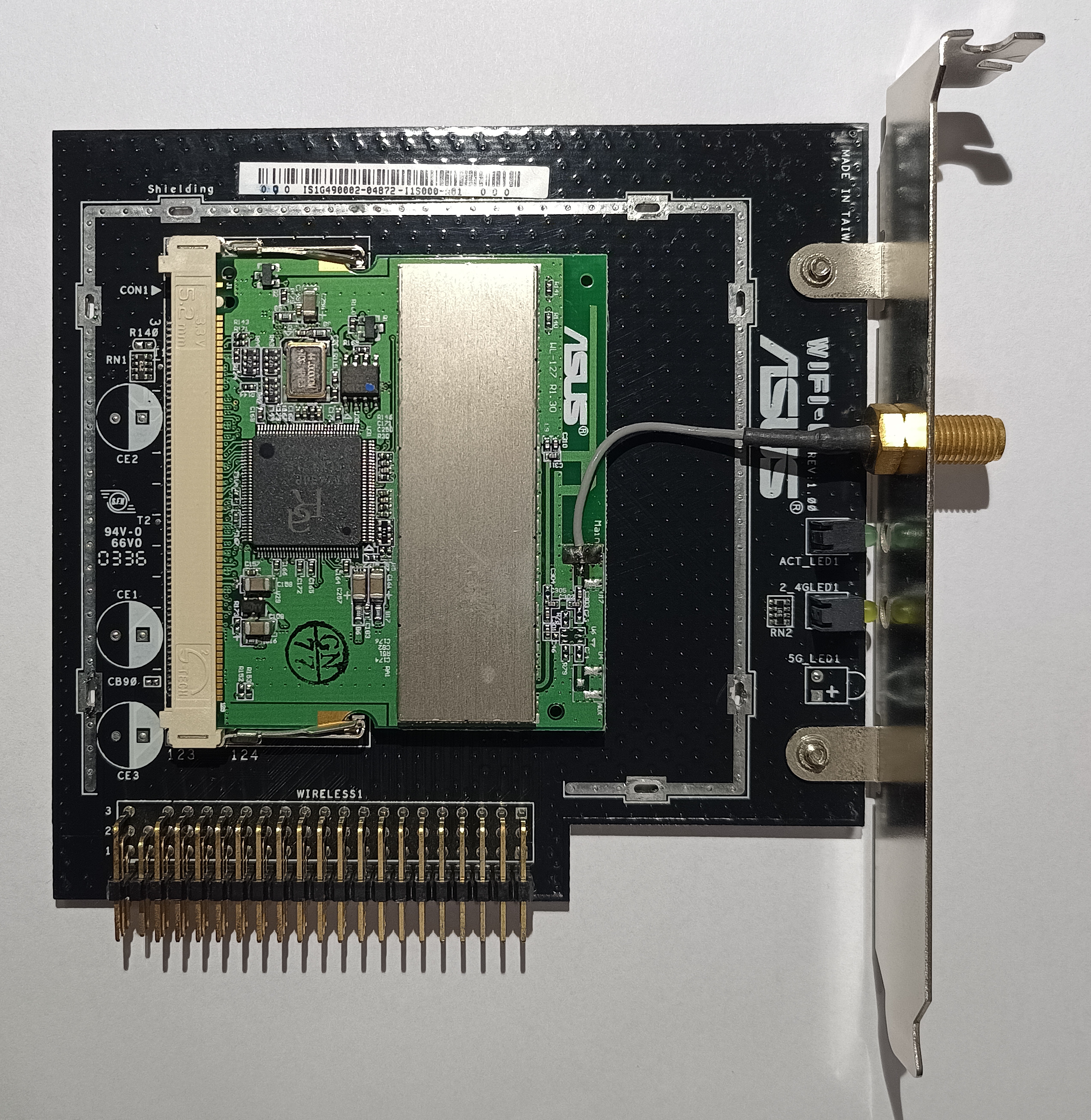

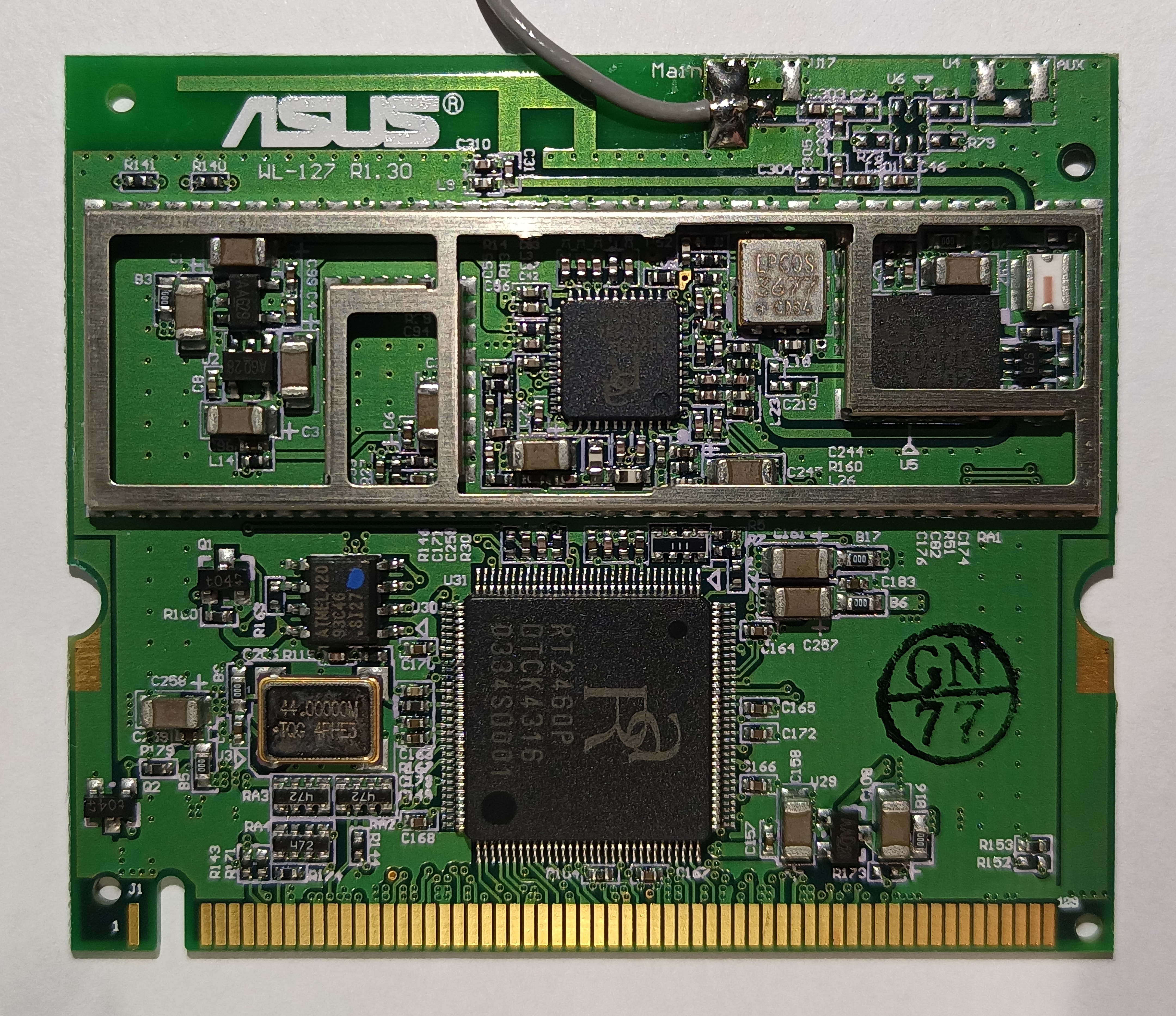

RF shield is soldered down

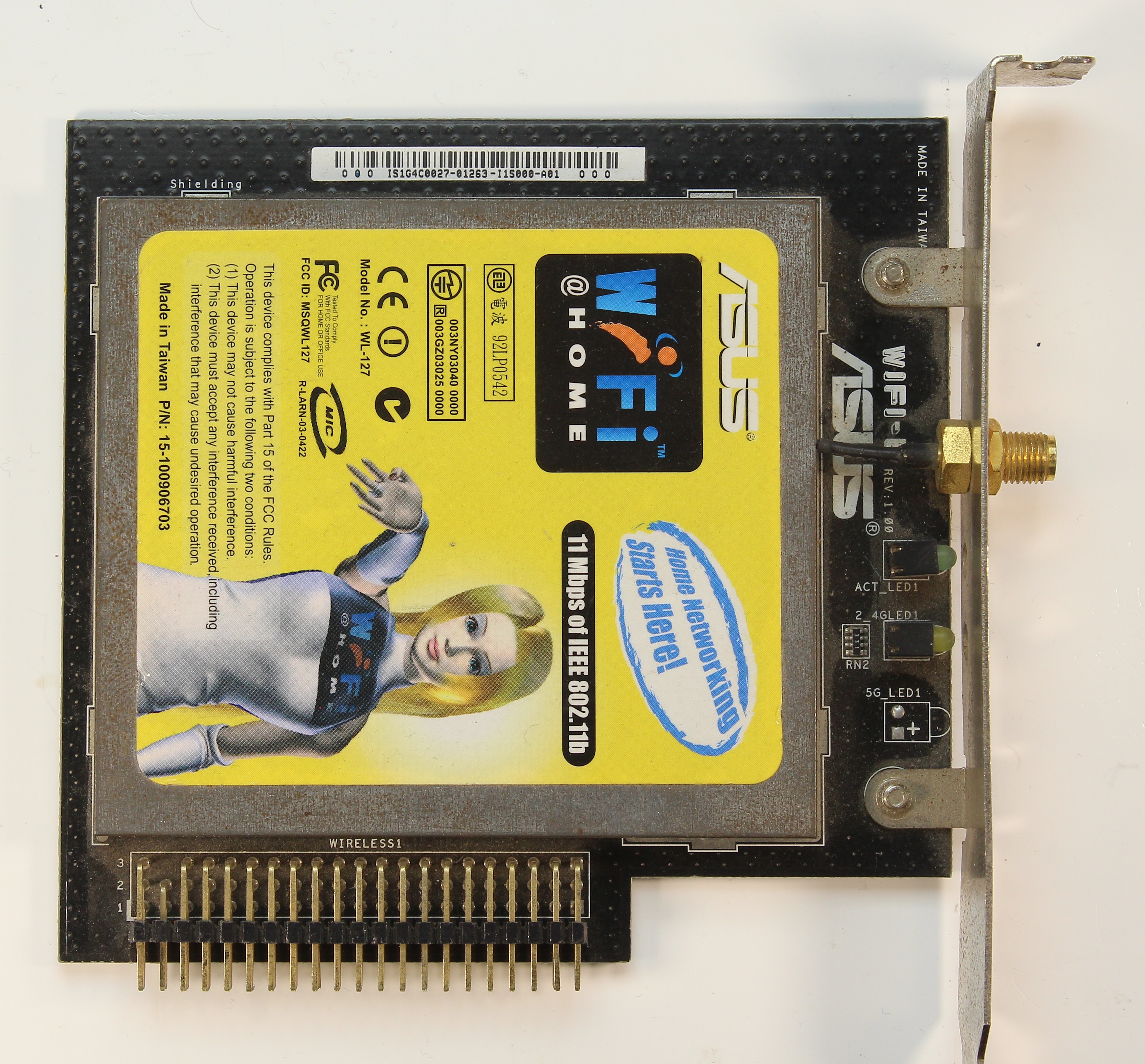

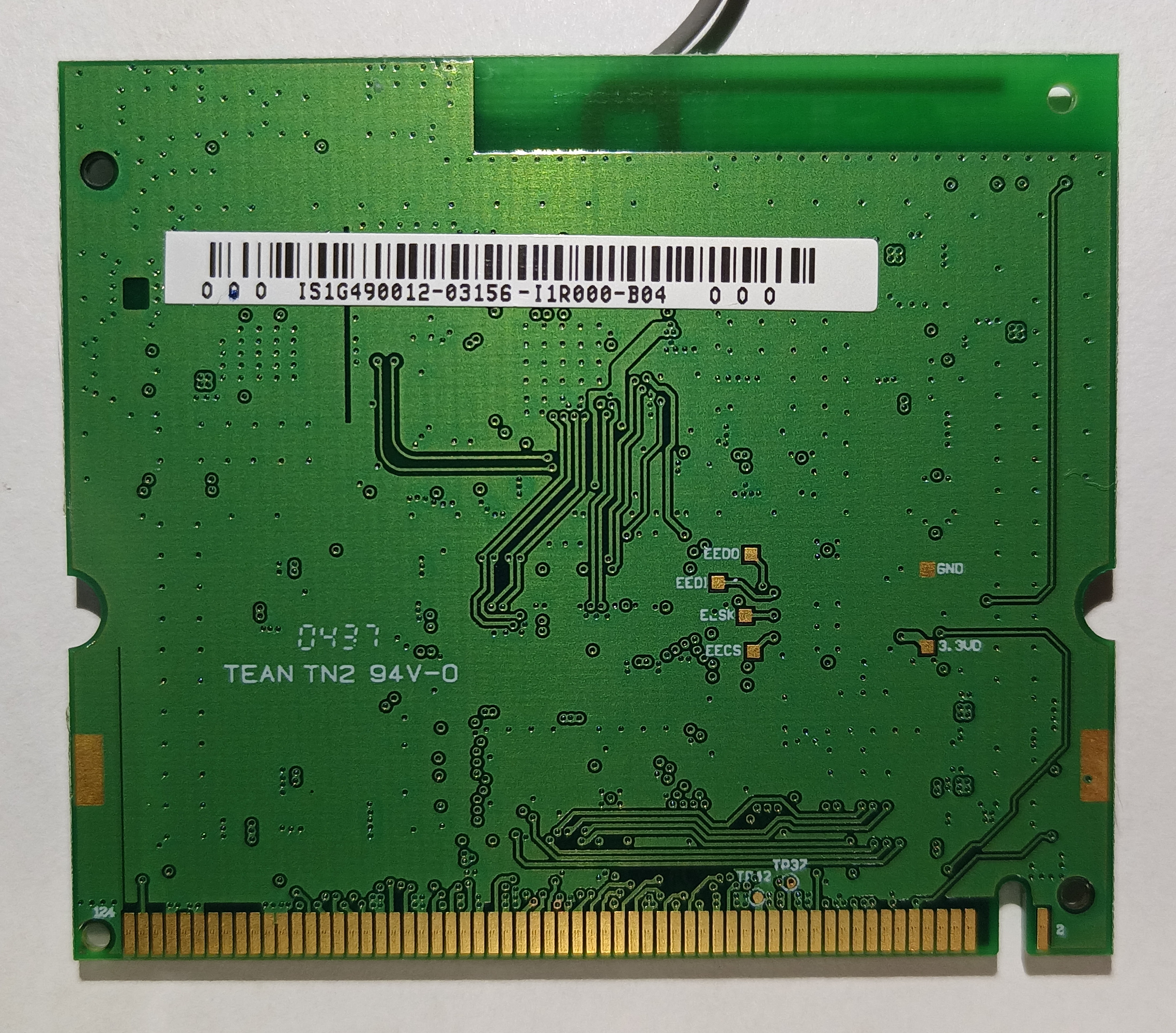

Card is just a carrier for the ASUS WL-127 Mini PCI WiFi card

Last updated 2024-11-29T19:30:15Z
biosc No BIOS files available
drv 2 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
6.31
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
x86
Size
3.3MB
Filename
Name
Version
1.09.03.0000
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
x86
Size
166.3KB
Filename
doc 2 card documents available
Release date
File
Logs
Release date
2003-08
File
Logs
Release date
2003-09
File
Logs
image1 Image 1 of 11 (computerguy096)
image2 Image 2 of 11 (Helen_Croft)
image3 Image 3 of 11 (Helen_Croft)
image4 Image 4 of 11 (Helen_Croft)
image5 Image 5 of 11 (Helen_Croft)
image6 Image 6 of 11 (Helen_Croft)
image7 Image 7 of 11 (Helen_Croft)
image8 Image 8 of 11 (computerguy096)
image9 Image 9 of 11 (Helen_Croft)
image10 Image 10 of 11 (Helen_Croft)
image11 Image 11 of 11 (Helen_Croft)
