ASUS U3S6 (rev 1.02G)
Logs
typeType
USB controller SATA controller
interfaceInterface
signalSignaling
PCIe 1.0 PCIe 2.0
dimSlot height
1
datePCI ID
0194
dimDimensions
122 mm (width) x 76mm (length)
chip Chips and specs
-> Bridge Interface
PLX PEX8613 (12-lane 3-port PCIe 2.0 switch)
-> Miscellaneous
ICS ICS9DB403D (Differential Buffer for PCIe)
-> SATA ctrl.
Marvell 88SE9123
-> USB ctrl.
NEC uPD720200F1 (2 port USB 3.0 Controller 5Gb/s)
portintI/O ports
2x
  • SATA
2x
  • USB-A
powerPower connectors
Empty
Last updated 2025-10-15T18:32:02Z
biosc No card BIOS files available
chipbios 1 chip with BIOS files available
Warning: might not be fully compatible with this card, use at your own risk
Version
Note
File
Logs
Version
v3.0.3.4
Note
uPD720200F1 firmware
File
Logs
drv 5 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.2.0.1048
OS support
Windows Vista Windows XP/2k3
Arch
x86
Size
545.2KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 7 Windows Vista Windows XP/2k3
Arch
x86
Size
7.2MB
Filename
Version
OS support
Windows 7 Windows Vista Windows XP/2k3
Arch
x86
Size
7.3MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 7 Windows Vista Windows XP/2k3
Arch
x86
Size
11.3MB
Filename
Version
OS support
Windows 7 Windows Vista Windows XP/2k3
Arch
x86
Size
7.2MB
Filename
doc 1 card document available
Release date
File
Logs
Release date
2009-10
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2011-03
File
Logs

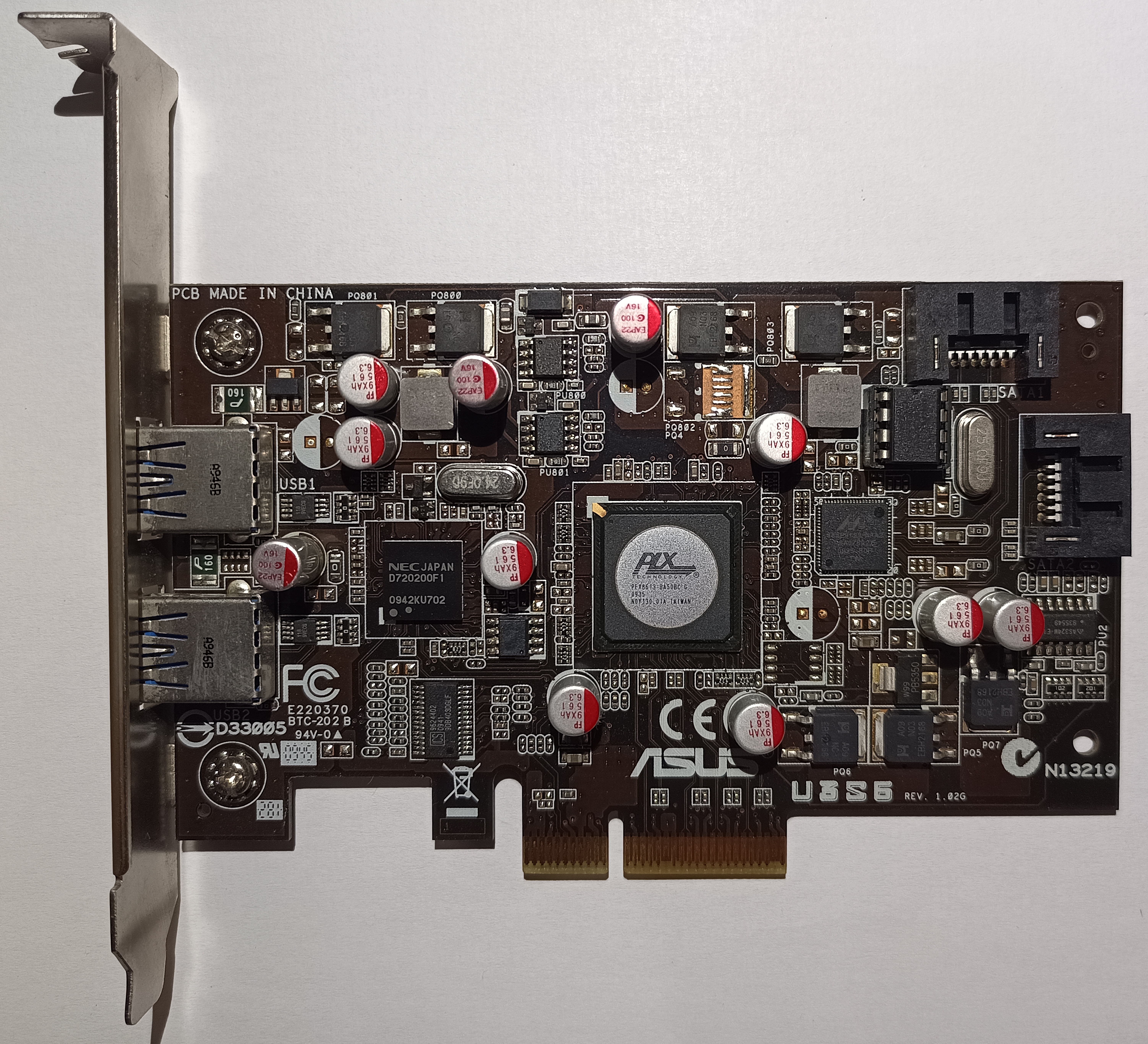

image1 Image 1 of 3 (Helen_Croft)

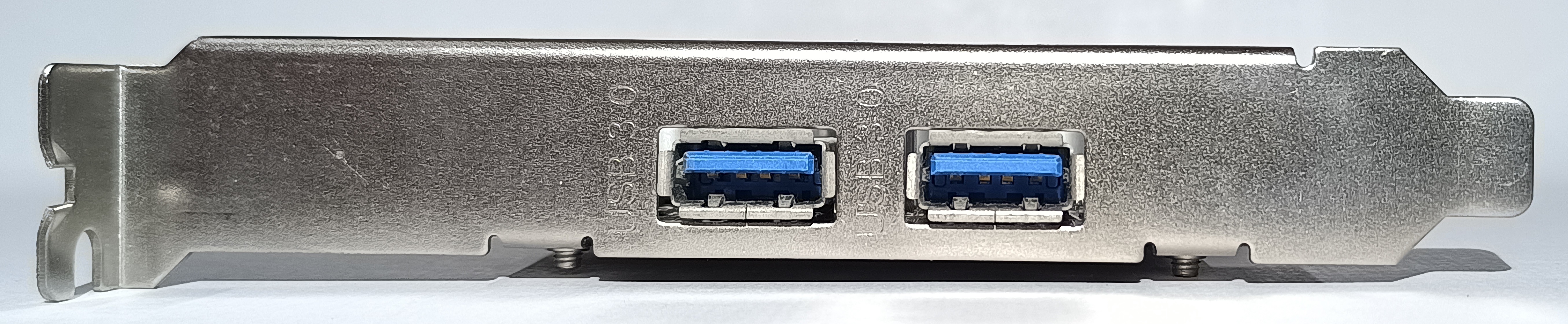

image2 Image 2 of 3 (Helen_Croft)

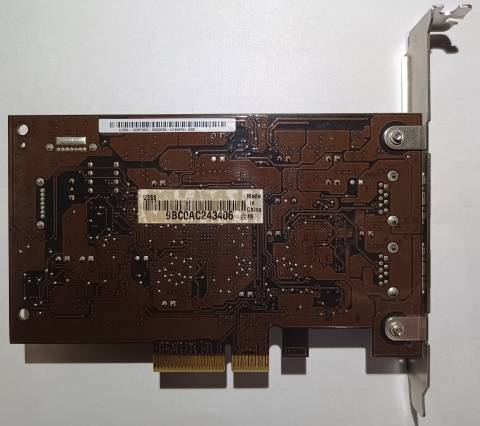

image3 Image 3 of 3 (Helen_Croft)
