ASUS PCI-AXP201
Logs
typeType
Sound
interfaceInterface
signalSignaling
32-bit PCI
dimSlot height
1
datePCI ID
Empty
ramRAM types
FPMSRAM
ramRAM size
2MB128KB
chip Chips and specs
-> Audio
ESS ES1948F (Maestro-1) Philips TDA1517 (2x6W Audio Power Amplifier) Platform PT-101 (Audio Codec)
MTL
Chip Set ESS
Data Bus 32-bit PCI
Card Size Half-length, full-height card
Card Type Sound card
I/O Options game/MIDI port, speaker out, line in, line out, microphone in, audio in - CD-ROM, upgrade card, I2S, auxiliary audio in (2), mono audio in
Maximum Onboard Memory 2MB DRAM & 128K SRAM
portintI/O ports
2x
  • 3.5mm TRS jack
2x
  • 3.5mm TRS jack
3x
  • 1x4 2.54mm pin header
1x
  • 1x4 2.50mm pin header
1x
  • DA-15
1x
  • 1x4 2.54mm pin header
1x
  • 2x1 2.54mm pin header
powerPower connectors
Empty
Last updated 2025-06-01T13:16:26Z
biosc No BIOS files available
drv 2 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
4.05.00.0165
OS support
Windows 9x
Arch
x86
Size
2.4MB
Filename
Name
Version
N/A
OS support
MS-DOS
Arch
x86
Size
111.9KB
Filename
doc 2 card documents available
Release date
File
Logs
Release date
1999
File
Logs
Release date
1997-09
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1997-05
File
Logs
Chip
Release date
2004-02-18
File
Logs

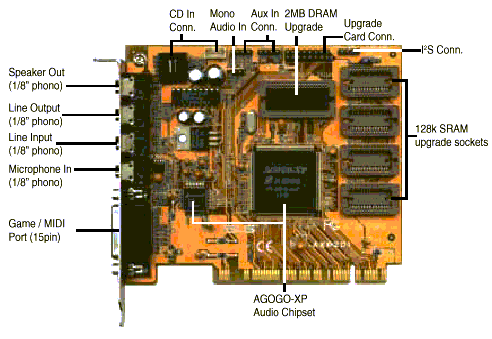

image1 Image 1 of 3 (ASUS)
image2 Image 2 of 3 (Microhouse)
image3 Image 3 of 3 (ASUS)
