ASUS PCI-AV264VT
Logs
typeType
Sound Video
interfaceInterface
signalSignaling
16-bit ISA 32-bit PCI
dimSlot height
1
datePCI ID
Empty
ramRAM type
EDO
ramRAM size
2MB
chip Chips and specs
-> Audio
Creative CT2505 (Vibra 16C) STMicroelectronics / Inmos TEA2025 (Audio Amplifier)
-> Video
ATi mach64 VT2 (264VT2)
MTL
Memory Type DRAM
Video Types Supported XVGA
Highest Resolution Supported 1280 x 1024
portintI/O ports
2x
  • 3.5mm TRS jack
1x
  • 3.5mm TRS jack
1x
  • 2x20 2.54mm pin header, VESA Feature Connector, ATi Multimedia Channel
1x
  • 1x4 2.50mm pin header
1x
  • 1x3 2.50mm pin header
1x
  • 2x8 2.54mm pin header
1x
  • 2x1 2.54mm pin header
1x
  • 1x4 2.54mm pin header
1x
  • DE-15, VGA
1x
  • 2x13 2.54mm pin header
powerPower connectors
Empty
Last updated 2025-12-11T17:31:28Z
biosc No BIOS files available
drv 5 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
3.03
OS support
Windows 3.1x
Arch
x86
Size
3.5MB
Filename
Name
Version
4.35
OS support
Windows 9x
Arch
x86
Size
1.6MB
Filename
Name
Version
1.12.000
OS support
Windows 9x
Arch
x86
Size
841.8KB
Filename
Name
Version
N/A
OS support
Windows 3.1x Windows 9x Windows NT 3.5x Windows NT 4.0
Arch
x86
Size
14.6MB
Filename
Name
Version
1.0
OS support
MS-DOS
Arch
x86
Size
1.8MB
Filename
doc 1 card document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2012-10-01
File
Logs
Chip
Release date
2014
File
Logs

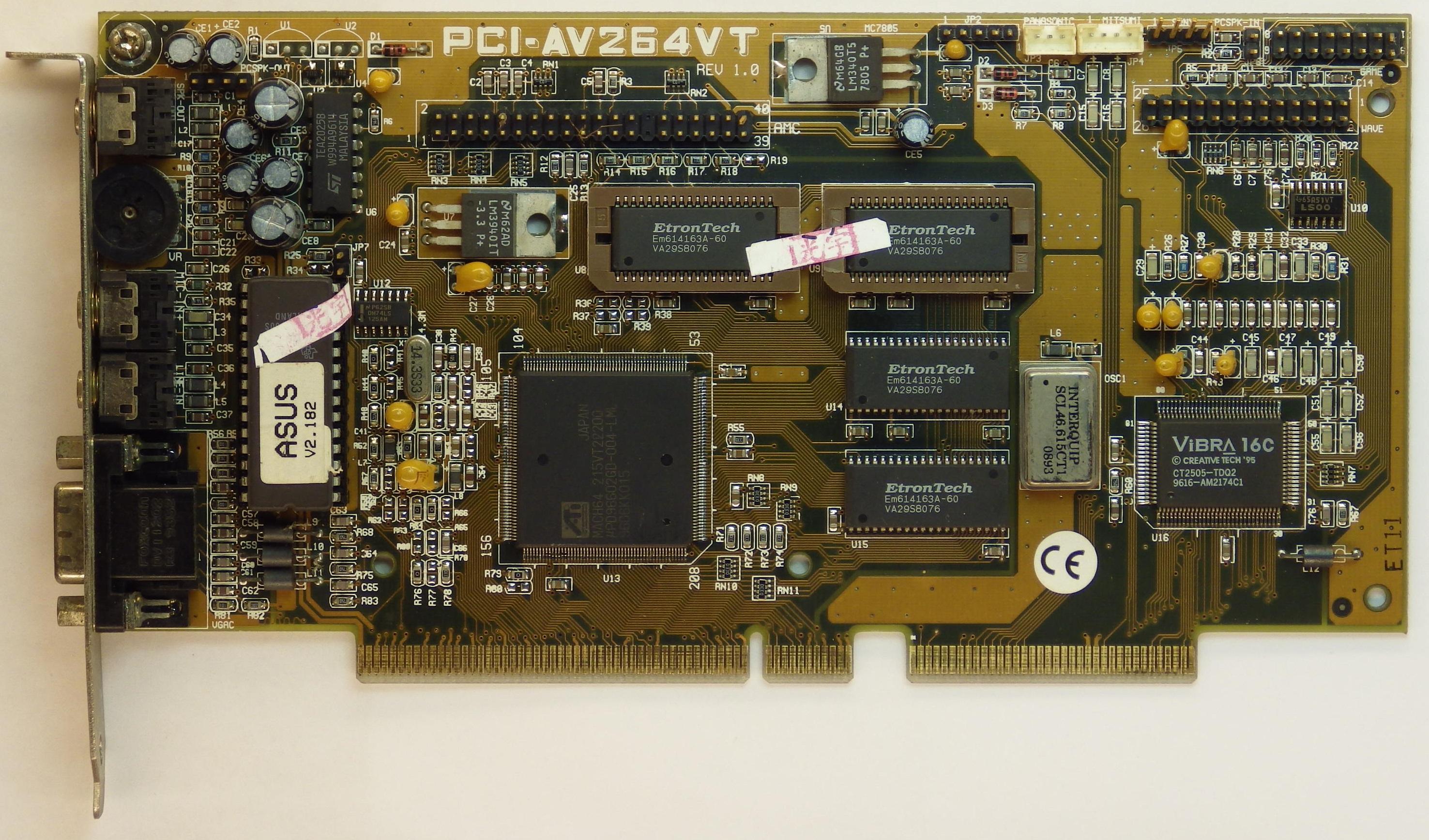

image1 Image 1 of 2 (Demiurge)

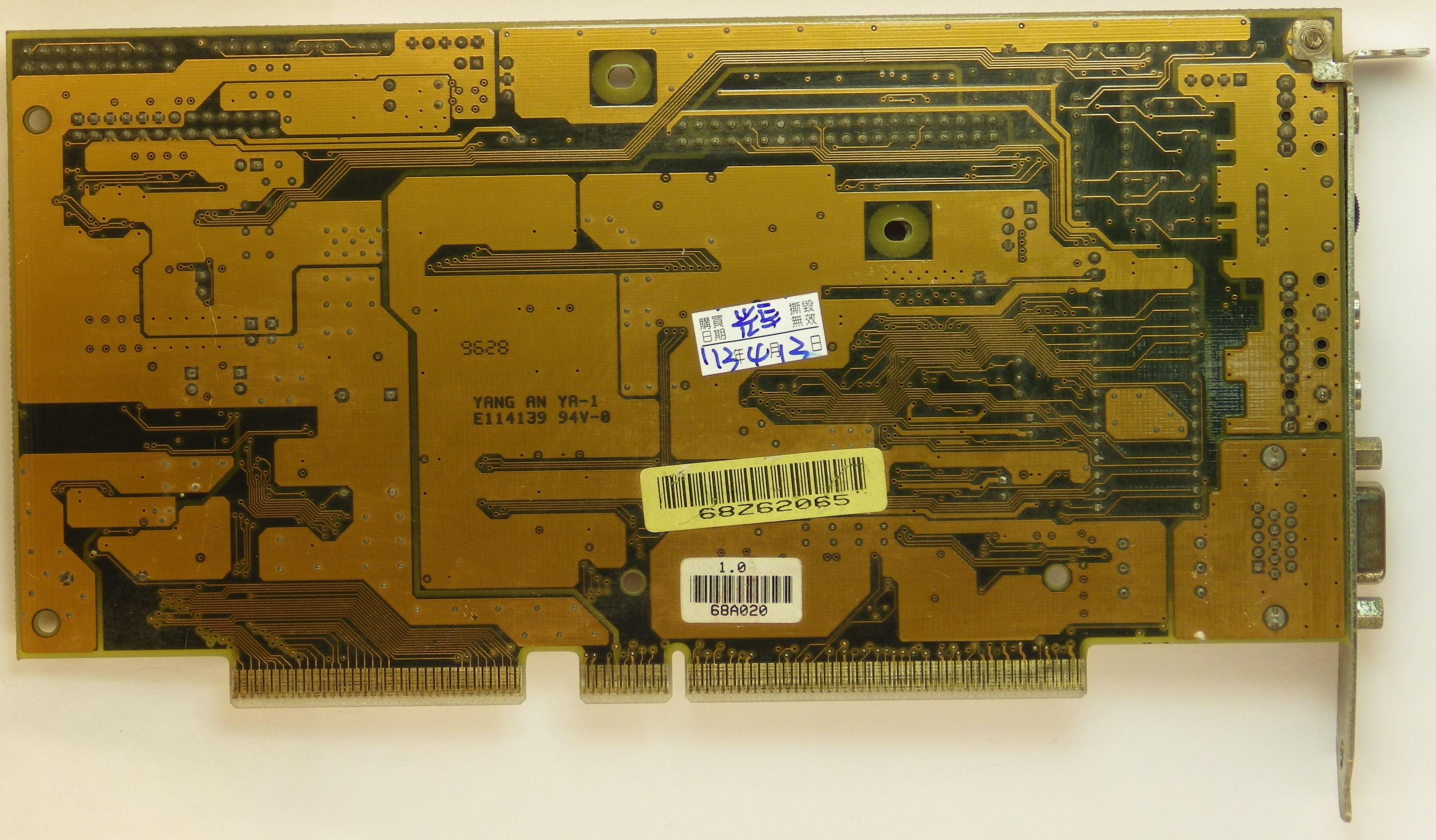

image2 Image 2 of 2 (Demiurge)
