ASUS PCI-AV264CT-N
Logs
typeType
Sound Video
interfaceInterface
signalSignaling
16-bit ISA 32-bit PCI
dimSlot height
1
datePCI ID
4354
fccFCC ID
MSQPCI-AV264CT-N
ramRAM type
EDO
ramRAM size
1MB2MB
dimDimensions
195 mm (width) x 106mm (length)
chip Chips and specs
-> Audio
Creative CT2505 (Vibra 16C) STMicroelectronics / Inmos TEA2025 (Audio Amplifier)
-> Video
ATi mach64 CT (215CT22200)

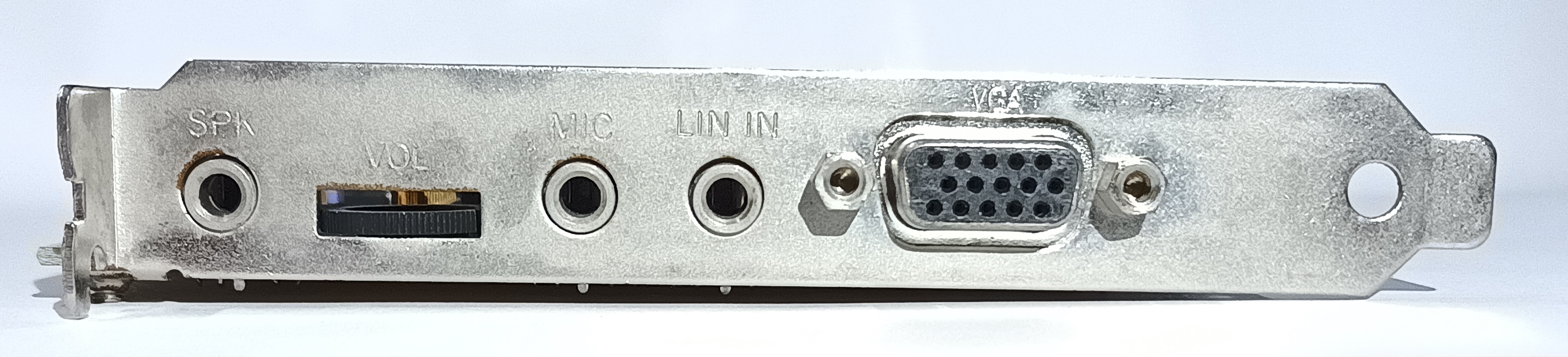

portintI/O ports
2x
  • 3.5mm TRS jack
1x
  • 3.5mm TRS jack
1x
  • 1x4 2.54mm pin header
1x
  • 1x4 2.50mm pin header
1x
  • 1x3 2.50mm pin header
1x
  • 2x8 2.54mm pin header
1x
  • 2x1 2.54mm pin header
1x
  • 1x4 2.54mm pin header
1x
  • 2x13 2.54mm pin header
1x
  • DE-15
1x
  • 2x13 2.54mm pin header
powerPower connectors
Empty
Last updated 2025-12-11T15:16:35Z
bios 1 card BIOS file available
Version
Note
File
Logs
Version
3.7.6/2.226
Note
VGA BIOS
File
Logs
drv 6 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
3.03
OS support
Windows 3.1x
Arch
x86
Size
3.5MB
Filename
Name
Version
1.12.000
OS support
Windows 9x
Arch
x86
Size
841.8KB
Filename
Name
Version
N/A
OS support
Windows 3.1x Windows 9x Windows NT 3.5x Windows NT 4.0
Arch
x86
Size
14.6MB
Filename
Name
Version
1.0
OS support
MS-DOS
Arch
x86
Size
1.8MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 9x
Arch
x86
Size
1.6MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
517KB
Filename
doc 1 card document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1996
File
Logs
Chip
Release date
2012-10-01
File
Logs
Chip
Release date
2014
File
Logs

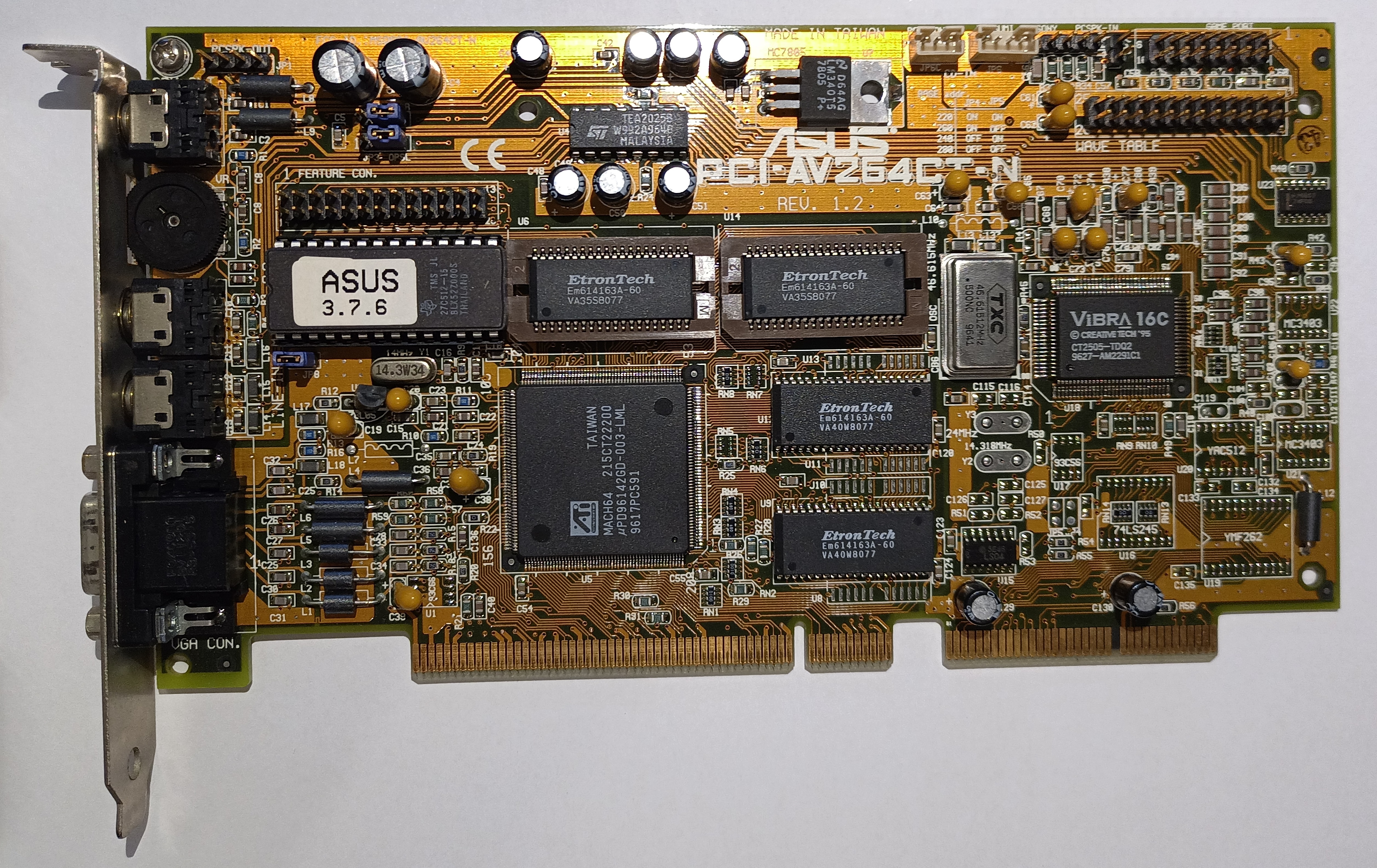

image1 Image 1 of 3 (Helen_Croft)

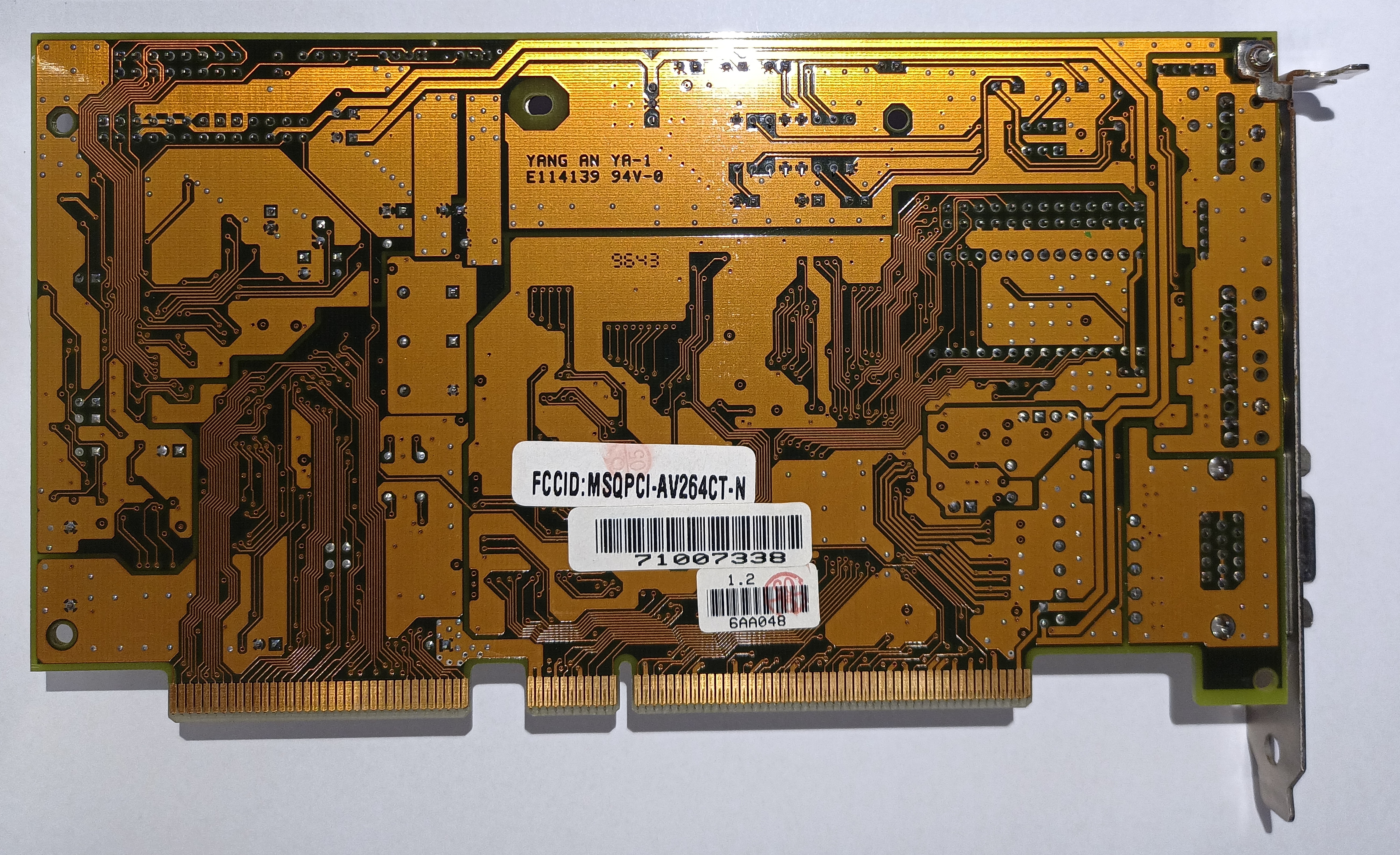

image2 Image 2 of 3 (Helen_Croft)

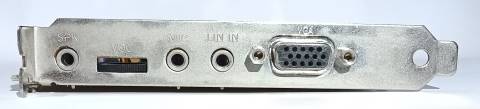

image3 Image 3 of 3 (Helen_Croft)
