ASUS PCI-AV264CT
Logs
typeType
Sound Video
interfaceInterface
signalSignaling
16-bit ISA 32-bit PCI
dimSlot height
1
datePCI ID
4354
fccFCC ID
L4BPCI-AV264CT
ramRAM type
EDO
ramRAM size
1MB2MB
chip Chips and specs
-> Audio
Creative CT2504 (Vibra 16S) Yamaha YAC512 (2-Channel Floating DAC) STMicroelectronics / Inmos TEA2025 (Audio Amplifier) Yamaha YMF262 (OPL3)
-> Video
ATi mach64 CT (215CT22200)
portintI/O ports
2x
  • 3.5mm TRS jack
1x
  • 3.5mm TRS jack
1x
  • 1x4 2.54mm pin header
1x
  • 1x4 2.50mm pin header
1x
  • 1x3 2.50mm pin header
1x
  • 2x8 2.54mm pin header
1x
  • 2x1 2.54mm pin header
1x
  • 1x4 2.54mm pin header
1x
  • 1x4 2.54mm pin header
1x
  • 2x13 2.54mm pin header
1x
  • DE-15
1x
  • 2x13 2.54mm pin header
powerPower connectors
Empty
Last updated 2025-12-11T15:16:24Z
biosc No BIOS files available
drv 6 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
3.03
OS support
Windows 3.1x
Arch
x86
Size
3.5MB
Filename
Name
Version
P16V-STD-01-ENG
OS support
MS-DOS Windows 3.1x
Arch
x86
Size
1.7MB
Filename
Name
Version
1.12.000
OS support
Windows 9x
Arch
x86
Size
841.8KB
Filename
Name
Version
N/A
OS support
Windows 3.1x Windows 9x Windows NT 3.5x Windows NT 4.0
Arch
x86
Size
14.6MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 9x
Arch
x86
Size
1.6MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
517KB
Filename
doc 1 card document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1996
File
Logs
Chip
Release date
2012-10-01
File
Logs
Chip
Release date
2014
File
Logs
Chip
Release date
1994-04
File
Logs
Chip
Release date
1994-11
File
Logs

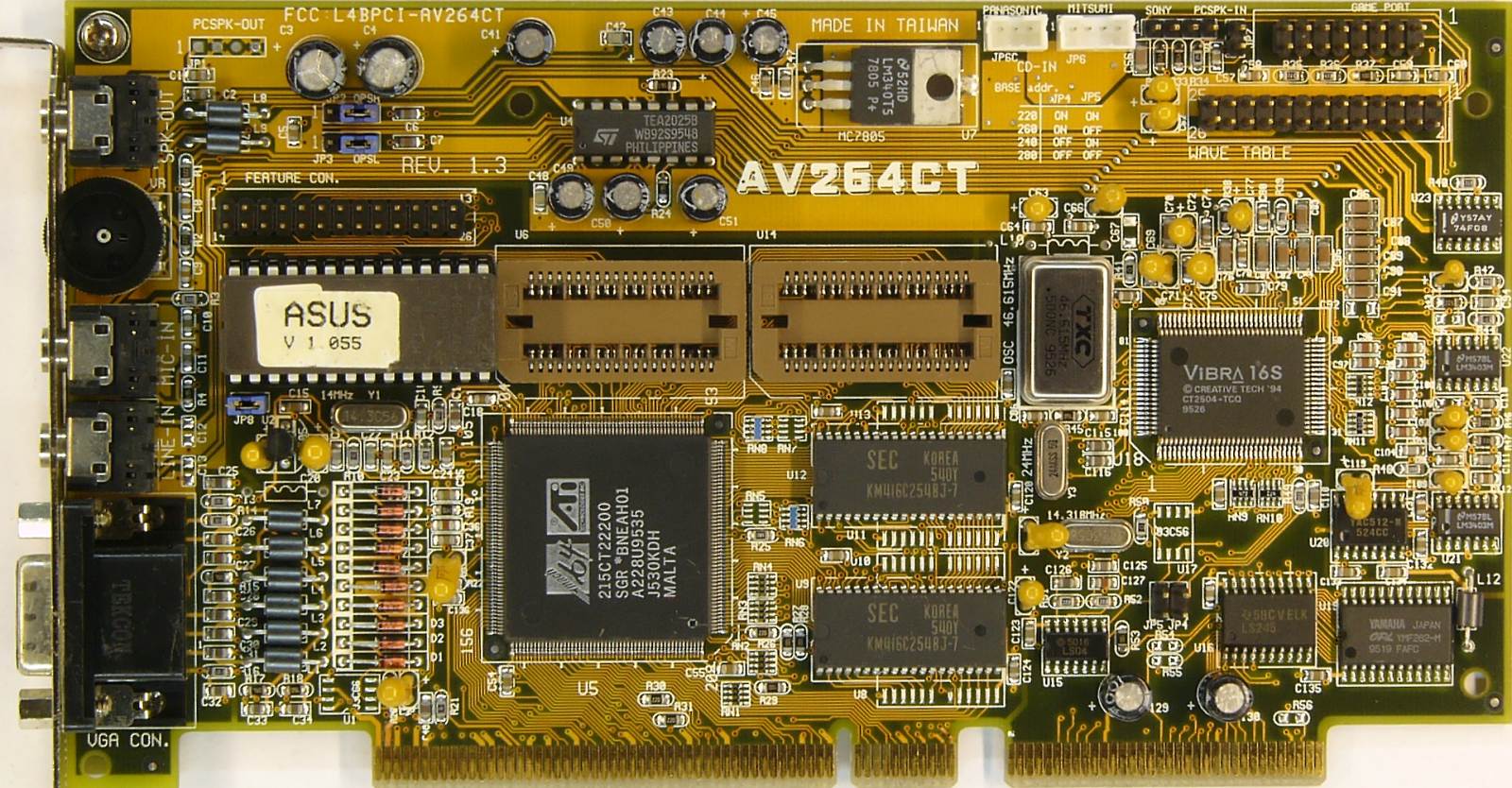

image1 Image 1 of 2 (Palcal)

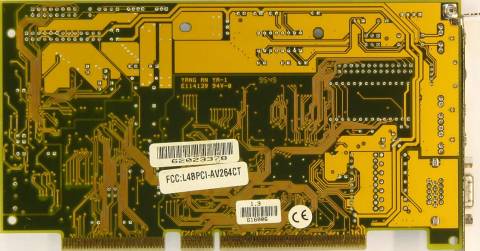

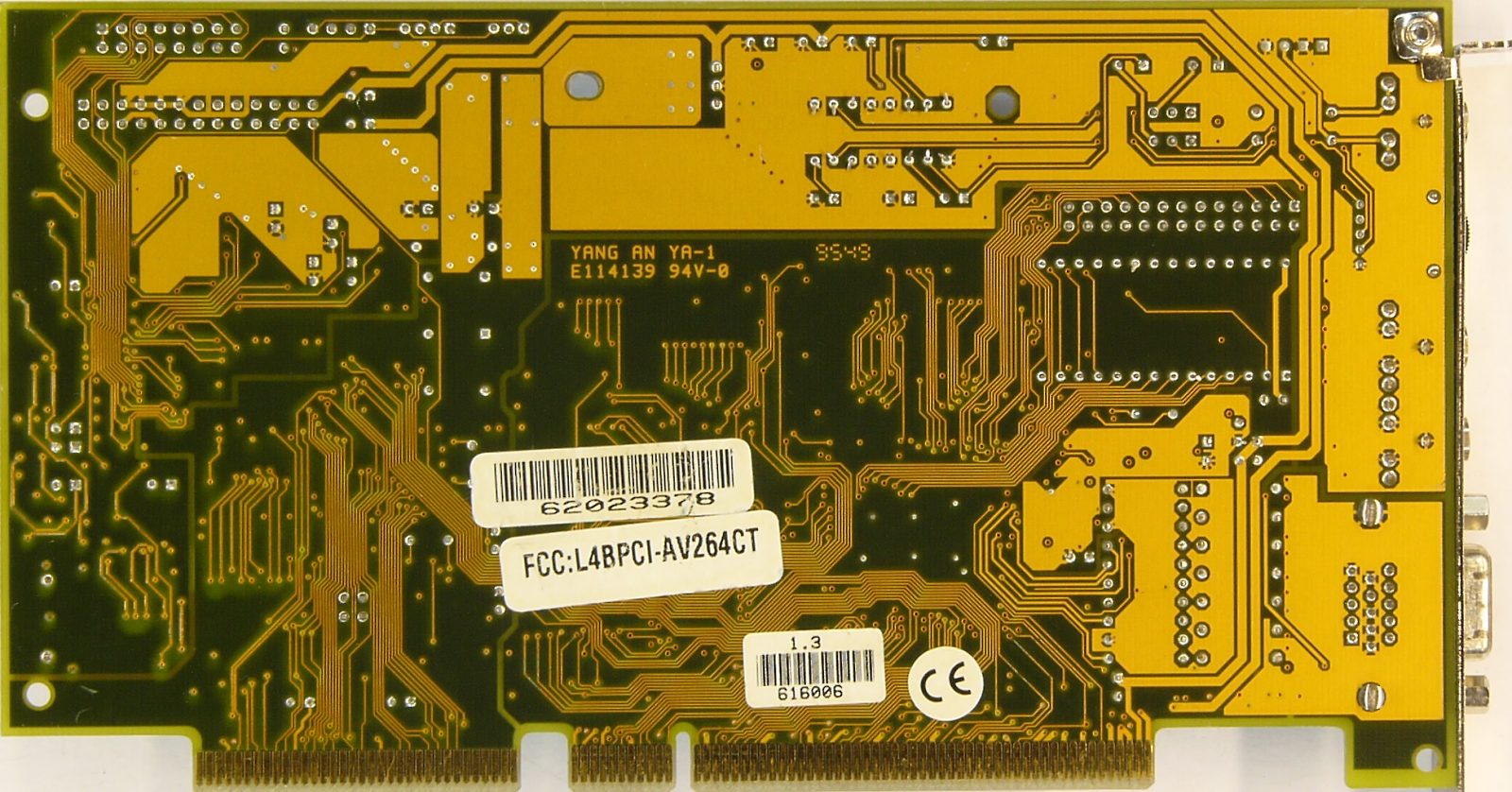

image2 Image 2 of 2 (Palcal)
