ASUS EN8500GT HP OEM
Logs
typeType
Video
interfaceInterface
signalSignaling
PCIe 1.0 PCIe 2.0
dimSlot height
1
datePCI ID
0421
ramRAM type
GDDR3
ramRAM size
512MB
chip Chips and specs
-> Video
Nvidia GeForce 8500 GT (G86)
tag Also known as
portintI/O ports
1x
  • DVI-I
1x
  • Type A plug
1x
  • 7-pin Mini-DIN
1x
  • 2x13 PCB edge fingers
powerPower connectors
Empty
wrench No card specific known issues
  • Bumpgate

These cards are likely to suffer a premature failure due to the defective 90nm process node from TSMC used back in the day, where the die underfill used was inappropriate for the chip design.

On Nvidia GPUs it mainly affects all 90/80/65 and some 55 nm GPUs (the A revisons of G9x and GT200 chips).

You can see a very detailed explanation of this issue by RIP Felix on YouTube

Last updated 2025-04-17T07:55:00Z
biosc No BIOS files available
drv 2 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
175.19
OS support
Windows XP/2k3
Arch
x86-64
Size
48.1MB
Filename
Name
Version
175.19
OS support
Windows XP/2k3
Arch
x86
Size
36.9MB
Filename
doc No card documents available

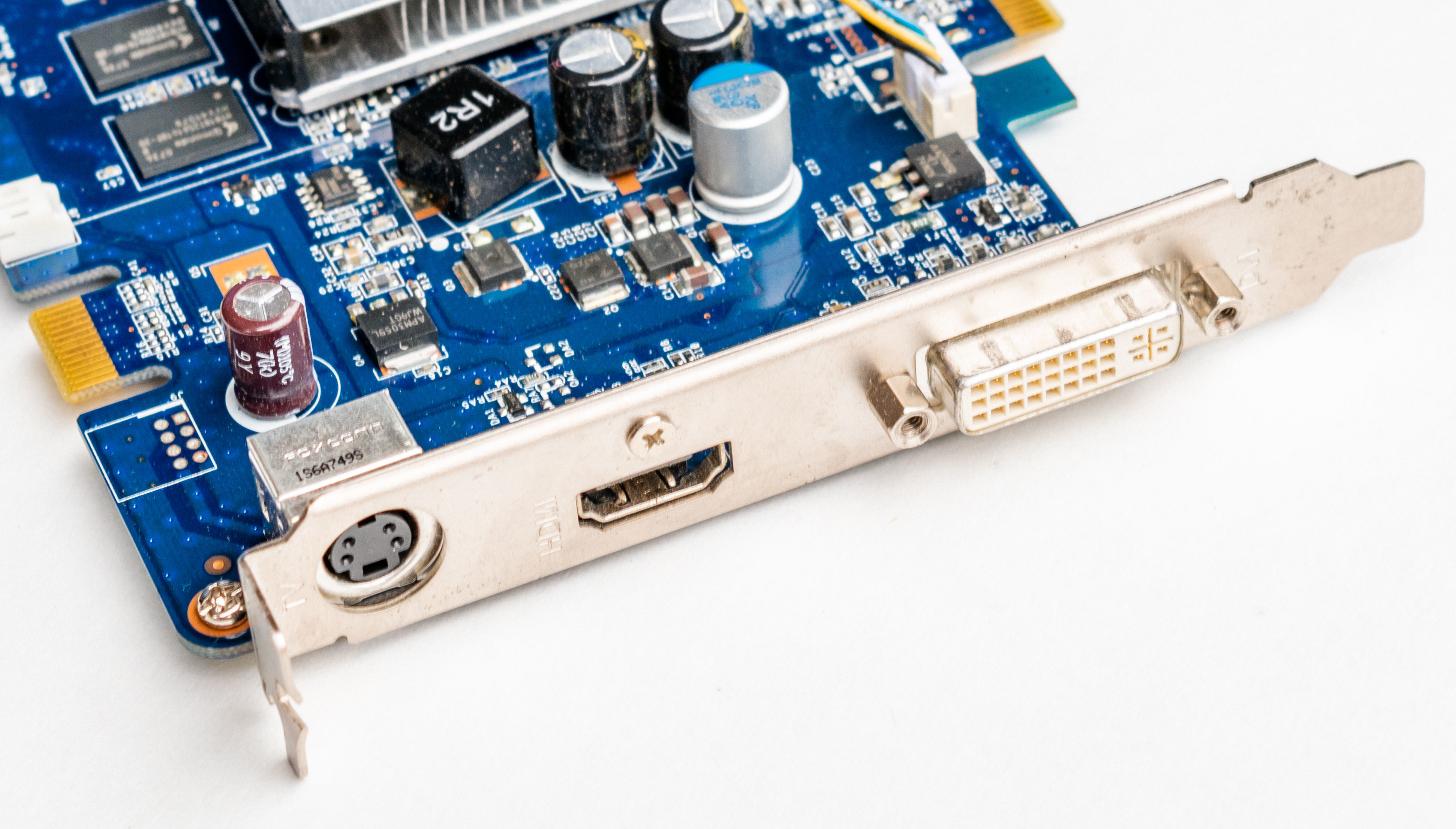

image1 Image 1 of 5 (Motherboard Continuum)

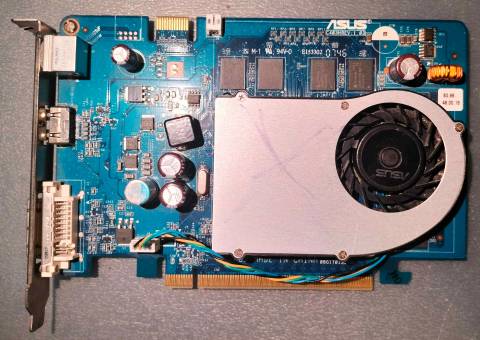

image2 Image 2 of 5 (kotel_99)

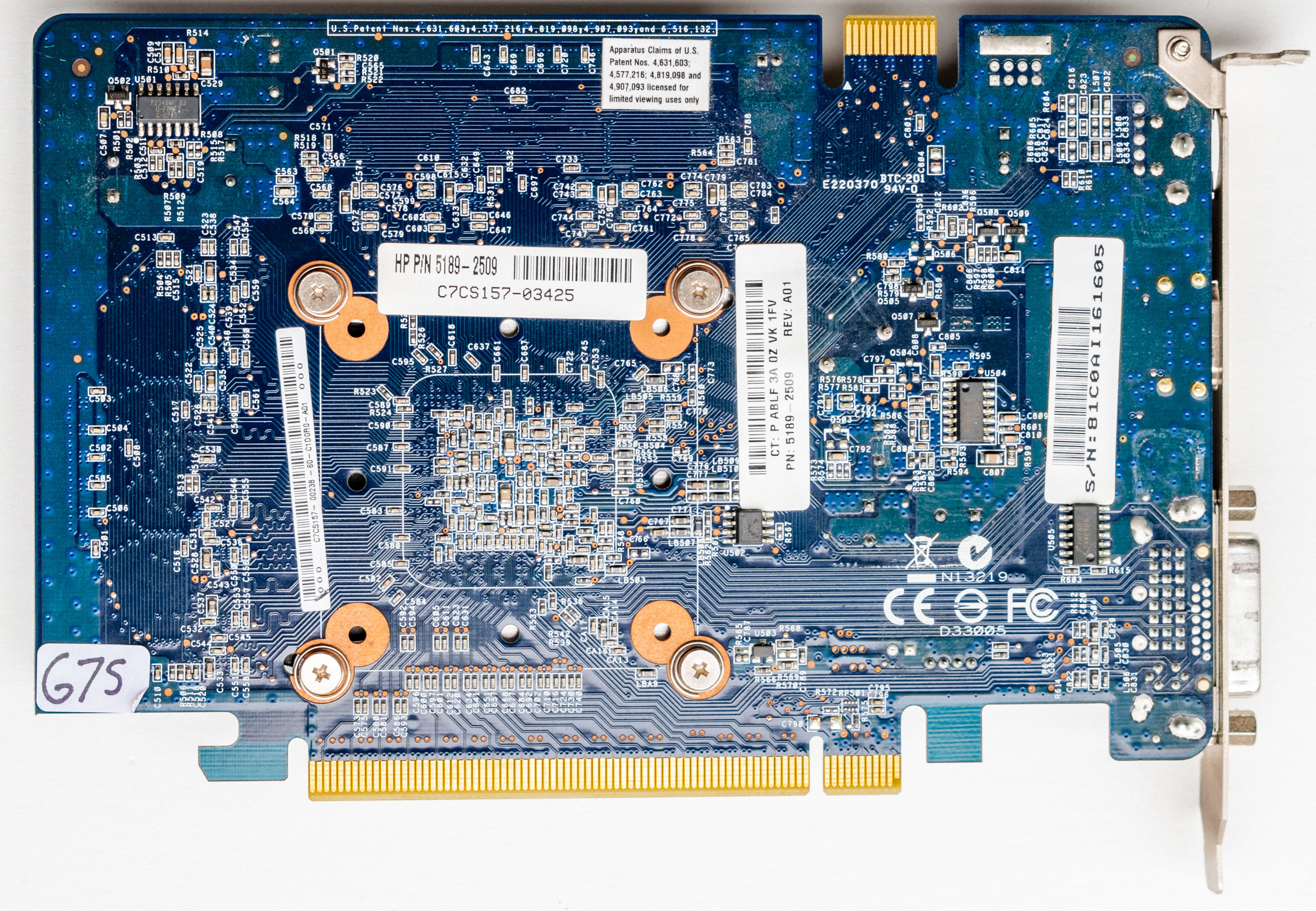

image3 Image 3 of 5 (Motherboard Continuum)

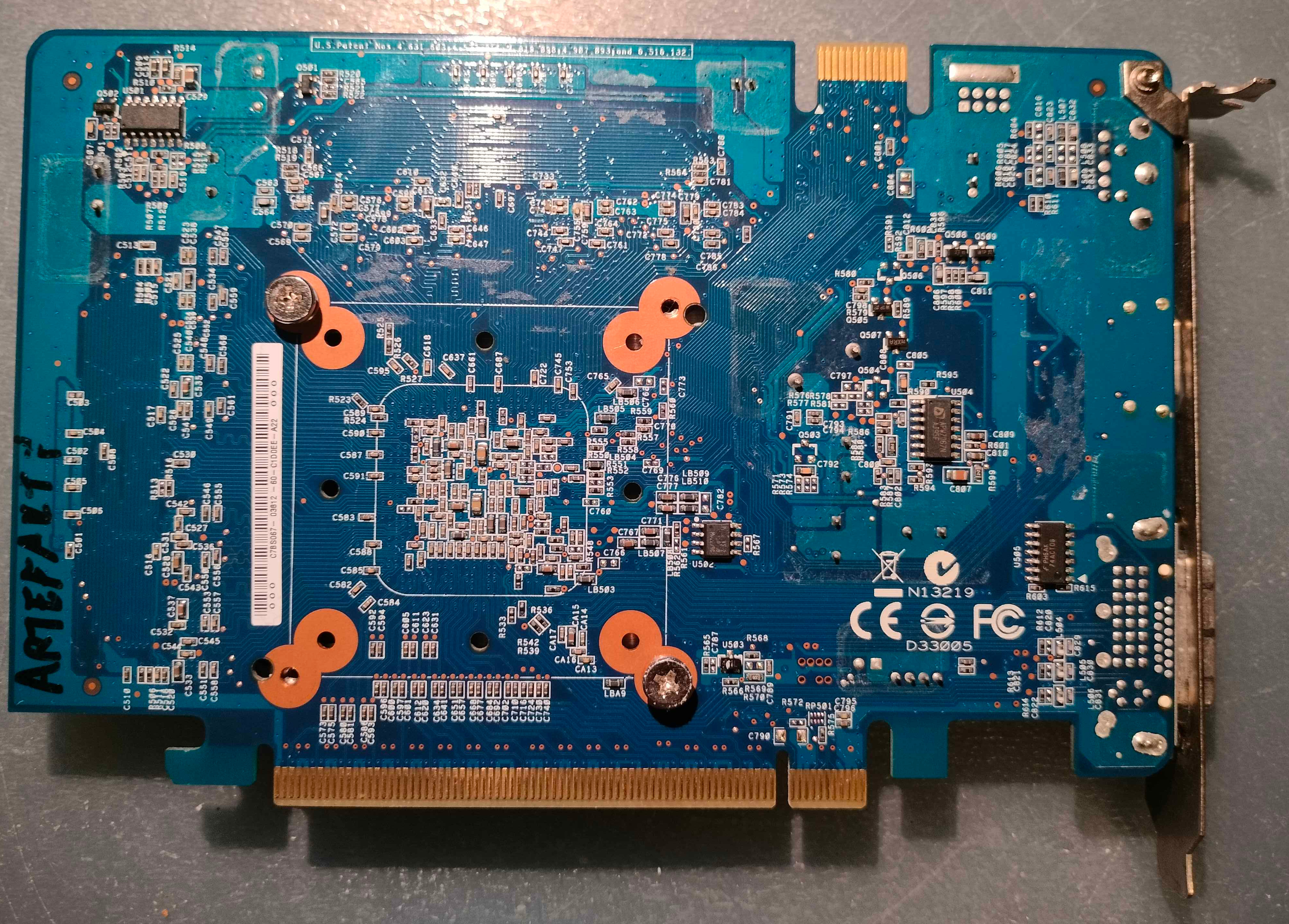

image4 Image 4 of 5 (kotel_99)

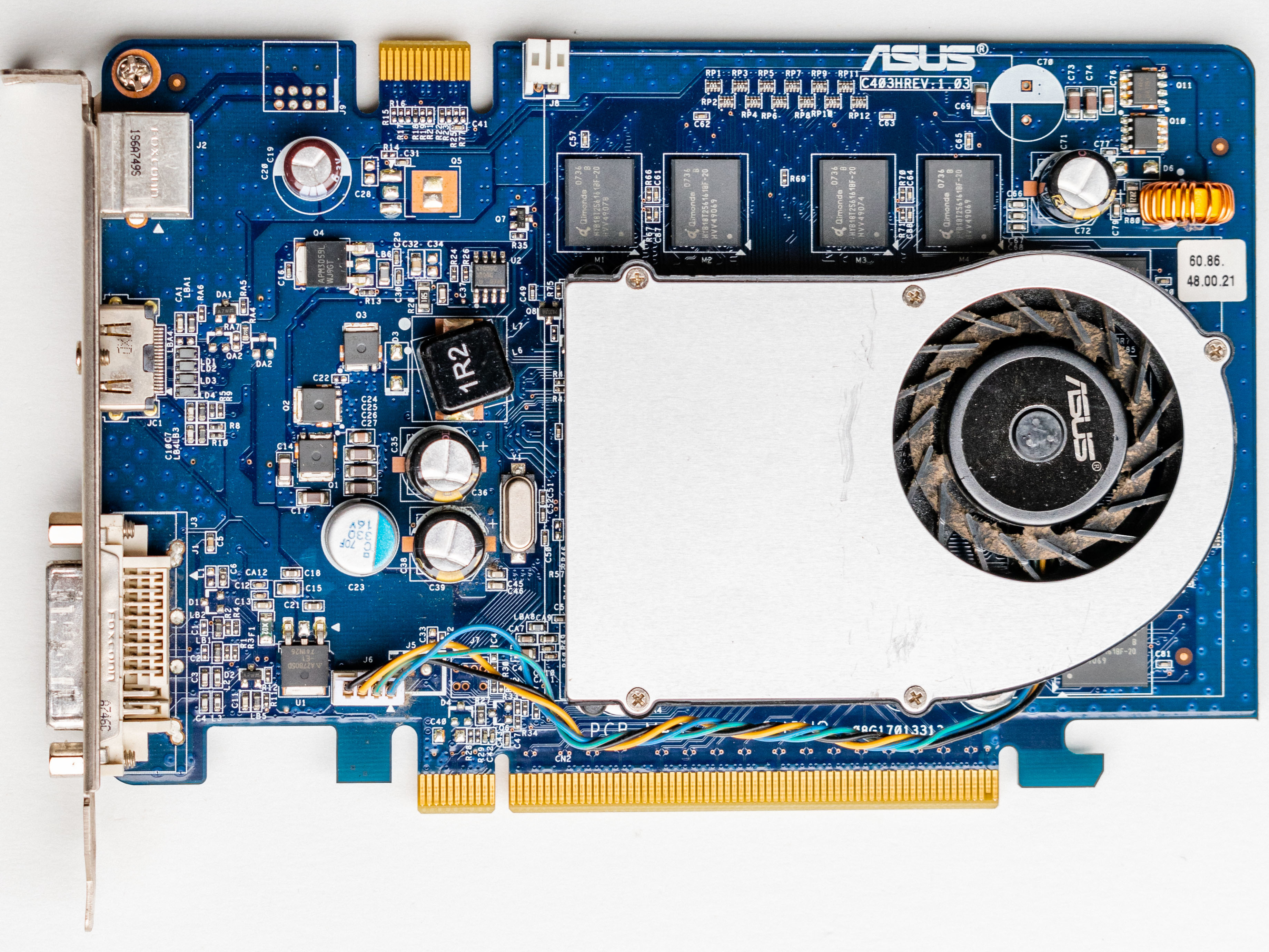

image5 Image 5 of 5 (Motherboard Continuum)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
