ASUS 3DP-V375DX
Logs
typeType
Video
interfaceInterface
signalSignaling
32-bit PCI
dimSlot height
1
datePCI ID
8A01
ramRAM type
EDO
ramRAM size
4MB2MB
chip Chips and specs
-> Video
S3 86C375 (ViRGE/DX)
MTL
Data Bus 32-bit PCI
Card Type Video card
Video Chip Set S3
Maximum Video Memory 4MB EDO DRAM
Video Types Supported VGA
Highest Resolution Supported 1280 x 1024
tag Also known as
portintI/O ports
1x
  • 2x3 2.54mm pin header
1x
  • 2x17 2.54mm pin header
1x
  • DE-15
powerPower connectors
Empty
Last updated 2025-07-08T21:48:51Z
biosc No card BIOS files available
chipbios 1 chip with BIOS files available
Warning: might not be fully compatible with this card, use at your own risk
Version
Note
File
Logs
Version
3.04
Note
Diamond Stealth 3D 2000 Pro
File
Logs
Version
2.01.16
Note
File
Logs
Version
2.01.08
Note
File
Logs
Version
2.01.07
Note
grey bug patched + VESA 2.0 extension, generic
File
Logs
drv 4 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.05.05
OS support
Windows 3.1x
Arch
x86
Size
544.3KB
Filename
Name
Version
4.03.00.2111-3.12.01
OS support
Windows 9x
Arch
x86
Size
244.1KB
Filename
Name
Version
4.10.01.2122-3.42.02
OS support
Windows 9x
Arch
Size
266.7KB
Filename
Name
Version
2.00.18
OS support
Windows NT 4.0
Arch
x86
Size
177.7KB
Filename
doc 2 card documents available
Release date
File
Logs
Release date
1997-07
File
Logs
Release date
1999
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1996
File
Logs
Chip
Release date
1996-11
File
Logs

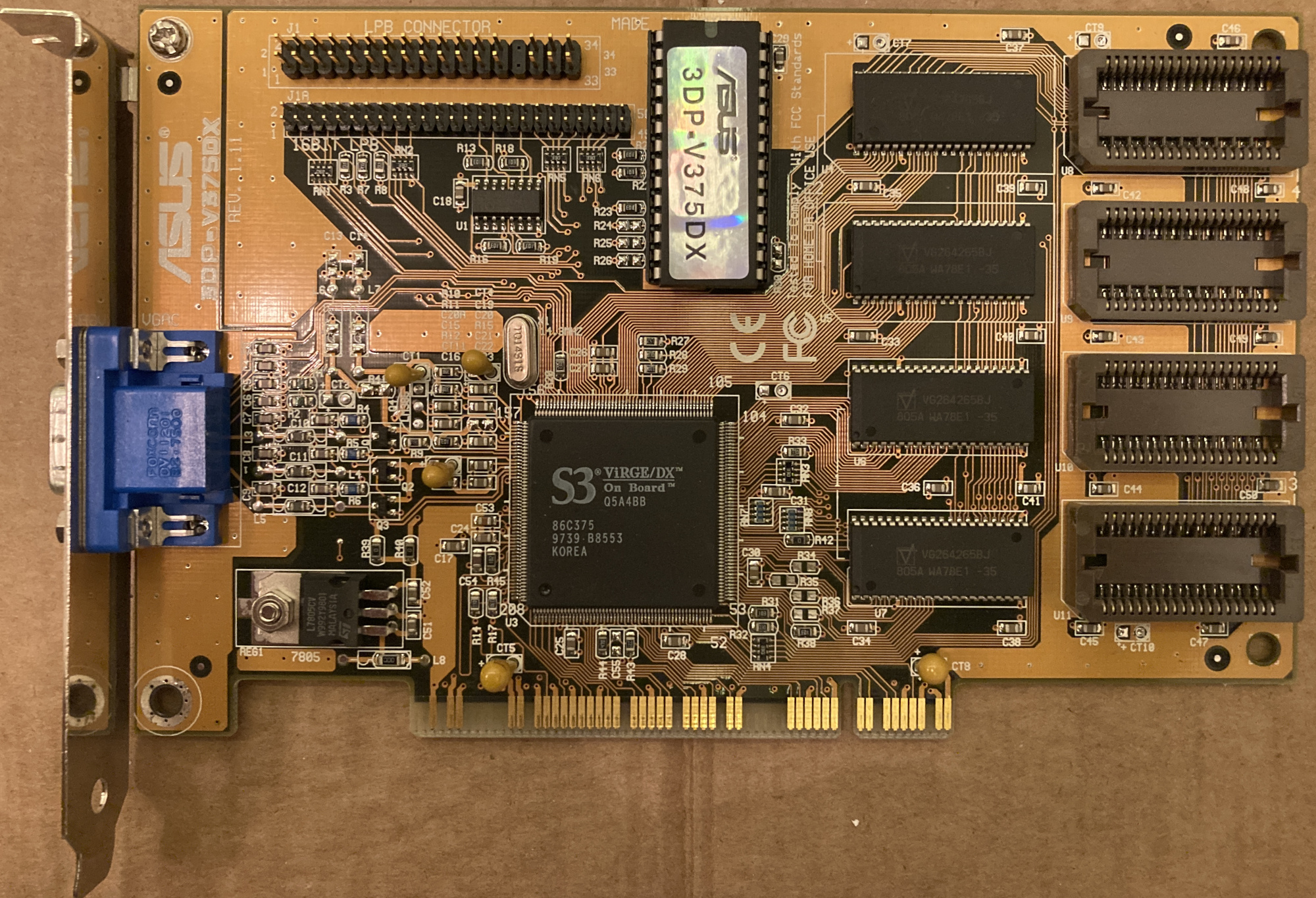

image1 Image 1 of 2 (Microhouse)
image2 Image 2 of 2 (Fo-91)
