ASUS 3DP-V3000/TV
Logs
typeType
Video
interfaceInterface
signalSignaling
32-bit PCI
dimSlot height
1
datePCI ID
0018
ramRAM type
SGRAM
ramRAM size
4MB
dimDimensions
145mm (length) x 98mm (height)
chip Chips and specs
-> Video
Nvidia RIVA 128 (NV3) Philips SAA7111 (Video Input Processor) Analog Devices AD724 (RGB to NTSC/PAL Encoder)
tag Also known as
portintI/O ports
2x
  • RCA Jack
1x
  • 4-pin Mini-DIN
1x
  • 7-pin Mini-DIN
1x
  • 2x13 2.54mm pin header
1x
  • DE-15
powerPower connectors
Empty
Last updated 2025-10-20T16:08:10Z
bios 2 card BIOS files available
Version
Note
File
Logs
Version
1.51B
Note
includes DOS flash utility
File
Logs
Version
1.51B
Note
includes Win9x flash utility
File
Logs
drv 21 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
2.52
OS support
Windows 9x
Arch
x86
Size
145.1KB
Filename
Name
Version
3.41
OS support
Windows 9x
Arch
x86
Size
1013.7KB
Filename
Name
Version
3.37
OS support
Windows 9x
Arch
x86
Size
1MB
Filename
Name
Version
3.37
OS support
Windows 9x
Arch
x86
Size
1MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 9x
Arch
x86
Size
1.5MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
759.5KB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
1.6MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
554.5KB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
549.6KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 9x
Arch
x86
Size
2.7MB
Filename
Version
OS support
Windows NT 4.0
Arch
x86
Size
628.7KB
Filename
Version
OS support
Windows NT 4.0
Arch
x86
Size
634.5KB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
2.7MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
2.8MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
2.2MB
Filename
Version
OS support
Windows NT 4.0
Arch
x86
Size
592.9KB
Filename
Version
OS support
Windows 3.1x
Arch
x86
Size
727KB
Filename
Version
OS support
Windows NT 4.0
Arch
x86
Size
91.7KB
Filename
Version
OS support
Windows NT 3.5x
Arch
x86
Size
56.1KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows NT 4.0
Arch
x86
Size
468.6KB
Filename
Version
OS support
Windows 3.1x
Arch
x86
Size
665.6KB
Filename
doc 3 card documents available
Release date
File
Logs
Release date
1998-07
File
Logs
Release date
1998-10
File
Logs
Release date
1999-01
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1997-10
File
Logs

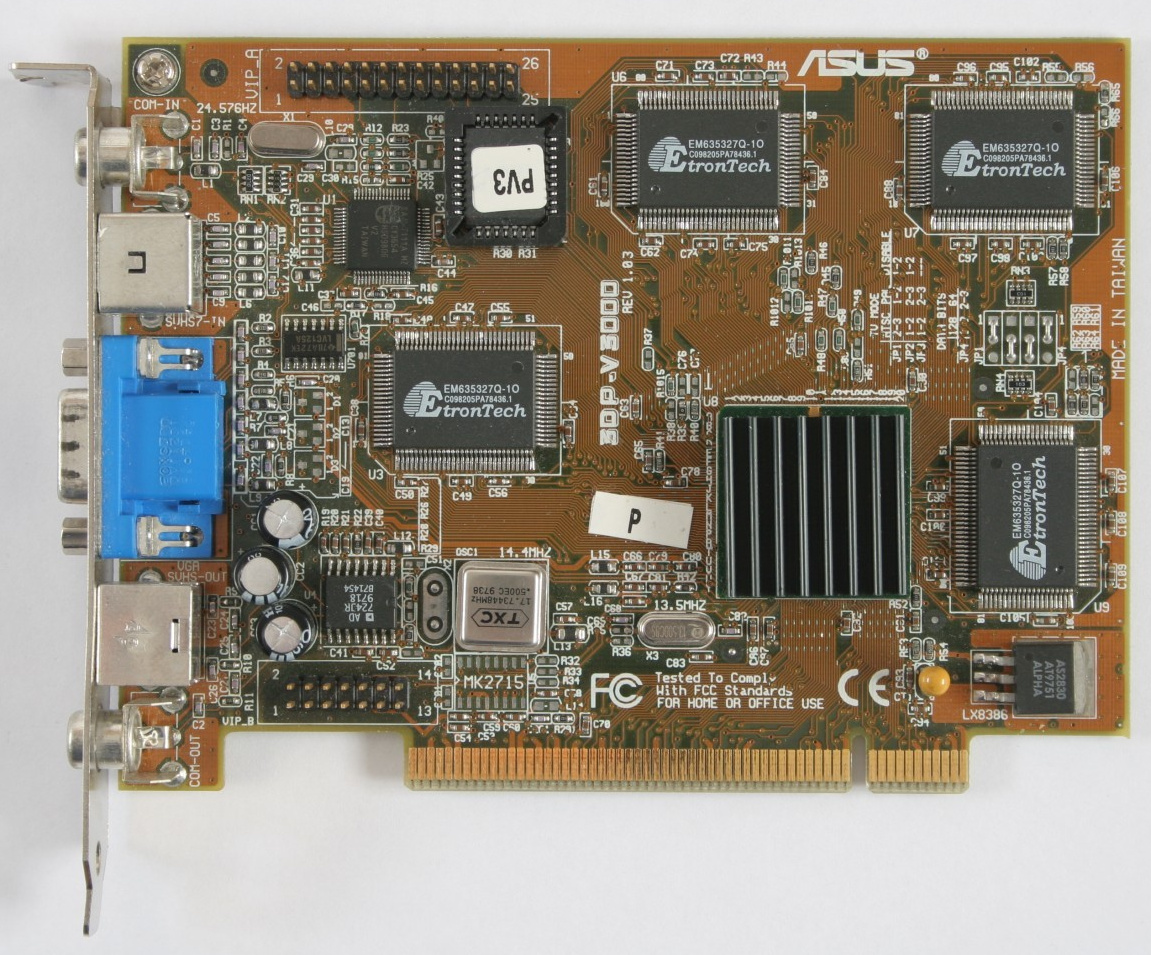

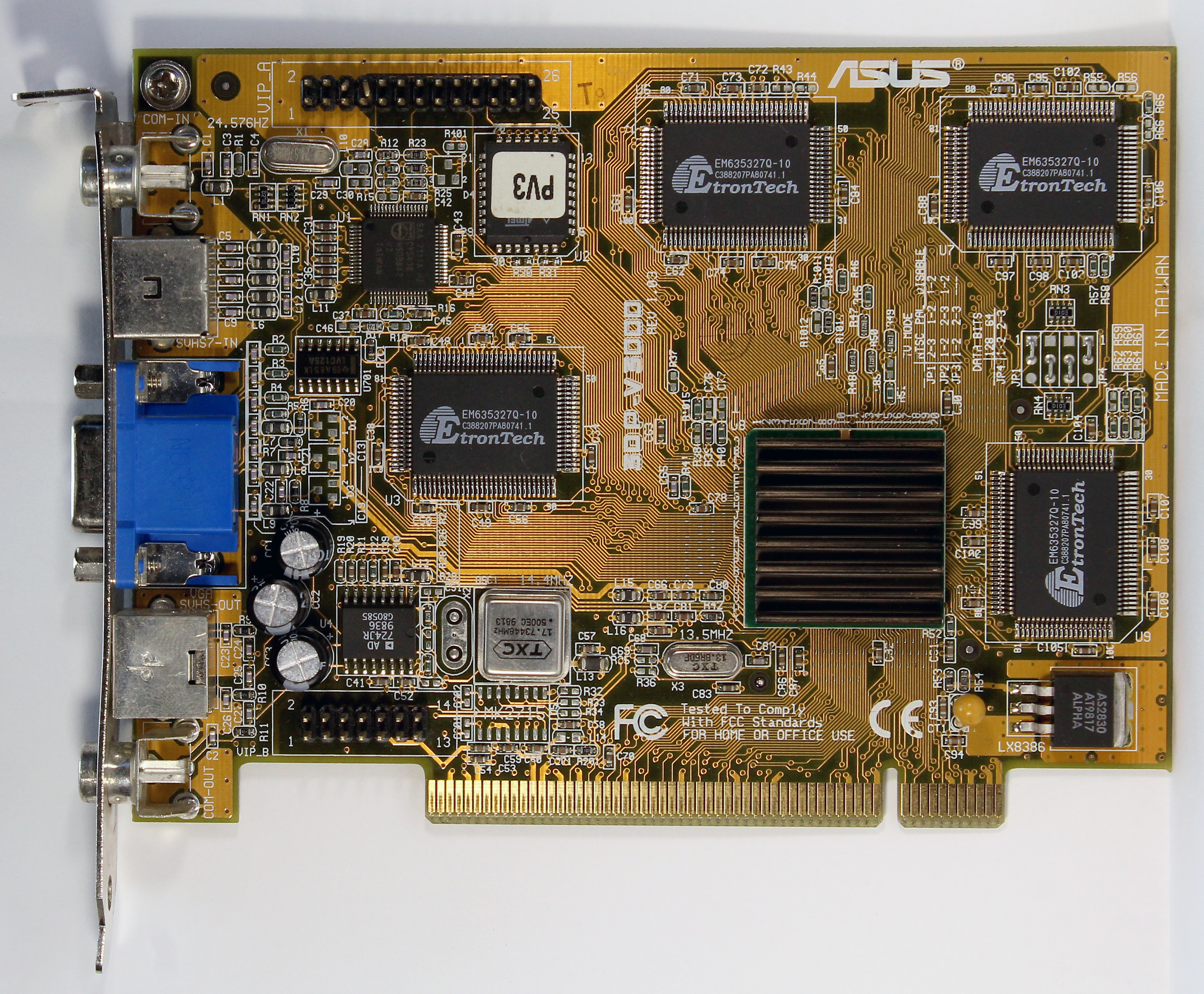

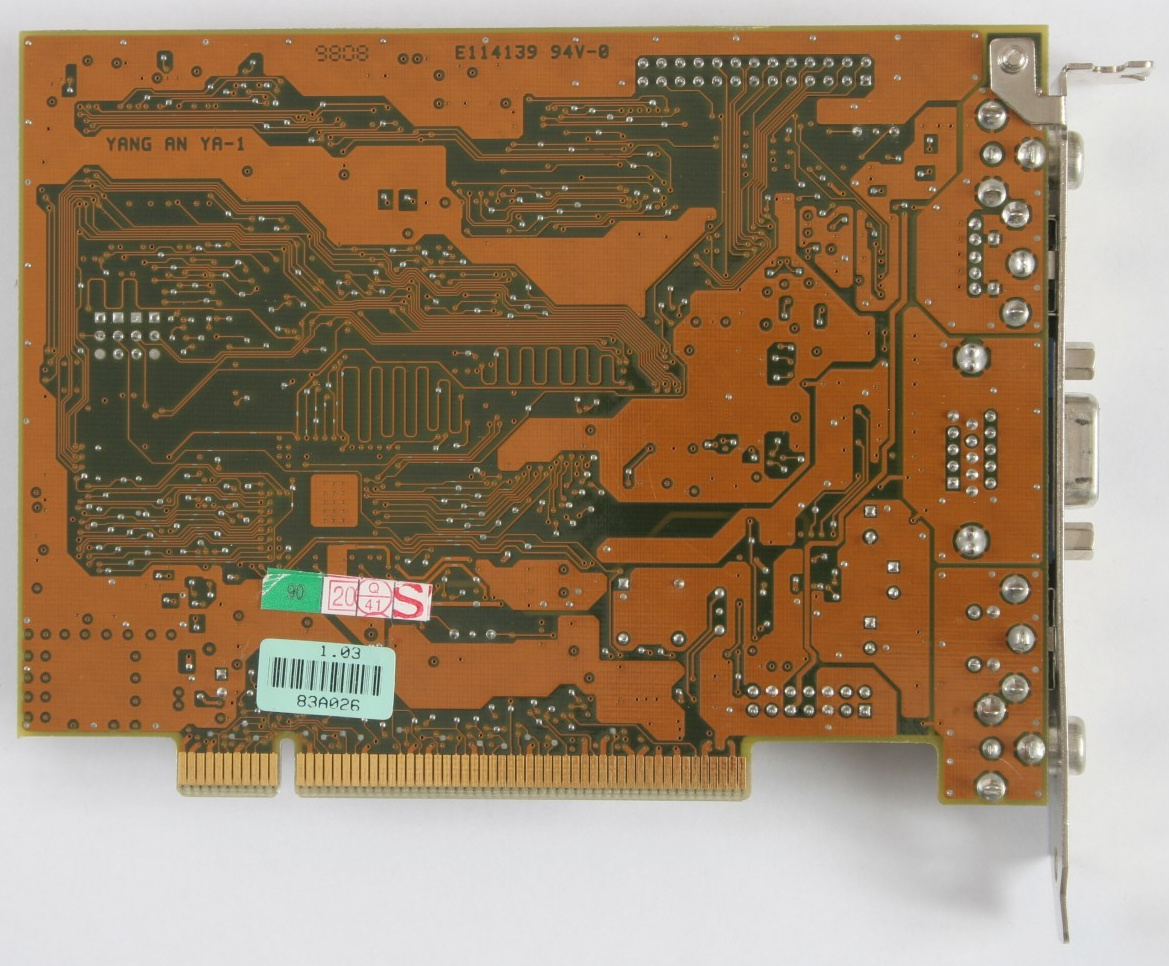

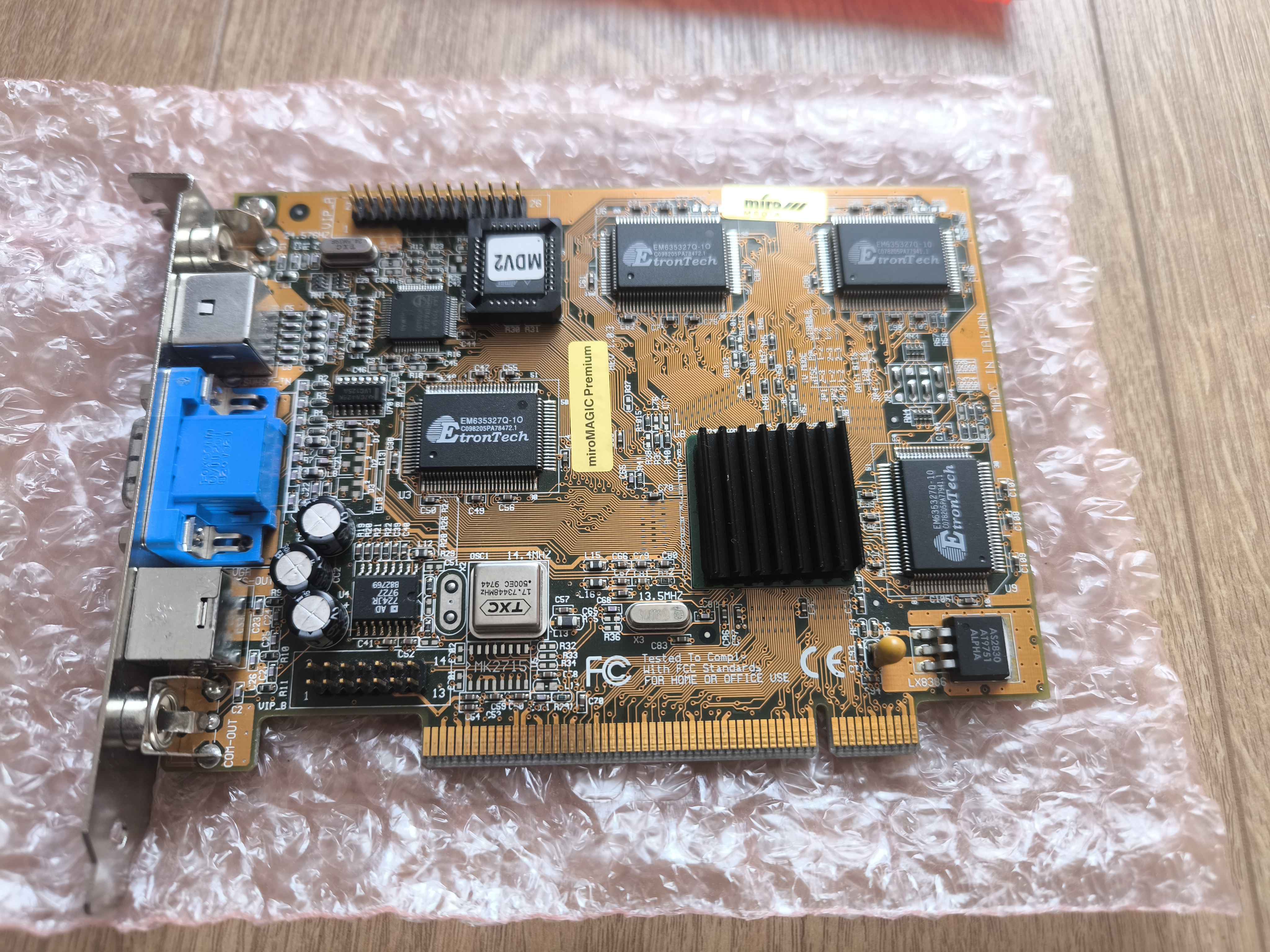

image1 Image 1 of 6 (ASUS)
image2 Image 2 of 6 (Gai)
image3 Image 3 of 6 (Stangelator)
image4 Image 4 of 6 (limsup)
image5 Image 5 of 6 (Gai)
image6 Image 6 of 6 (Gai)
