Aristo ART-617-3D
Logs
typeType
Sound
interfaceInterface
signalSignaling
32-bit PCI
dimSlot height
1
datePCI ID
CA00
chip Chips and specs
-> Audio
Philips TDA1517 (2x6W Audio Power Amplifier) S3 86C617 (Sonic Vibes)
MTL
Chip Set S3
Data Bus 32-bit PCI
Card Size Half-length, half-height
Card Type Sound Card
I/O Options Game/MIDI Port, line in, audio in CD-ROM (2), aux in, microphone in, Speaker/line out
Maximum Onboard Memory Unidentified
portintI/O ports
2x
  • 3.5mm TRS jack
1x
  • 3.5mm TRS jack
1x
  • DA-15
powerPower connectors
Empty
Last updated 2025-11-28T19:35:30Z
biosc No BIOS files available
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.01.08
OS support
Windows 9x
Arch
x86
Size
6.5MB
Filename
doc 1 card document available
Release date
File
Logs
Release date
1999
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1997-03
File
Logs
Chip
Release date
2004-02-18
File
Logs

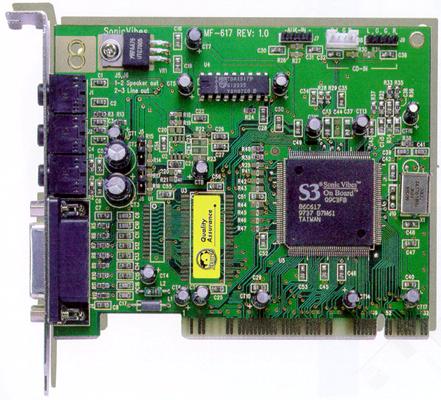

image1 Image 1 of 2 (Microhouse)
image2 Image 2 of 2 (Aristo)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
