AOpen AW300
Logs
typeType
Sound
interfaceInterface
signalSignaling
32-bit PCI
dimSlot height
1
datePCI ID
1968
dimDimensions
120 mm (width) x 80mm (length)
chip Chips and specs
-> Audio
ESS ES1968S (Maestro-2) SigmaTel STAC9708T (AC97 codec)
tag Also known as
  • Acer 98901-1.2
  • Acer 48.18609.012 / 90.18610.455 / 55.18601.091

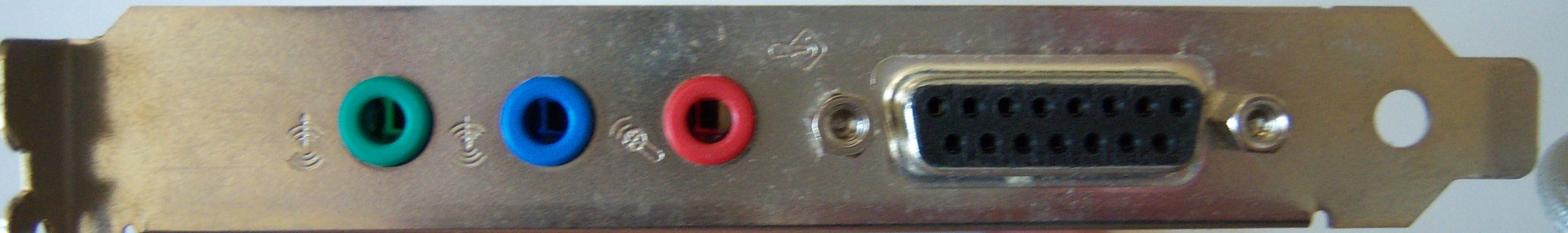

portintI/O ports
2x
  • 3.5mm TRS jack
1x
  • 3.5mm TRS jack
1x
  • 1x4 2.54mm pin header
1x
  • 1x4 2.50mm pin header
1x
  • DA-15
1x
  • 2x3 2.54mm pin header
1x
  • 1x4 2.54mm pin header
powerPower connectors
Empty
Last updated 2025-06-01T08:39:09Z
biosc No BIOS files available
drv 13 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
P3.05
OS support
Empty
Arch
x86
Size
1.1MB
Filename
Name
Version
4.10.2016
OS support
Windows 2000
Arch
x86
Size
203.5KB
Filename
Name
Version
N/A
OS support
MS-DOS
Arch
x86
Size
111.9KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 9x
Arch
x86
Size
6.8MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
6.1MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
6.1MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
6.1MB
Filename
Version
OS support
Windows NT 4.0
Arch
x86
Size
1.5MB
Filename
Version
OS support
Windows NT 4.0
Arch
x86
Size
126.3KB
Filename
Version
OS support
Windows NT 4.0
Arch
x86
Size
125.1KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows NT 4.0
Arch
x86
Size
106.5KB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
6.1MB
Filename
Version
OS support
OS/2 1.x
Arch
x86
Size
62.5KB
Filename
doc No card documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs

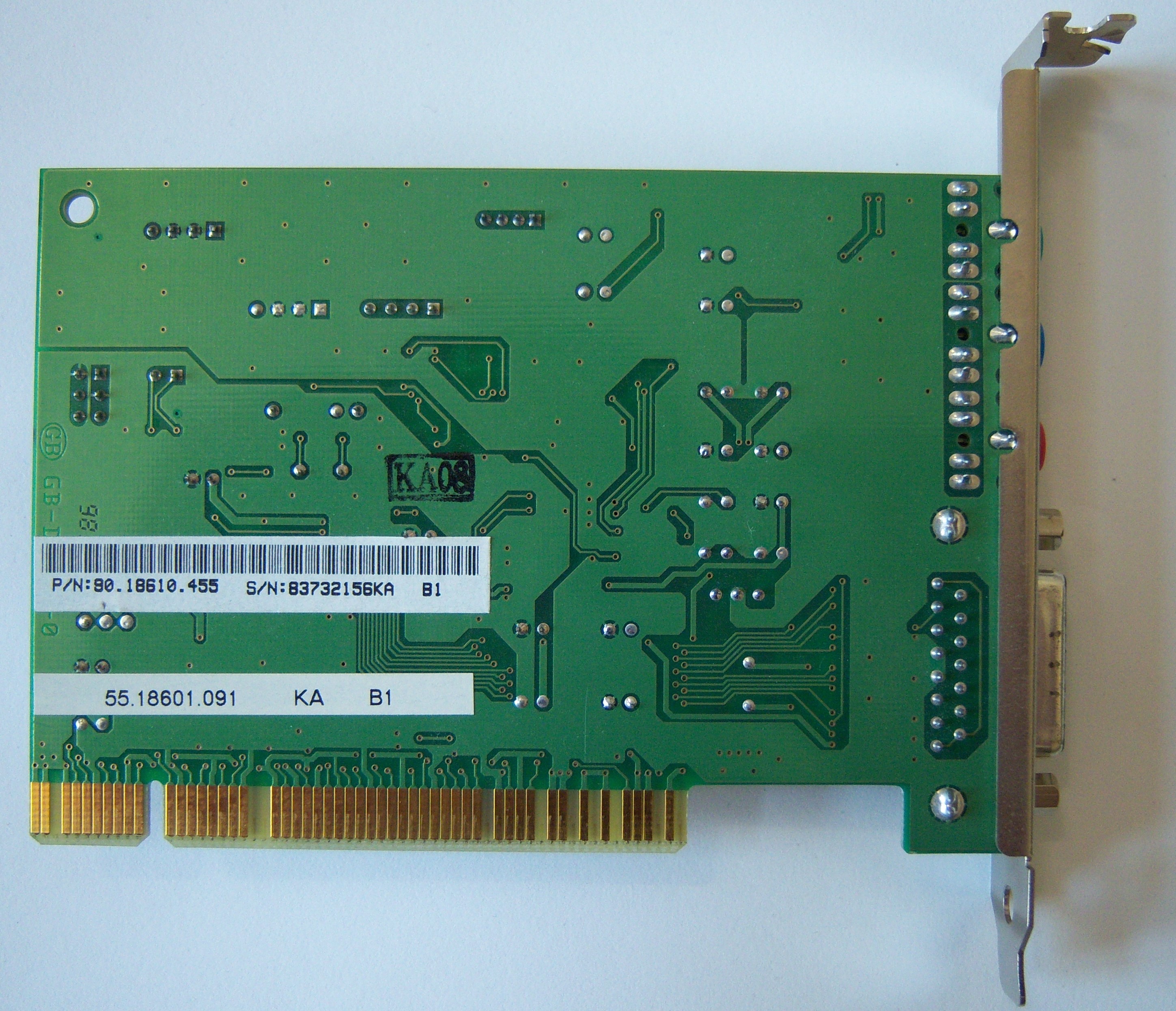

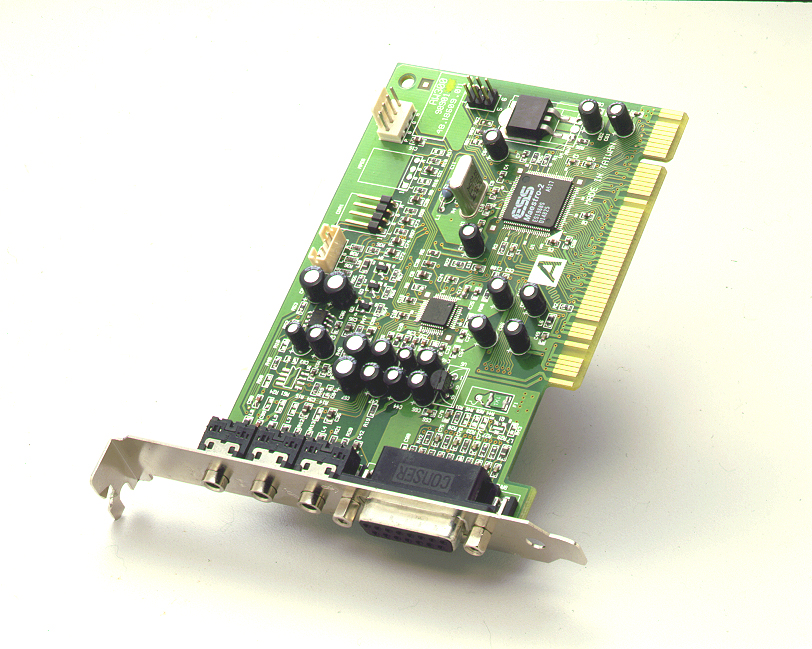

image1 Image 1 of 4 (M.Jo)
image2 Image 2 of 4 (M.Jo)
image3 Image 3 of 4 (M.Jo)
image4 Image 4 of 4 (M.Jo)
