Anchor MJ-009R05
Logs
typeType
Sound IDE controller
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
fccFCC ID
J98MF-009
chip Chips and specs
-> Audio
OPTi 82C929 (MAD16Pro) [unknown] DXP44Q (Illegal Exact OPL3 Clone w/ DAC) Analog Devices AD1846 (SoundPort Stereo Codec)
tag Also known as
  • Unknown MF-009
portintI/O ports
2x
  • 3.5mm TRS jack
2x
  • 3.5mm TRS jack
1x
  • 1x4 2.54mm pin header
2x
  • 1x4 2.50mm pin header
1x
  • DA-15
1x
  • 2x20 2.54mm pin header
1x
  • 2x13 2.54mm pin header
powerPower connectors
Empty
Last updated 2025-10-30T19:12:30Z
biosc No BIOS files available
drv 5 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
4.00.01 Beta
OS support
Windows 9x
Arch
x86
Size
81.2KB
Filename
Name
Version
N/A
OS support
MS-DOS
Arch
Size
246.4KB
Filename
Name
Version
4.00.00
OS support
Windows 9x
Arch
x86
Size
878.2KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
MS-DOS Windows 9x
Arch
Size
630.4KB
Filename
Version
OS support
MS-DOS Windows 9x
Arch
x86
Size
626.1KB
Filename
doc No card documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

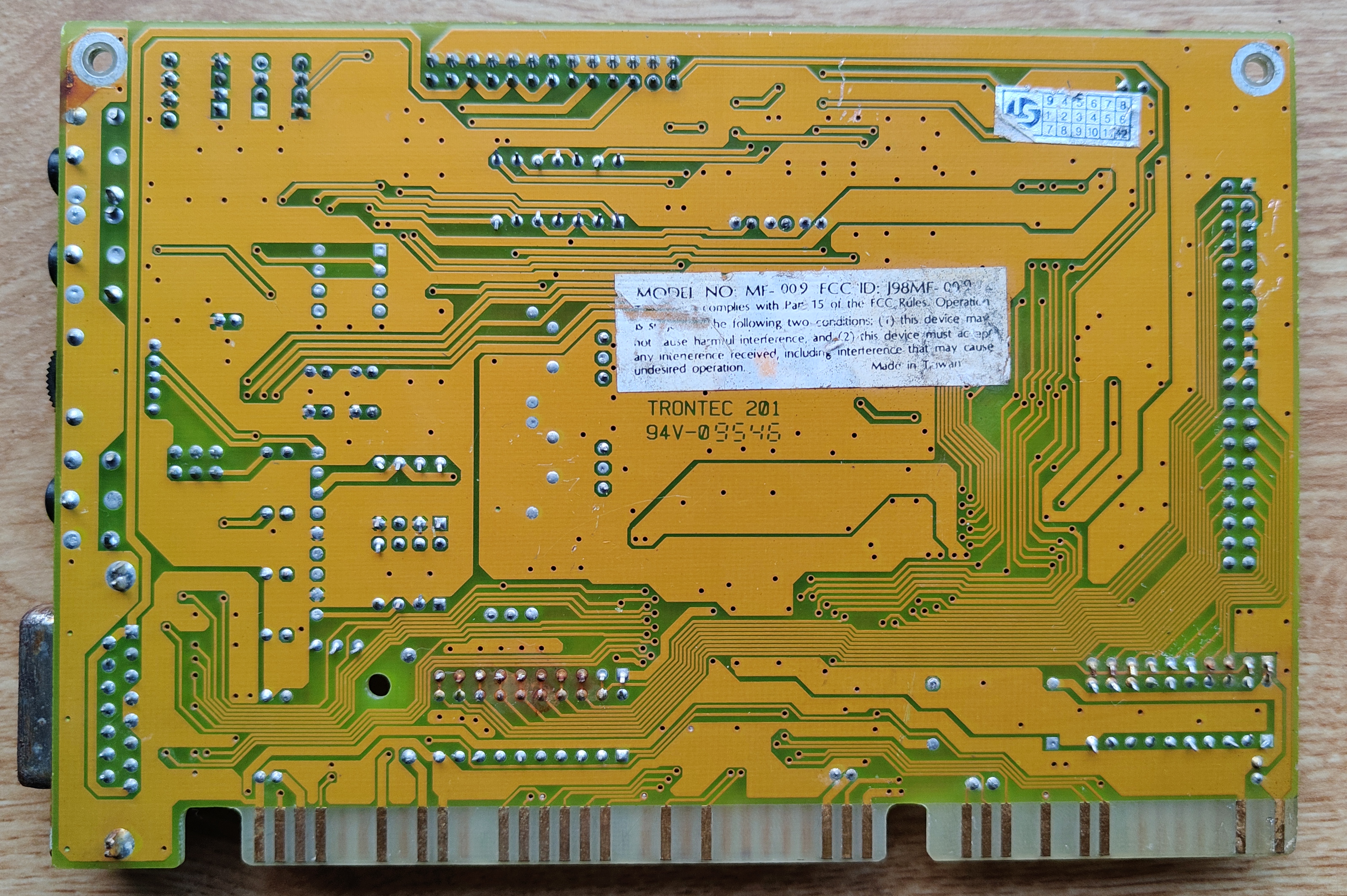

image1 Image 1 of 2 (Yargoro)

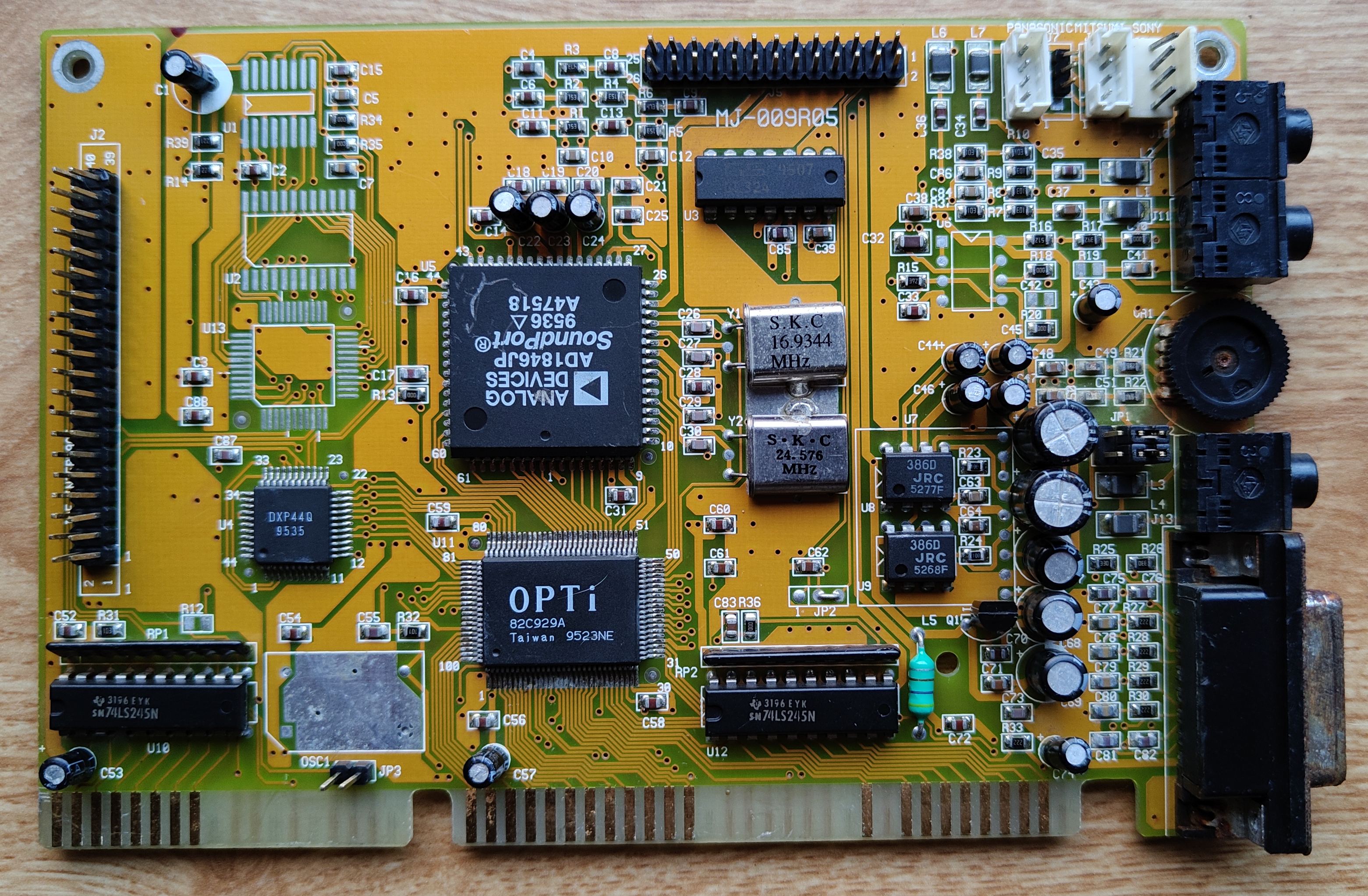

image2 Image 2 of 2 (Yargoro)
