Anchor MF-002 (Variant 3)
Logs
typeType
Sound
interfaceInterface
signalSignaling
8-bit ISA
dimSlot height
1
datePCI ID
Empty
fccFCC ID
J98MF-002
chip Chips and specs
-> Audio
Yamaha YM3812 (OPL2) Yamaha YM3014B (DAC-SS) (multiple brand) LM386 (Audio Power Amplifier) Yamaha YM3802-F (MCS)
-> Processor
Intel 8051 (Microcontroller)
MTL
Card Type Sound card
I/O Options CD-ROM audio, game/MIDI port, line in, line out, microphone in, phone out, speaker, volume
Maximum DRAM N/A
Chipset Controller Toptek GSC08
tag Also known as
  • Anchor Media Concept 2.0 (Variant 3)
portintI/O ports
2x
  • 3.5mm TRS jack
1x
  • 3.5mm TRS jack
1x
  • 1x4 2.54mm pin header
1x
  • DA-15
powerPower connectors
Empty
notes Notes

Shares FCC ID with a similar card of different layout.

Last updated 2025-11-08T18:55:50Z
biosc No BIOS files available
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.0
OS support
MS-DOS
Arch
x86
Size
1.6MB
Filename
doc No card documents available
Chip
Release date
File
Logs
Chip
Release date
1994-11
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

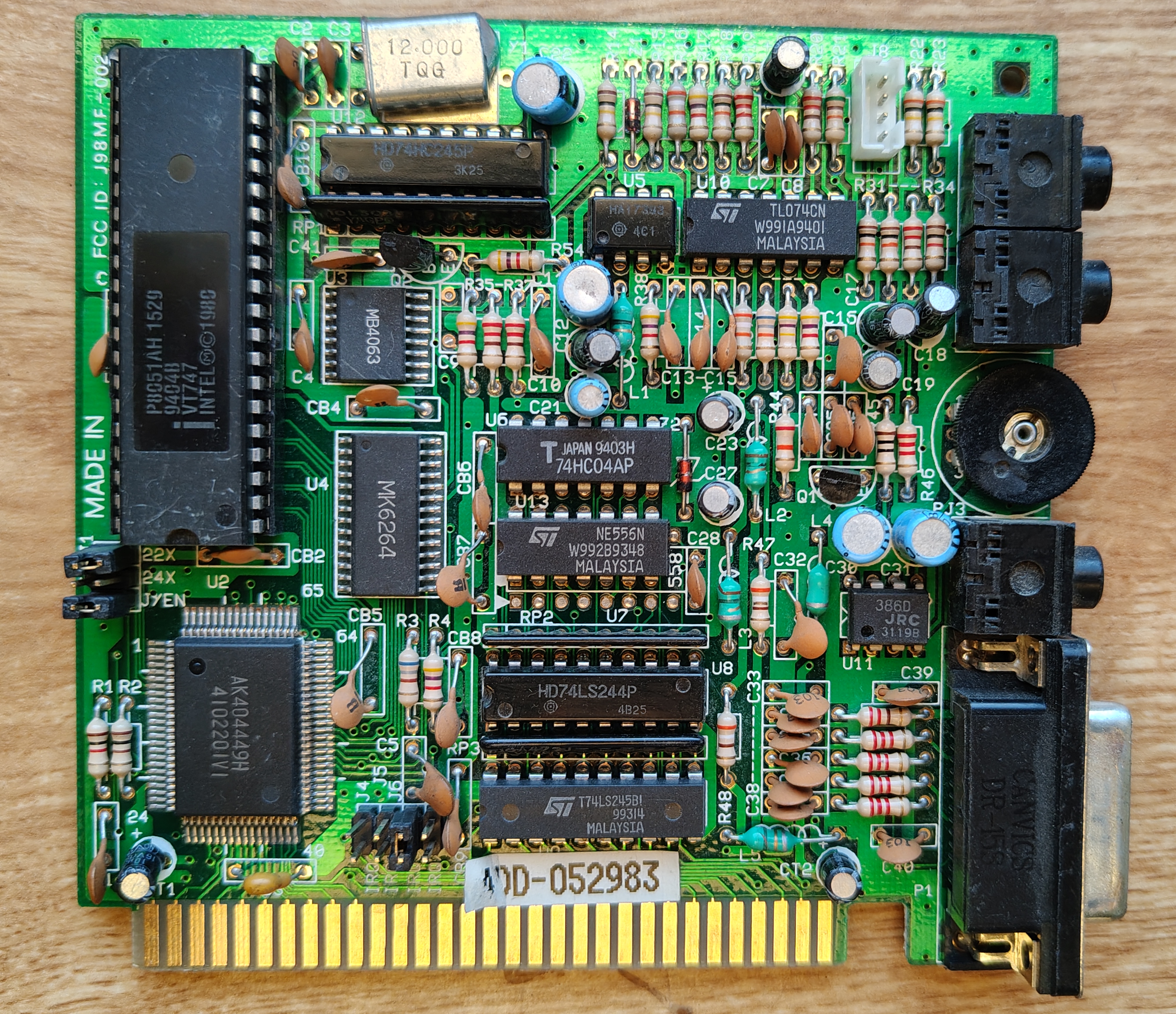

image1 Image 1 of 2 (Yargoro)

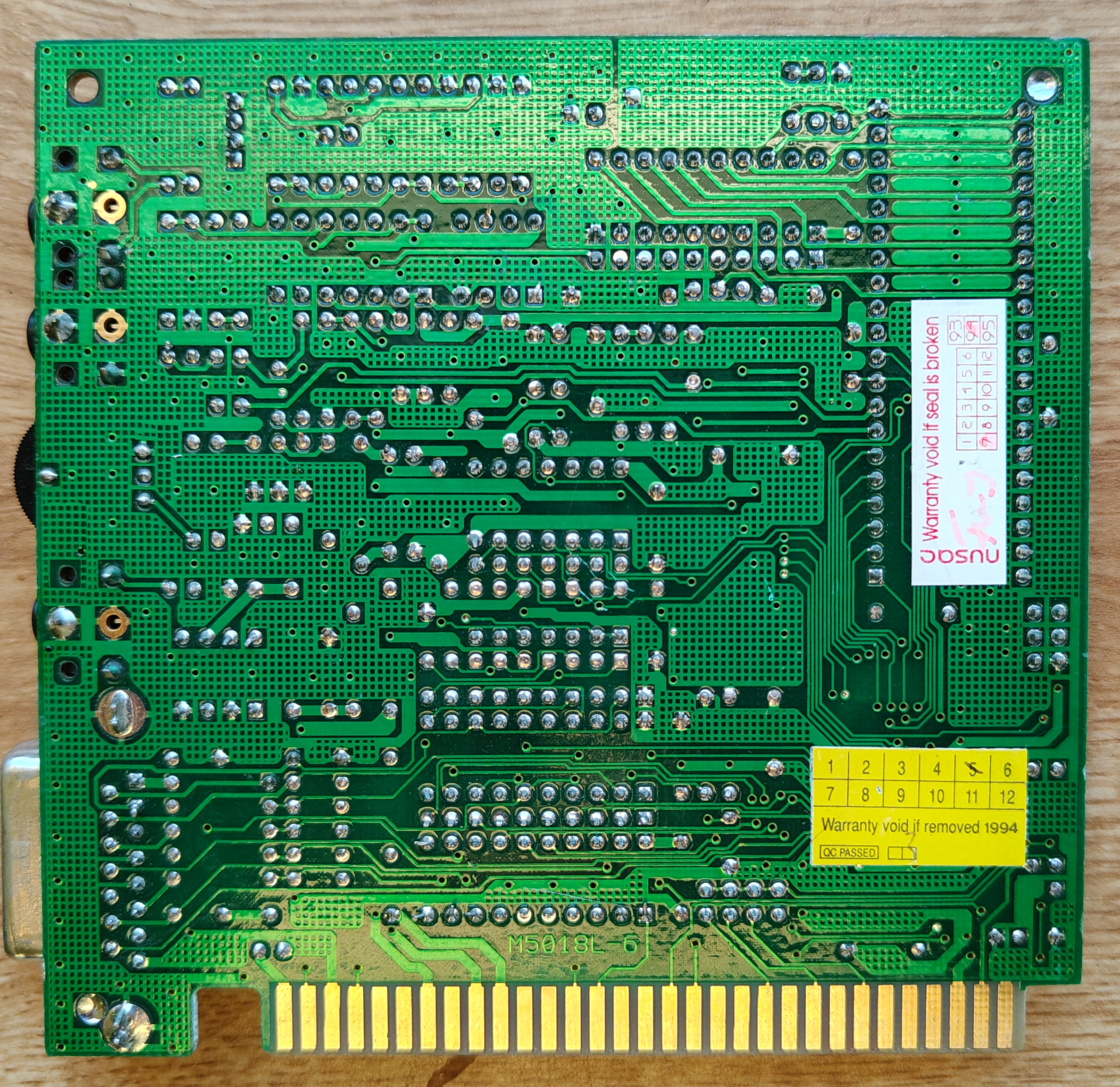

image2 Image 2 of 2 (Yargoro)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
