Ambition Tech AB-757VL
Logs
typeType
Floppy controller Multi I/O IDE controller
interfaceInterface
signalSignaling
16-bit ISA 32-bit VLB 8-bit ISA
dimSlot height
1
datePCI ID
Empty
fccFCC ID
I7EAB-757VL
chip Chips and specs
-> Signal transmitter/receiver
(multiple brand) MC1488 (RS-232 Driver) (multiple brand) MC1489 (RS-232 Receiver)
-> Super I/O
Winbond W83757
MTL
Size: Half-length, full-height card
Data bus: 16-bit, ISA
HadProblem
Hard drive supported: Two IDE (AT) Interface drives
Floppy drives supported: Two 360KB, 720KB, 1.2MB, or 1.44MB drives
portintI/O ports
1x
  • 2x17 2.54mm pin header
1x
  • DA-15
1x
  • 2x20 2.54mm pin header
1x
  • DB-25
1x
  • DE-9
1x
  • 2x5 2.54mm pin header
powerPower connectors
Empty
notes Notes

Experimental info found so far:
J4 ?
J8 COM1 1-2 enable 2-3 disable
J3 ?
J11 COM2 1-2 enable 2-3 disable
J7 LPT1 1-2 3BC 2-3 378
J2 ?
J10 ?
J6 LPT1 1-2 enable 2-3 disable
J9 ?
J5 ? (might be IDE disable) 1-2 enable 2-3 disable
J1 ? (might be FDD disable) 1-2 enable 2-3 disable

Last updated 2024-12-26T19:26:12Z
biosc No BIOS files available
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
N/A
OS support
Empty
Arch
x86
Size
19.7KB
Filename
doc No card documents available
Chip
Release date
File
Logs
Chip
Release date
2009-12
File
Logs
Chip
Release date
2009-12
File
Logs
Chip
Release date
File
Logs

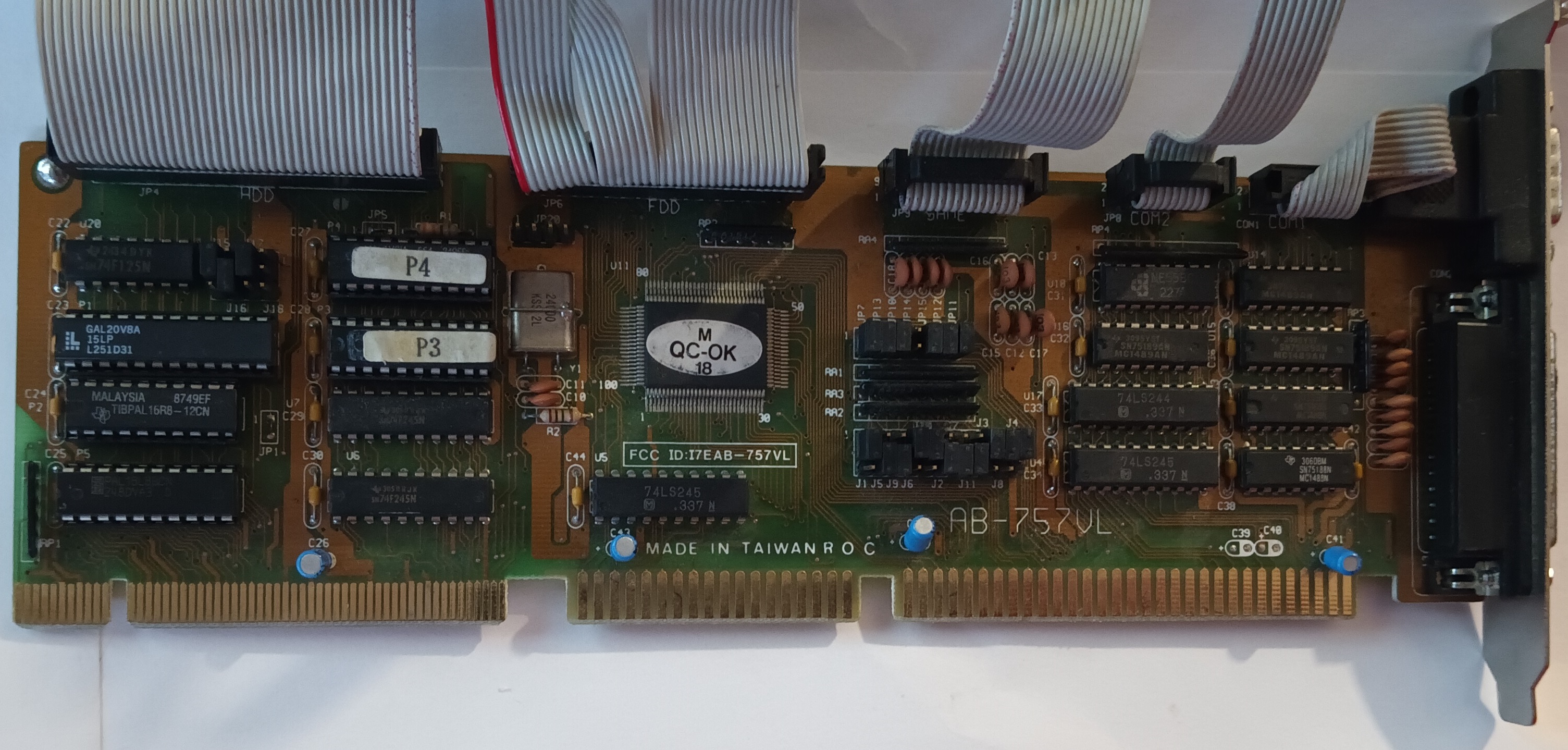

image1 Image 1 of 3 (andreja6)

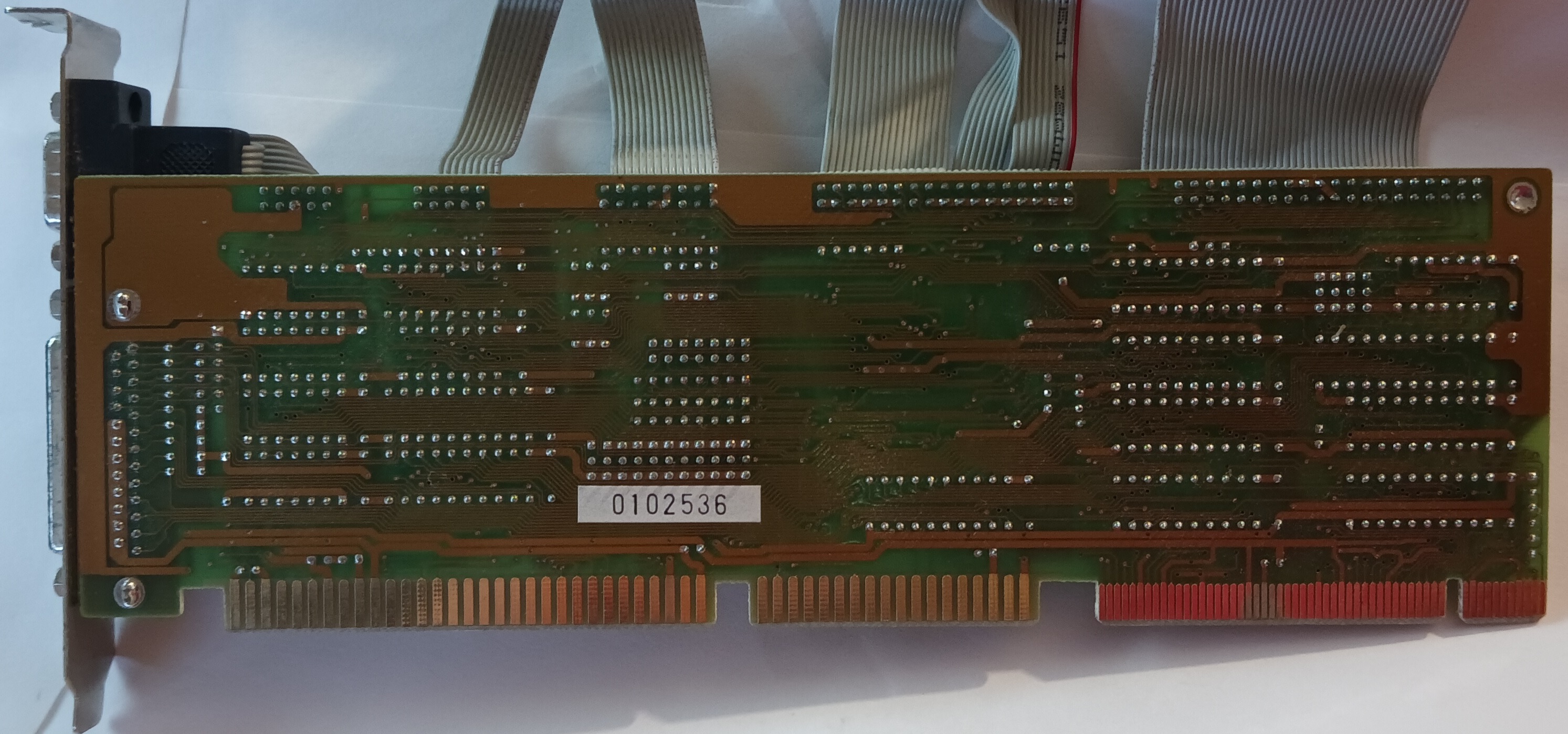

image2 Image 2 of 3 (nodaitsu)

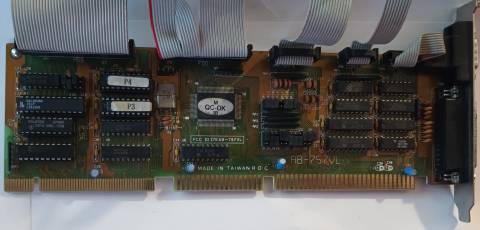

image3 Image 3 of 3 (nodaitsu)
