AIMS LAB, INC. RADIO TRACK (6520-234570-02)
Logs
typeType
FM Radio
interfaceInterface
signalSignaling
8-bit ISA
dimSlot height
1
datePCI ID
Empty
fccFCC ID
LCH 9020-234567
ramRAM size
1MB
chip Chips and specs
-> Audio
STMicroelectronics / Inmos TEA2025 (Audio Amplifier) Sanyo LC7534 (Volume and Tone Control)
-> Clock Synth / PLL
Sanyo LM7000 (PLL Frequency Synthesizer)
-> Miscellaneous
Philips TEA5712 (AM/FM stereo radio tuner)
MTL
Chip Set Unidentified
Data Bus 8-bit ISA
Card Type Sound card
I/O Options Speaker out, antenna in
Maximum Onboard Memory Unidentified
portintI/O ports
1x
  • 3.5mm TRS jack, Stereo audio out
1x
  • 3.5mm TRS jack
powerPower connectors
Empty
Last updated 2025-12-04T12:27:59Z
biosc No BIOS files available
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.2
OS support
MS-DOS Windows 3.1x
Arch
x86
Size
416.5KB
Filename
doc 1 card document available
Release date
File
Logs
Release date
1999
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2012-10-01
File
Logs
Chip
Release date
1994-09
File
Logs
Chip
Release date
2014
File
Logs
image1 Image 1 of 4 (Microhouse)
image2 Image 2 of 4 (davidg)
image3 Image 3 of 4 (davidg)

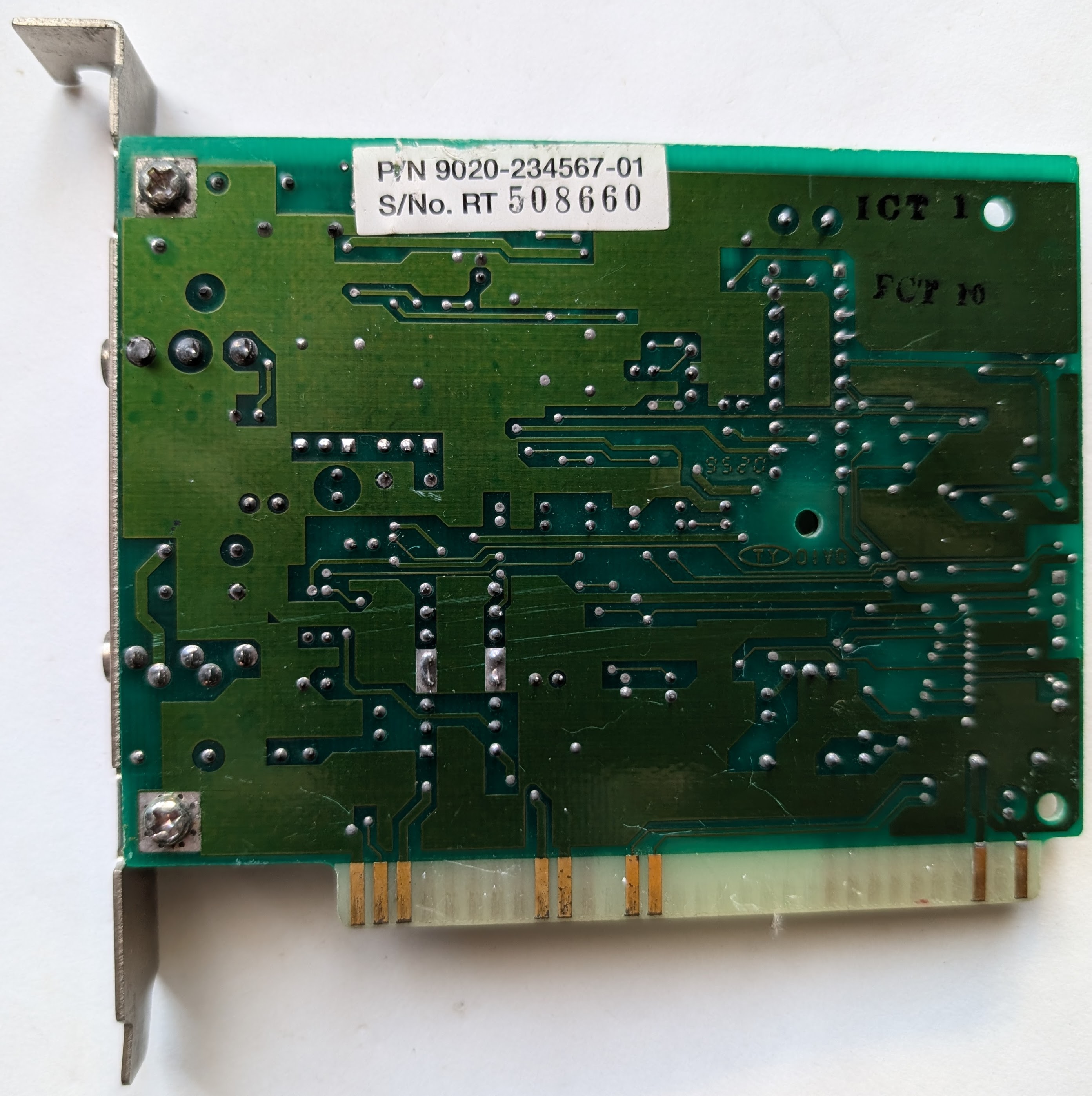

image4 Image 4 of 4 (davidg)
